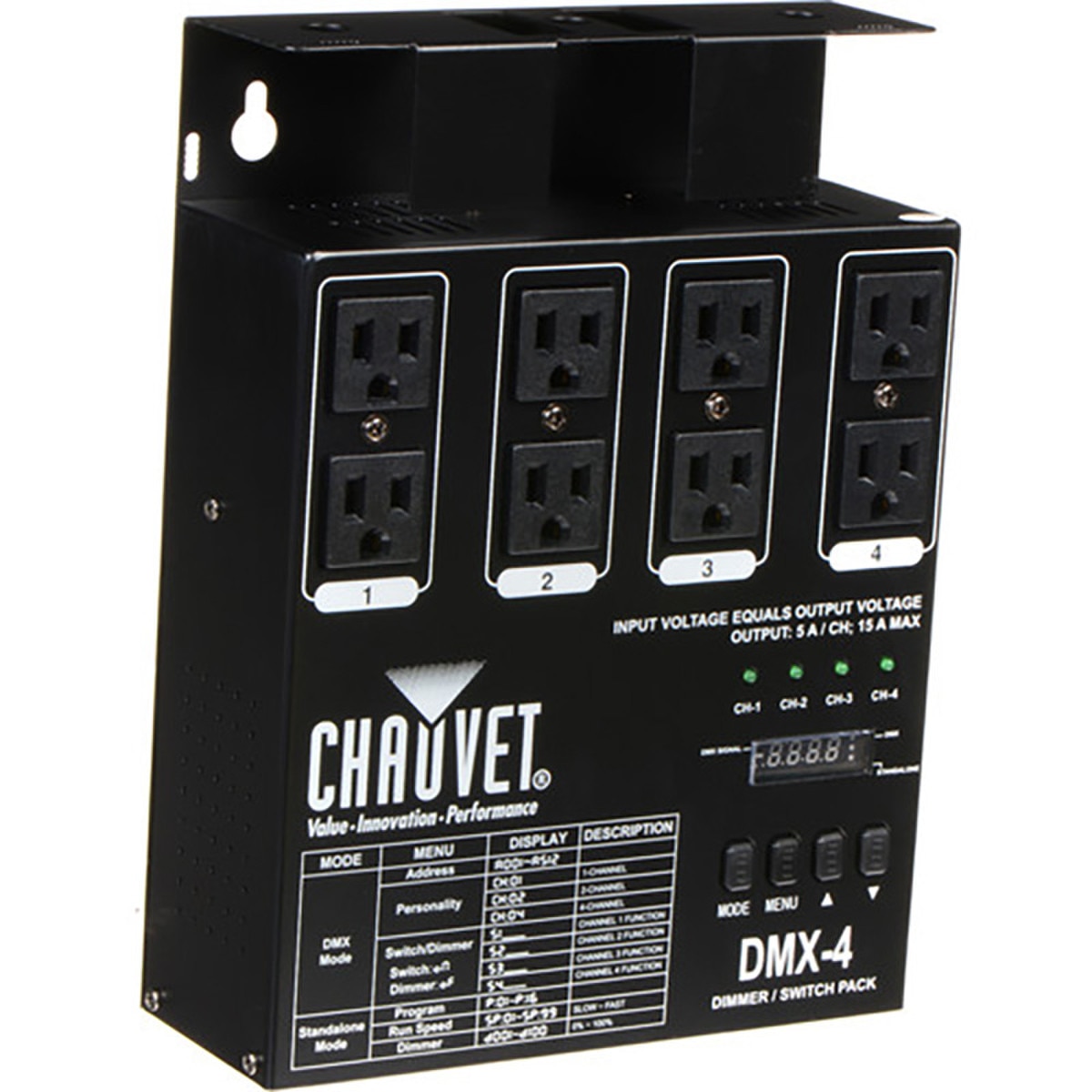

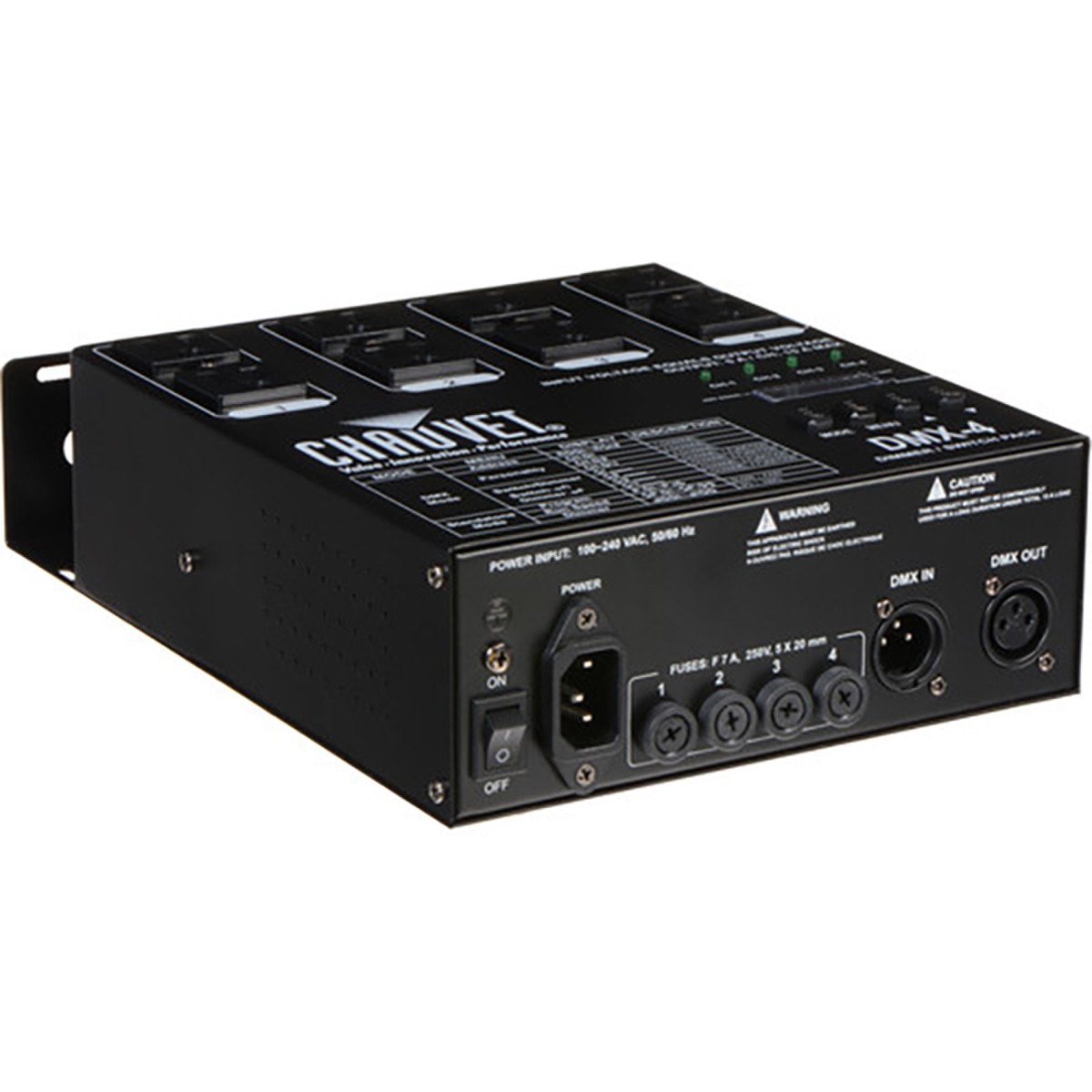

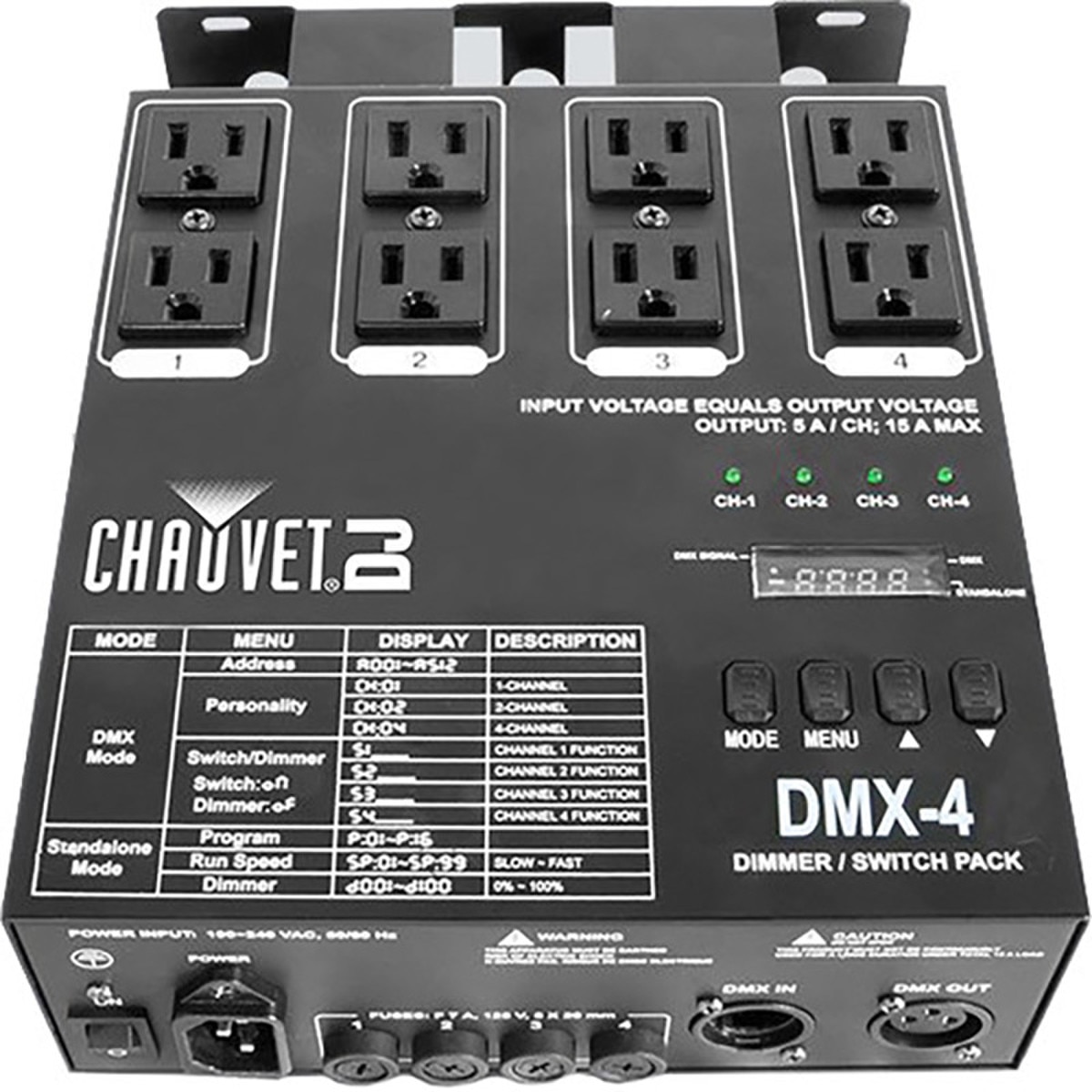

Chauvet DJ DMX-4 4 Ch. Dimmer / Relay Pack
Details
The DMX-4 Dimmer/Relay Pack is a 4-channel unit featuring two Edison plugs per channel, with each channel independently addressable. In addition, each separate channel can be configured as either dimmer or relay.
The DMX-4 features 16 user-selectable chase patterns, a variable electronic dimmer and LED display. Designed for truss mounted applications with easy access to fuse replacement.
Features:
- 4-channel DMX-512 dimmer / switch pack
- Each channel can be set to any DMX address
- Variable electronic dimmer (0-100%)
- Each channel can be set as either dimmer or relay
- 16 user-selectable chase patterns
- Adjustable speed control and dimming with or without DMX
- 2 Edison plugs per channel
Specifications:
- Input voltage equals output voltage
- Output: 5A per channel, 15A max
- AC Power: Autoswitching 100V-240V 50/60Hz
- Weight: 5lbs (2.2kgs)
- Size: 8.3 x 7.7 x 2.8" (210 x 194 x 70mm)
Chauvet DJ DMX-4 4 Ch. Dimmer/Relay Pack User Manual.pdf
