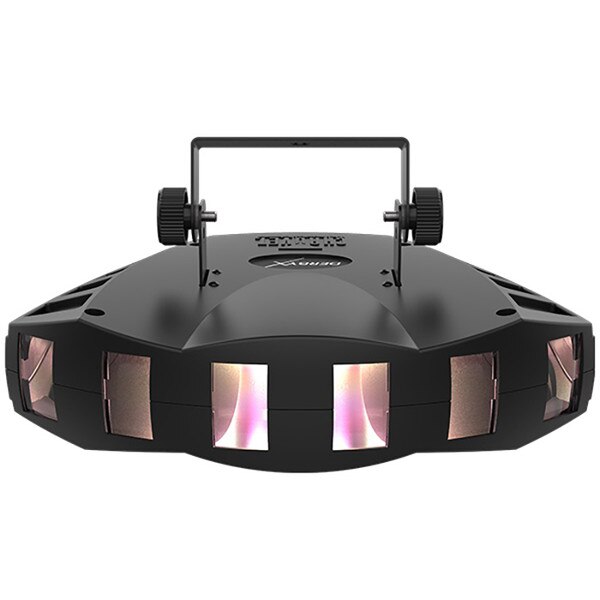

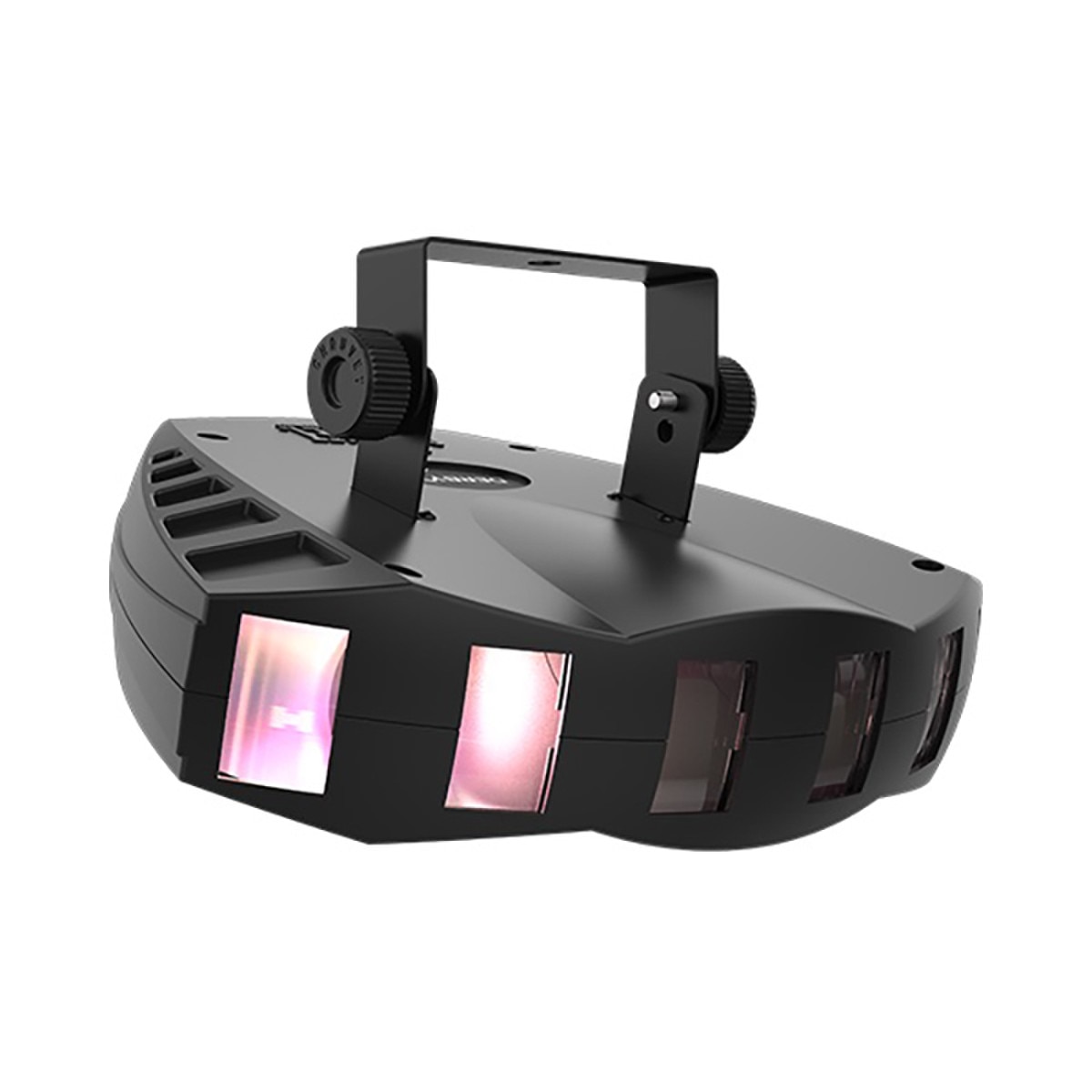

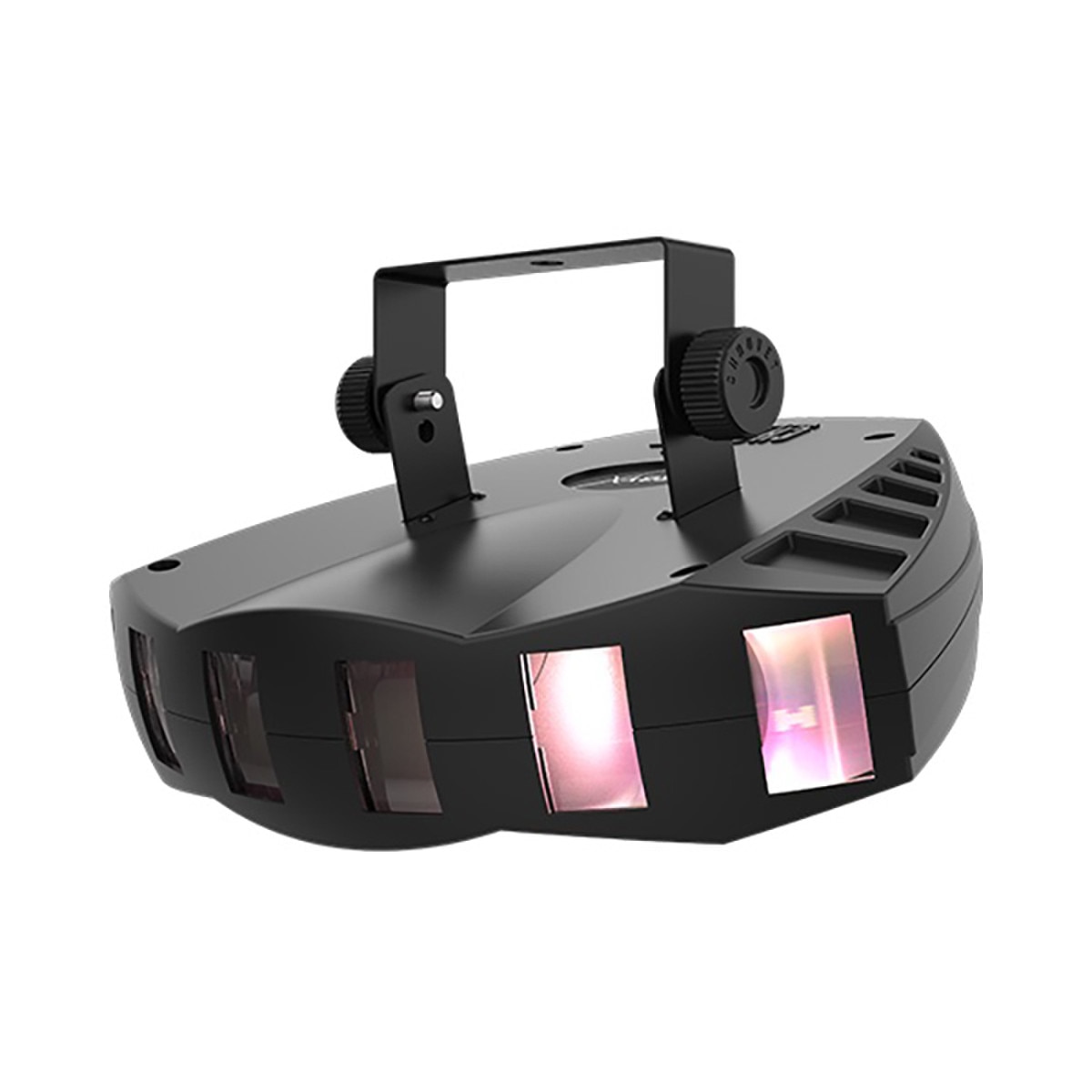

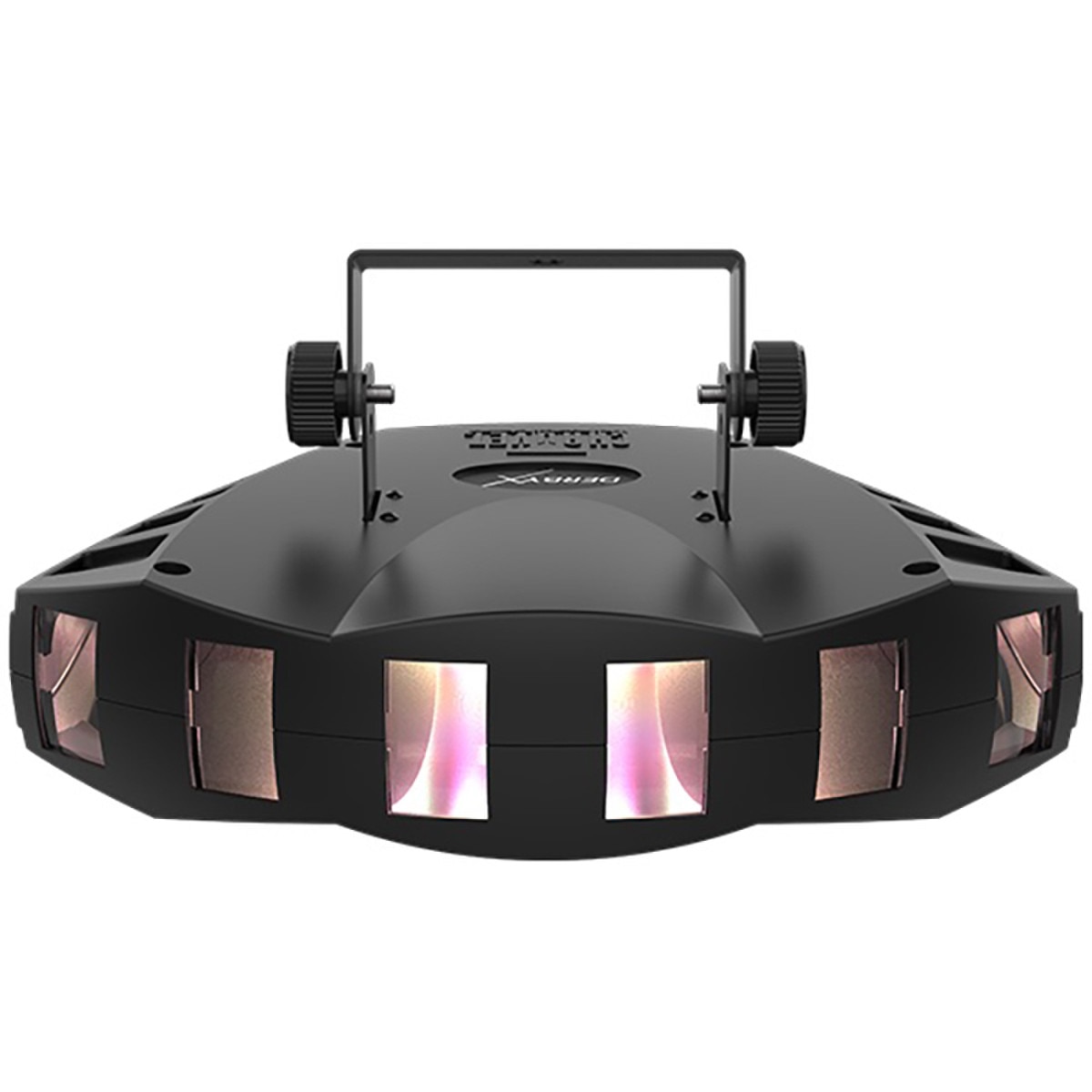

Chauvet DJ Derby X

The Derby X is a DMX-512 LED derby effect light, featuring individual control of all 6 LED clusters. Additional features include blackout/static/strobe, built-in automated and sound activated programs, and linkable power for up to 27 units.

Highlights:

• LED derby effect light spreads multicolored, chasing beams throughout the room

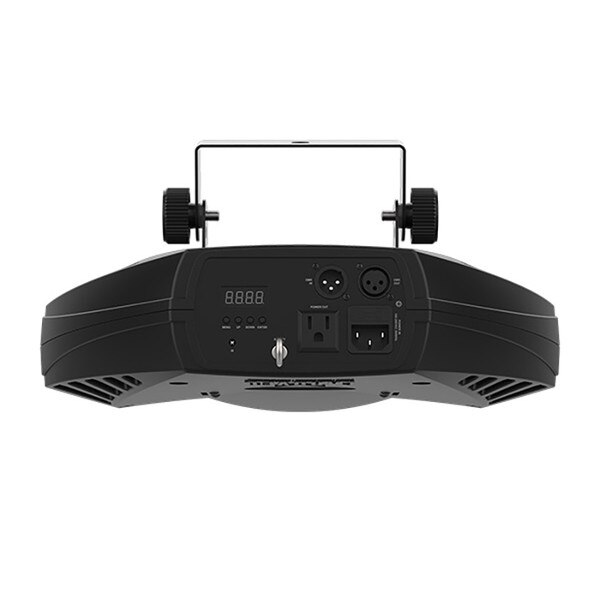

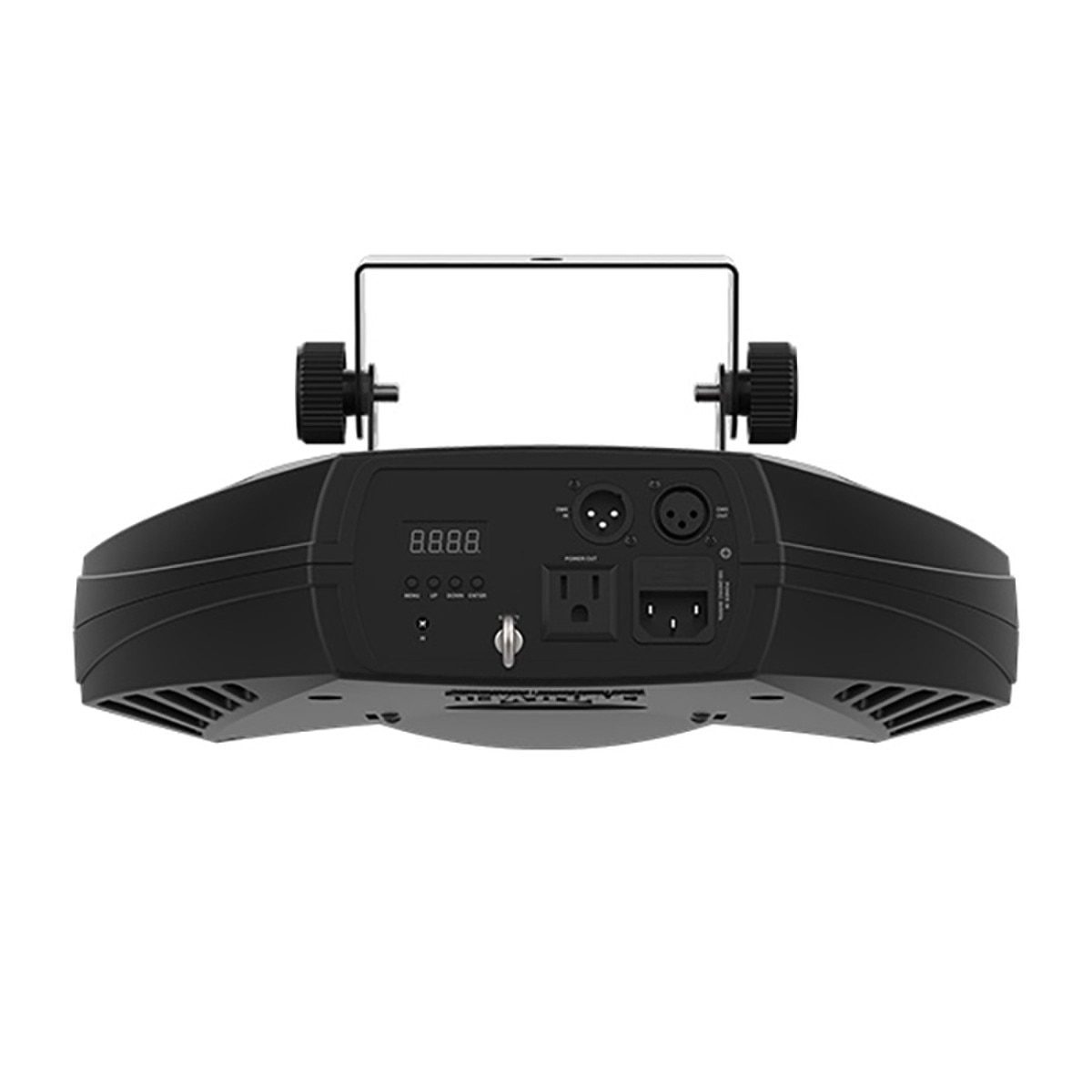

• Digital display allows quick setup of fixture capabilities
• Wireless control when using the optional IRC-6 remote control
• Enhance light shows with blackout, static and strobe effects
• Increase flexibility with individual control of red, green and blue LEDs within each of the 6 clusters
• Easily access built-in automated/sound programs using the onboard display

Specifications:

• DMX Channels: 8
• DMX Connectors: 3-pin XLR
• Light Source: 90 LEDs (30 red, 30 green, 30 blue) 1 W, (96 mA), 50,000 hours life expectancy.
• Strobe Rate: 0 to 26 Hz
• Coverage Angle: 96°
• Power Linking: 62 units @ 120 V; 94 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:

• 10 W, 0.2 A @ 120 V, 60 Hz
• 10 W, 0.1 A @ 230 V, 50 Hz

Construction:

• Weight: 4 lb (2 kg)
• Size: 11.9 x 15 x 7.4 in (302 x 382 x 187 mm)
• Approvals: CE, UKCA, RoHS
• Cable Length: 5 ft (1.5 m)

Optional Controllers:

• IRC-6

What's Included:

• Derby X
• Power cord
• Quick Reference Guide
