Chauvet Professional COLORado 2 Solo VW

(0)No Reviews yet
$1,150.00
SKU: Chauvet Professional COLORADO2SOLOVW

Details

COLORado 2 Solo VW is fitted with three dual-color CW-WW LEDs to project a beautiful and fully homogenized wash with superior color temperature control and zoom. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from stage and studio to outdoor festival productions.

Features:

  • Zooming variable white LED wash for touring, rental, and production, indoors or out
  • Color Temperature (range): 2800 to 7000 K
  • Completely homogenized wash with superior color mixing and zoom
  • 5° to 48° smooth and fast zoom
  • All environment operation with IP rated power and DMX connections
  • Color temperature presets, from 2800 K to 7000 K
  • Selectable, smooth dimming curves for programming versatility
  • OLED display with password protection

Specifications:
Optical:

  • Light Source: 3 LEDs (dual-color CW-WW) 35 W, (2.42A), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 7000 K
  • Color Temperature (at full): 4565 K
  • Front lens diameters: 160 mm
  • CRI: 96
  • Beam Angle: 4.8° to 35.5°
  • Field Angle: 7.3° to 48.4°
  • Cutoff Angle: 9° to 56.7°
  • Zoom Range: (Beam angle to Cutoff angle) 4.8° to 56.7°
  • Zoom Range: (Narrowest Beam Angle to Widest Field Angle) 4.8° to 48.4°
  • Lumens (4.8°) : 1,555
  • Lumens (48.4°) : 1,731
  • Illuminance (4.8°) : 8,744 lux @ 5 m
  • Illuminance (48.4°) : 213 lux @ 5 m
  • Selectable PWM : 600 Hz, 1200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 25 Hz
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes

Construction/Physical:

  • Dimensions: 8.26 x 10.7 x 15.2 in (210 x 274 x 387 mm)
  • Weight: 16.0 lb (7.2 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium
  • Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

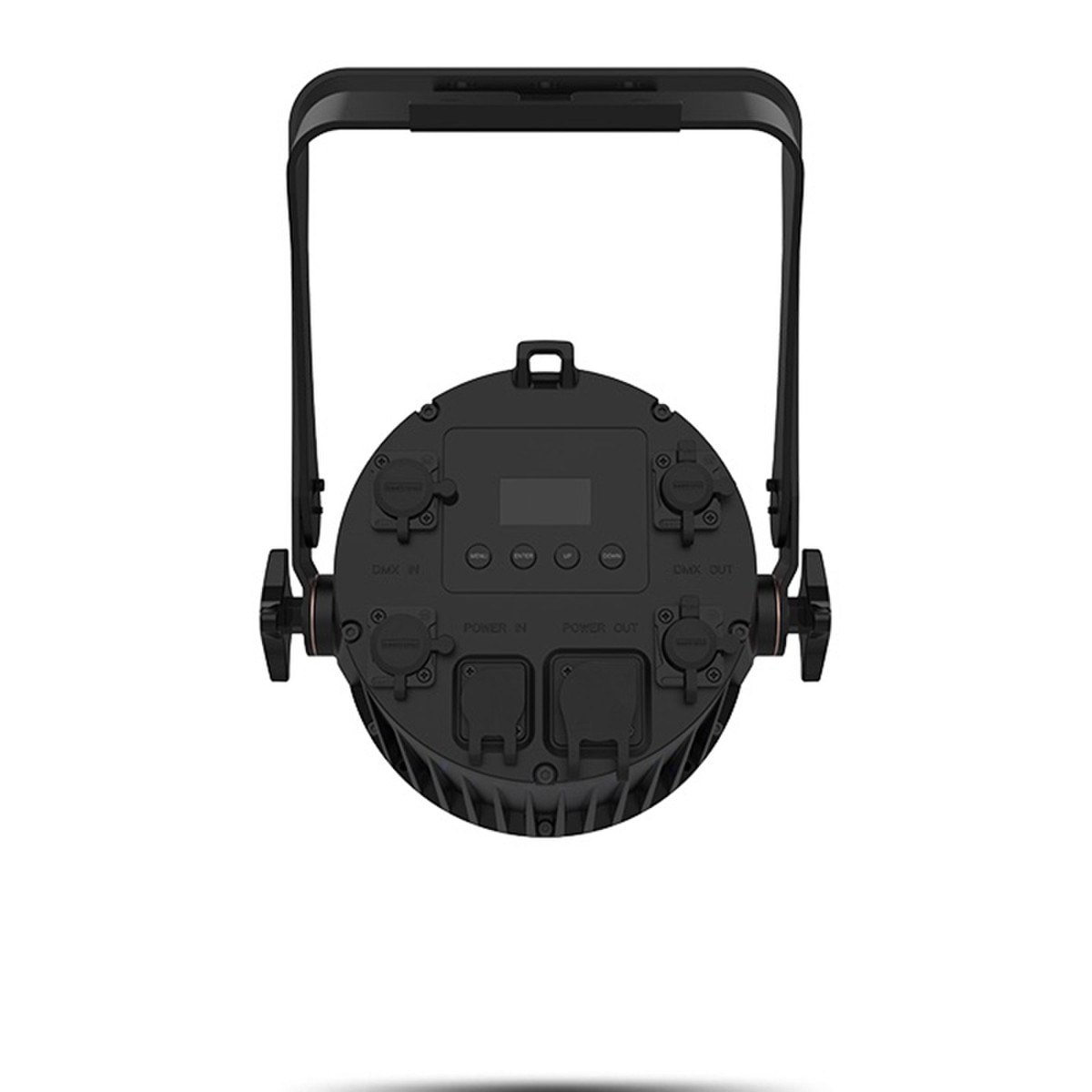

Connections:

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control:

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 7 10 or 10STD
  • Modes/Personalities: 5 personalities (1CH, 4CH, 7CH, 10CH, 10CH Steady)

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
  • Power and Current: 127 W, 1.064 A @ 120 V, 60 Hz
  • Power and Current: 125 W, 0.627 A @ 208 V, 60 Hz
  • Power and Current: 123 W, 0.571 A @ 230 V, 50 Hz

Certifications/Qualifications:

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

What's Included:

  • COLORado 2 SOLO VW
  • Seetronic Powerkon IP65 power cord

Optional Accessories:

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik TRUE1 power linking cables
  • 5-pin DMX Cables

COLORado 2 Solo VW - User Manual.pdf
COLORado 2 Solo VW - Quick Reference Guide.pdf
COLORado 2 Solo VW - Photometrics Report.pdf
COLORado 2 Solo VW - Cutsheet.pdf
