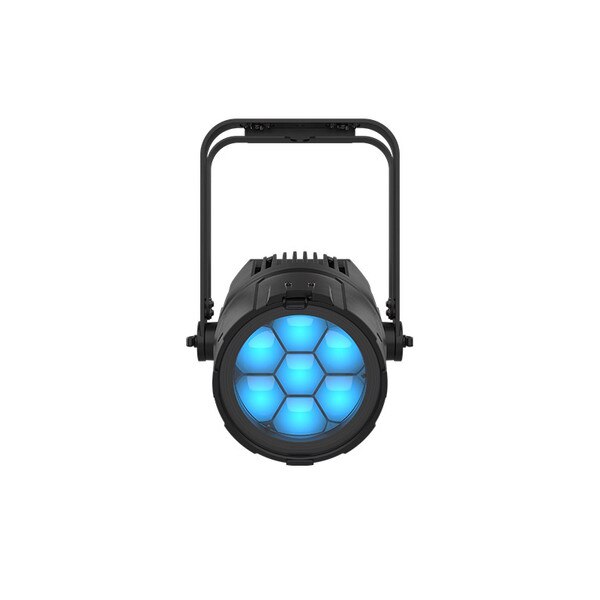

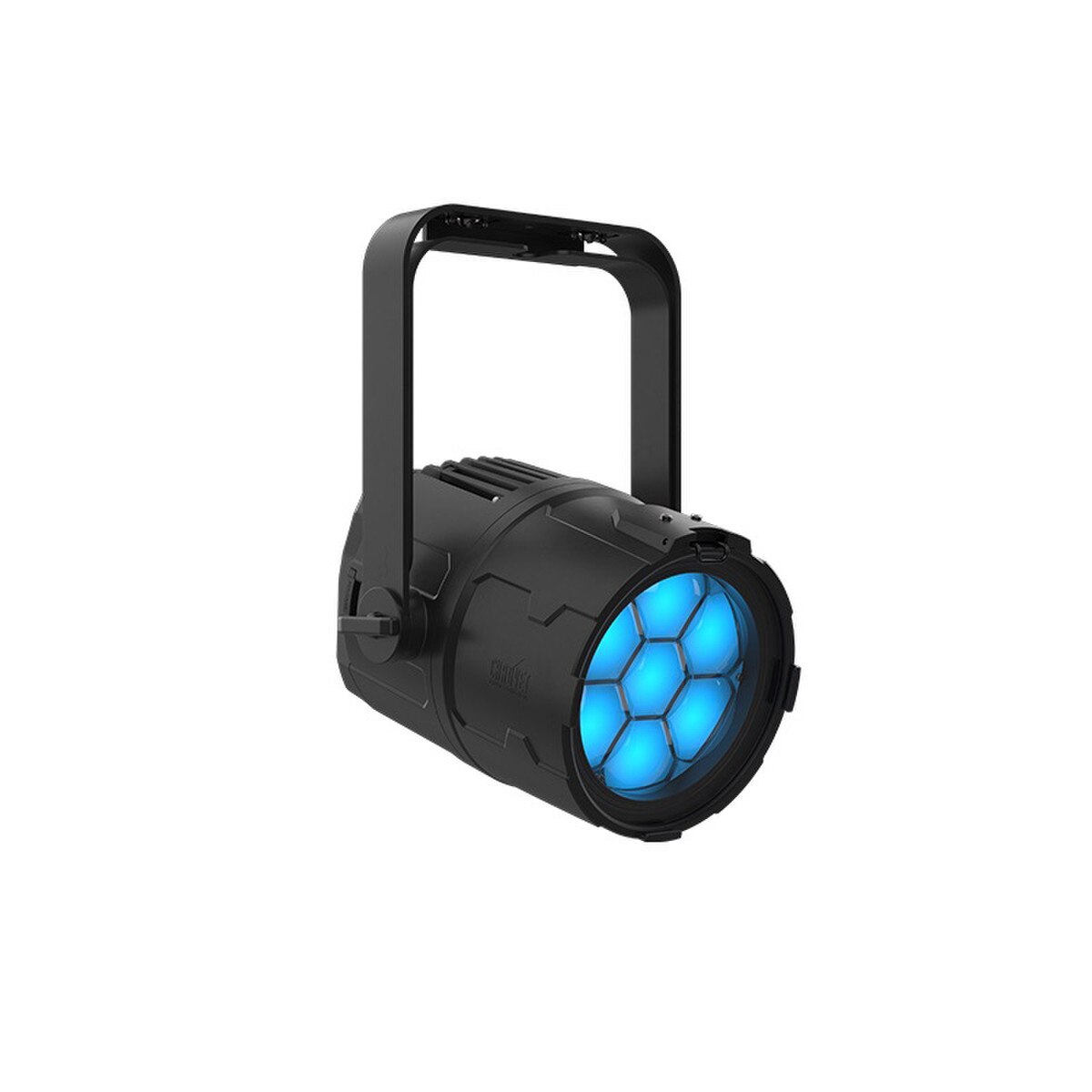

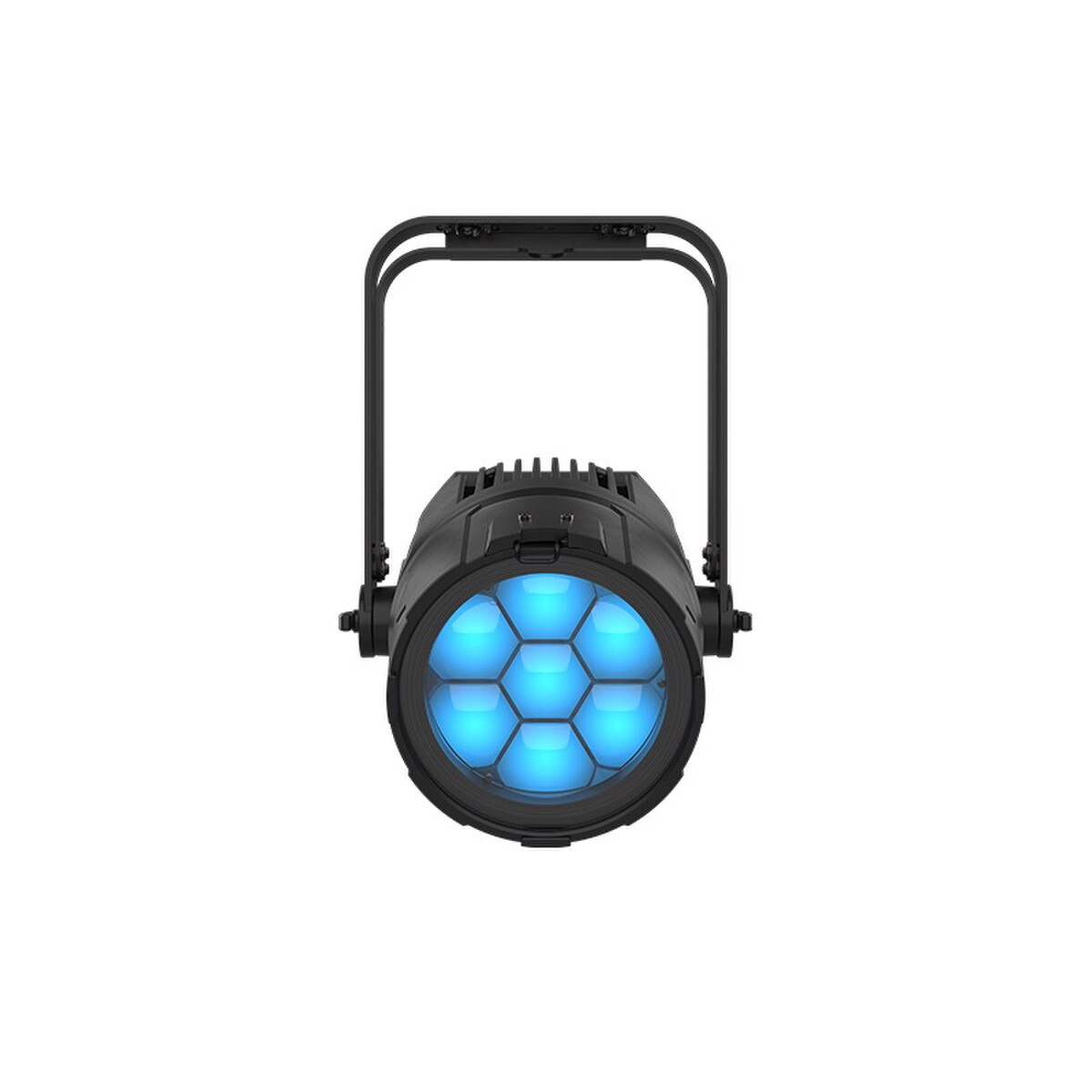

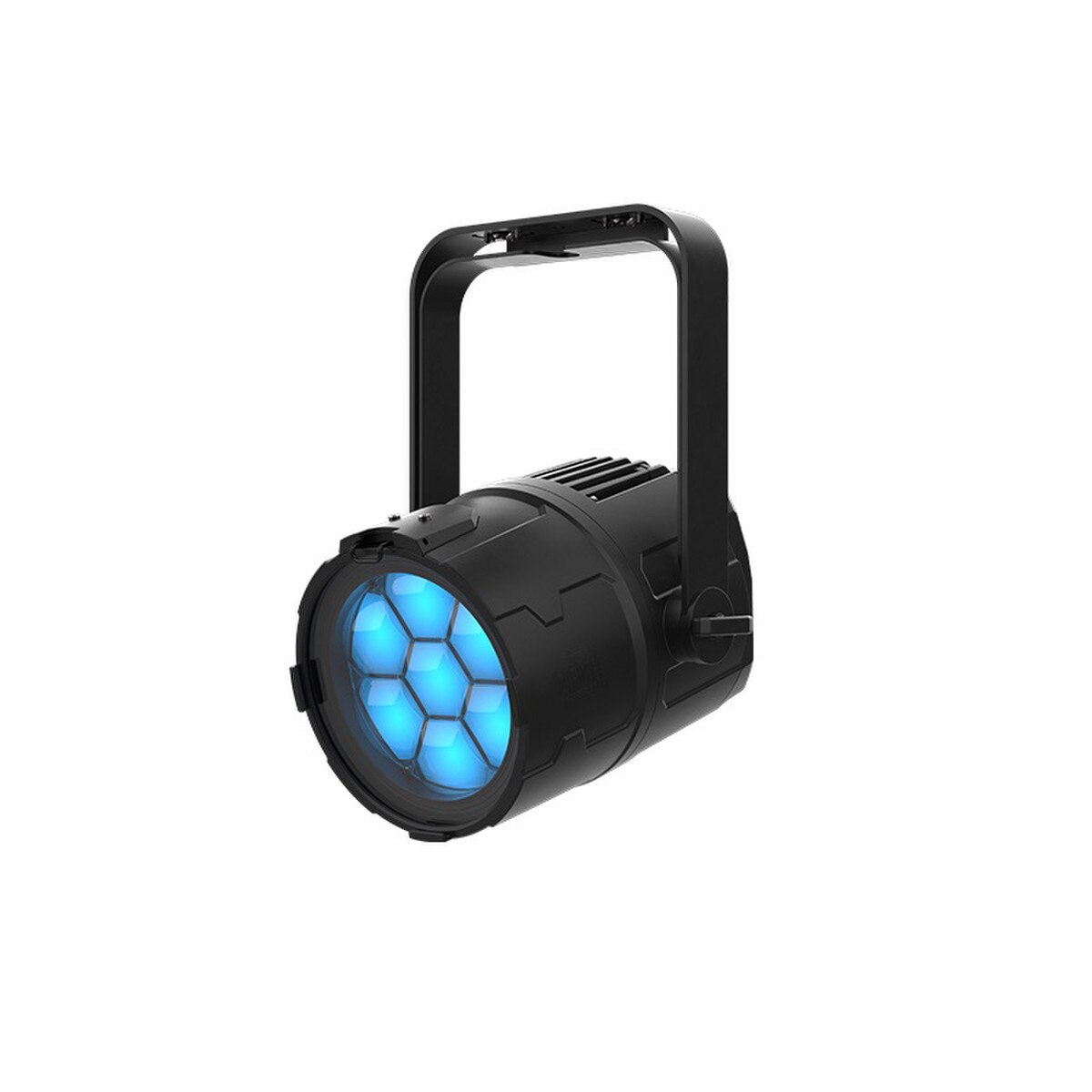

Chauvet Professional COLORado 3 Quad Zoom

All the rugged IP65 reliability of Chauvet Professional's production-grade COLORado family in a fixture featuring the power of lime to achieve better whites and more accurate color rendition. A new RGBL LED source paired with optics optimized for its upgraded zoom system delivers higher output than ever before, from a road-tested design with new touring-friendly features that include backlit buttons for easier work in the dark.

At a Glance:

• High-performance RGBL LED zoom wash for touring, rental, and production -indoors or out
• High-power with smooth and even color mixing
• 3.9° to 52.6° smooth and fast zoom
• All environment operation with IP-rated power and DMX
  connections
• Easy mounting using traditional clamps, quick
  connecting omega bracket, or split yoke floor stand
• Selectable, smooth dimming curves for programming
  versatility
• OLED display with back lit buttons, including focus mode
  and password protection

Specifications:
Optical:

• Light Source: 7 LEDs (quad-color RGBL), 8.4 to 13 W, (2.7 A), 50,000 hours life.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5882 K
• CRI (3200K): 83
• Beam Angle: 3.9° to 38.5°
• Field Angle: 6° to 52.6°
• Cutoff Angle: 7.3° to 58.9°
• Zoom Range: 3.9° to 52.6°
• Lumens (3.2°): 3350
• Lumens (39.9°): 5974
• Illuminance (3.9°): 27,567 lux @ 5 m
• Illuminance (38.5°): 657 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz

Dynamic Effects:

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction / Physical:

• Dimensions: 16.34 x 10.94 x 8.30 in (415 x 278 x 210.84 mm)
• Weight: 14.2 lb (6.4.0 kg)
• Exterior Color: Black
• Housing Material: Magnesium diecast
• Accessory Holder/Gel Frame Size: 7.5 in (190.5mm)

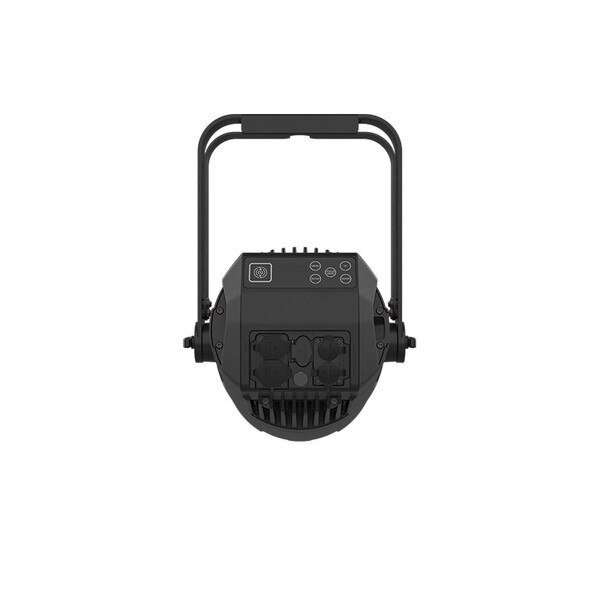

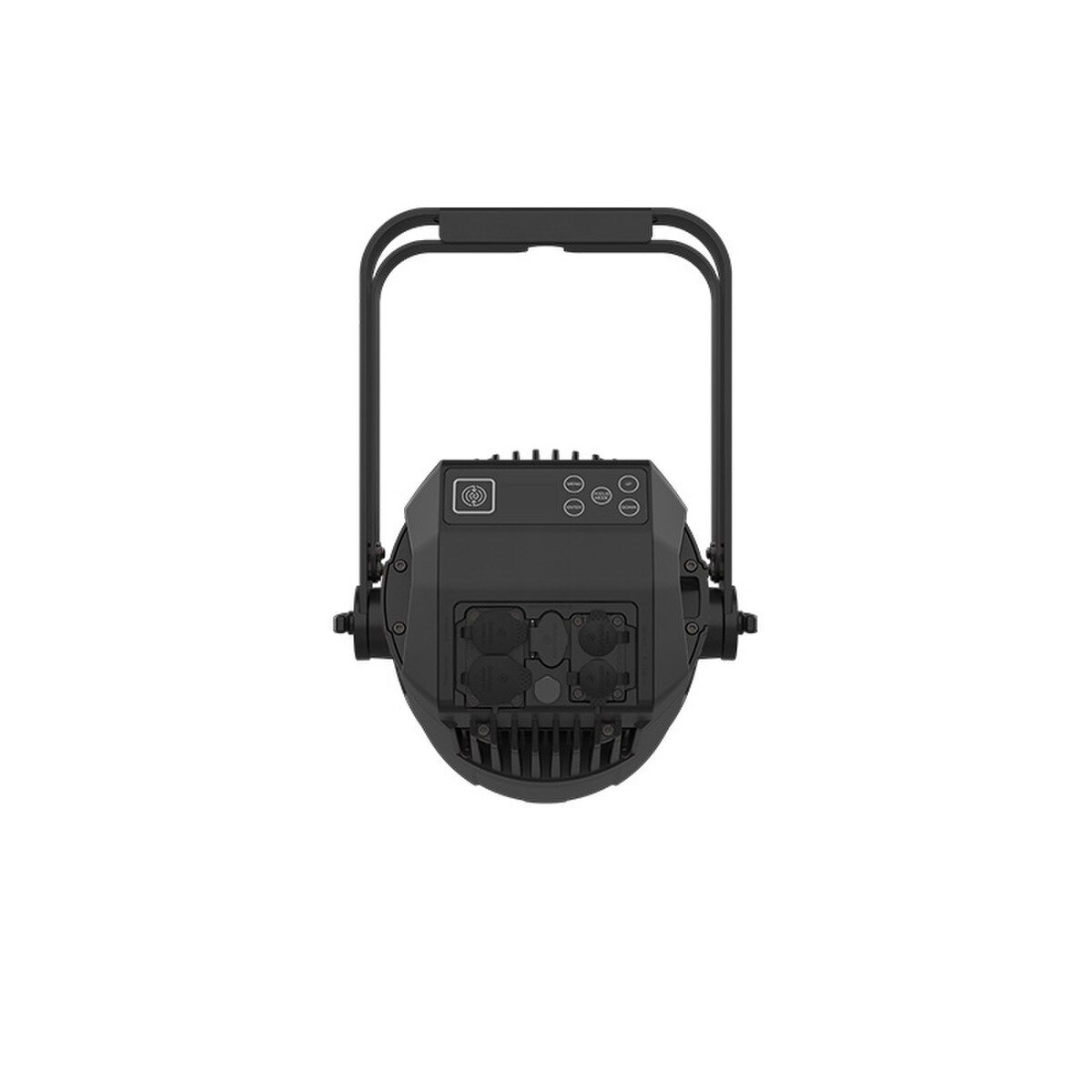

Connections:

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control:

• Control Protocol: DMX, RDM
• DMX Channels: 1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH or HSV
• Modes/Personalities: 9 personalities (1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH, HSV)

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: units @ 120 V; units @ 208 V; units @ 230 V
• Power and Current: 258 W, 2.17 A @ 120 V, 60 Hz
• Power and Current: 255 W, 1.28 A @ 208 V, 60 Hz
• Power and Current: 260 W, 1.20 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 122 °F (-20 °C to 50 °C)

What's Included:

• COLORado 3 Quad Zoom
• Seetronic Powerkon IP65 power cord
• Omega bracket
• Gel frame holder (7.5 in/190.5 mm accessories)

Optional Accessories:

• Professional Clamps : CTC-50HC, CTC-50HCN
• Riglink TR1 Cables
• Riglink IP DMX Cables
• Ovation 7.5 Barndoor
