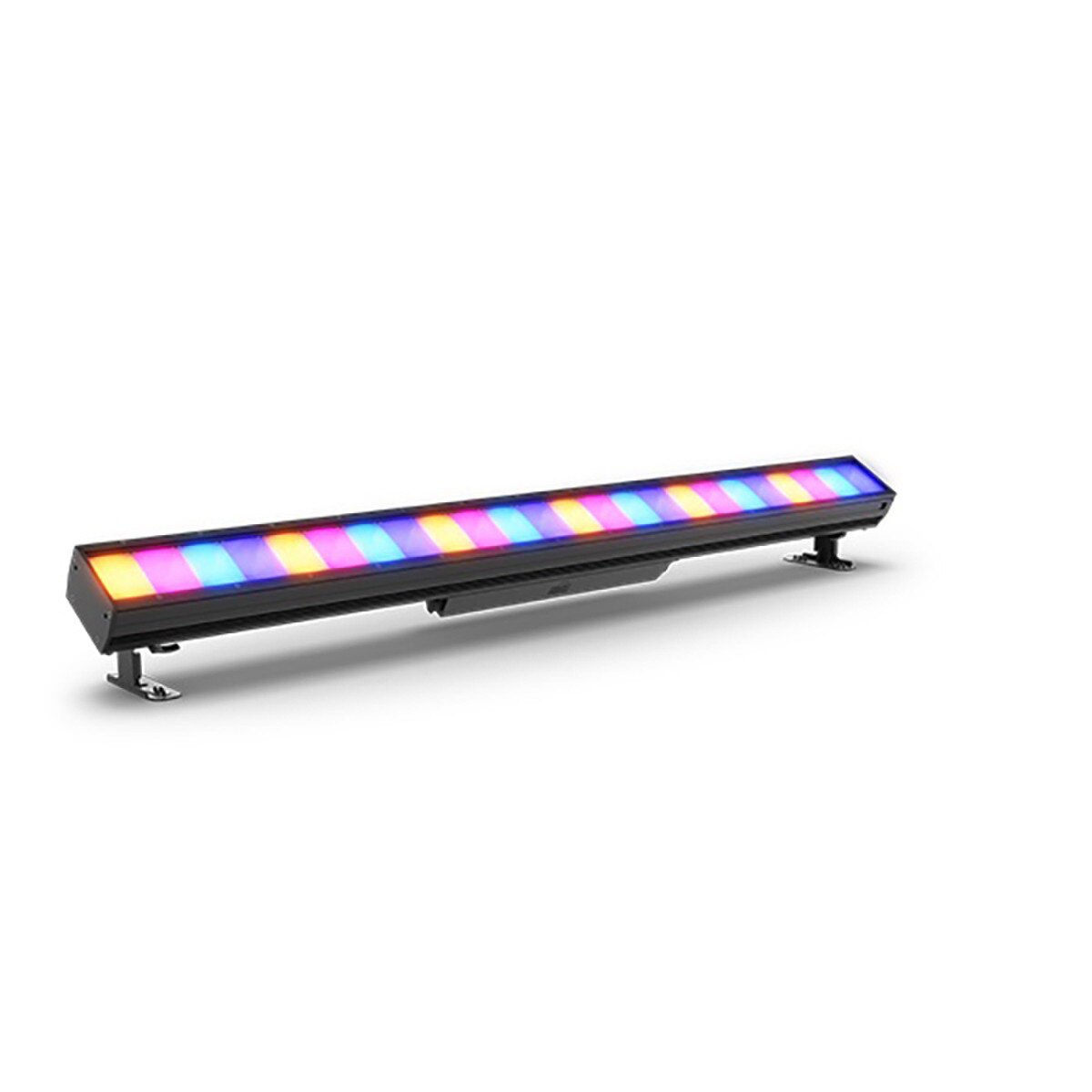

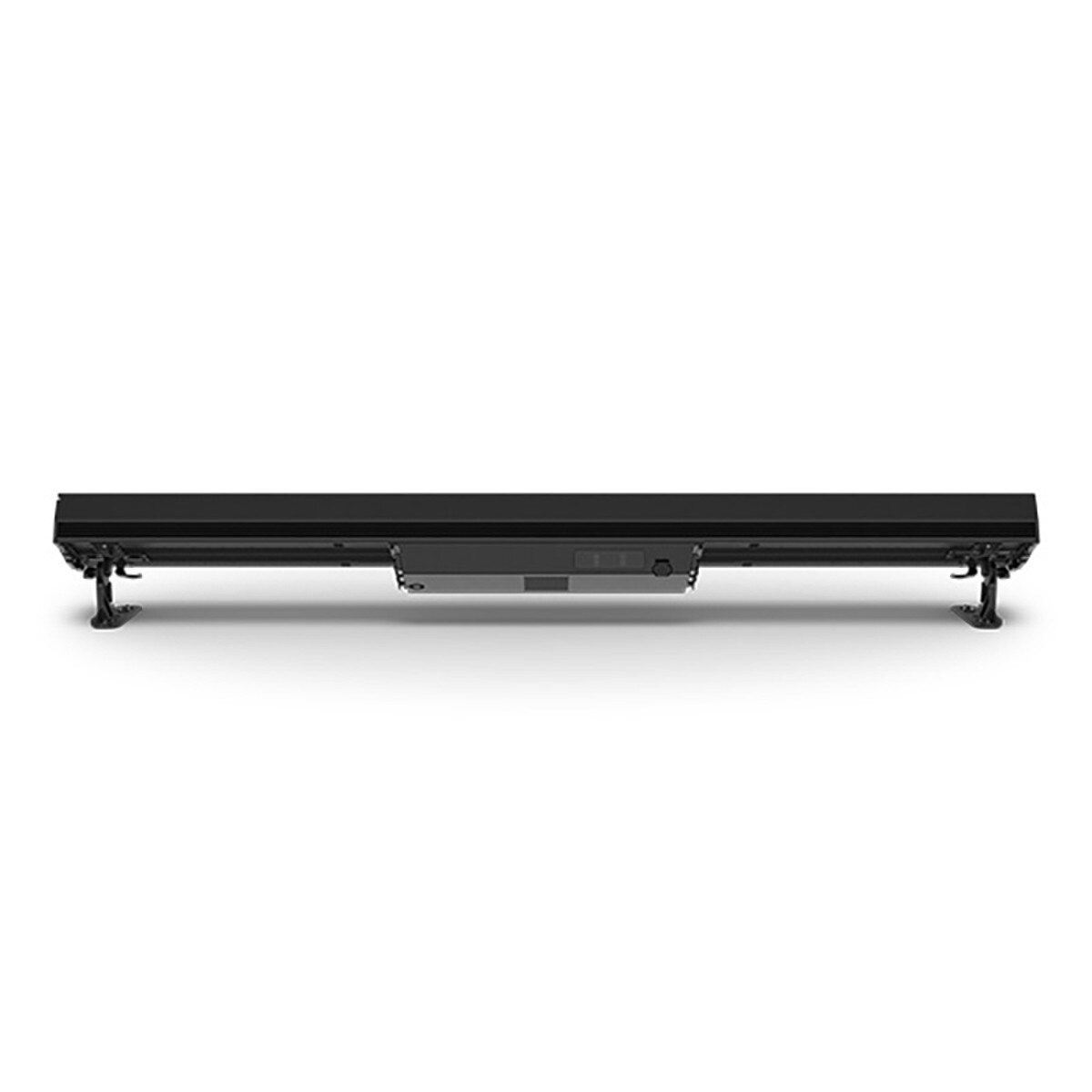

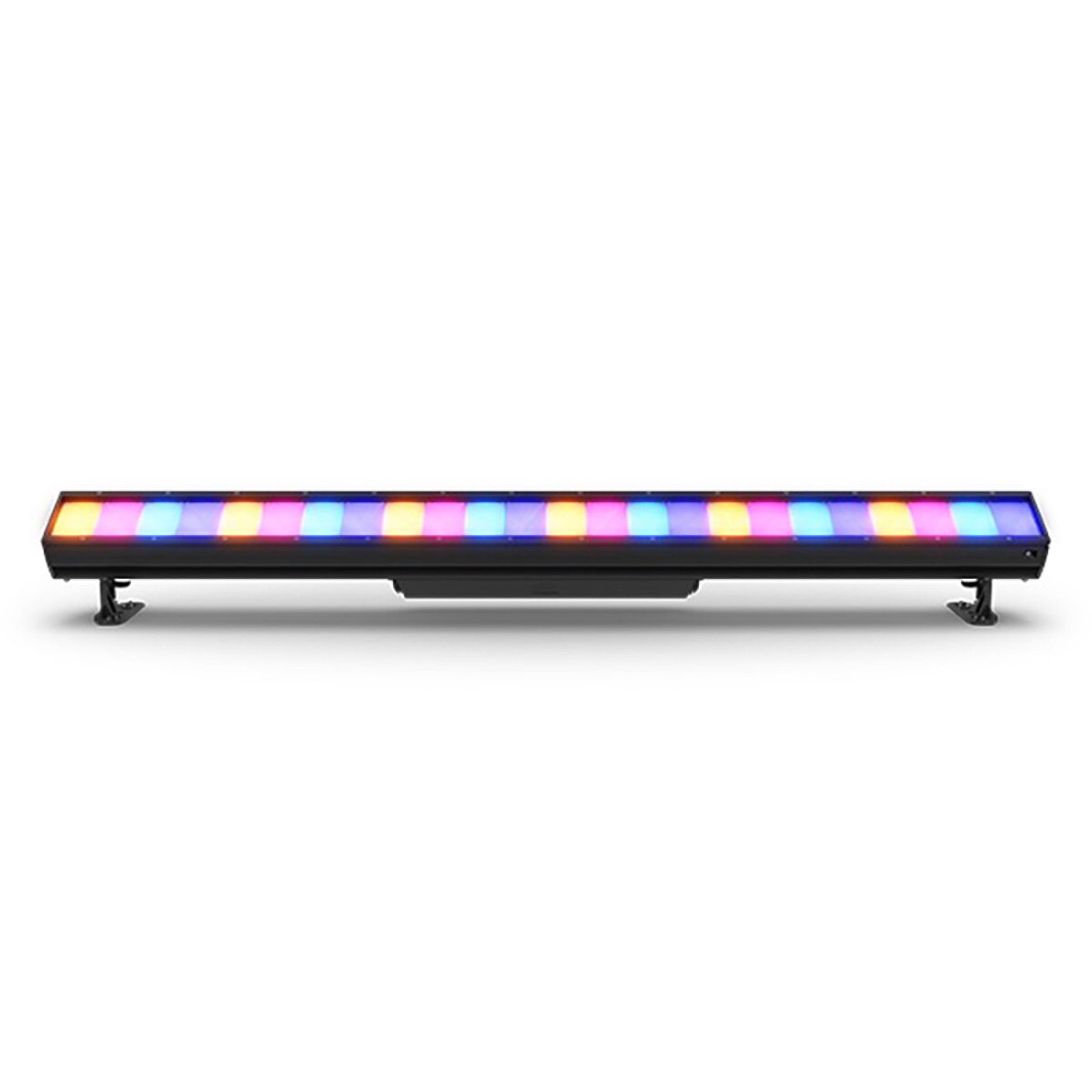

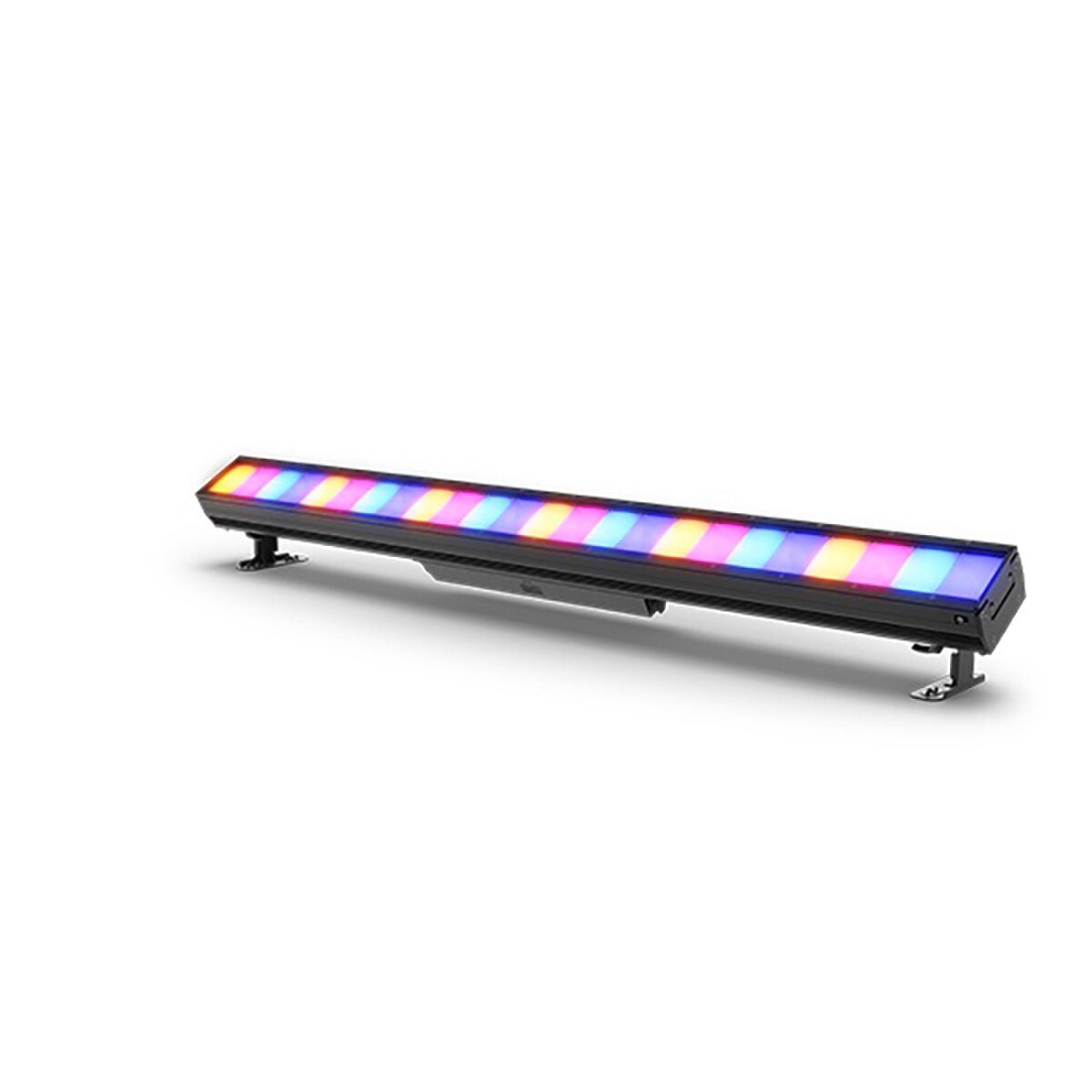

Chauvet Professional COLORado Solo Bar 6

(0)No Reviews yet
$4,750.00
SKU: Chauvet Professional COLORADOSOLOBAR6

Details

COLORado Solo Bar 6 is a 24-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 6 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 6 brings new versatility to touring, festivals, televised and theatrical productions.

At a Glance:

  • Full-spectrum LED batten suited equally for rental/production, broadcast, film, and special events
  • IP65 rating for all weather use and protection from dust/fog/haze indoors or out
  • Linear color temperature presets from 2800 K to 6500 K with high TM-30, CRI and CQS
  • Perfectly blended and even color from edge to edge of the cell, no "circle in a square" look
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • Multiple control methods from on-board DMX, RDM, CRMX, Art-Net and sACN
  • Virtually silent operation for use in studio applications
  • Easily adjustable sliding brackets (on standard T-rail) for optimal placement around truss supports
  • Guide pins for easy end-to-end alignment
  • Slide-in slot for various included and accessory filters as well as an on-board stowable glare shield
  • Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme

Specifications:
Optical:

  • Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warm white, 24 lime) 15.2 – 18.4 W, (870 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 9167 K
  • CRI: 95
  • Beam Angle: 16.7°
  • Beam Angle (w/CYC Diffusion): 40.7°
  • Beam Angle (w/Half Diffusion): 18.9°
  • Beam Angle (w/Stealth Diffusion): 25°
  • Field Angle: 36.1°
  • Field Angle (w/CYC Diffusion): 84.4°
  • Field Angle (w/Half Diffusion): 46.8°
  • Field Angle (w/Stealth Diffusion): 61.2°
  • Lumens : 25,198
  • Lumens (w/CYC Diffusion): 32,913
  • Lumens (w/Half Diffusion): 23,920
  • Lumens (w/Stealth Diffusion): 8,571
  • Illuminance: 5,834 lux @ 5 m
  • Illuminance (w/CYC Diffusion) : 1,739 lux @ 5 m
  • Iluminance (w/Half Diffusion): 3,788 lux @ 5 m
  • Iluminance (w/Stealth Diffusion): 932 lux @ 5 m
  • Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construction / Physical:

  • Dimensions: 69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm)
  • Weight: 49 lb (22.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast, aluminum profile

Connections:

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

Control:

  • Control Protocol: Art-Net, sACN, DMX, CRMX, RDM

DMX Channels:

  • 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
  • 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
  • 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
  • 6 CELL (CCT 19ch,HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch)
  • 8 CELL (CCT 25ch,HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)
  • 12 CELL (CCT 37ch,HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch)
  • 24 CELL (CCT 73ch,HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch)

Art-Net / sACN Channels:

  • 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
  • 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
  • 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
  • 6 CELL (CCT 19ch,HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch)
  • 8 CELL (CCT 25ch,HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)
  • 12 CELL (CCT 37ch,HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch)
  • 24 CELL (CCT 73ch,HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch)
  • Modes/Personalities: 72 personalities

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V, 5 units @ 240 V
  • Power and Current: 558 W, 5.61 A @ 100 V, 60 Hz
  • Power and Current: 555 W, 4.62 A @ 120 V, 60 Hz
  • Power and Current: 542 W, 2.62 A @ 208 V, 60 Hz
  • Power and Current: 542 W, 2.37 A @ 230 V, 50 Hz
  • Power and Current: 543 W, 2.28 A @ 240 V, 60 Hz

Certifications / Qualifications:

  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

  • COLORado Solo Bar 6
  • Seetronic Powerkon IP65
  • Omega brackets with mounting hardware
  • 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
  • Short Mount Accessory Feet
  • Glare Shield

Optional Accessories:

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-08
  • IP Rated Seetronic® Powerkon Extensions
  • IP Rated DMX cables
  • UPLOAD 03 software uploader

COLORado Solo Bar 6 Quick Reference Guide.pdf
COLORado Solo Bar 6 DMX Charts.pdf
