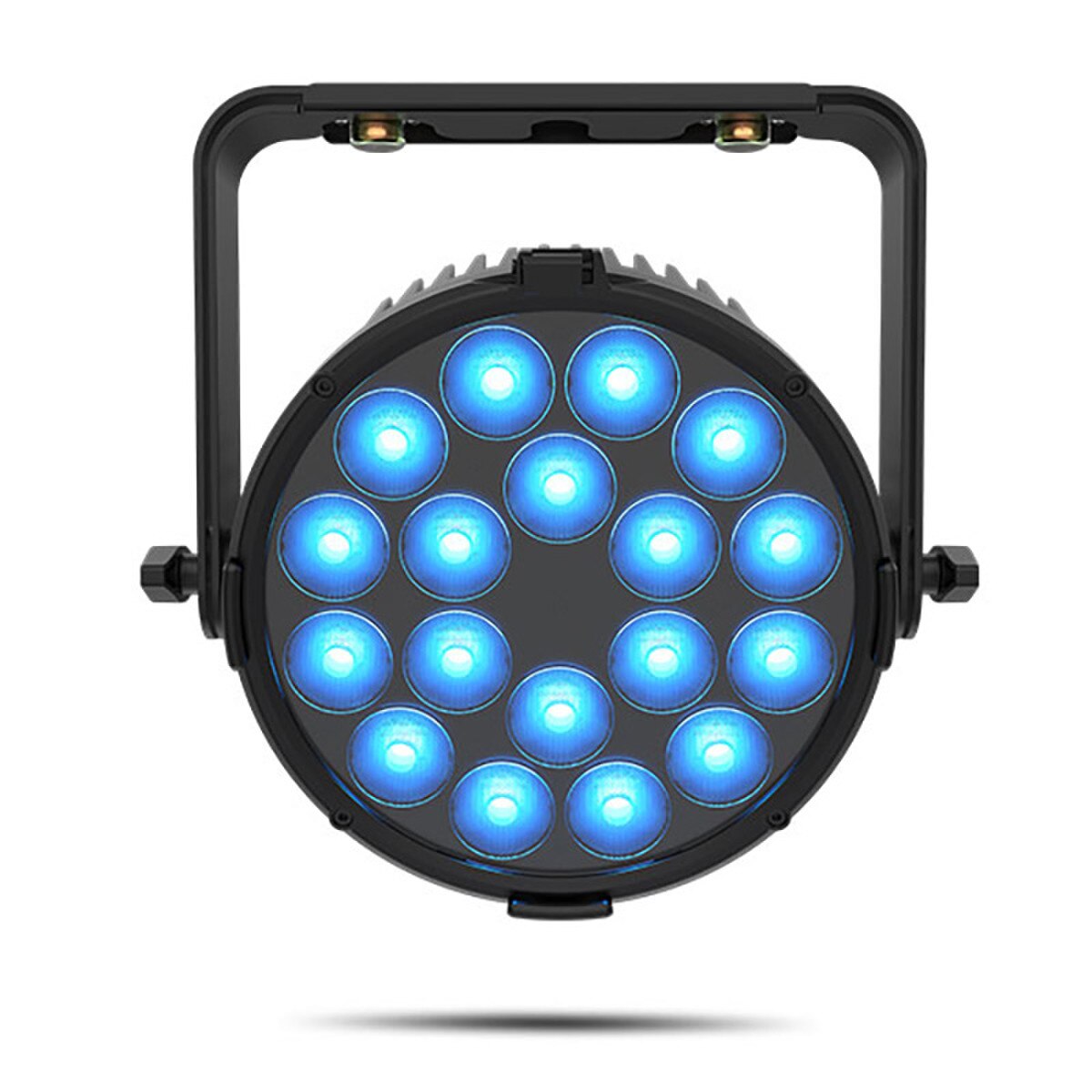

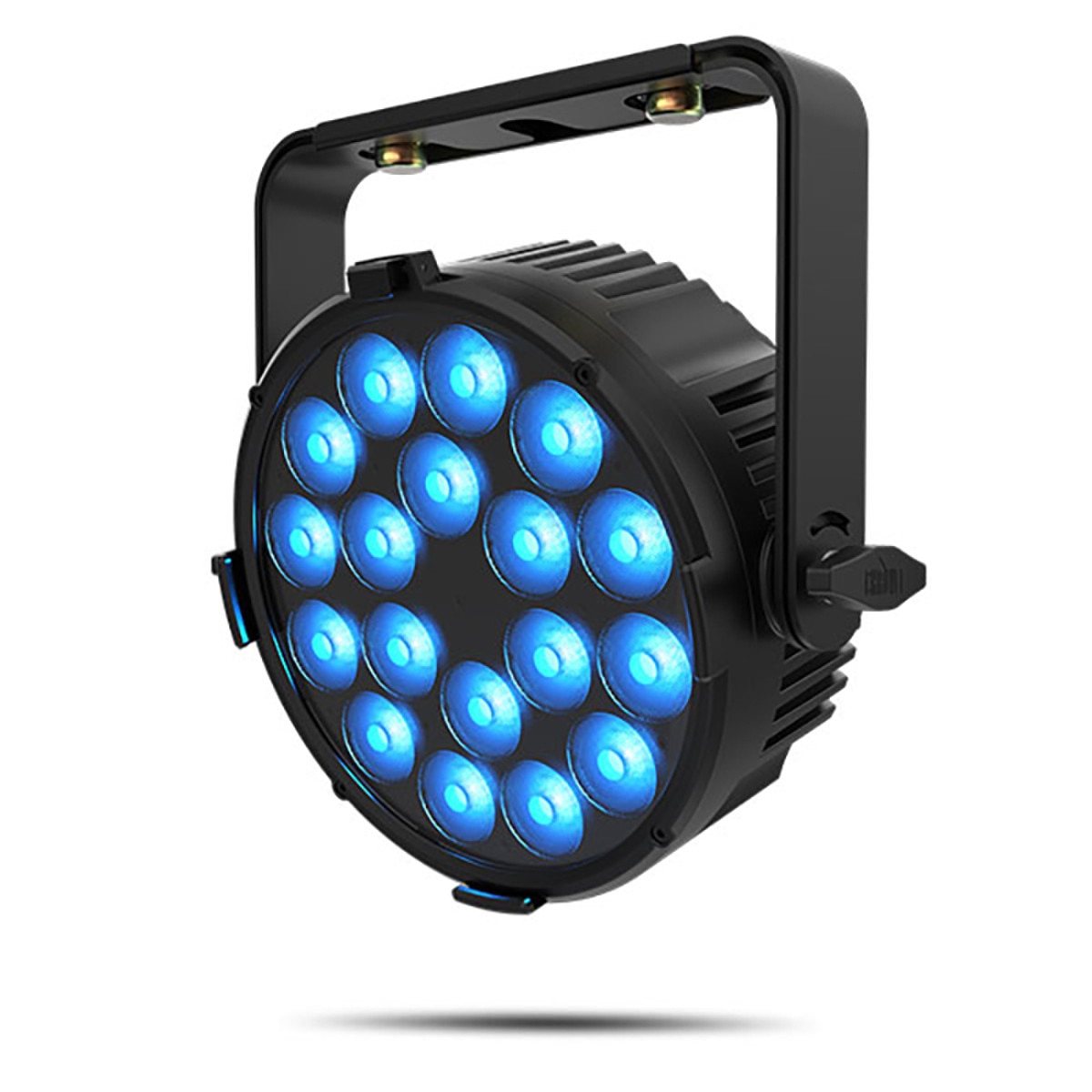

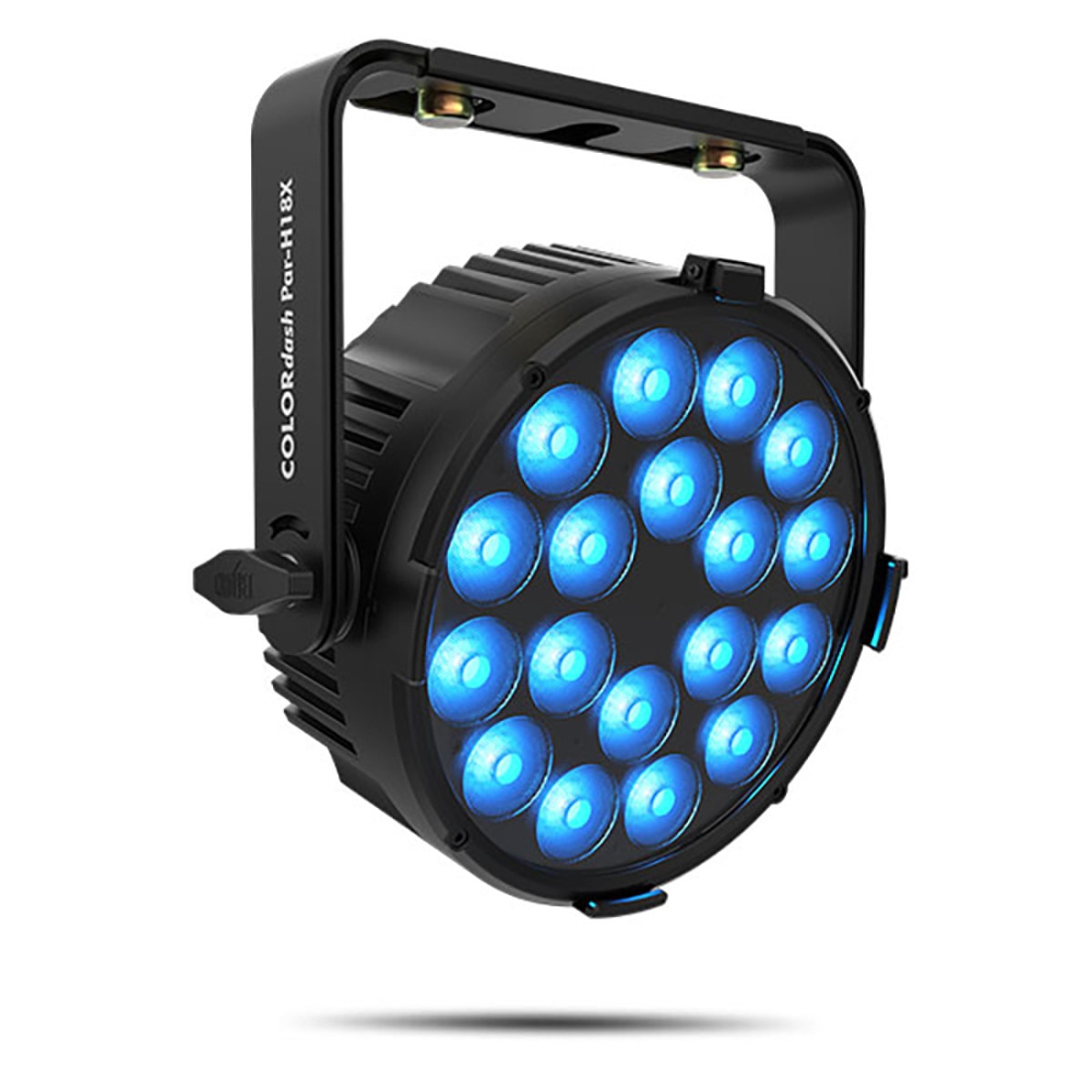

Chauvet Professional COLORdash PAR H18X

(0)No Reviews yet
$650.00
SKU: Chauvet Professional COLORDASHPARH18X

Details

The powerful COLORdash PAR H18X RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.

Features:

  • Rugged RGBWA-UV LED wash for events
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Double-bracketed yoke with omega bracket doubles as floor stand

Specifications:
Optical:

  • Light Source: 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10,000K
  • Color Temperature (at full): 9507K
  • Beam Angle: 23.6°
  • Field Angle: 38.6°
  • Lumens: 5,736
  • Illuminance: 1,207 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction/Physical:

  • Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)
  • Weight: 10.4 lb (4.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 9.25 in (235 mm)

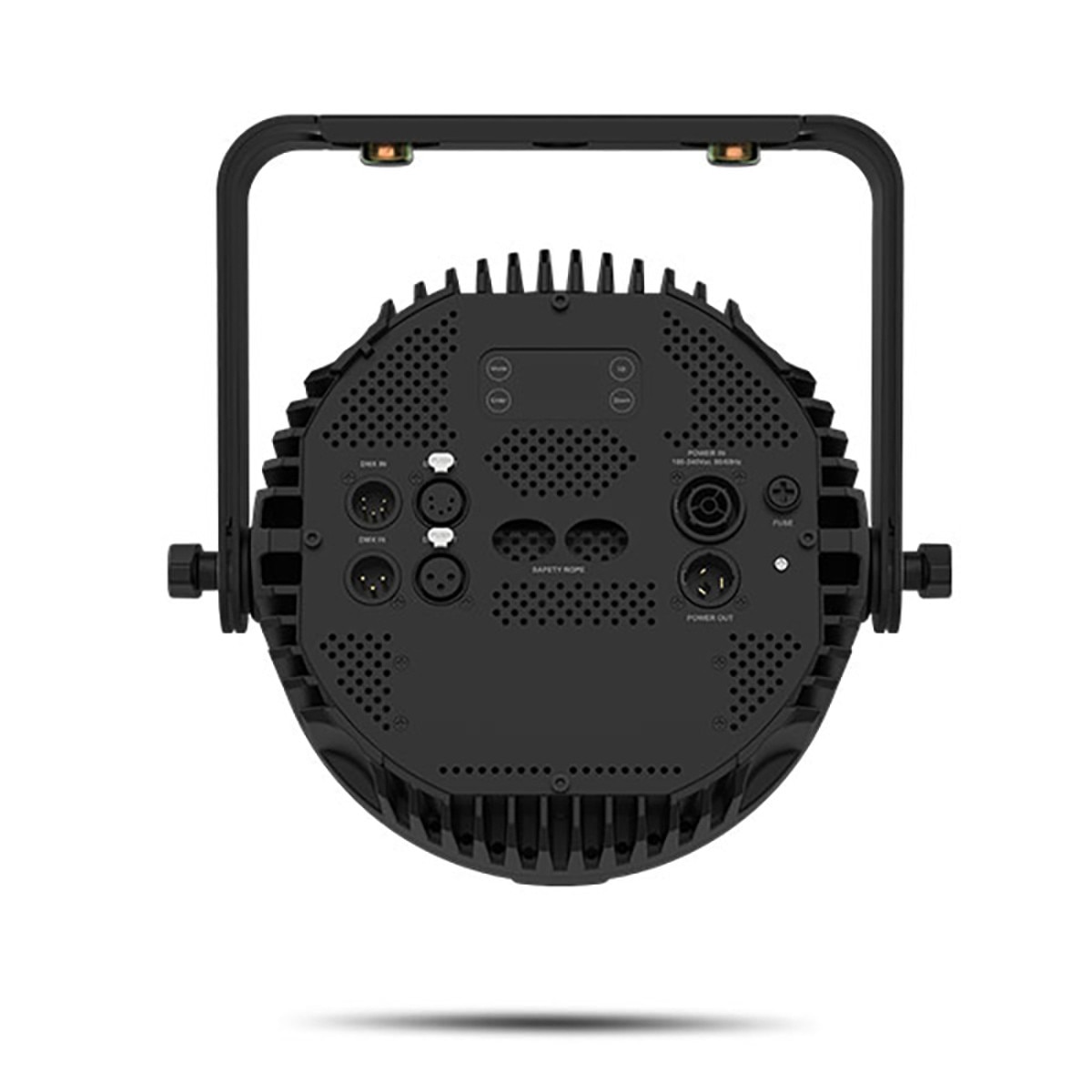

Connections:

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control:

  • Control Protocol: DMX, RDM
  • DMX Channels: 6, 8, 9, 13 or 14
  • Modes/Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V
  • Power and Current: 155 W, 1.305 A @ 120 V, 60 Hz
  • Power and Current: 153 W, 0.773 A @ 208 V, 60 Hz
  • Power and Current: 152 W, 0.704 A @ 230 V, 50 Hz

Certifications/Qualifications:

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

  • COLORdash PAR H18X
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder
  • Omega bracket
  • Quick Reference Guide or User Manual

Optional Accessories:

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3- or 5-pin DMX Cables

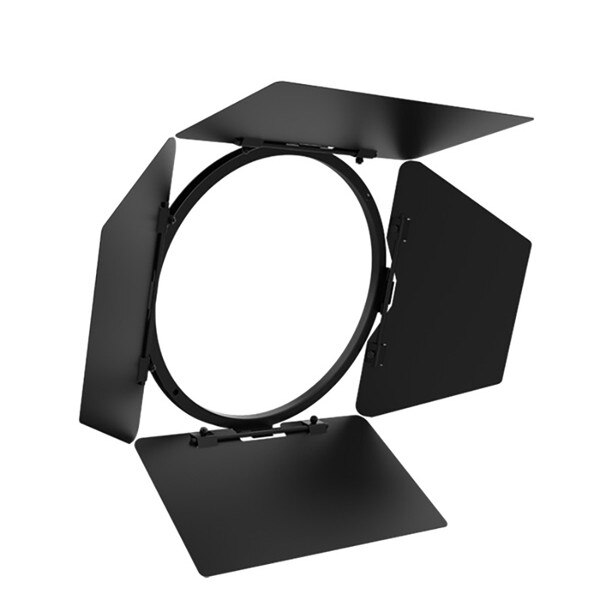

  • Barndoor

COLORdash PAR H18X - User Manual.pdf
COLORdash PAR H18X - Quick Reference Guide.pdf
COLORdash-Par-H18X_Photometrics-Report.pdf
COLORdash_Par-H18X_DMX_Chart_Rev1.pdf
