Chauvet Professional EPIX Flex 20

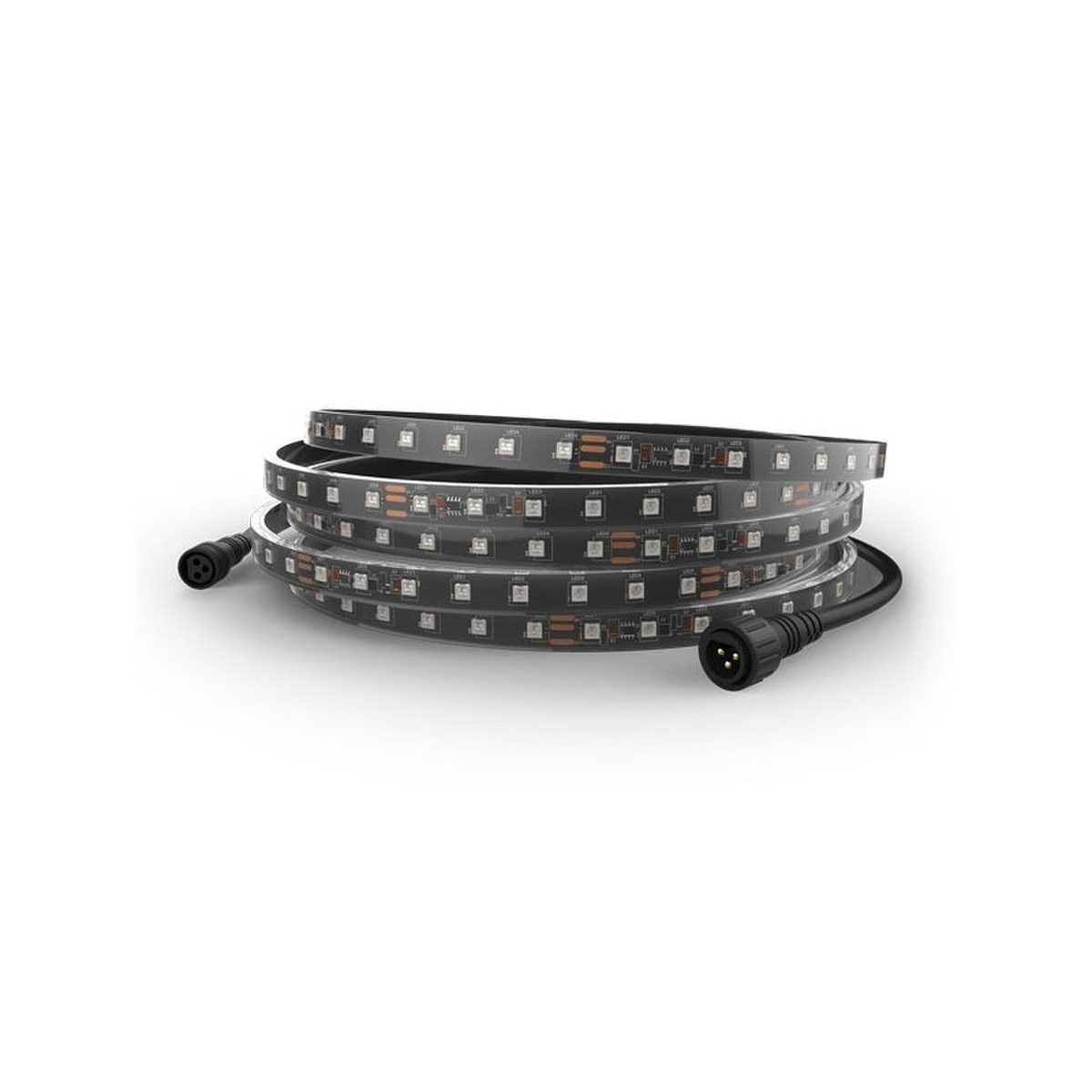

EPIX Flex 20 is a durable, outdoor-rated LED flexible strip that extends 5 meters and can be cut and prolonged without compromising its IP67 rating. This allows it to line even the most complicated spaces.

Features:

• Outdoor pixel-mapping LED strip that is flexible and can be used in various applications
• Includes 10 sets of mounting brackets and screws for permanent installations
• Reduce programming time and increase application by using the alternate personalities of 17 or 34 channel, or use the pixel personality for use with video servers
• Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring, rental, and installation markets
• RDM supported for remote configuration
• Sold in 5 meter rolls, each roll can be cut to length to accommodate custom installations
• EPIX Flex Drive required for operation

Specifications:

• Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
• Viewing Angle: 160°
• Pixels: 240 x 1
• Pixel Pitch: 20 mm
• Dimensions: 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm)
• Weight: 1.2 lb (0.6 kg)
• Exterior Color: Clear
• Housing Material: high temperature silicone with UV protection
• Data Connectors: 3-pin IP65 FLEX cable
• Physical Linking: 2 EPIX Flex 20 (per output) (4 total) (without EPIX Flex Boost); 2 additional EPIX Flex 20 with EPIX Flex Boost (per output) (8 total)
• Control Protocol: Art-Net, sACN, DMXDMX Channels: 17, 34 or PIXELArt-Net Channels: 17, 34 or PIXEL
• Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
• Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
• Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz
• CE, METIP Rating: IP67, temporary outdoor/wet use
• Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• EPIX Flex 20
• Installation kit with 10 bracket sets
• Termination kit with end cap and silicone glue

Required Accessories:

• Controller (required): EPIX Flex Drive

Optional Accessories:

• ArKaos Media Master Express + KN softwareClampsDMX Cables
