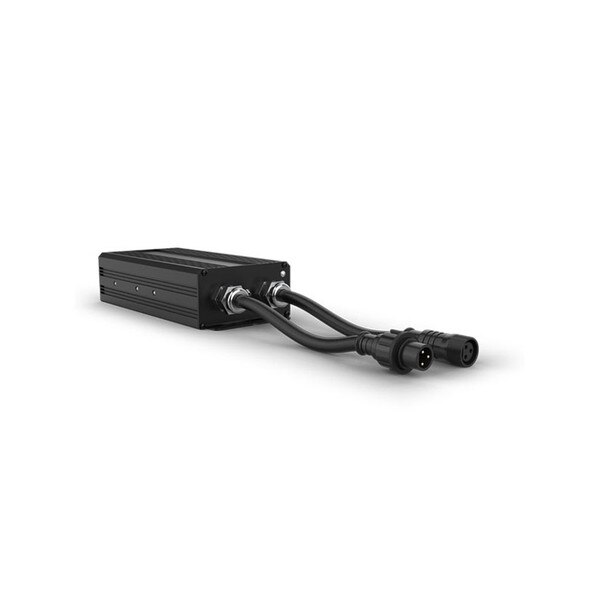

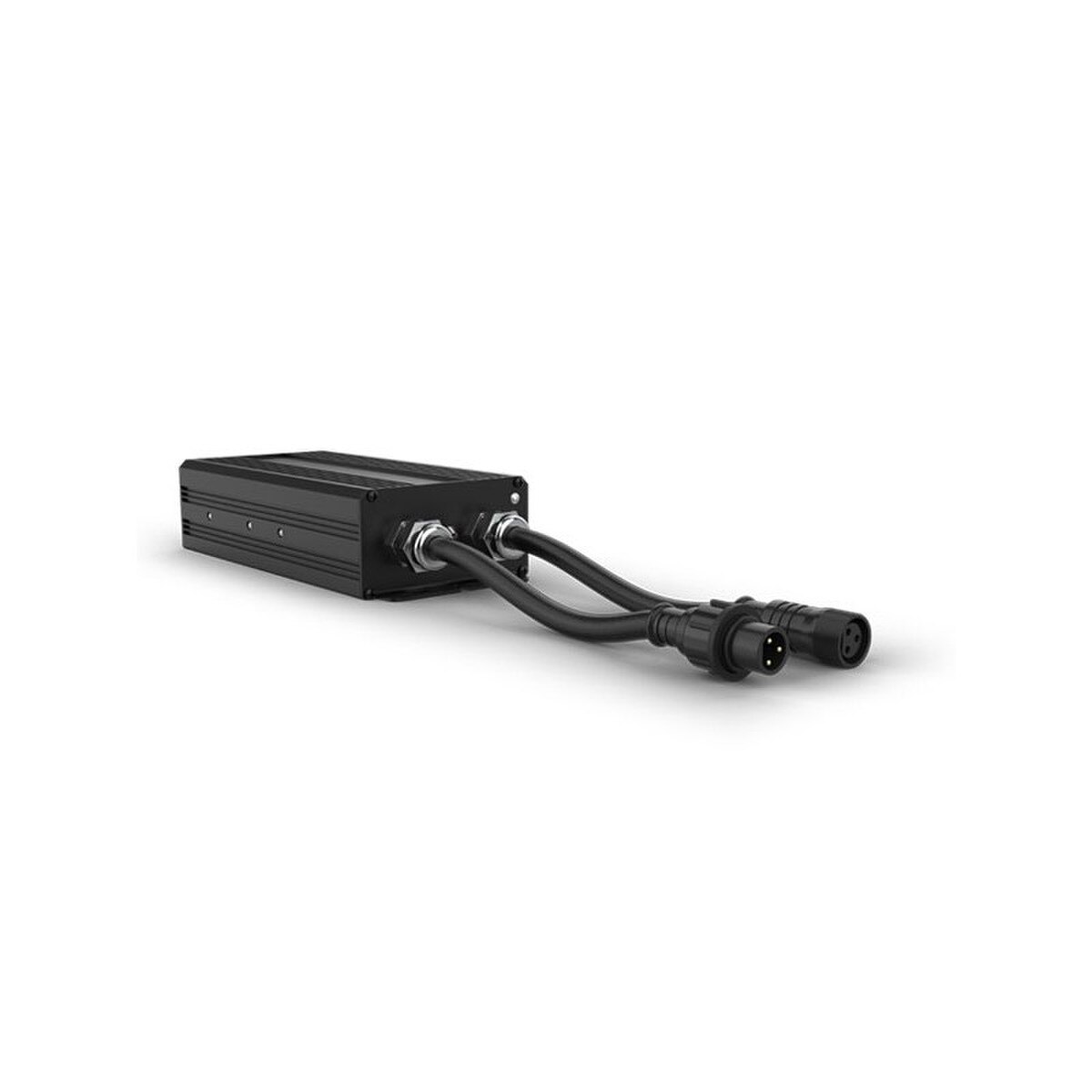

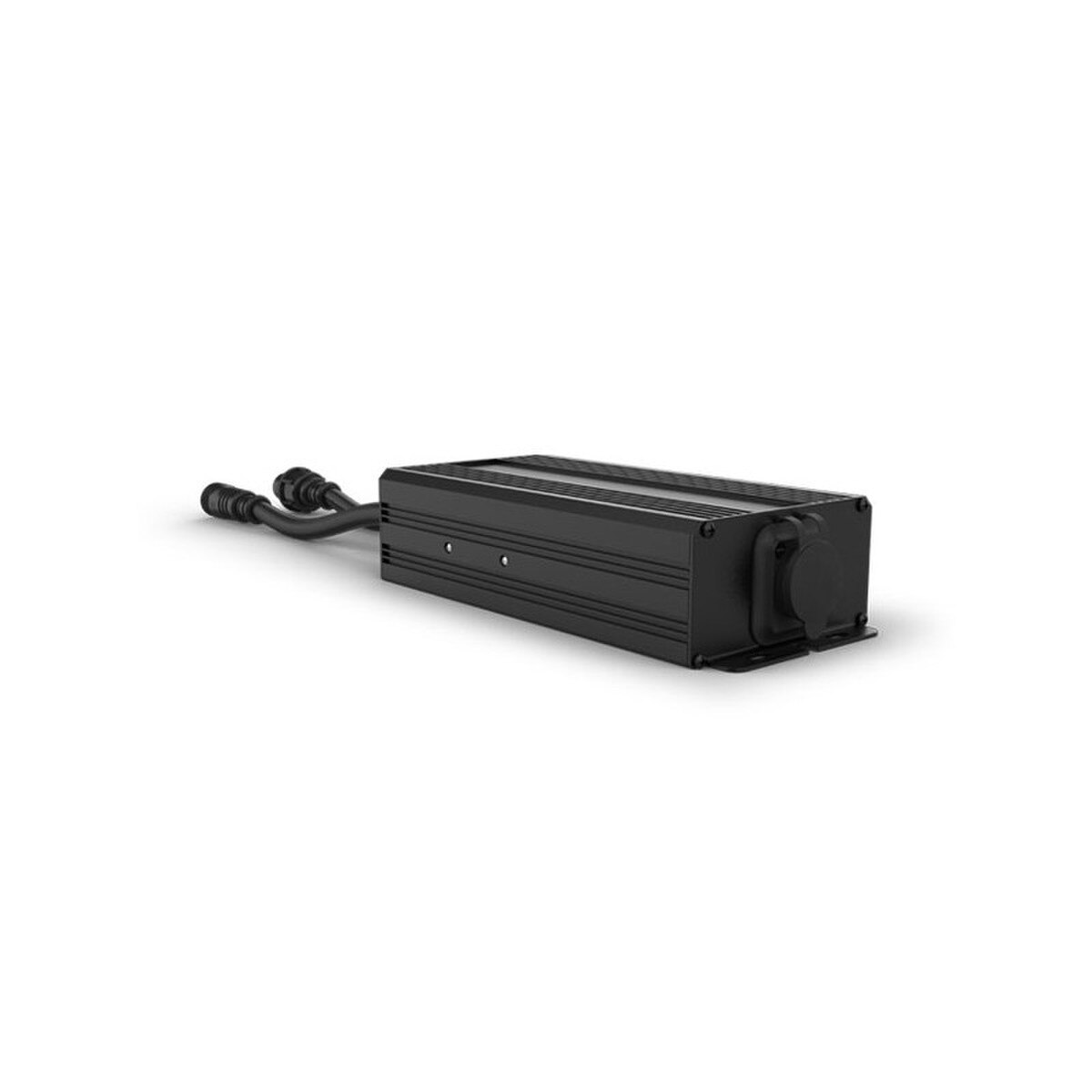

Chauvet Professional EPIX Flex Boost

Chauvet Professional EPIXFLEXBOOST EPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the EPIX Flex Drive and the quantity of EPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.

Features:

• IP65 outdoor rated in-line voltage booster for EPIX Flex 20
• Works when connected to the outputs of the EPIX Flex Driver

Specifications:

• Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
• Weight: 4.4 lb (2 kg)
• Exterior Color: Black
• Housing Material: Aluminum
• Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Device inputs: (1) 3-pin male IP FlexDevice Outputs: (1) 3-pin female IP Flex
• Physical Linking: 2 inline EPIX Flex 20
• Cable Length (signal): 1.16 ft (0.355 m)
• Cable Length (power): 5 ft (1.5 m)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz
• CE, METIP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• EPIX Flex Boost
• Seetronic Powerkon power cord

Required Accessories:

• Accessories (required): EPIX Flex Drive
• Compatible Mounting Options: M12 Bolt/Clamp

Optional Accessories:

• Clamps
• IP Flex Cables
• Seetronic Powerkon cables
• DMX Cables
