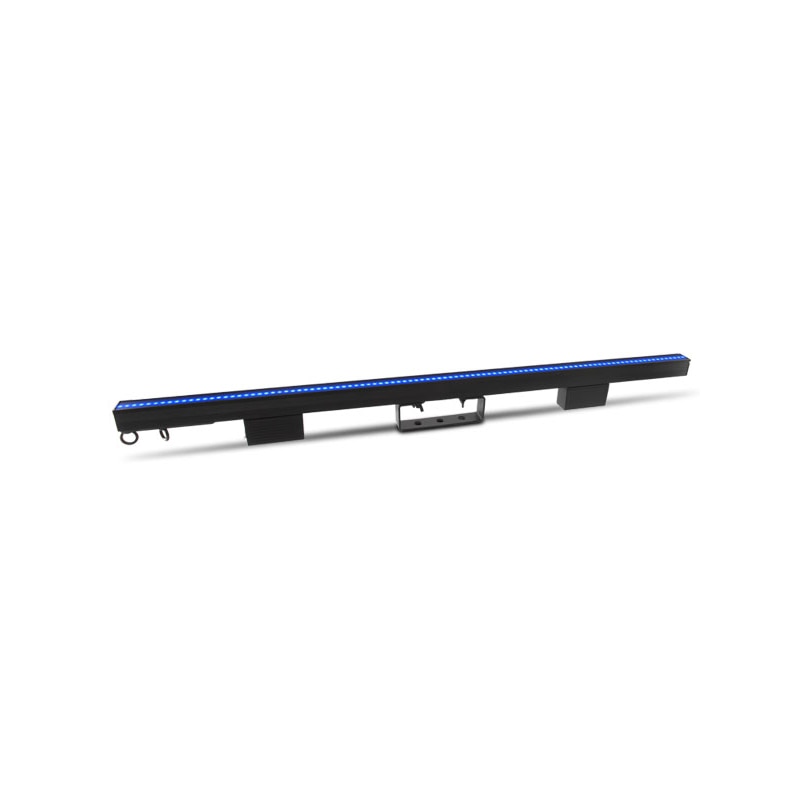

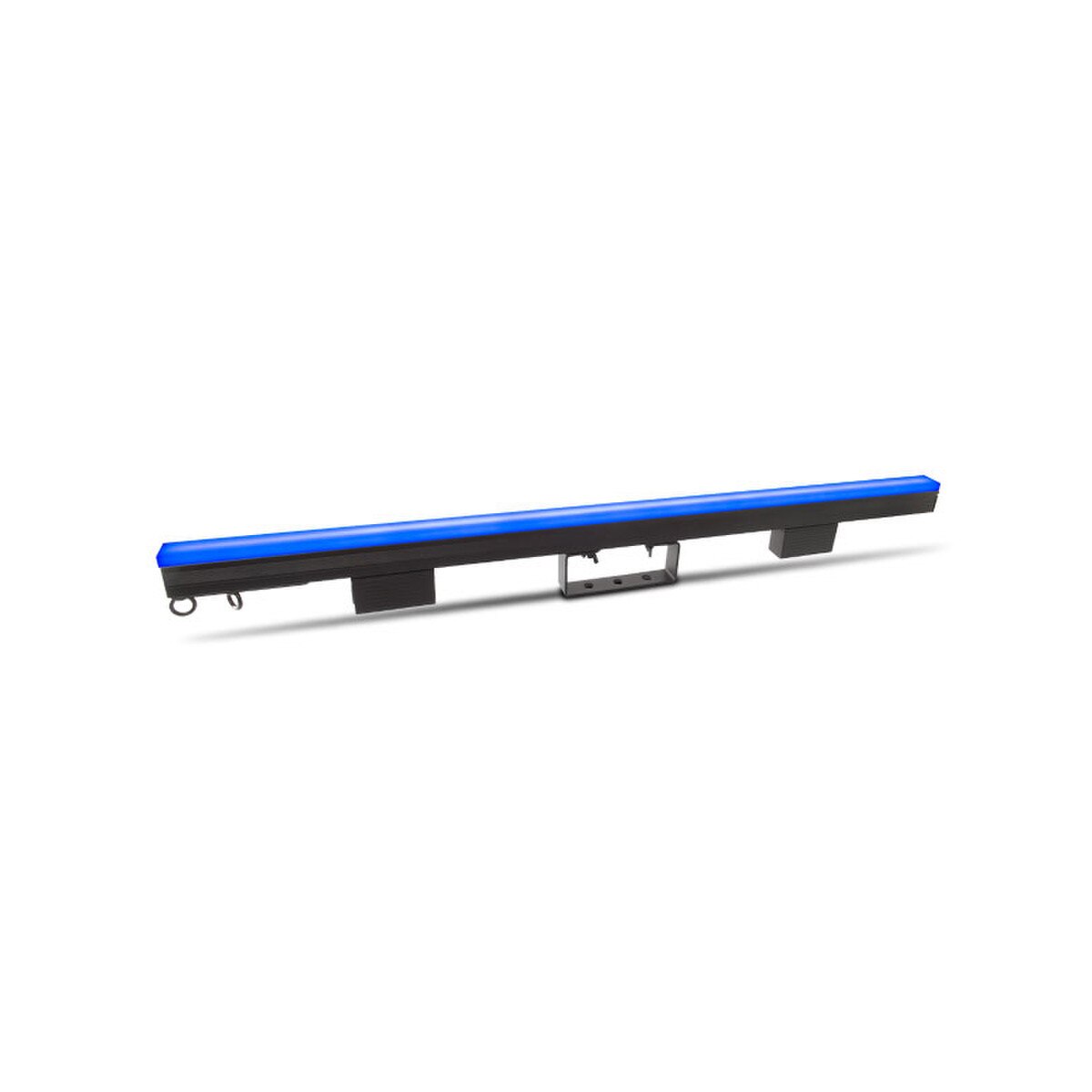

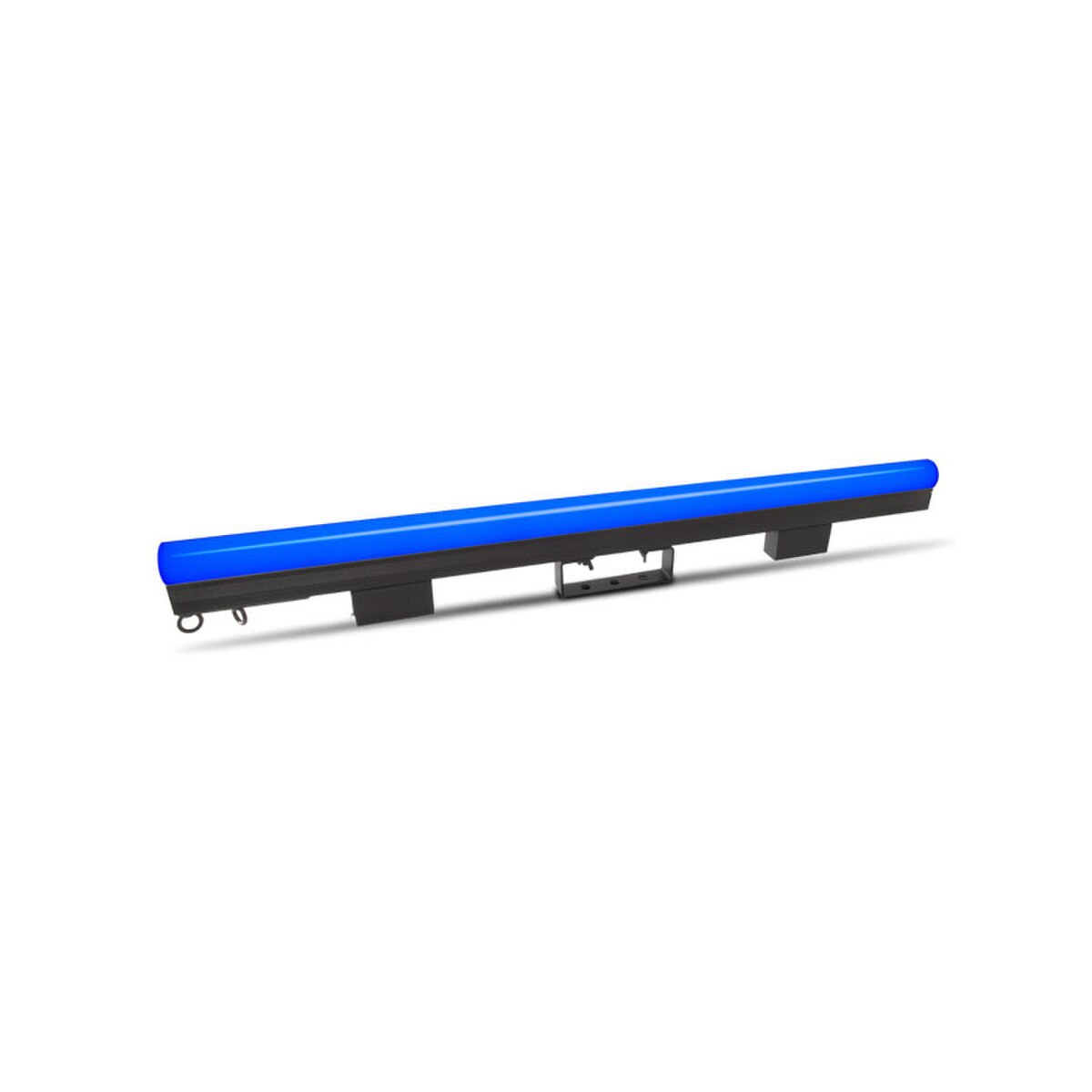

Chauvet Professional Epix Strip IP

Épix Strip IP is an outdoor pixel-mapping 1-meter LED strip, featuring 100 LEDs in a row, ideal for festivals, concert touring, and installations. Power and control it through the Épix Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).

Quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks. For added versatility and more creative options, dome and flat accessories are included.


Features:

• Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics
• Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
• Reduce programming time and increase application by using the alternate personalities of 17 channel, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers
• Increase viewing angle by using the optional dome accessory
• Épix Drive 2000 IP required for operation

Specifications:

Optical:

• Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle (with installed square milky filter): 160°
• Viewing Angle (with optional dome filter): 160° Pixels: 100 x 1Pixel Pitch: 10mm
• Refresh Rate: 4800 Hz

Construction/Physical:

• Dimensions (with installed square milky filter): 39.37" x 3.93" x 1.33" (1000mm x 100mm X 34mm)
• Dimensions (with included black stealth filter): 39.37" x 3.46" x 1.33" (1000mm x 88mm x 34mm)
• Dimensions (with optional dome filter): 39.37" x 5.03" x 1.77" (1000mm x 128mm X 45mm)
• Weight: 6 lbs (2.7kg)
• Exterior Color: Black
• Housing Material: Aluminum

Connections:

• Data Connectors: 4-pin XLR
• Physical Linking: 10 inline Épix Strip IP per port of Drive 2000IP
• Total max. cable length (shielded cables) between Épix Drive 2000 IP and last Épix IP fixture: 210' (64m)
• Max. cable length (shielded cables) between Épix Drive 2000 IP and first Épix IP fixture: 65' (20m)
• Max. cable length (shielded cables) between Épix IP fixtures: 60' (18m)
• Total max. cable length (unshielded cables) between Épix Drive 2000 IP and last Épix IP fixture: 300' (91m)
• Max. cable length (unshielded cables) between Épix Drive 2000 IP and first Epix IP fixture: 150' (45m)
• Max. cable length (unshielded cables) between Épix IP fixtures: 100' (30m)

Control:

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels Art-net, sACN): 15, 17, 30, 60, or 300

Electrical:

• Power and Current: 35W, 0.292A @ 120V, 60 Hz
• Power and Current: 44W, 0.210A @ 208V, 60 Hz
• Power and Current: 44W, 0.195A @ 230V, 50 Hz

Certifications/Qualifications:

• CE, METIP Rating: IP65, temporary outdoor/wet use Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• Épix Strip IP Square milky filter (installed)
• Round milky filter
• Black stealth filter (included in box)

Required Accessories:

• Controller (required): Épix Drive 2000 IP
• Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)
