Chauvet Professional IP Flex Extension Cable - 25FT
Details
Chauvet Professional IP Flex Extension Cable - 25FT

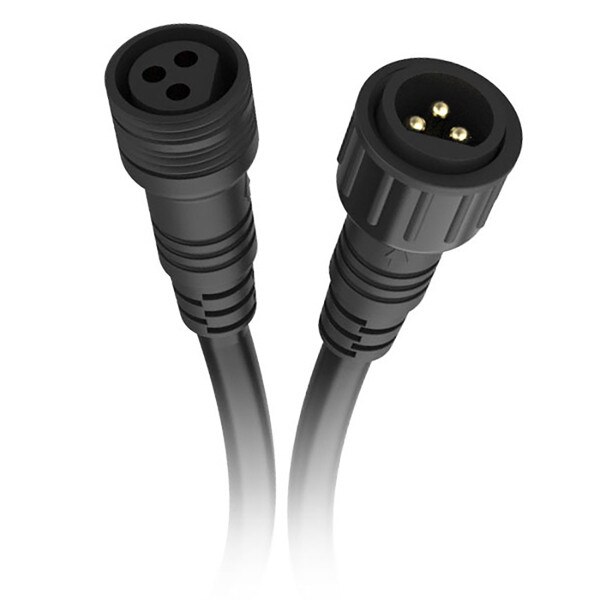

3-pin IP67-rated FLEX extension cable with locking connectors. Available in four lengths. Ships in bag with header card.
At a Glance:
- Combined power/data extension cables
- Works with Epix Flex 20 with ÉPIX Flex Drive/Boost products
Cable:
- Connector: 3-pin IP FLEX connector
- Cables Lengths Offered: 5 ft (1.5 m), 15 ft (4.57 m), 25 ft (7.62 m), 50 ft (15.24 m)
- Cable size: (3) (SJTW) 16 AWG Stranded
- Conductors: Black DC+, White DC-, Green DATA
- Conductors twisted: Yes
- Jacket thickness (outer): 0.61mm
- Jacket thickness (each internal wire): 0.69mm
- Jacket material: PVC
- Jacket type: Flexible rubber (black)
- Wire impedance: 0.762 MΩ / kilometer
- Outer jacket diameter: 8.15mm to 8.45mm
- Temperature rating: -40 °F to 221 °F (-40 °C to 105 °C)
- Shielded: No
- IP Rating: IP67
What's Included:
- IPFLEXEXT5FT – Cable packed in bag with header card.
- IPFLEXEXT15FT – Cable packed in bag with header card.
- IPFLEXEXT25FT – Cable packed in bag with header card.
- IPFLEXEXT50FT – Cable packed in bag with header card.
