Chauvet Professional IP Flex Extension Cable - 50FT

Chauvet Professional IP Flex Extension Cable - 50FT

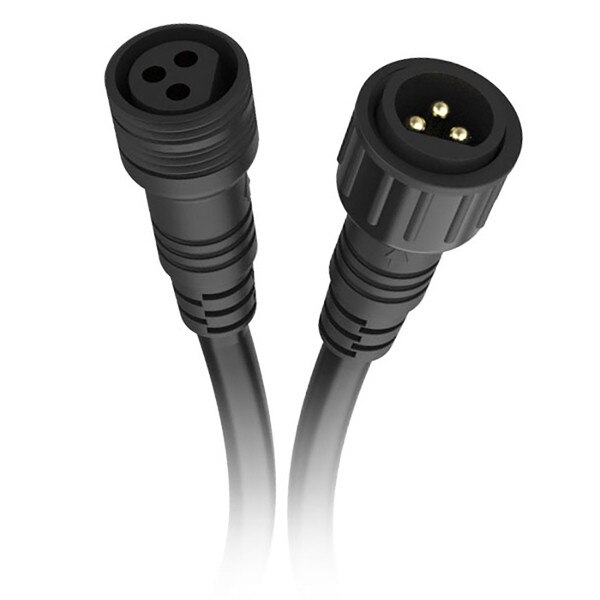

3-pin IP67-rated FLEX extension cable with locking connectors. Available in four lengths. Ships in bag with header card.

At a Glance:

• Combined power/data extension cables
• Works with Epix Flex 20 with ÉPIX Flex Drive/Boost products

Cable:

• Connector: 3-pin IP FLEX connector
• Cables Lengths Offered: 5 ft (1.5 m), 15 ft (4.57 m), 25 ft (7.62 m), 50 ft (15.24 m)
• Cable size: (3) (SJTW) 16 AWG Stranded
• Conductors: Black DC+, White DC-, Green DATA
• Conductors twisted: Yes
• Jacket thickness (outer): 0.61mm
• Jacket thickness (each internal wire): 0.69mm
• Jacket material: PVC
• Jacket type: Flexible rubber (black)
• Wire impedance: 0.762 MΩ / kilometer
• Outer jacket diameter: 8.15mm to 8.45mm
• Temperature rating: -40 °F to 221 °F (-40 °C to 105 °C)
• Shielded: No
• IP Rating: IP67

What's Included:

• IPFLEXEXT5FT – Cable packed in bag with header card.
• IPFLEXEXT15FT – Cable packed in bag with header card.
• IPFLEXEXT25FT – Cable packed in bag with header card.
• IPFLEXEXT50FT – Cable packed in bag with header card.

IP Flex Extensions Technical Specifications.pdf
