Chauvet Professional IP Tester

(0)No Reviews yet
$2,368.00
SKU: Chauvet Professional IPTESTER

Details

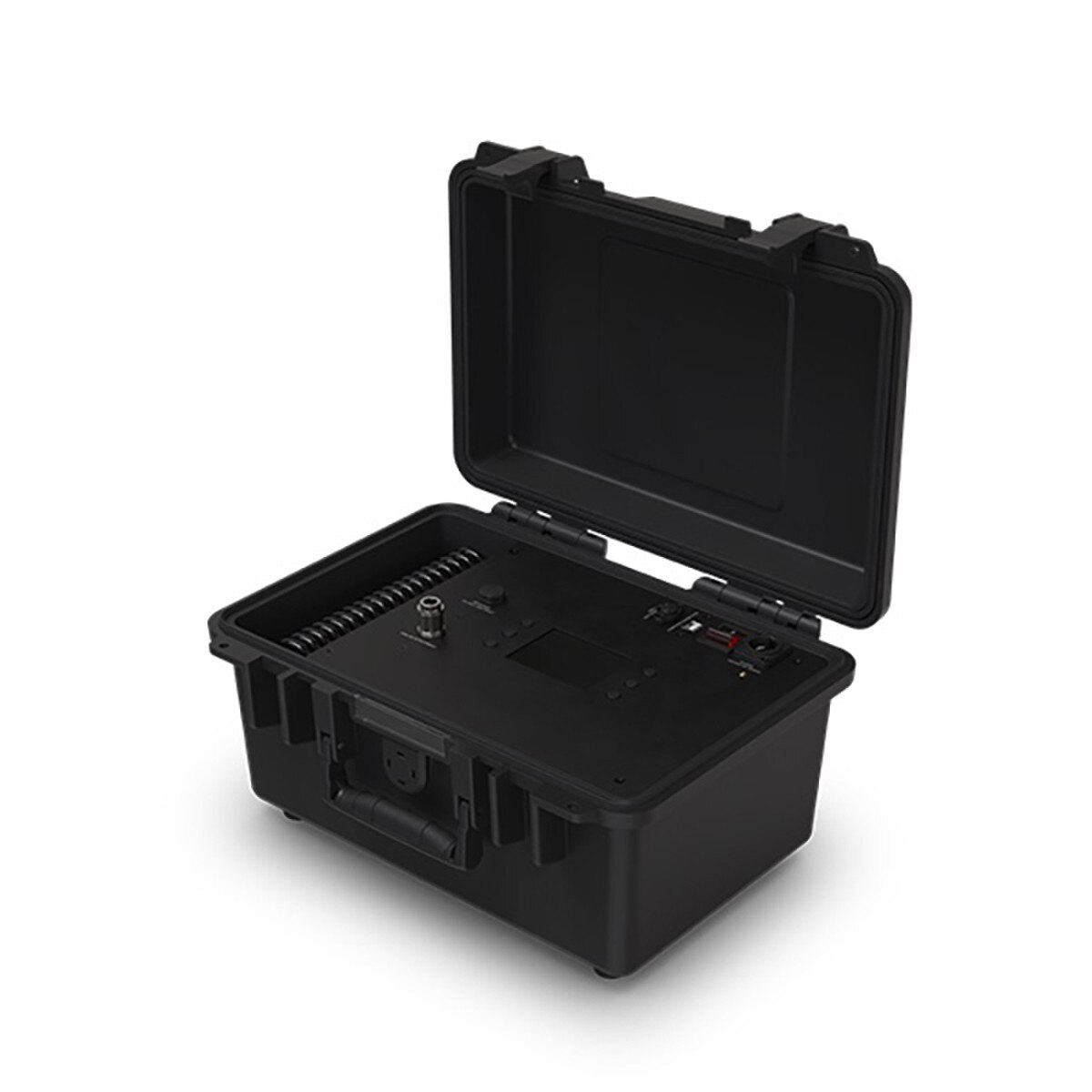

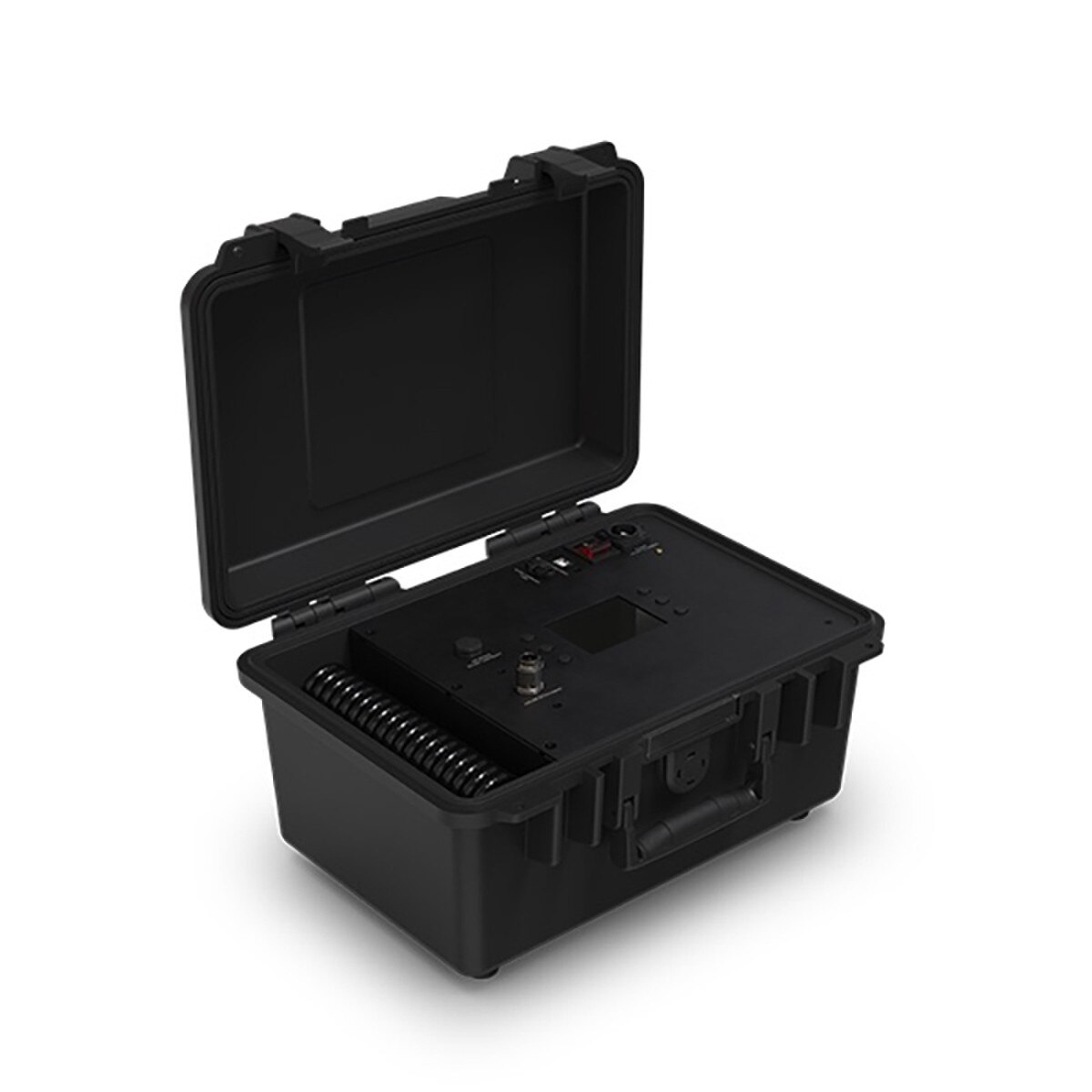

IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles. A built-in web server allows for easily connecting to PC computers for creating fixture profiles and storing information collected from tests. IP Tester is a useful tool for testing any CHAUVET Professional IP rated product fitted with Gore valves. Housed in a compact and impact resistant ABS plastic case designed with touring in mind and able to fit in tool and road cases.

Features:

  • Portable, compact IP testing device capable of both vacuum and pressure testing parameters.
  • Pre loaded testing personality files for CHAUVET Professional IP rated products
  • Easy to build custom testing profiles
  • Built in webserver to easy connection to PC computers for creating fixture profiles and storing information from tests
  • USB-C input for easy software upgrades and for storing fixture test data
  • USB-B port for easy connection to PC

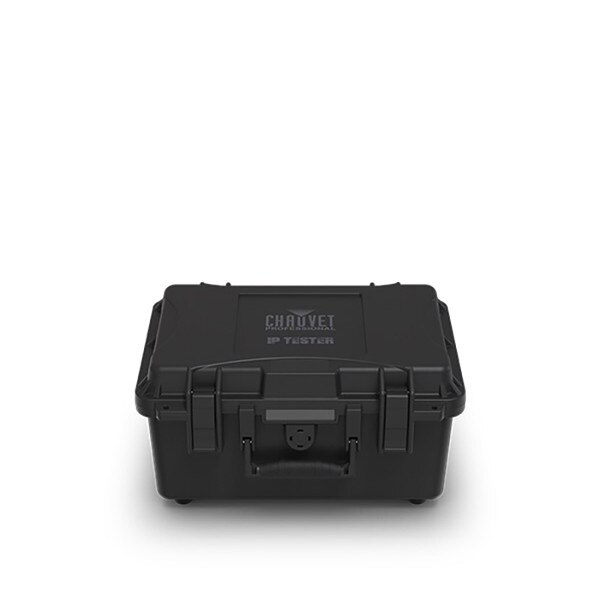

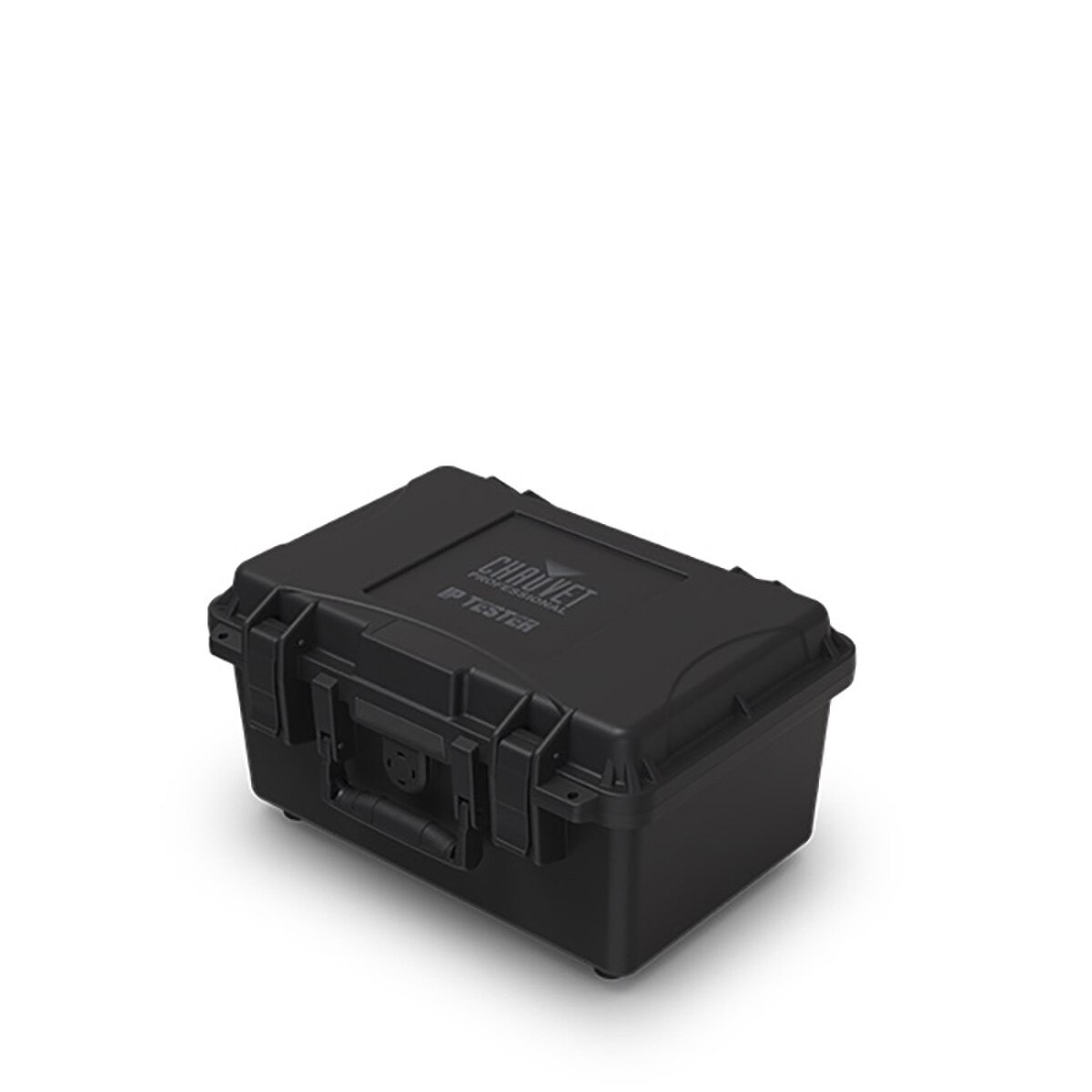

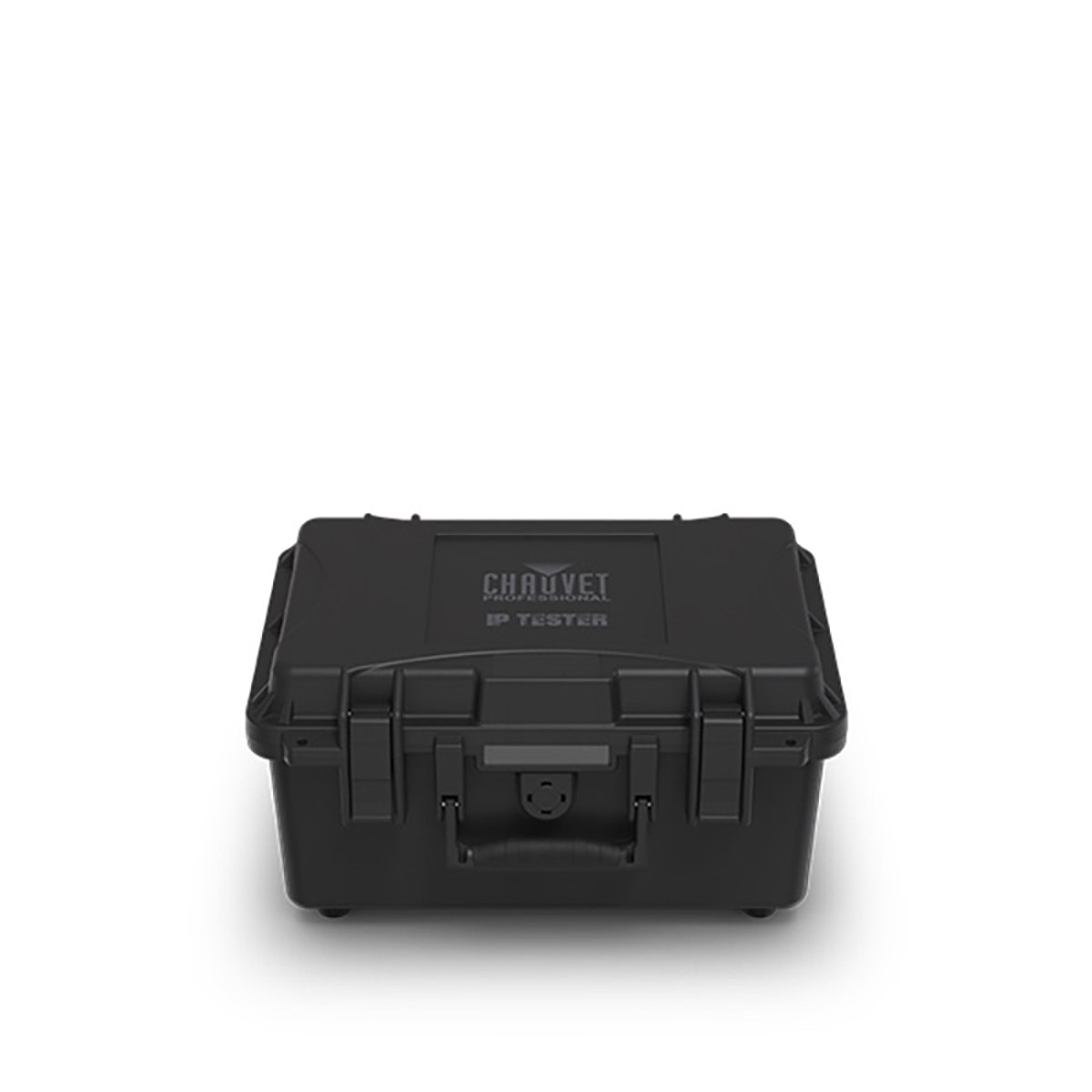

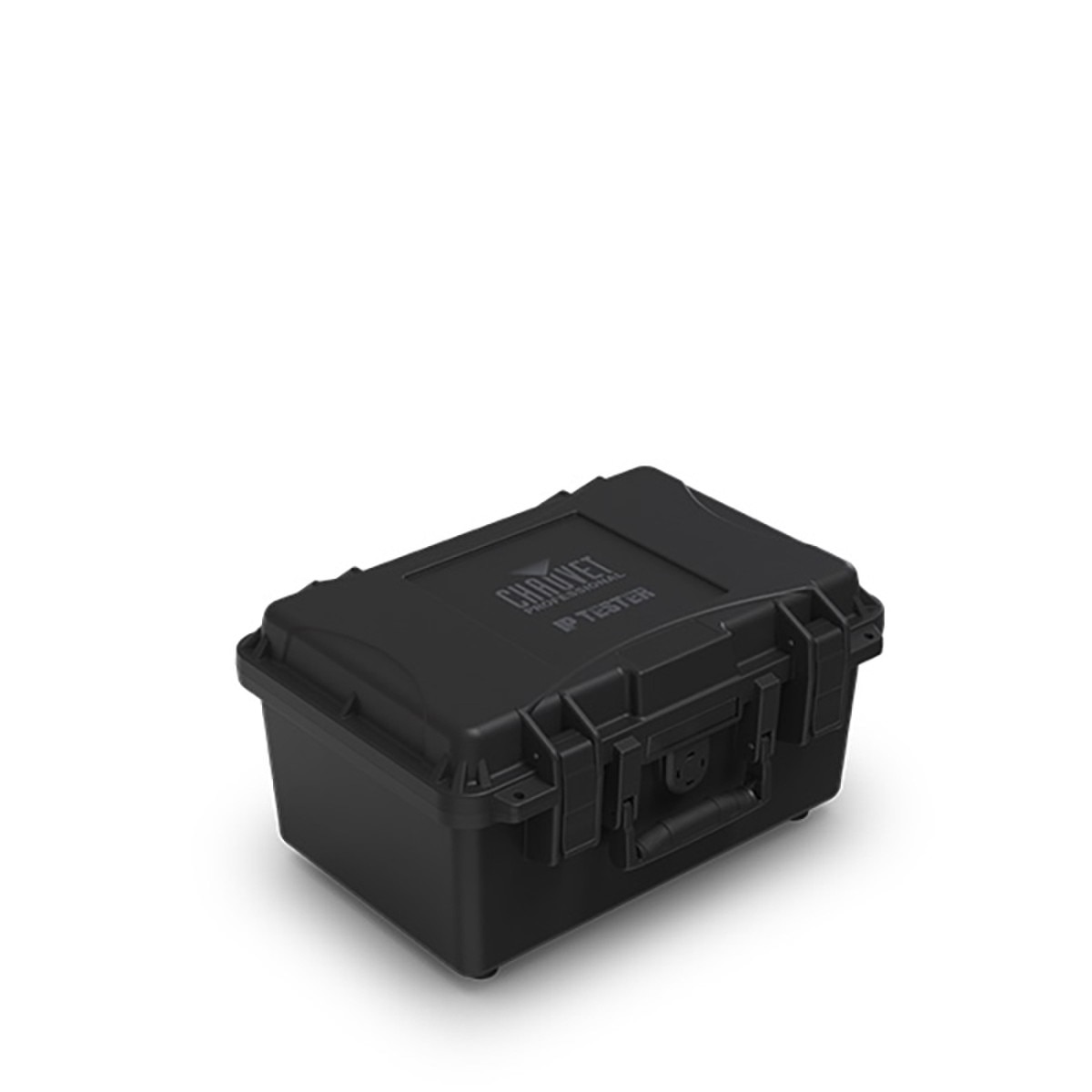

  • Compact and impact resistant ABS plastic case is designed to fit in tool and road cases with touring in mind

Specifications:
Construction/Physical:

  • Dimensions: 14.38 x 11 x 7.5 in (365.25 x 279.4 x 190.5 mm)
  • Weight: 9.4 lb (4.3 kg)
  • Exterior Color: Black
  • Housing Material: Injection molded case

Connections:

  • Power Connection: Edison plug to Seetronic Powerkon
  • Power Input: Seetronic Powerkon
  • Quick-Release Air Hose Fitting
  • Air In/Out Vent
  • Data Connection: USB-B Port, USB-C
  • Cable Length (power): 5 ft (1.5 m)

Control:

  • 6 button LCD menu
  • Built in webserver for USB connection to PC
  • remote information storage over USB-C input

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 25 W, 0.335 A @ 120 V, 60 Hz
  • Power and Current: 25 W, 0.214 A @ 208 V, 60 Hz
  • Power and Current: 25 W, 0.205 A @ 230 V, 50 Hz

What's Included:

  • IP Tester
  • Neutrik powerCON TRUE1 power cord
  • USB Cable
  • M12 Threaded Brass Nozzle with Push-to-Connector Fitting
  • (2) M12 threaded metal plugs

IP Tester - User Manual.pdf
IP Tester - Quick Reference Guide.pdf
