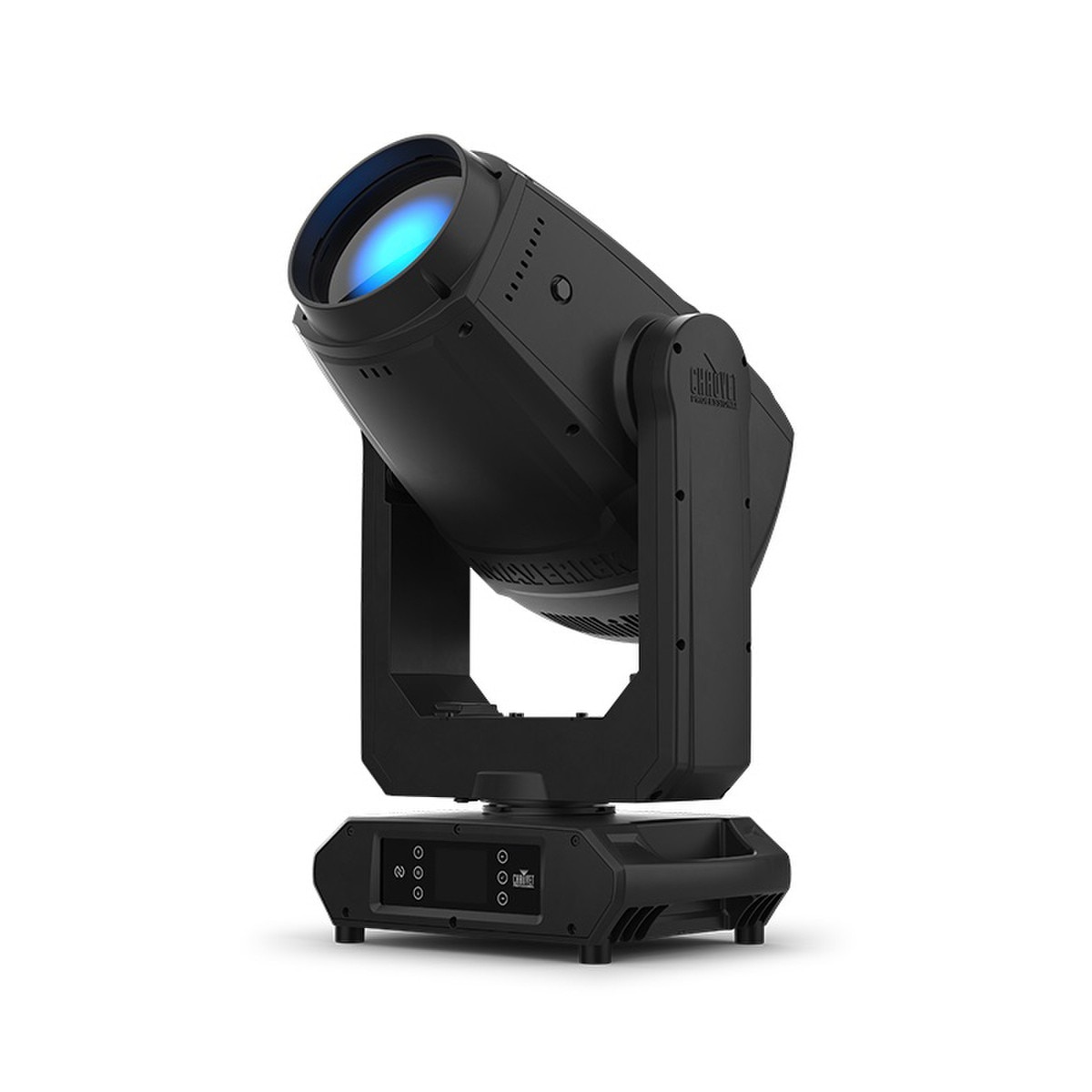

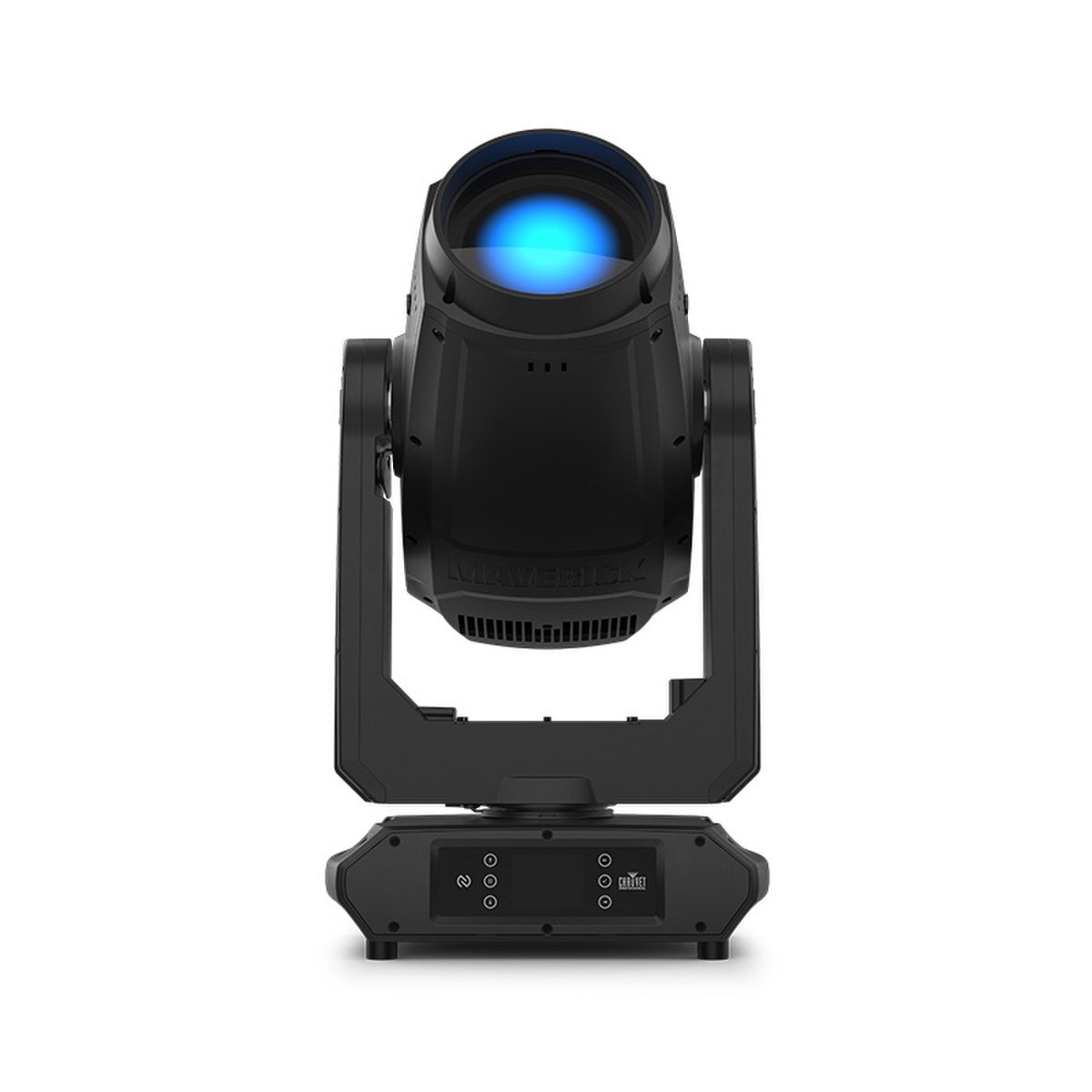

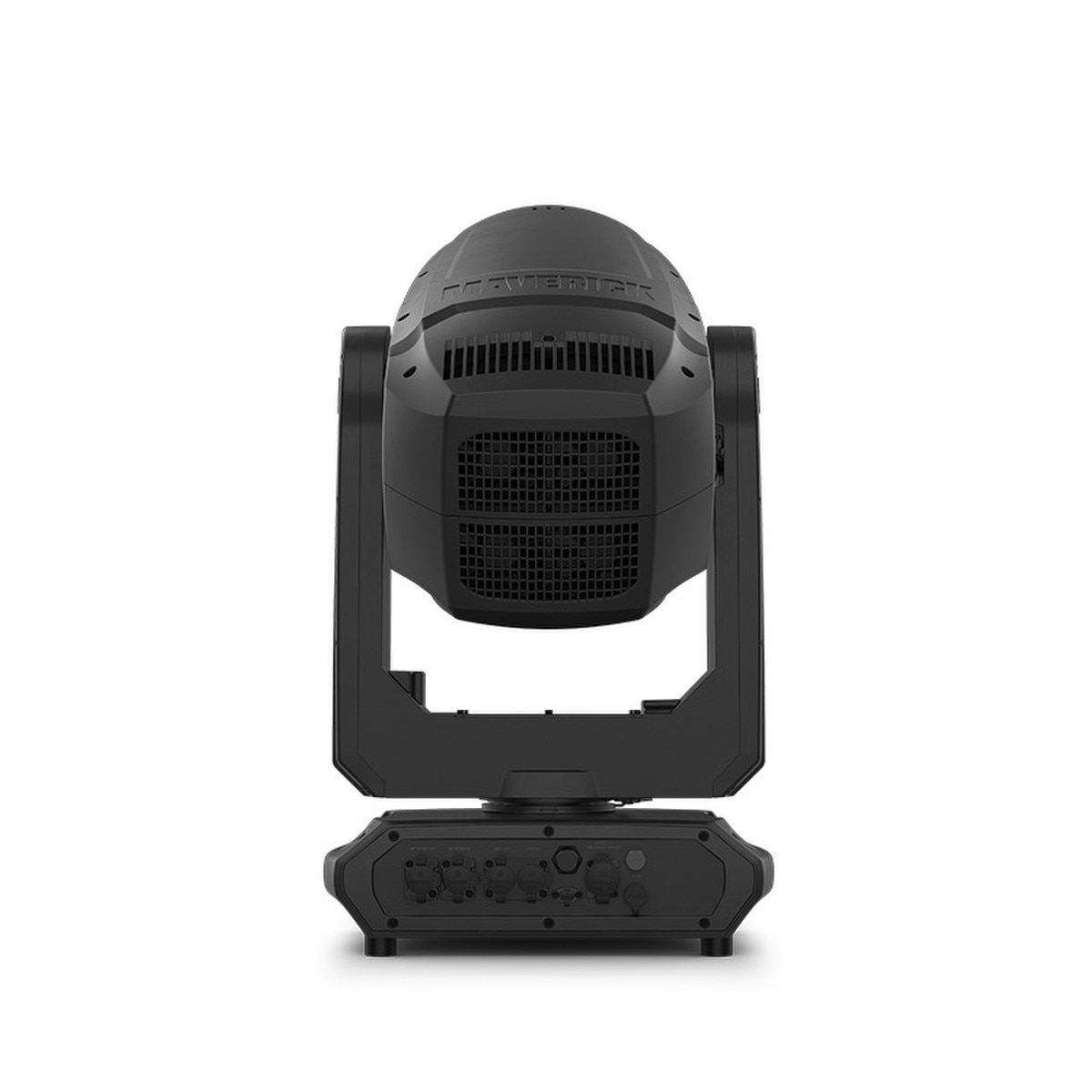

Chauvet Professional Maverick Storm 1 Flex

Outperform expectations with the intense brightness of this compact member of the Maverick Storm family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards. No lamp. No hot spot. Only perfectly even output at every angle from a multifunctional LED powerhouse. Maverick Storm 1 Flex goes flat out from narrow beams to wide spots, while producing excellent color rendering and offering lighting designers a full effects wheelhouse for layering gobo, prism and animation effects. Draw on Maverick Storm 1 Flex to release stunning textured looks, send totally solid beams and hit the deepest colors.

At a Glance:

• Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with a 520W LED source, CMY+CTO color mixing, an animation wheel, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide palette of colors
• CRI and CTB filters on color wheel for added flexibility
• 1 rotating and 1 static gobo wheel
• An animation wheel for kinetic textured effects
• Tight 2.6° narrow beam angle for focused air effects
• 7 rotating and 10 static gobos for massive visual effect
• DMX, CRMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• True 1 compatible power input
• Integrated sun shield for protecting the optical path from sunlight when the fixture is off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB-C slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
• Built in Sky Tracker mode allows for up to 4 fixtures to work together to create sky tracker effects

Specifications:
Optical:

• Light Source: 1 Led, 6595K, up to 50,000 hours life expectancy*
• *Test lab conditions. May vary depending on several factors including but not limited to: Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
• Color Temperature (at full): 6595 K
• Front lens diameters: 165 mm
• Beam Angle: 3.1° to 46.6° (Spot mode)
• Field Angle: 4.1° to 57.9° (Spot mode)
• Cutoff Angle: 4.5° to 55.5° (Spot mode)
• Beam Angle: 2.6° to 43° (Beam mode)
• Field Angle: 3° to 47.3° (Beam mode)
• Cutoff Angle: 3.4° to 50.7° (Beam mode)
• Beam Angle: 2.8° to 45.8° (Wash mode)
• Field Angle: 3.7° to 53.1° (Wash mode)
• Cutoff Angle: 3.9° to 57° (Wash mode)
• Zoom Range: 3.1° to 55.5° (Spot mode)
• Zoom Range: 2.6° to 50.7° (Beam mode)
• Zoom Range: 2.8° to 57° (Wash mode)
• Lumens: 33587 lm
• Illuminance: (3.1°) 154,697 lux @ 5 m (Spot mode)
• Illuminance: (55.5°) 2,675 lux @ 5 m (Spot mode)
• Illuminance: (2.6°) 17,538 lux @ 15 m (Beam mode)
• Illuminance: (50.7°) 295 lux @ 15 m (Beam mode)
• Illuminance: (2.8°) 146,171lux @5 m (Wash mode)
• Illuminance: (57°) 2478 lux @ 5 m (Wash mode)

Dynamic Effects:

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Colors: CMY + CTO flags
• Gobos (1): 7+ open (1 empty slot + 6 glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds) and (1) steel dual layer non-removable rotating, continuous scroll at variable speeds)
• Gobos Static: 10 + open (11 metal), rotating, continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
• Animation Wheel: 1
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism (1): 6 Facets, motorized, rotating
• Prism (2): 8 Facets, motorized, rotating
• Move-in-Black: Yes
• Built in Sky Tracker Mode: Yes

Construction / Physical:

• Dimensions: 15.27 x 10.55 x 10.55 in (388 x 268 x 738 mm)
• Weight: 63.5lb (28.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections:

• Power Connection: Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: Type-C USB

Control:

• Control Protocol: Art-Net, sACN, RDM, DMX, CRMXDMX
• Channels: 26 or 33
• Art-Net/sACN Channels: 26 or 33
• Modes/Personalities: 2 personalities (26, 33)

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 754 W, 6.25 A @ 120 V, 60 Hz
• Power and Current: 734 W, 3.60 A @ 208 V, 60 Hz
• Power and Current: 738 W, 3.30 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC, CB, UKCA
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included:

• Maverick Storm 1 Flex
• Seetronic Powerkon IP65 power cord to Edison Plug
• (2) 140 Omega brackets with mounting hardware

Optional Accessories:

• Clamps - CTC-50HC, CTC-50G, CTC-50HCBLK, CTC-50HCN, CTC-50FCNBLK
• Rig Link PowerKon IP65 cables
• Rig Link etherCON cables
• Rig Link 5 Pin DMX Cables
• Flight Cases - CP2CASELARGE
