  • Chauvet Professional Maverick Storm 2 Profile M

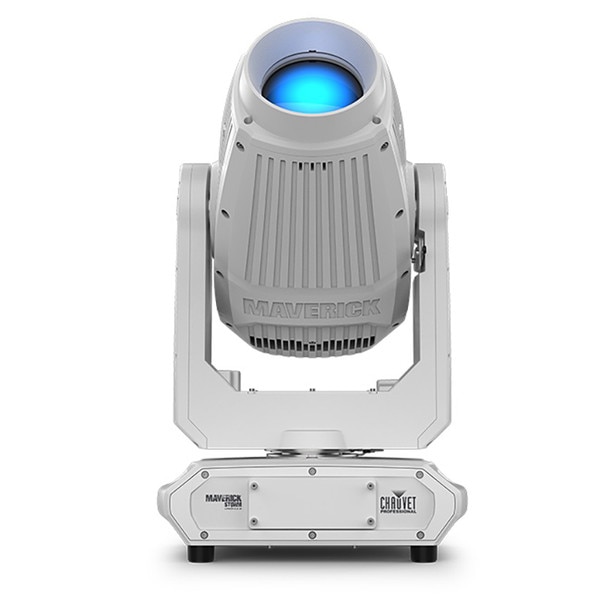

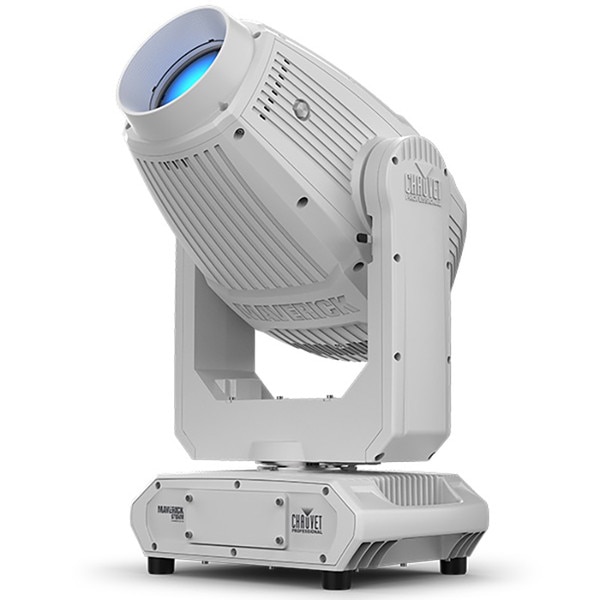

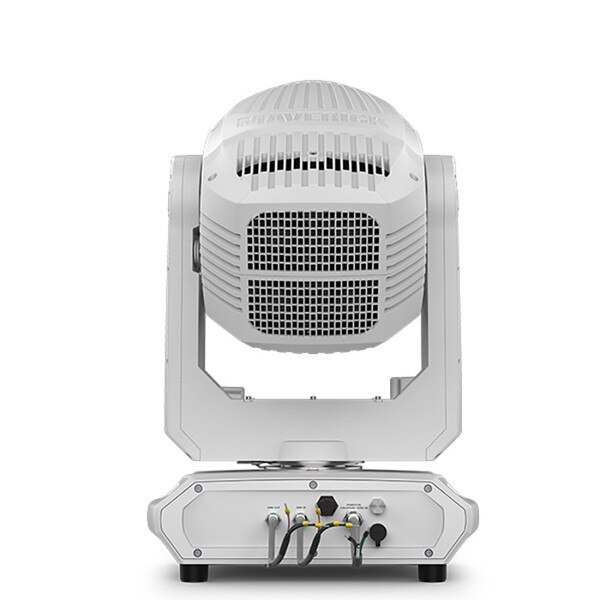

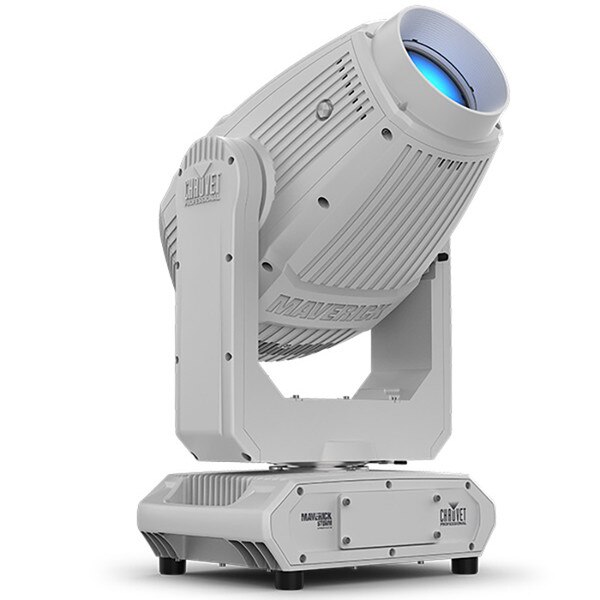

Chauvet Professional Maverick Storm 2 Profile M

(0)No Reviews yet
$9,375.00
SKU: Chauvet Professional MAVERICKSTORM2PROFILEM

Details

With its full aluminum construction and C5M marine-grade finish, Maverick Storm 2 Profile M adds an extra layer of external corrosion resistance to an already rugged IP65 build. Internal optical components are protected by SunShield technology that comes on whenever the fixture powers down, resulting in a fully-armored fixture that also brings a full armory of features: precise shutter framing, expansive zoom, variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. A complete creative wheelhouse in a lightweight midsized powerhouse with the enhanced protection to perform extended duty in and near marine environments.

Features at a Glance:

  • Fully featured, compact and lightweight IP65 580W LED yoke profile fixture
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide palette of colors
  • CRI and CTB filters on color wheel for added flexibility
  • One rotating, indexing, and interchangeable slot and lock gobo wheel
  • One rotating static gobo wheel
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM control over DMX for fixture reporting
  • 6.3 to 58.6° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • Integrated sun shield for protecting the optical path from sunlight when the fixture is off
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation

Key Specs:

  • Fixture Type: Gobo Projector / Moving Head
  • Light Source: 1x White LED - 580 W / 4.2
  • Colors: Unspecified Colors (Included Gels/Filters)
  • Beam Angle: 6.3 to 42.6°
  • Control Protocols: DMX512, W-DMX, RDM, Art-Net, sACN
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • Mounting: Omega Bracket

Power / Current Consumption:

  • 100 VAC, 60 Hz: 800 W / 8.2 A
  • 120 VAC, 60 Hz: 800 W / 6.82 A
  • 208 VAC, 60 Hz: 779 W / 3.77 A
  • 230 VAC, 50 Hz: 763 W / 3.41 A
  • 240 VAC, 50 Hz: 767 W / 3.34 A

Light:

  • Fixture Type: Gobo Projector / Moving Head
  • Light Source: 1x White LED - 580 W / 4.2
  • Expected Lamp Life: 50,000 Hours
  • Colors: Unspecified Colors (Included Gels/Filters)
  • Photometrics: 6682 fc / 71,933 Lux at 16.4' / 5 m, 239 fc / 2580 Lux at 16.4' / 5 m
  • Color Temperature: 6963K
  • Lumen Output: 28,534 Lumens (Output)
  • Beam Angle: 6.3 to 42.6°
  • Field Angle: 7.9 to 54.7°
  • Shutter / Strobe: Electronic
  • Focus: Motorized
  • Zoom Adjustment: Motorized, 5.5 to 58.6°
  • Dimming: 16-Bit Electronic with 4 Dimmer Modes
  • Prism: 5-Facet (Rotating)

Performance:

  • Operating Modes: Automatic, Color Change, Color Dimmer, DMX, Move-in-Black
  • Macros / Programs: Color Wash, Auto-Program, Color Temperature, Color Fade, Framing Macro, Prism Macro, Frost Macro
  • Effects: Gobo Scroll, Move-in-Black
  • Strobe Rate: 0 to 20 Hz
  • Gobos: 7x Removable Glass Spot/Open, 9x Removable Glass Spot/Open
  • Color Accuracy Index: CRI: 71.3 to 89.1

Movement:

  • Tilt Ranges: 270° / 180° / 90°
  • Pan Ranges: 540° / 360° / 180°

Control:

  • Control Protocols: DMX512, W-DMX, RDM, Art-Net, sACN
  • DMX Channel Modes: (2 Modes)32 / 48-Channel
  • Remote Control: Yes
  • Mobile App Compatible: No

Connectivity:

  • Inputs/Outputs: 1 x RJ45 Data/Network Input/Output, 1 x XLR 5-Pin DMX/Data Input/Output
  • Wireless: No

Power:

  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • AC Power Connector: Input: 1x Seetronic IP-Rated, Output: 1x Seetronic IP-Rated, Cord Length: 5' / 1.5 m
  • Fuse: F 15 A 250 V

Power / Current Consumption:

  • 100 VAC, 60 Hz: 800 W / 8.2 A
  • 120 VAC, 60 Hz: 800 W / 6.82 A
  • 208 VAC, 60 Hz: 779 W / 3.77 A
  • 230 VAC, 50 Hz: 763 W / 3.41 A
  • 240 VAC, 50 Hz: 767 W / 3.34 A

Environmental:

  • Environmental Protection: Weather-Resistant (IP65)
  • Operating Temperature: 4 to 113°F / -15 to 45°C

Physical:

  • Mounting: Omega Bracket
  • Included Accessories: 1x Power Cable
  • Exterior Color: Black
  • Max Housing Temperature: 113°F / 45°C
  • Cooling: Convection, Fan
  • Certifications: CE, MET, FCC
  • Dimensions: 27.5 x 15.3 x 9.9" / 699 x 388 x 252 mm
  • Weight: 67 lb / 30.4 kg

In the Box:

  • CHAUVET PROFESSIONAL Maverick Storm 2 Profile
  • Seetronic Powercon IP65 Power Cord
  • Omega Bracket with Mounting Hardware
  • Limited 2-Year Manufacturer Warranty


Chauvet Professional MAVERICKSTORM2PROFILEM User Manual.pdf
