Chauvet Professional NET-X II
Details

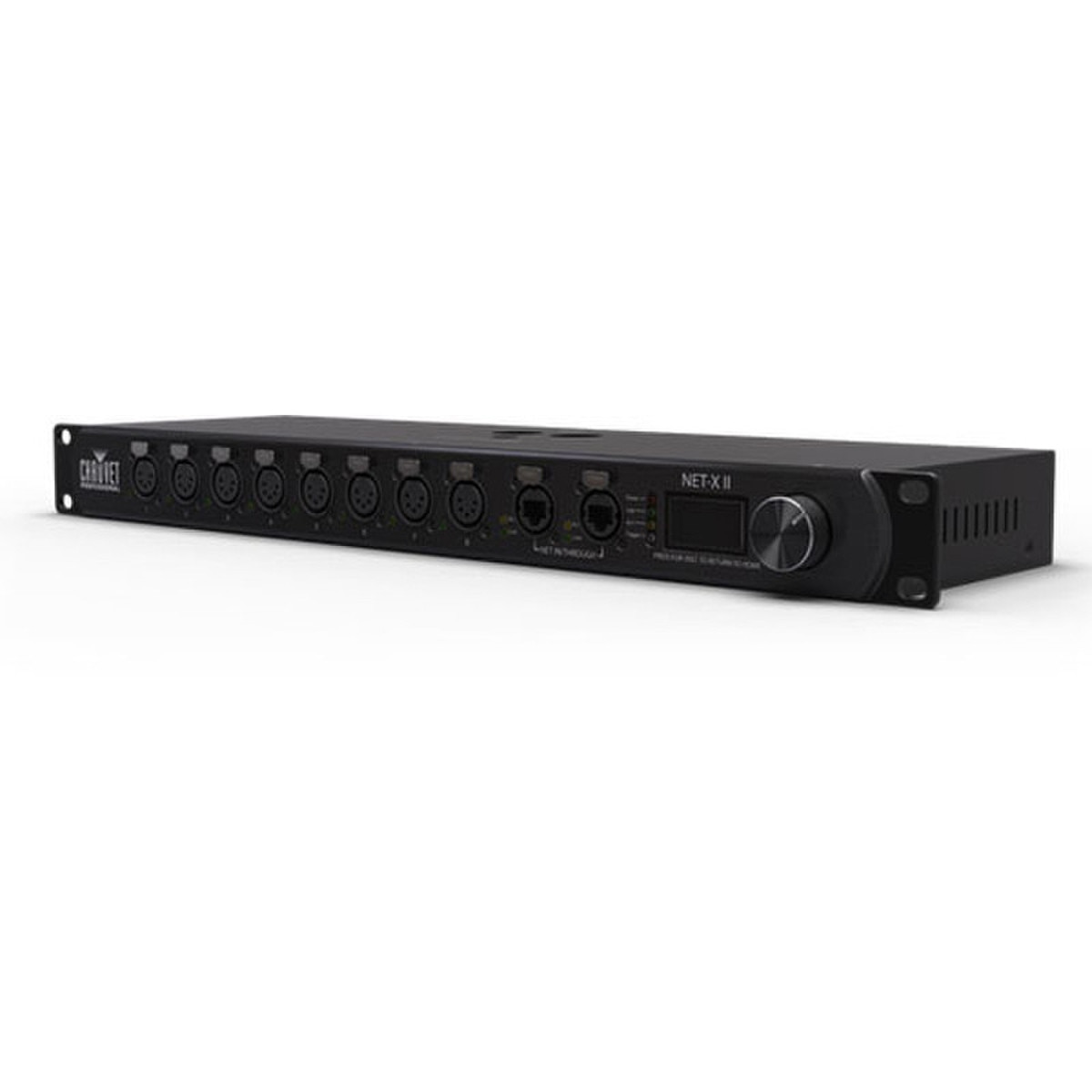

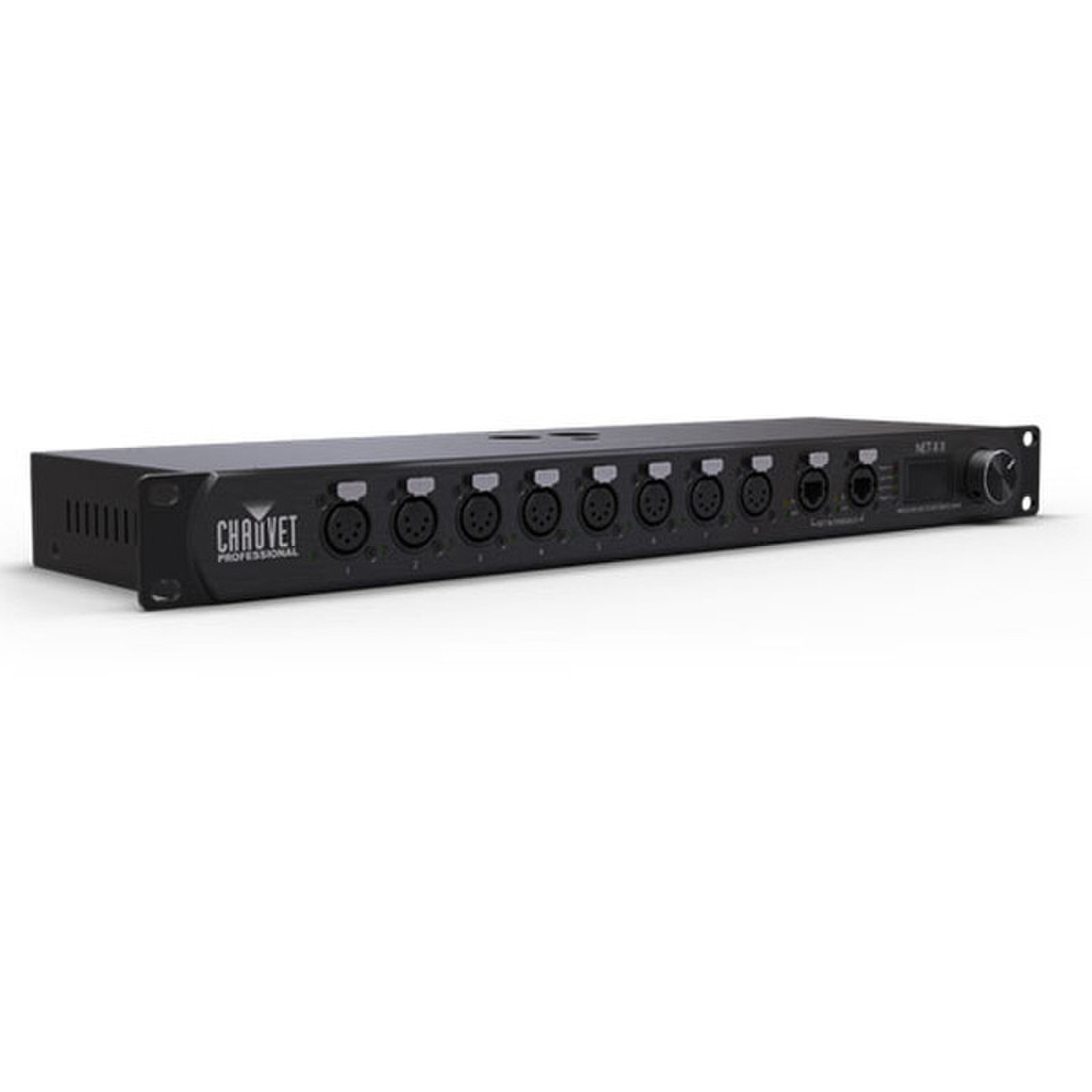

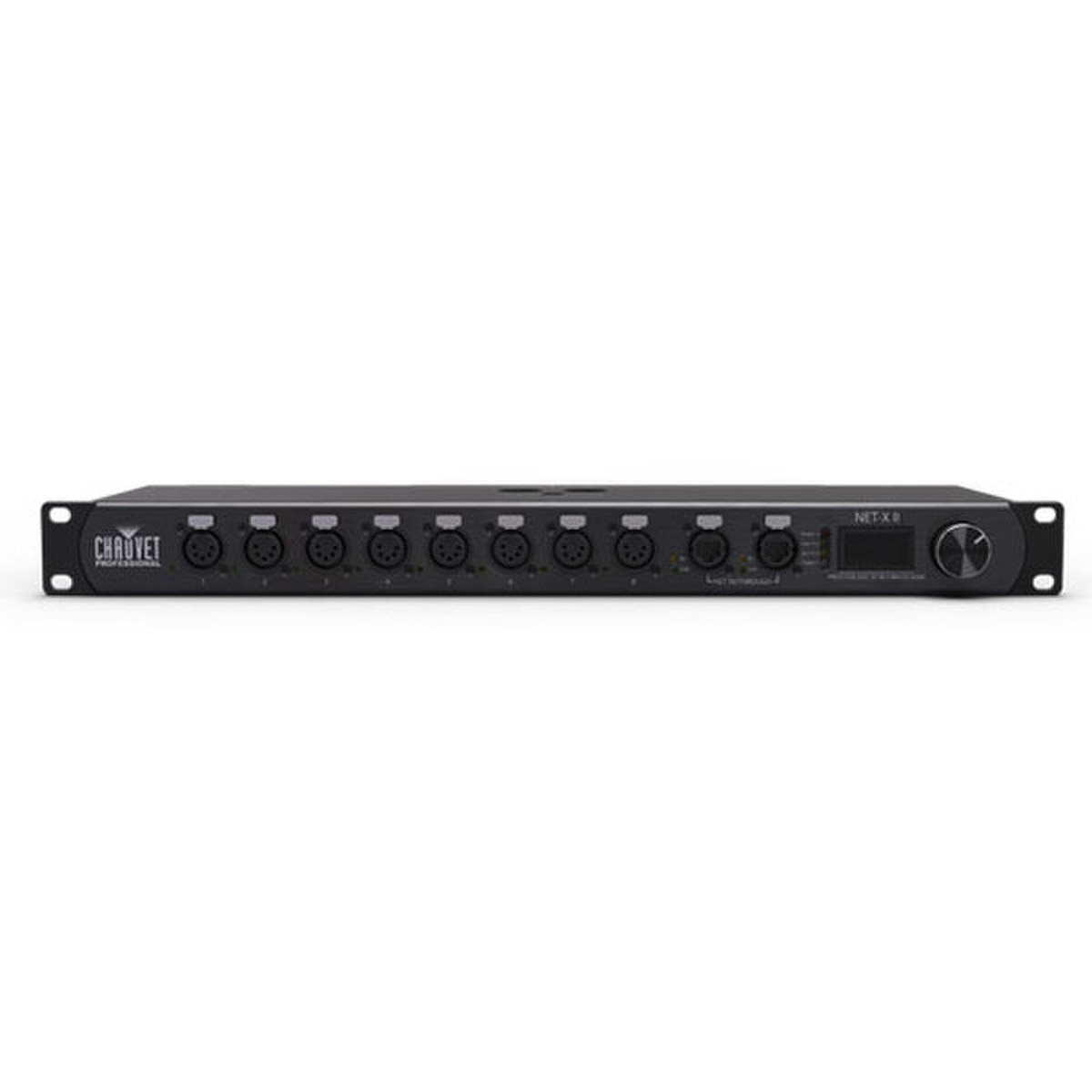

Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs – all optically isolated, and can output up to eight universes simultaneously.
Specifications:
Optical:
- Threaded Bolt: M12
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U
Construction/Physical:
- Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
- Weight: 4.6 lb (2.1 kg)
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON

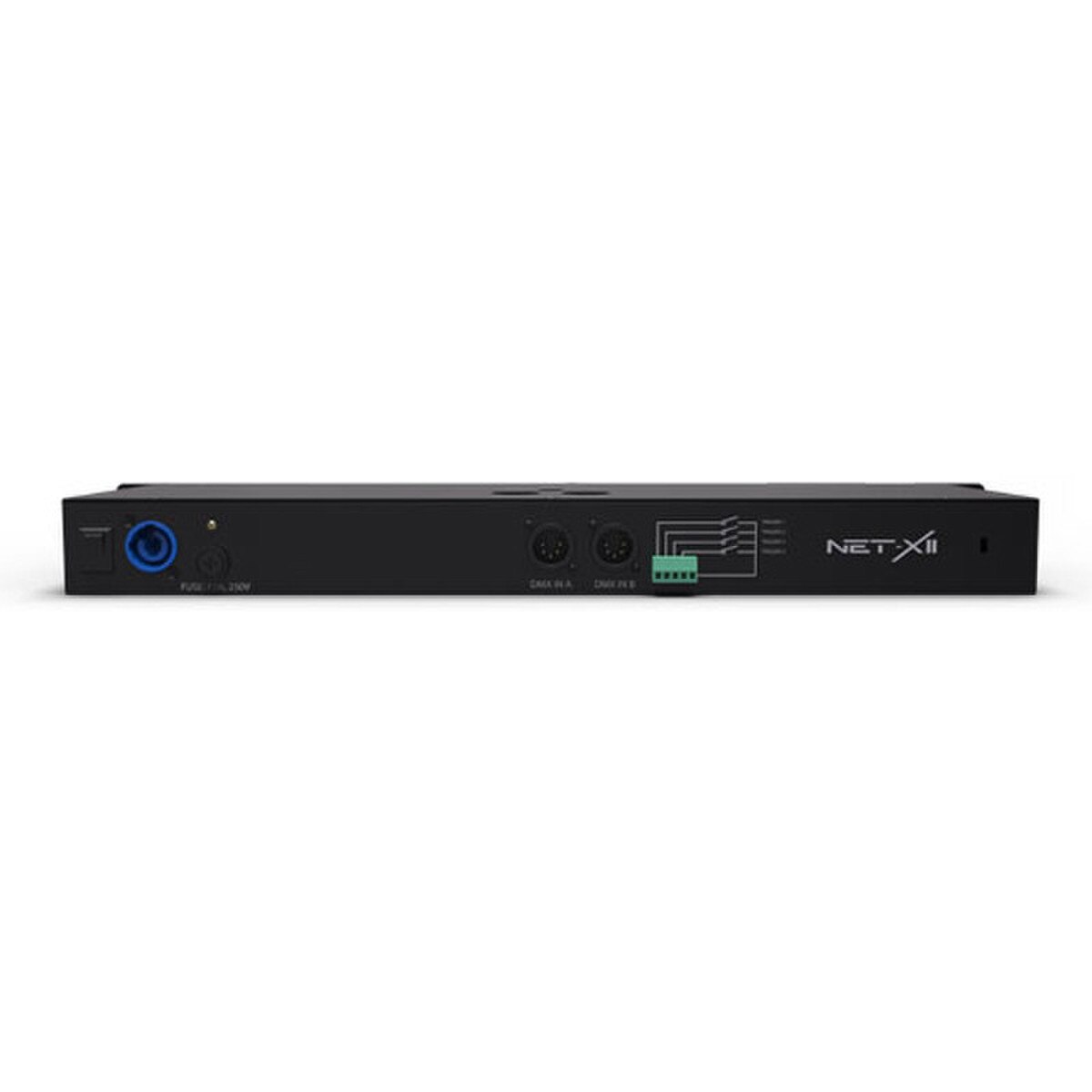

- Device Data Inputs: Neutrik® etherCON® (1 total) and 5-pin XLR (2 total)
- Device Data Outputs: 5-pin XLR (8 total
- Device Date Throughputs: Neutrik® etherCON® (1 total)
- Cable Length (power): 5 ft (1.5 m)
Control:
- Control Protocol: Art-Net, DMX, sACN
- Merge Support: Yes
- Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
Certifications/Qualifications:
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included:
- Net-X II
- Neutrik powerCON power cord
- Phoenix connector
Optional Accessories:
- Clamps
- Neutrik powerCON cables
- Neutrik etherCON cables
- DMX Cables
