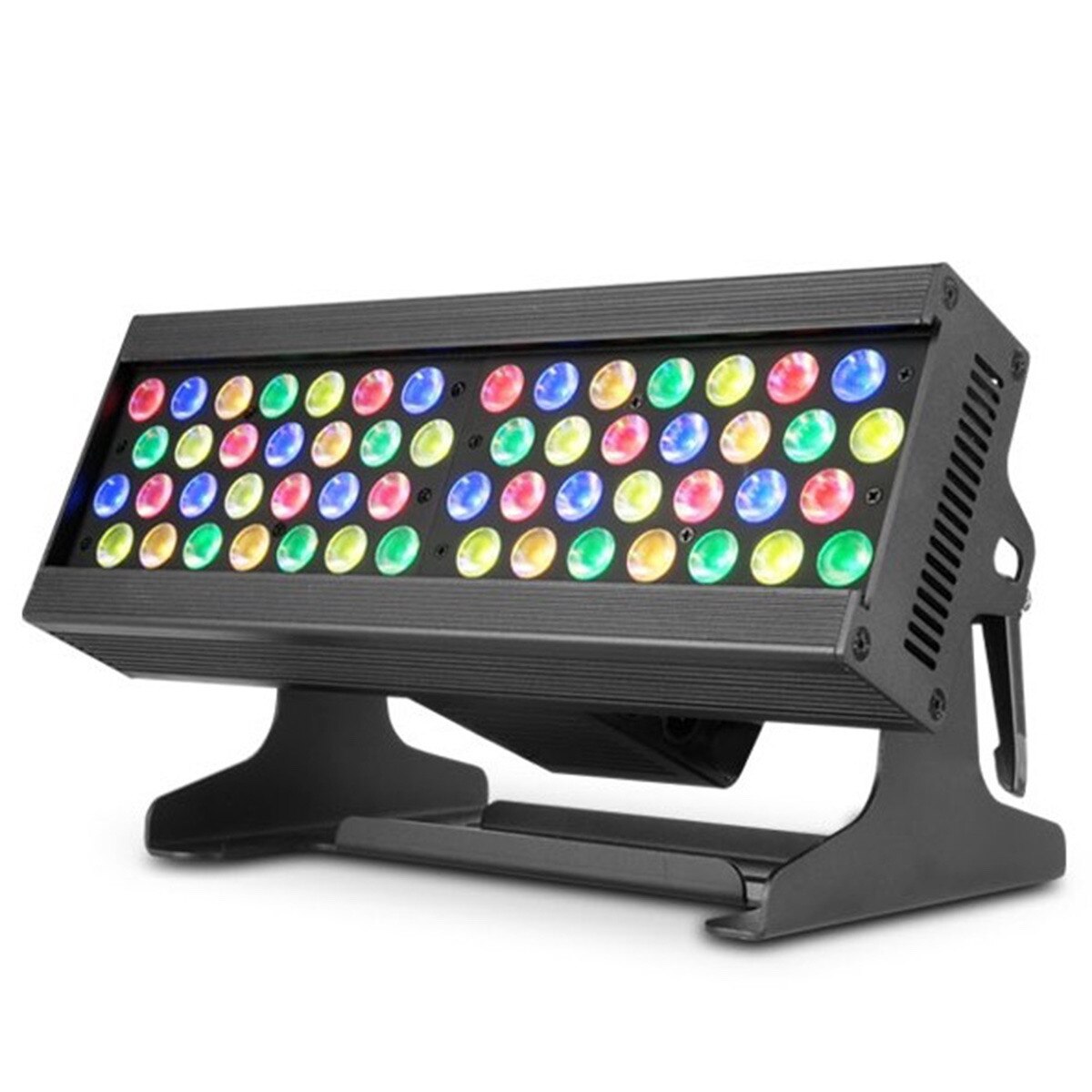

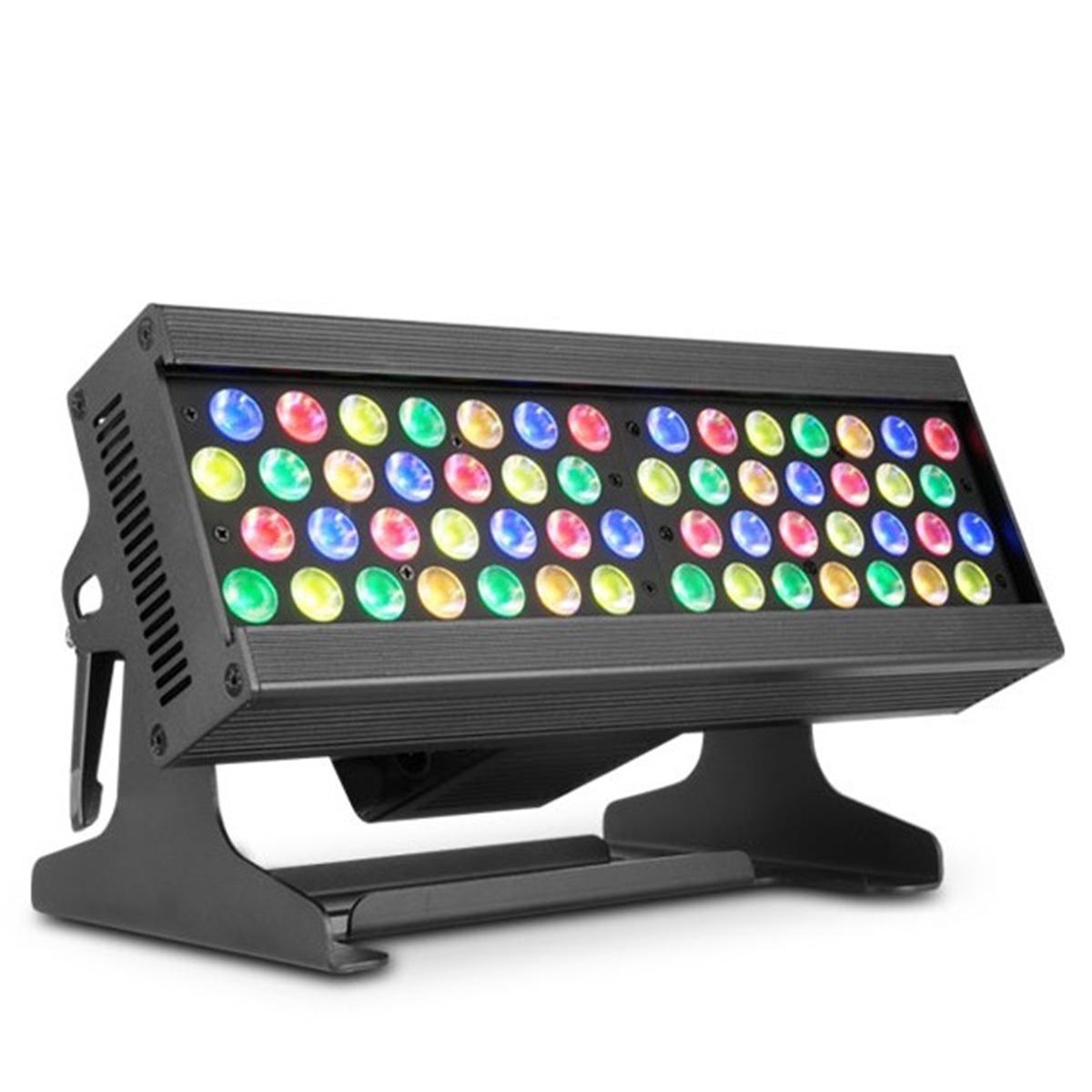

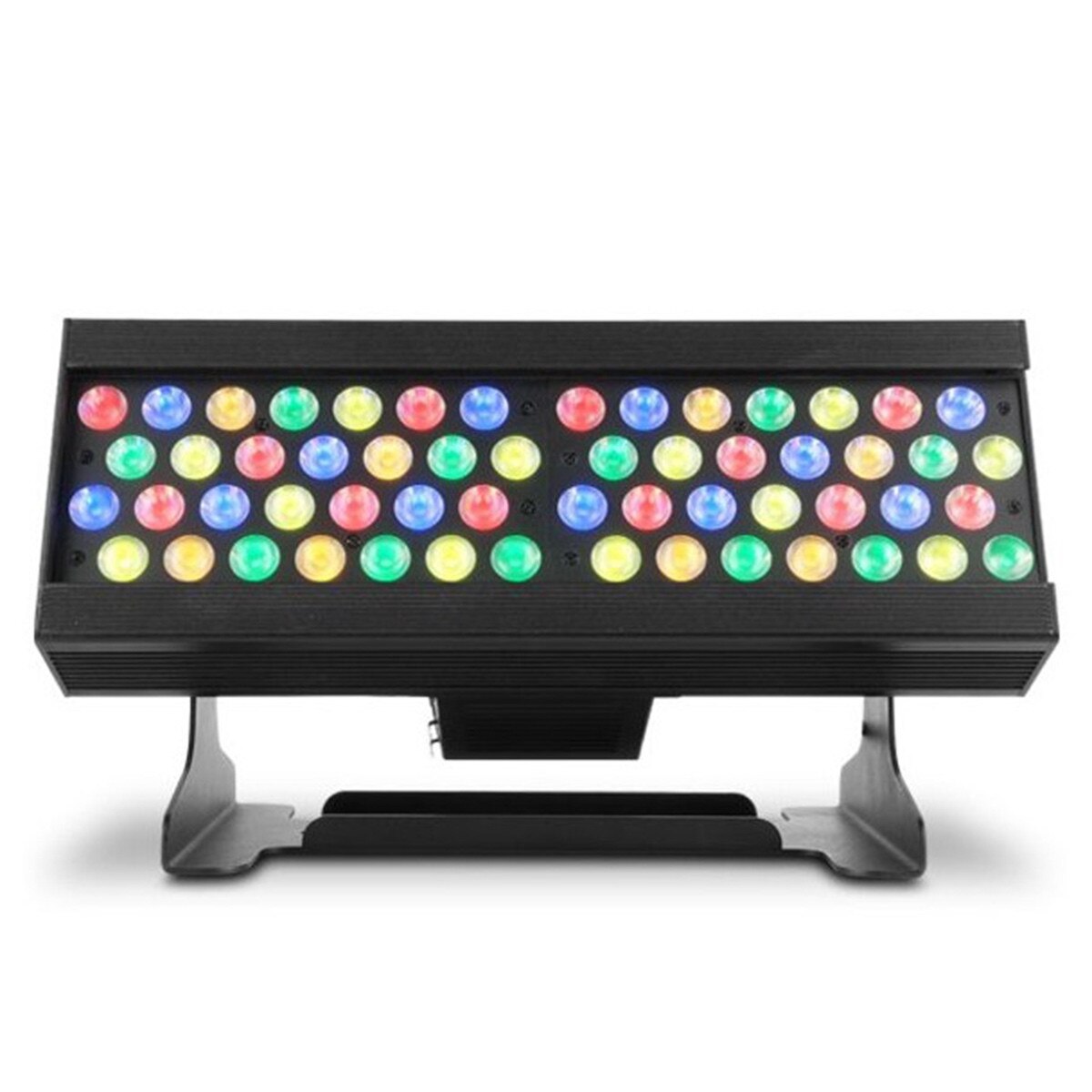

Chauvet Professional Ovation B-565FC

(0)No Reviews yet
SKU: Chauvet Professional OVATIONB565FC

Add this item to get free shipping! (Motor Freight / Oversized Excluded)


Chauvet Professional Ovation B-565FC


The Ovation B-565FC is a two section version of the Ovation B-2805FC and shares many of its ground-breaking features like the RGBA-Lime color system and incorporation of RDM, Art-Net and sACN plus standard DMX for programming and networking options.

This little powerhouse not only makes a great batten light, but also a tremendous standard wash as well. Like it’s bigger brother a holographic filter is included and locks into place so the fixture can be used in any orientation without worrying about the filter sliding out.


  • Full Color LED (RGBAL) batten fixture for theatre, film and production
  • Theatre-ready with 16-bit dimming of master dimmer and individual colors
  • Multiple control personalities with one or two sections of control
  • Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
  • Virtual Color wheel with color matched to popular Rosco Gel colors
  • Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
  • Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Nearly silent operation for use in studio and theatre applications


  • Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 8 W, (740 mA), 50,000 hrs life expectancy
  • Color Temperature (range): 2800 K to 6500 K
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
  • Cable Length (power): 5’ (1.5 m)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Accessory Holder/Gel Frame Size: 13.86 x 3.66” (352 x 93 mm)
  • Dimensions: 13.9 x 7.48 x 8.14” (355 x 190 x 207 mm)
  • Weight: 11.6 lb (5.3 kg)

* Included:

  • Neutrik powerCON power cord
  • Wall Washing Filter
