Chauvet Professional Ovation CYC 3FC

(0)No Reviews yet
$1,700.00
SKU: Chauvet Professional OVATIONCYC3FC

Details

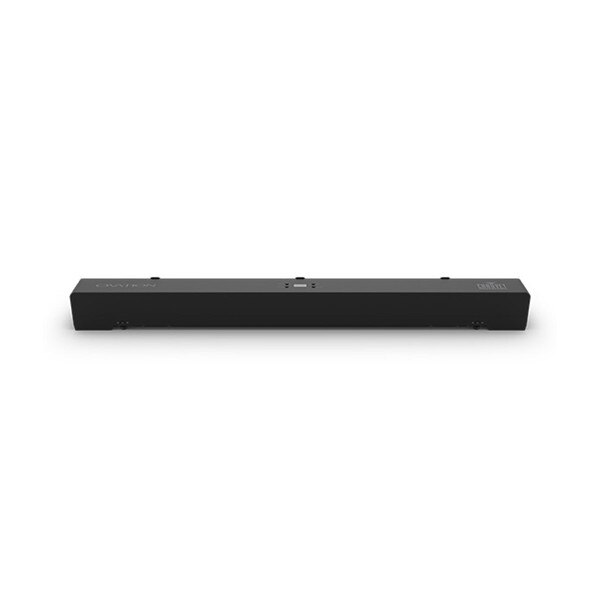

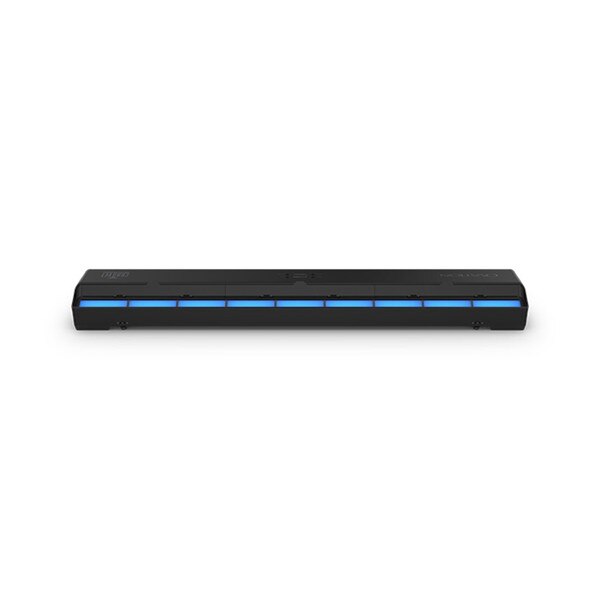

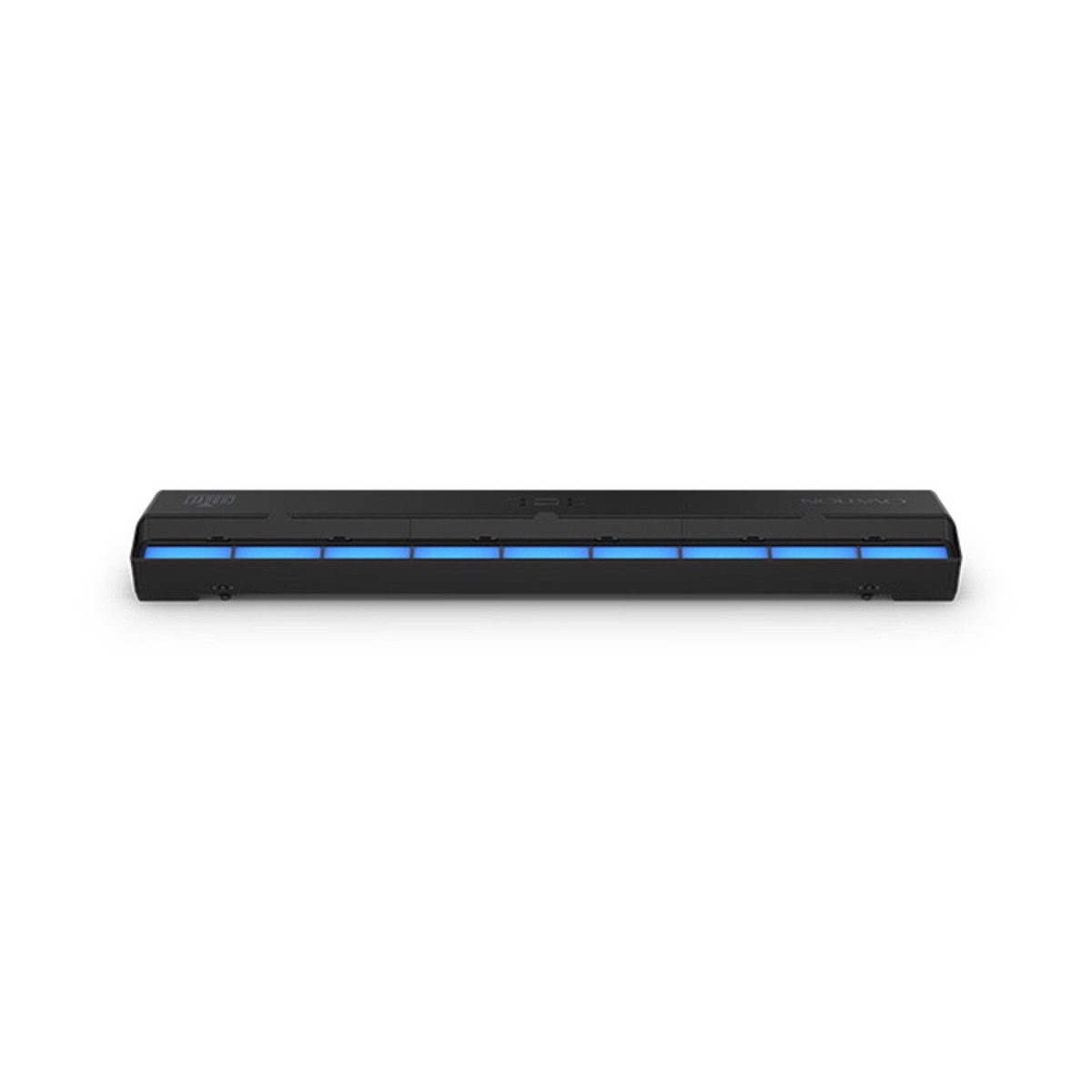

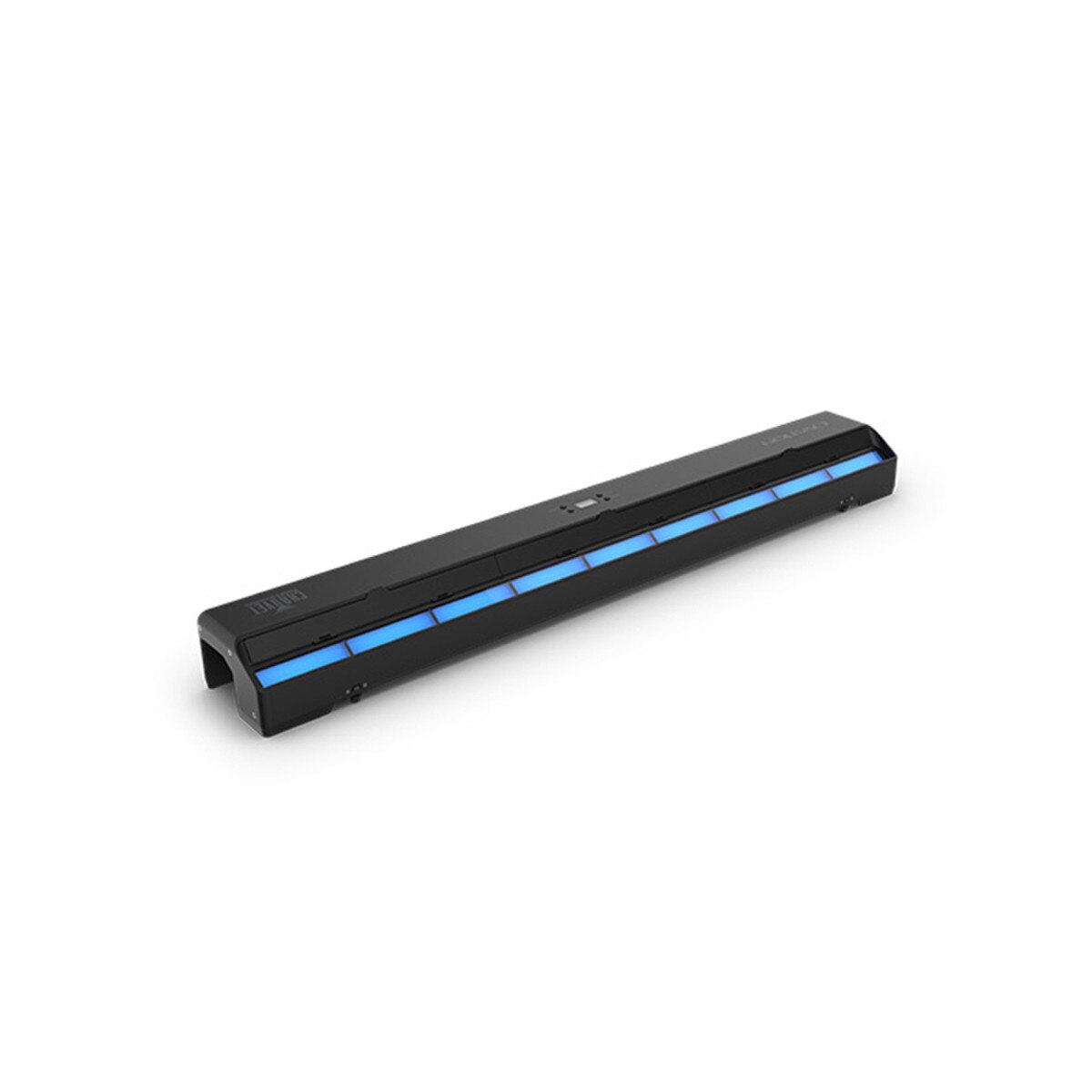

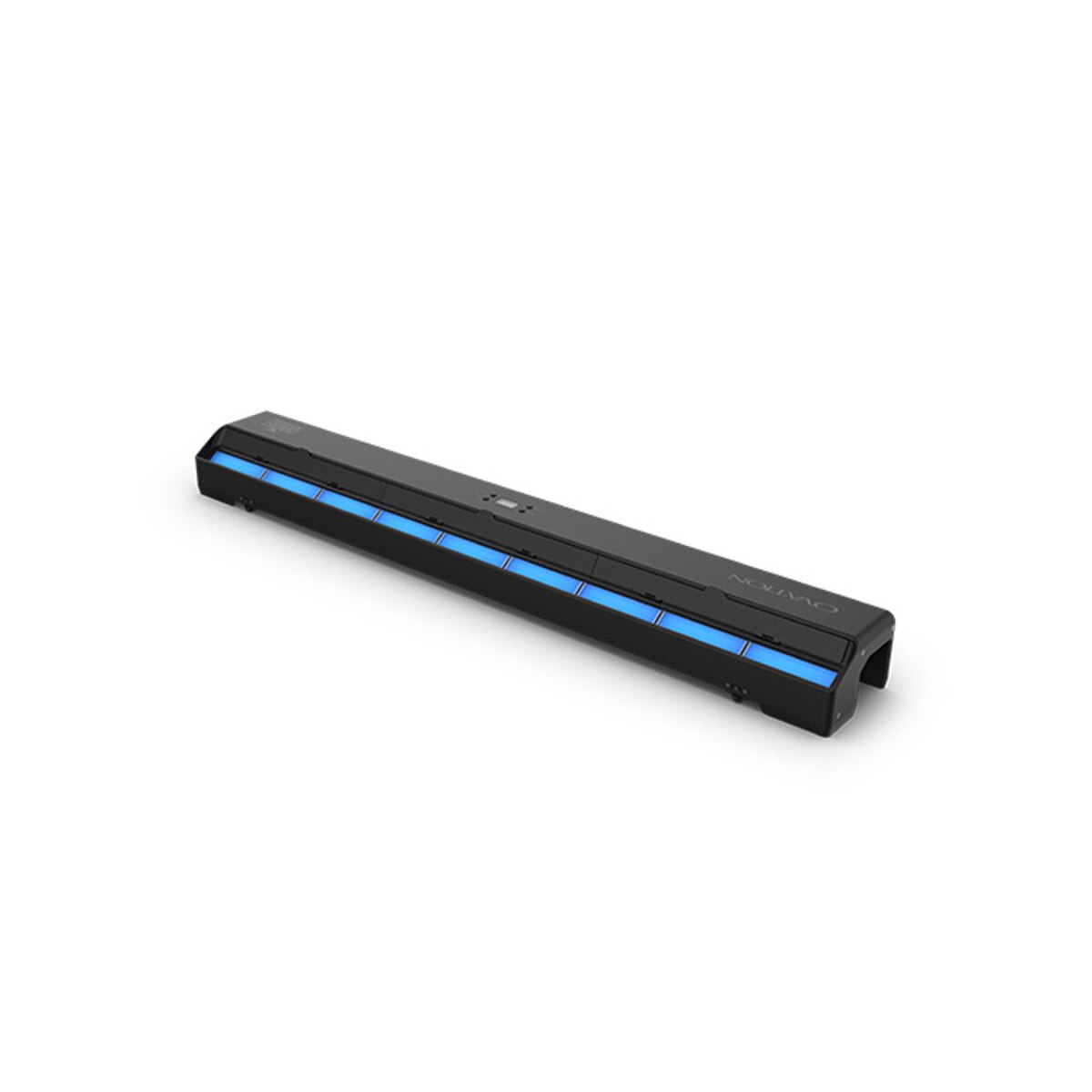

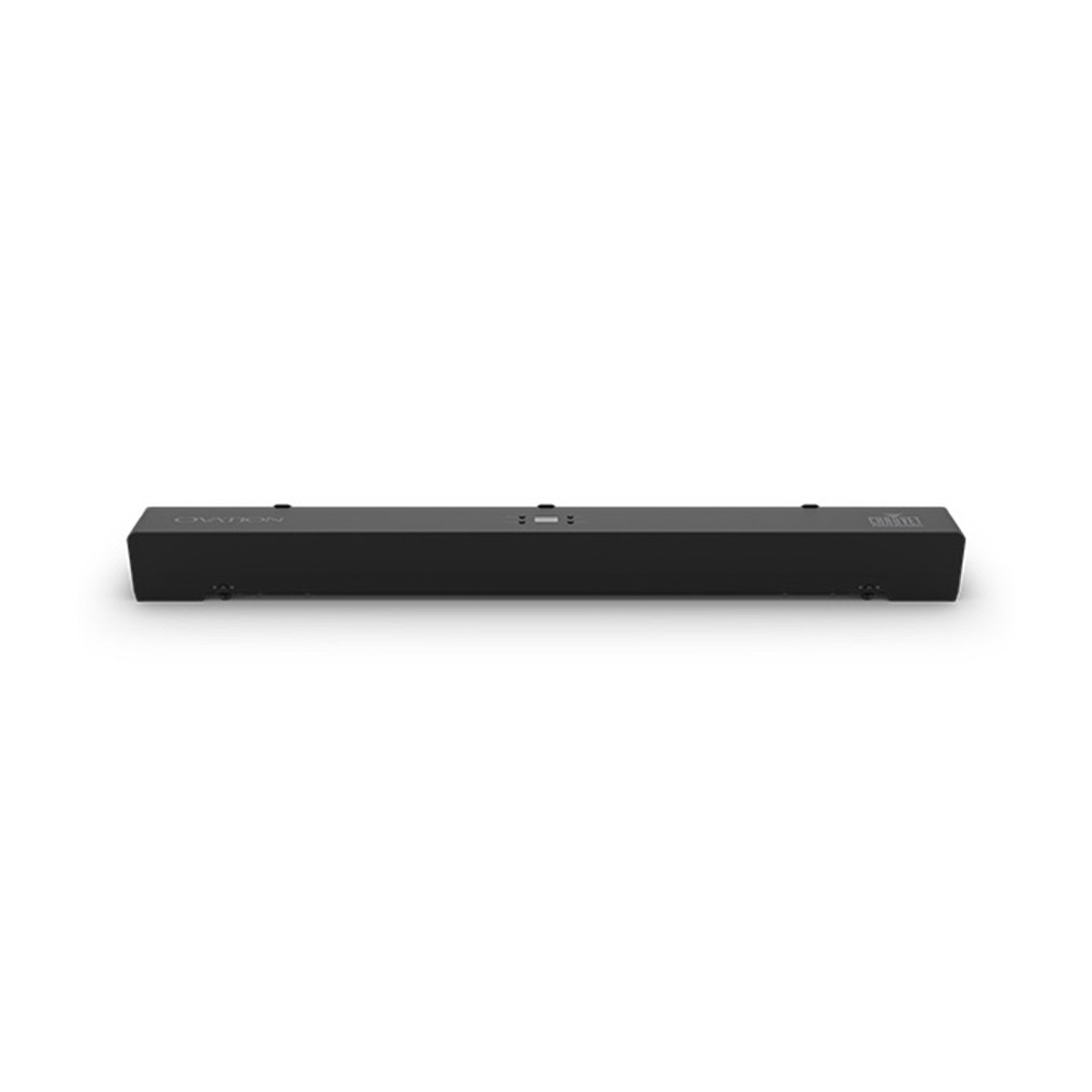

Ovation CYC 3 FC goes to new lengths to deliver a homogeneous field of light with significant reach. Its sleek low profile blends discreetly into stage sets as either a cyc wash or footlight and pairs perfectly with the CYC 1 FC to easily extend coverage with seamless consistency in interchangeable configurations. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation CYC 3 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. This versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features included omega brackets.

Features:

  • Low-profile and lightweight cyclorama wash or footlight fixture, in a 1m length to complement the Ovation CYC 1 FC
  • Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production
  • Theatre-ready with 16-bit dimming of master dimmer and individual colors
  • Beam modification with built in “kick stands” and adjustable glare shield
  • Flat, even field of light with superior color mixing
  • Virtual Color wheel with color matched to popular gel colors and color temperature presets
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Silent operation for use in studio and theatre applications

Specifications:
Optical:

  • Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA)
  • Color Temperature (range): 2800 to 6500 KCRI (3200K): 90
  • Beam Angle (Horizontal): 111.4°
  • Field Angle (Horizontal): 151.8°Beam Angle (Vertical): 76.7°
  • Field Angle (Vertical): 134.4°Lumens : 19,575
  • Illuminance (total): 280 lux @ 5 m
  • PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

Construction/Physical:

  • Dimensions: 47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm)
  • Weight: 24.6 lb (11.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

Connections:

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control:

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16, 17, 33
  • Modes/Personalities: 11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 345 W, 2.93 A @ 120 V, 60 Hz
  • Power and Current: 338 W, 1.77 A @ 208 V, 60 Hz
  • Power and Current: 334 W, 1.64 A @ 230 V, 50 Hz

Certifications/Qualifications:

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

  • OVATION CYC-3 FC
  • Seetronic Powerkon power cord
  • Omega brackets with mounting hardware

Optional Accessories:

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 3-pin or 5-pin DMX Cables



Ovation Cyc 3 FC - User Manual.pdf
Ovation CYC 3 FC – Quick Reference Guide.pdf
Ovation Cyc 3 FC - Photometrics Report.pdf
Ovation Cyc 3 FC - DMX Chart.pdf
