Chauvet Professional Ovation E-260CW

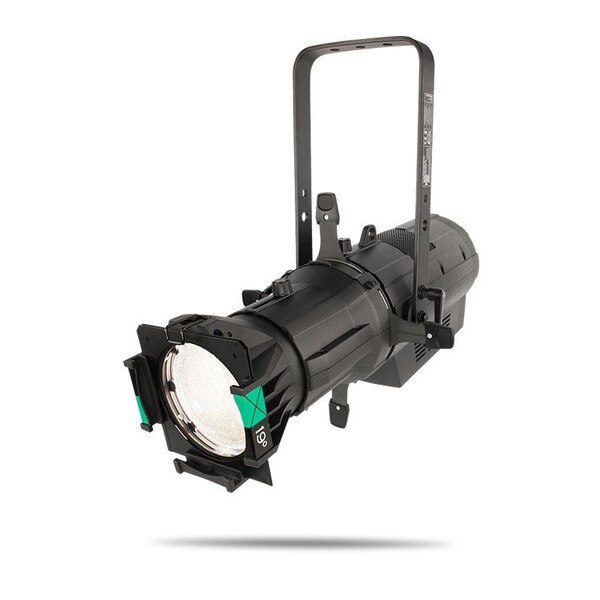

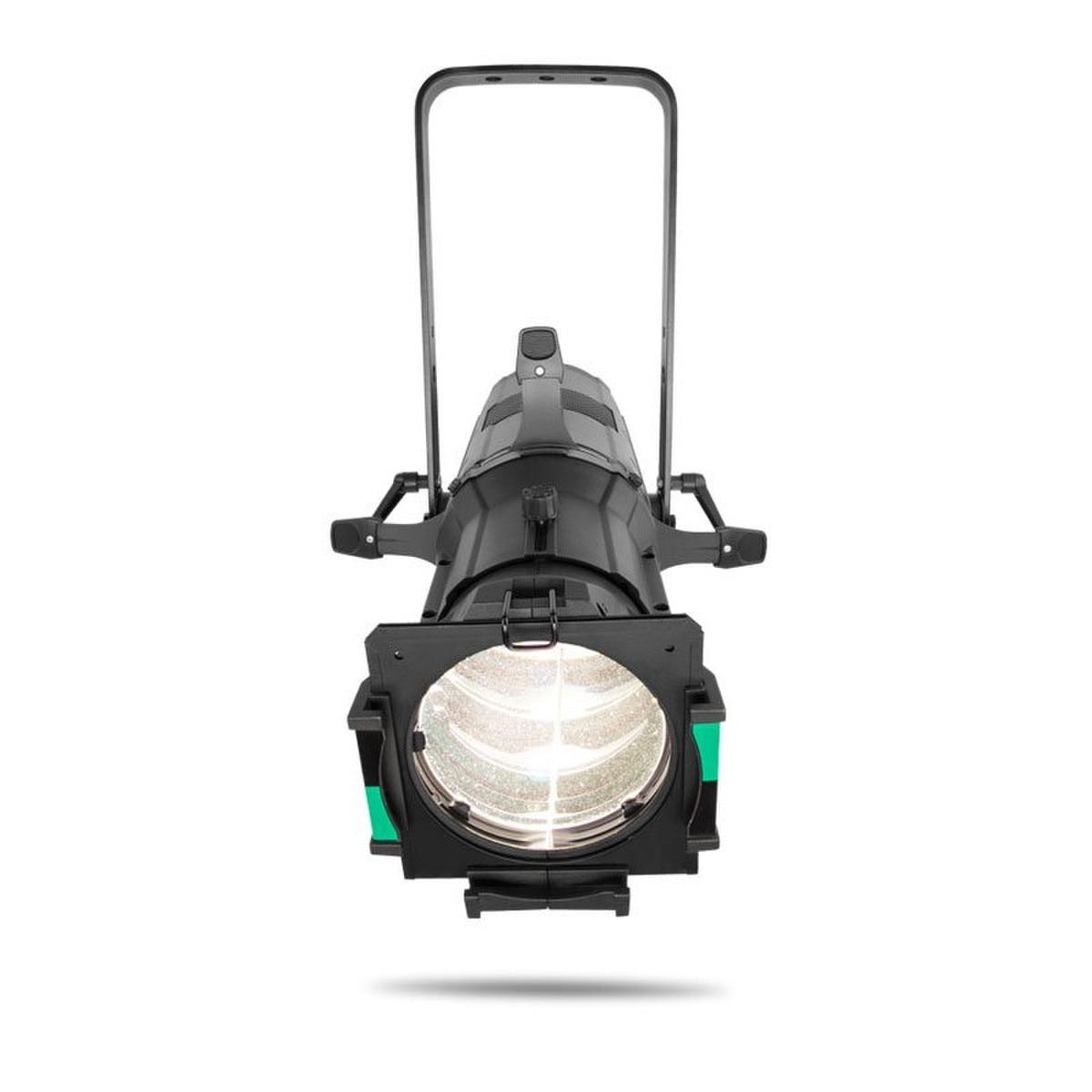

Ovation E-260CW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

Features:

• Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Specifications:
Optical:

• Light Source: 1 LED 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
• Color Temperature (at full): 5452 K
• CRI: 96
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Construction / Physical:

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Weight (fixture only): 15.4 lb (7 kg)
• Exterior Color: Black

Connections:

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control:

• Control Protocol: DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 225 W, 1.86 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.12 A @ 208 V, 60 Hz
• Power and Current: 233 W, 1.02 A @ 230 V, 50 Hz

Certifications:

• CE, MET
• IP Rating: IP20, dry location

What's Included:

• Ovation E-260CW
• Neutrik powerCON power cord

Required Accessories:

• Lens Tube: 14°, 19°, 26°, 36°, 50°
