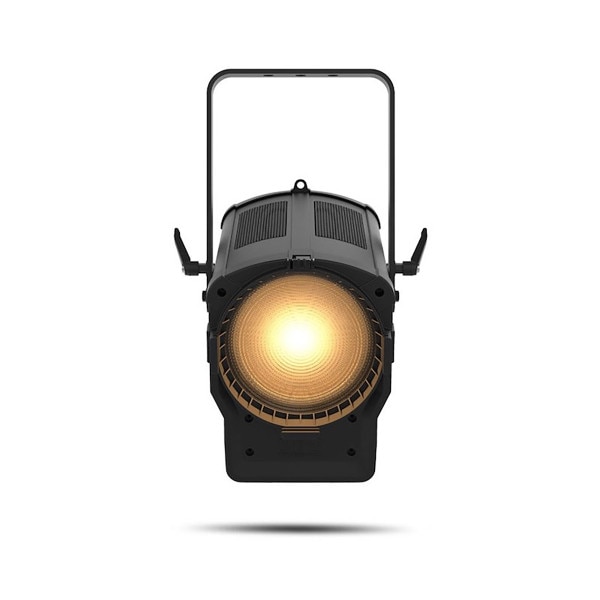

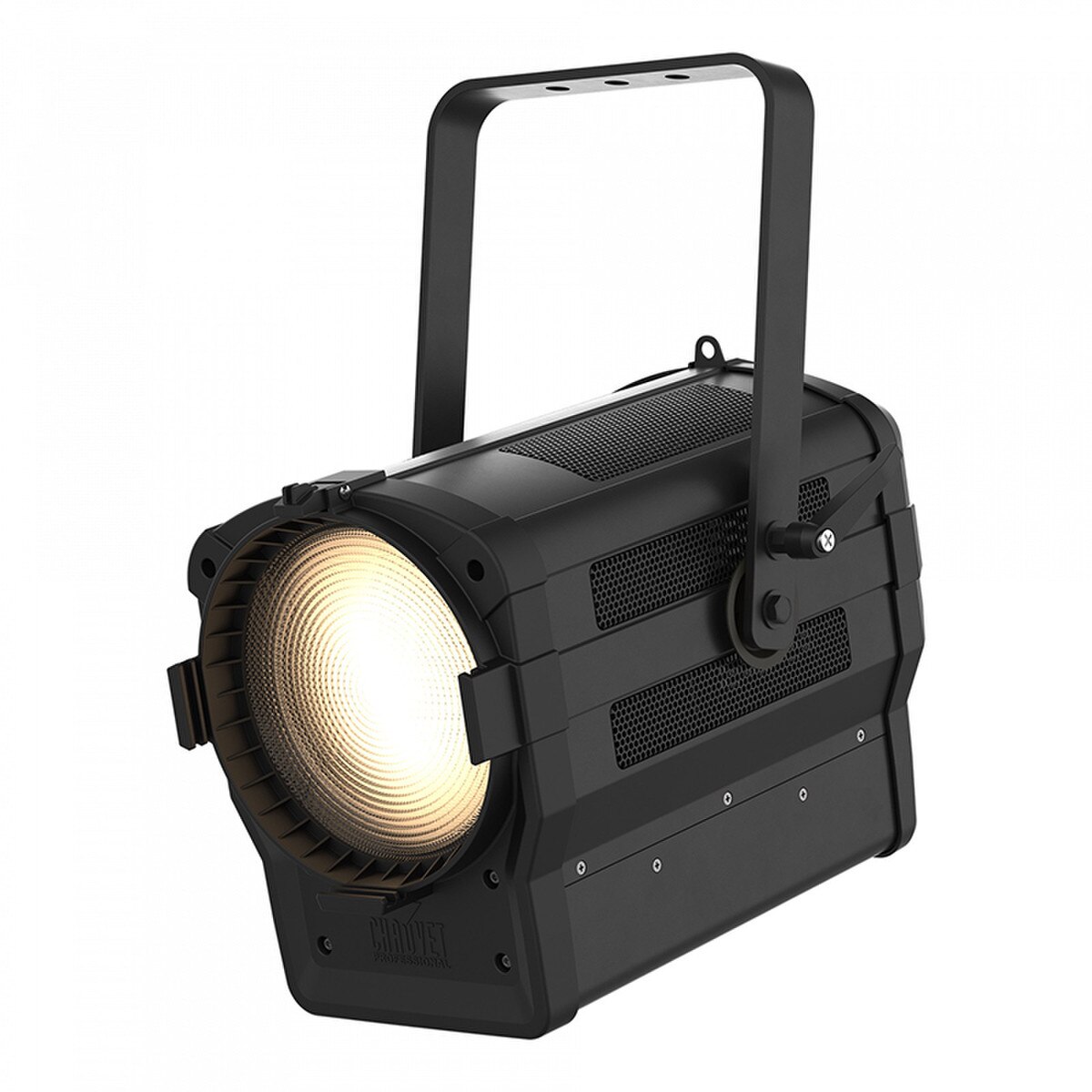

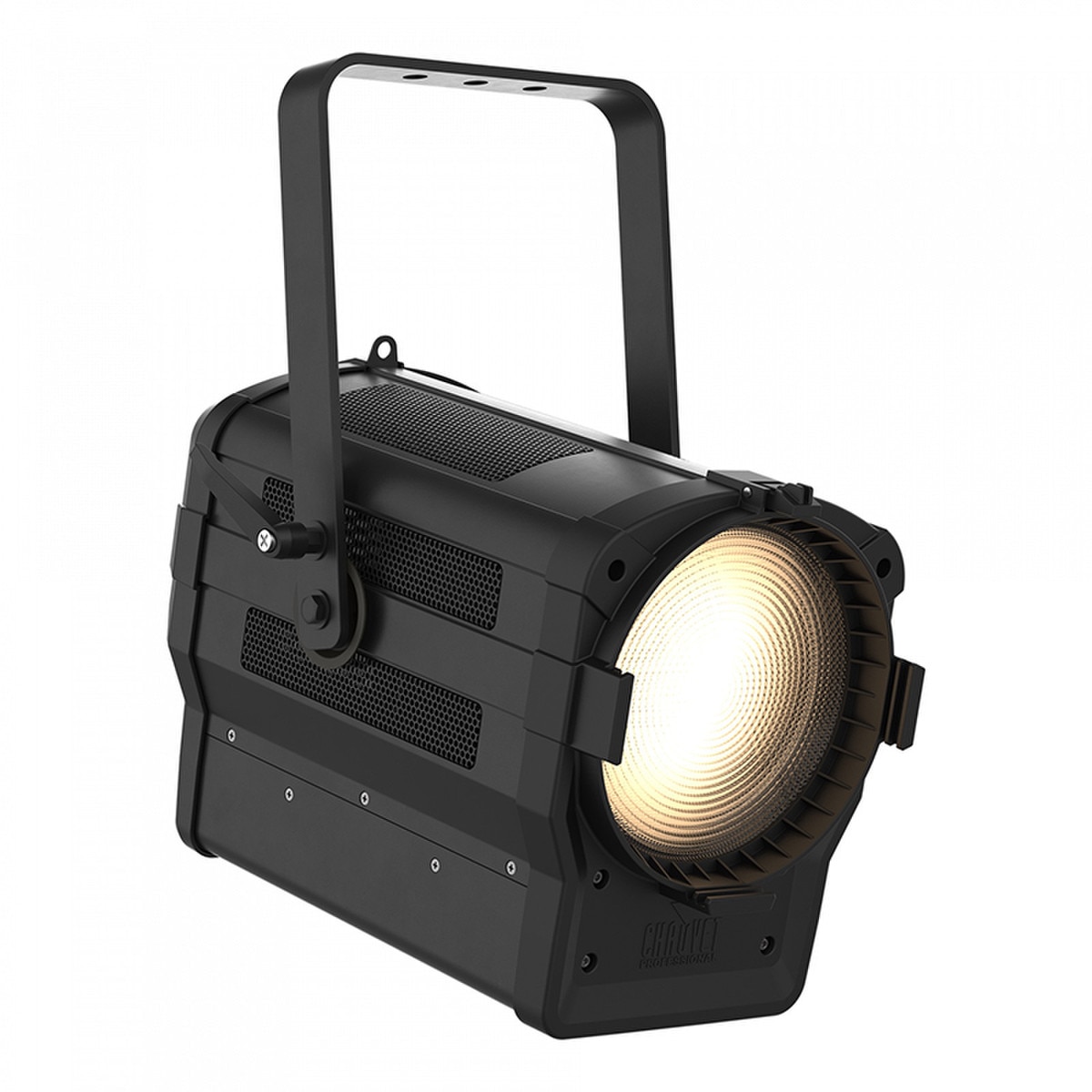

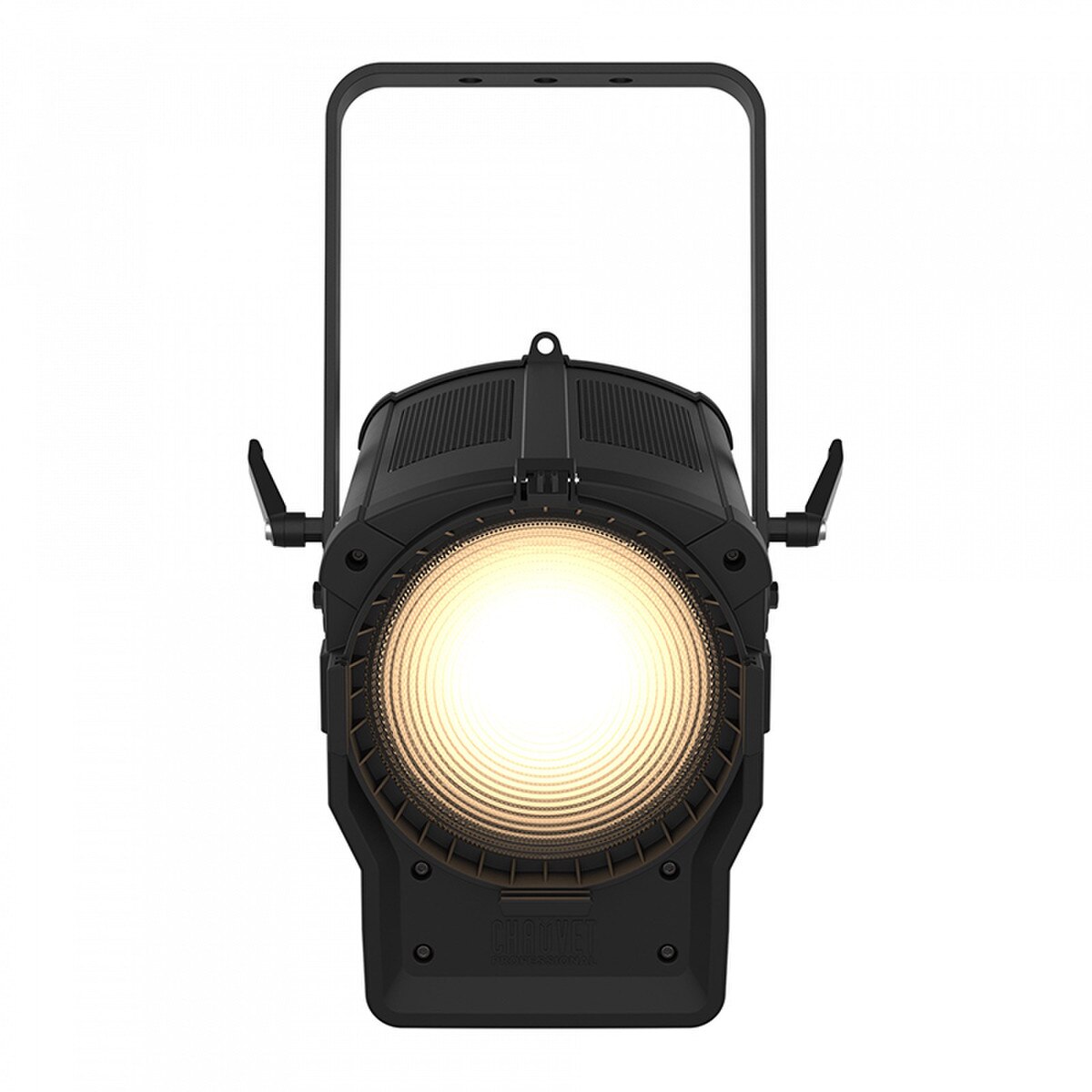

Chauvet Professional Ovation F-265WW
Details
This high-power, Fresnel-style fixture utilizes an efficient warm white LED system to project a bright, soft, and high-CRI (95+) field of light with a versatile motorized zoom.
Ideal for theaters and television studios, this fixture excels in any application requiring a high-quality, soft-edged warm white wash light.
Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.
Features:
- Powerful Fresnel Output: Delivers a warm white light with an intensity comparable to a traditional 2,000-watt Fresnel fixture.
- Even Light Field: Produces a soft and consistent field of light perfect for wash applications.
- Smooth 16-Bit Dimming: Features 16-bit dimming resolution to achieve exceptionally smooth and seamless fades.
- Silent Operation: Operates virtually silently, making it ideal for any noise-sensitive environment.
- Motorized Zoom Control: Offers a versatile motorized zoom range from 16° to 68° that can be controlled either manually or through DMX.
Specifications:
Optical:
- Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
- Color Temperature (at full): 3142 K
- CRI: 96
- Beam Angle: 16° to 46°
- Field Angle: 27° to 68°
- Zoom Range: 16° to 68°
- Lumens (27°): 9,283
- Lumens (68°): 12,802
- Illuminance (27°): 4,010 lux @ 5 m
- Illuminance (68°): 1,162 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects:
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 30 Hz
- Dim Modes: 4
Construction/Physical:
- Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
- Weight: 17.2 lb (7.9 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
- Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

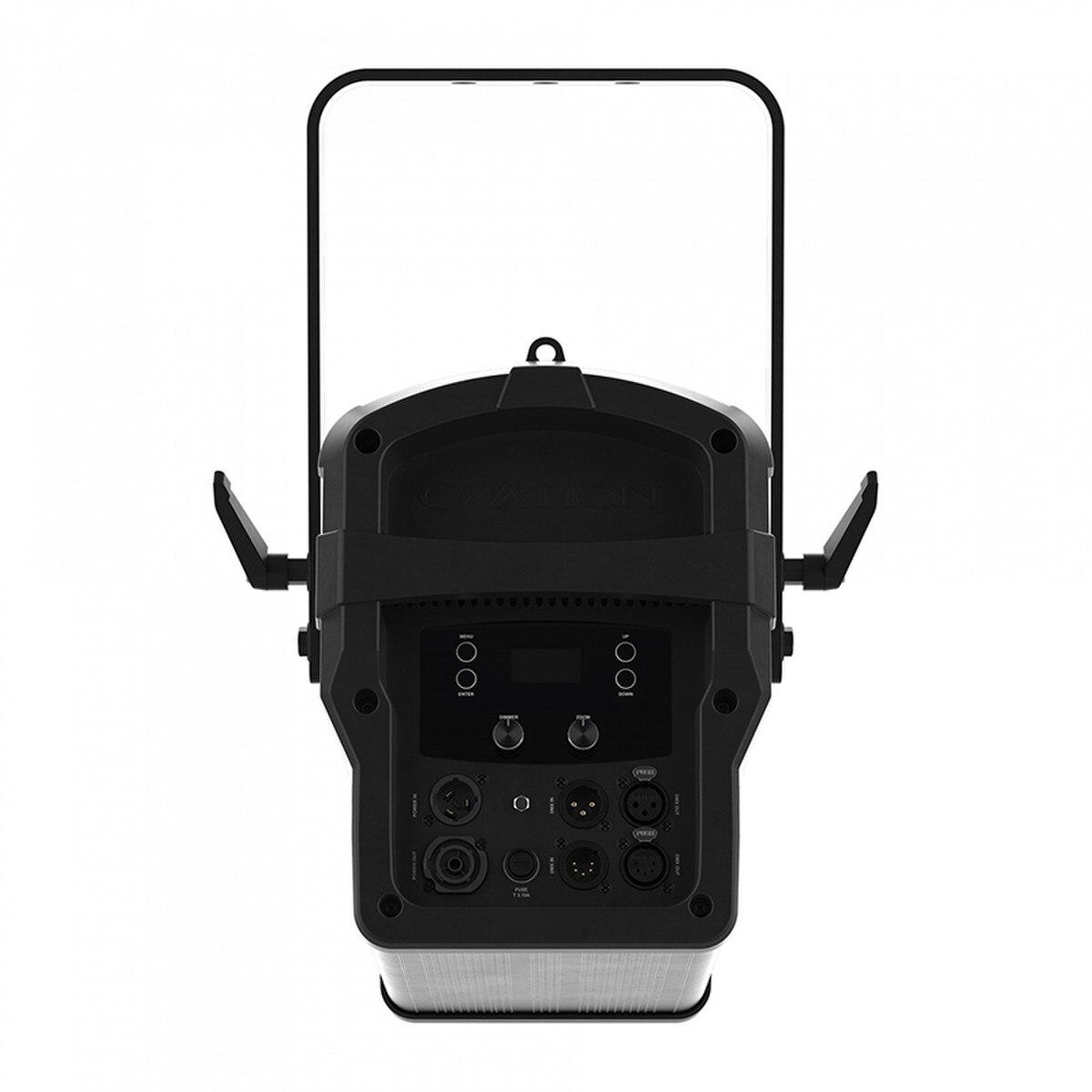

- Connections: Power Connection
- Edison (Local) plug to Seetronic powerKon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control:
- Protocol(s) DMX, RDM
- DMX Channels: 1, 2, 2 or 5
- Modes/Personalities: 4 personalities (1, 2, 2, 5)
Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current:
- Electrical Detail: 222 W, 1.84 A @ 120 V, 60 Hz
- Electrical Detail 2: 231 W, 1.10 A @ 208 V, 60 Hz
- Electrical Detail 3: 230 W, 1.01 A @ 230 V, 50 Hz
Certifications/Qualifications:
- Certifications: CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories:
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F7.5” Barndoor
- Ovation Pole Operated Yoke 2 – 8”
- Seetronic powerkon IP65 cables
What's Included:
- Ovation F-265WW
- Seetronic powerkon IP565 power cable
- Gel Frame
Chauvet Professional OVATIONF265WW-2 Quick Reference Guide.pdf
Chauvet Professional OVATIONF265WW-2 User Manual.pdf
Chauvet Professional OVATIONF265WW-2 Photometrics Report.pdf
Chauvet Professional OVATIONF265WW-2 DMX Chart.pdf
