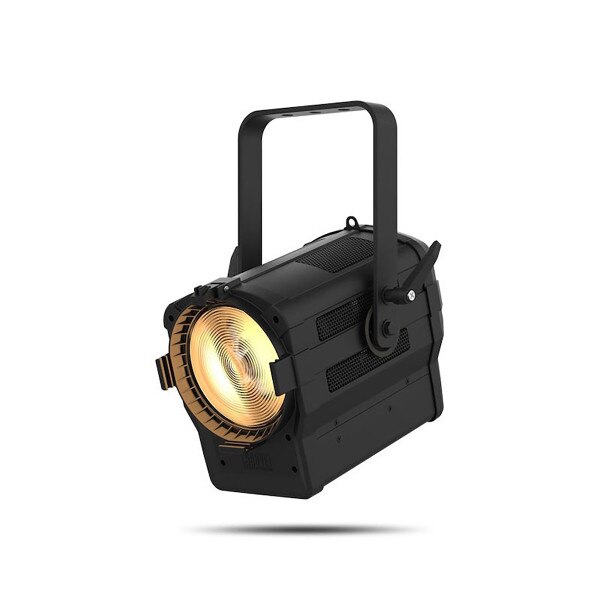

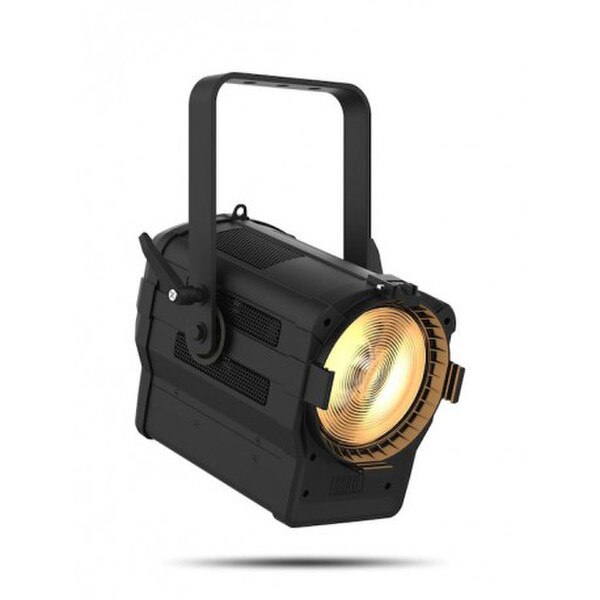

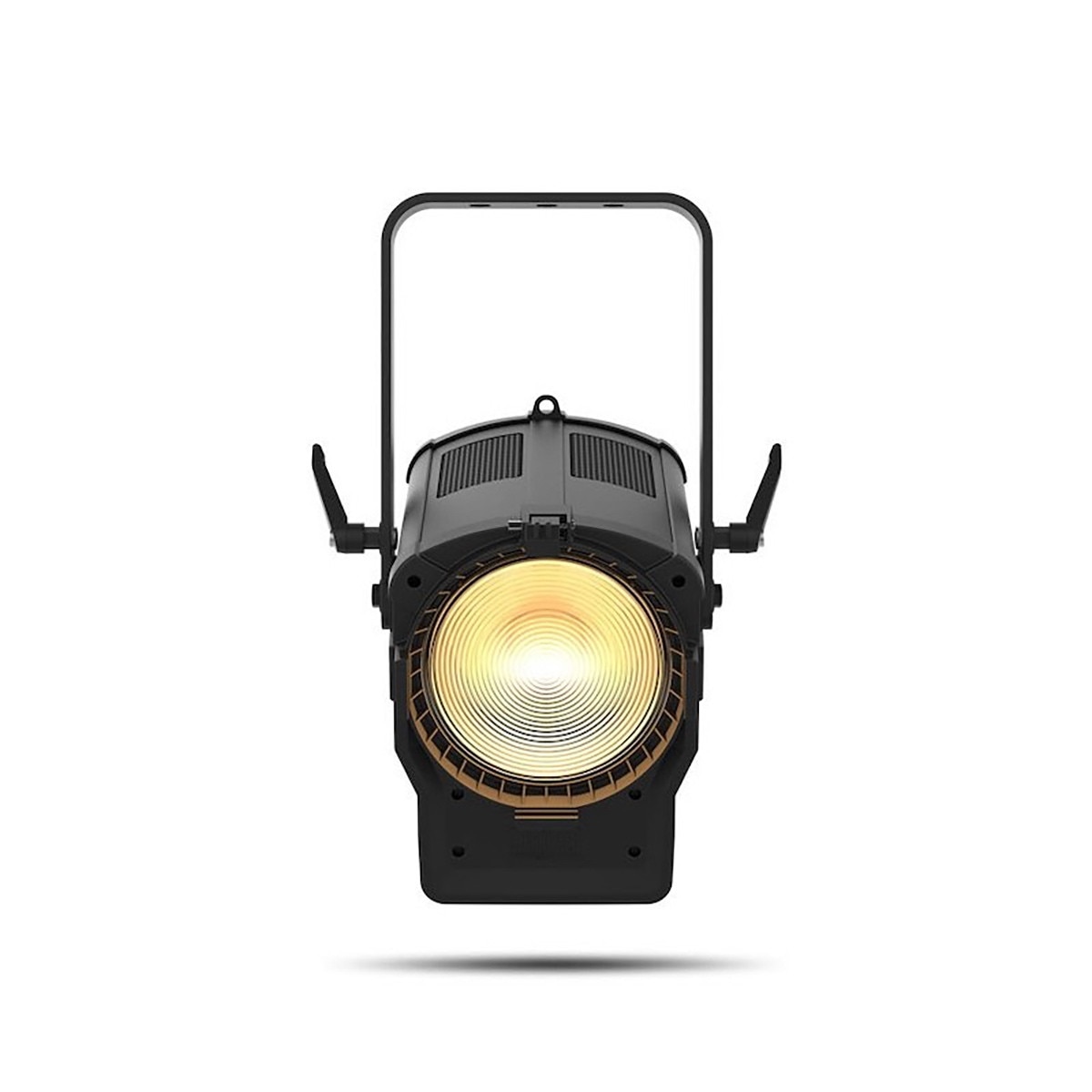

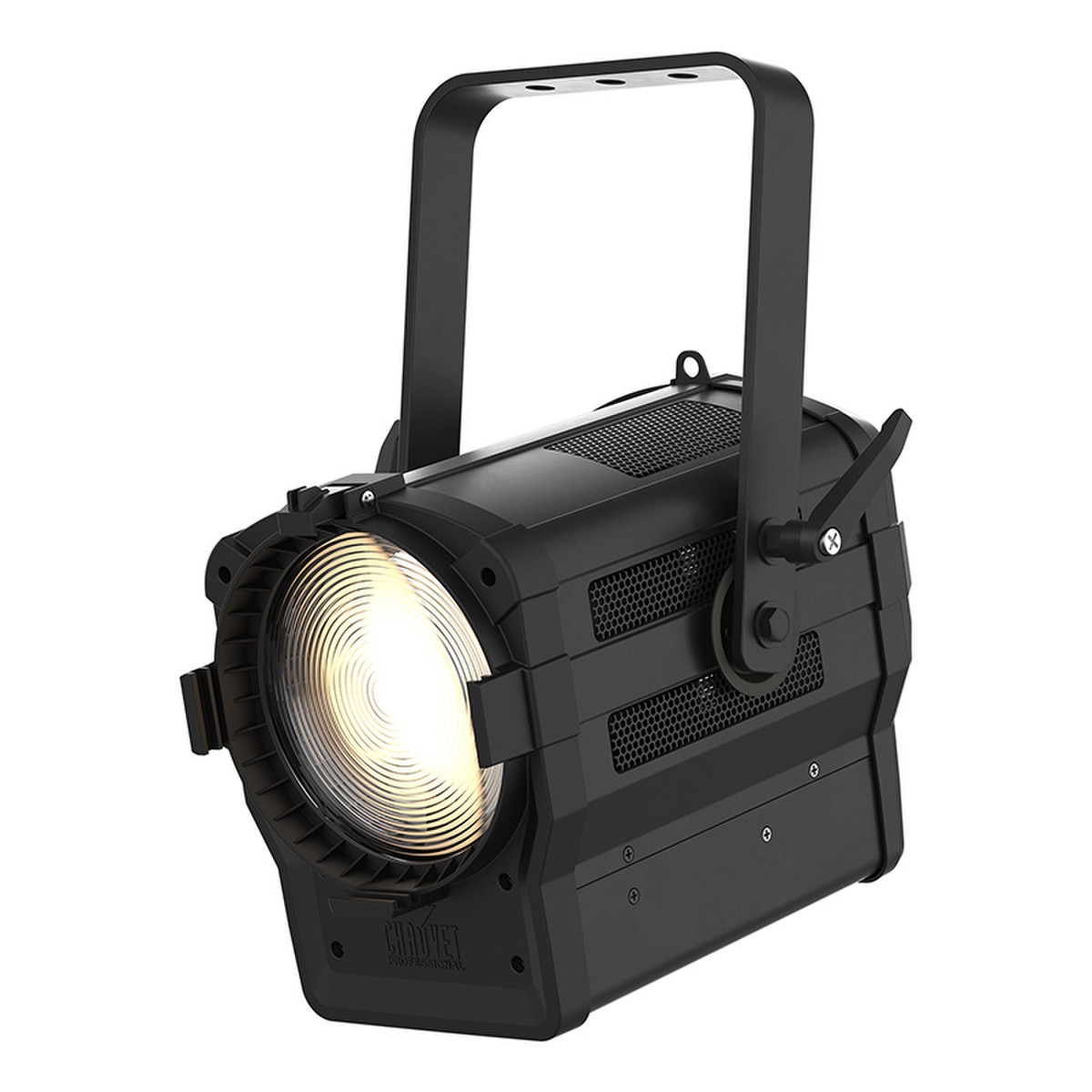

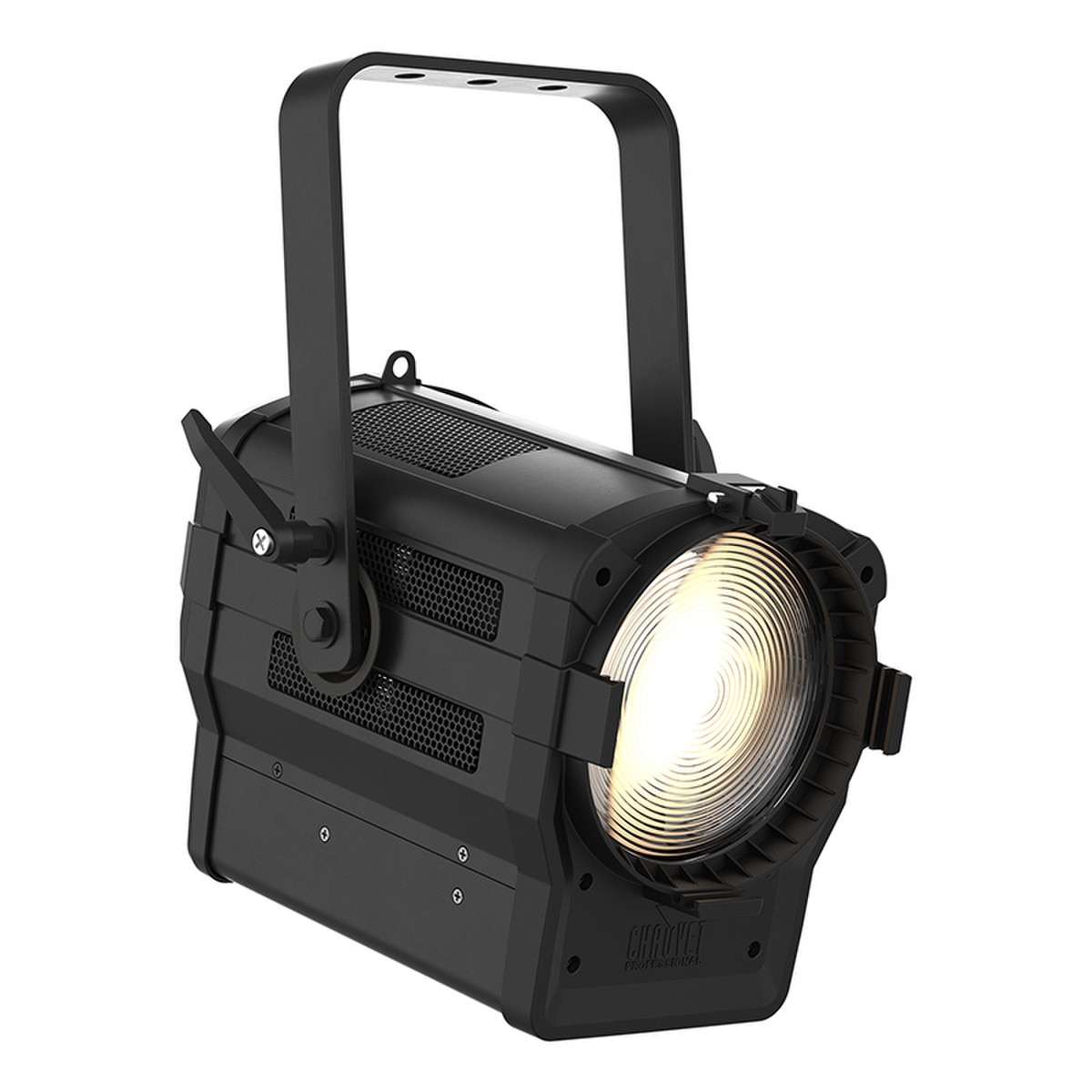

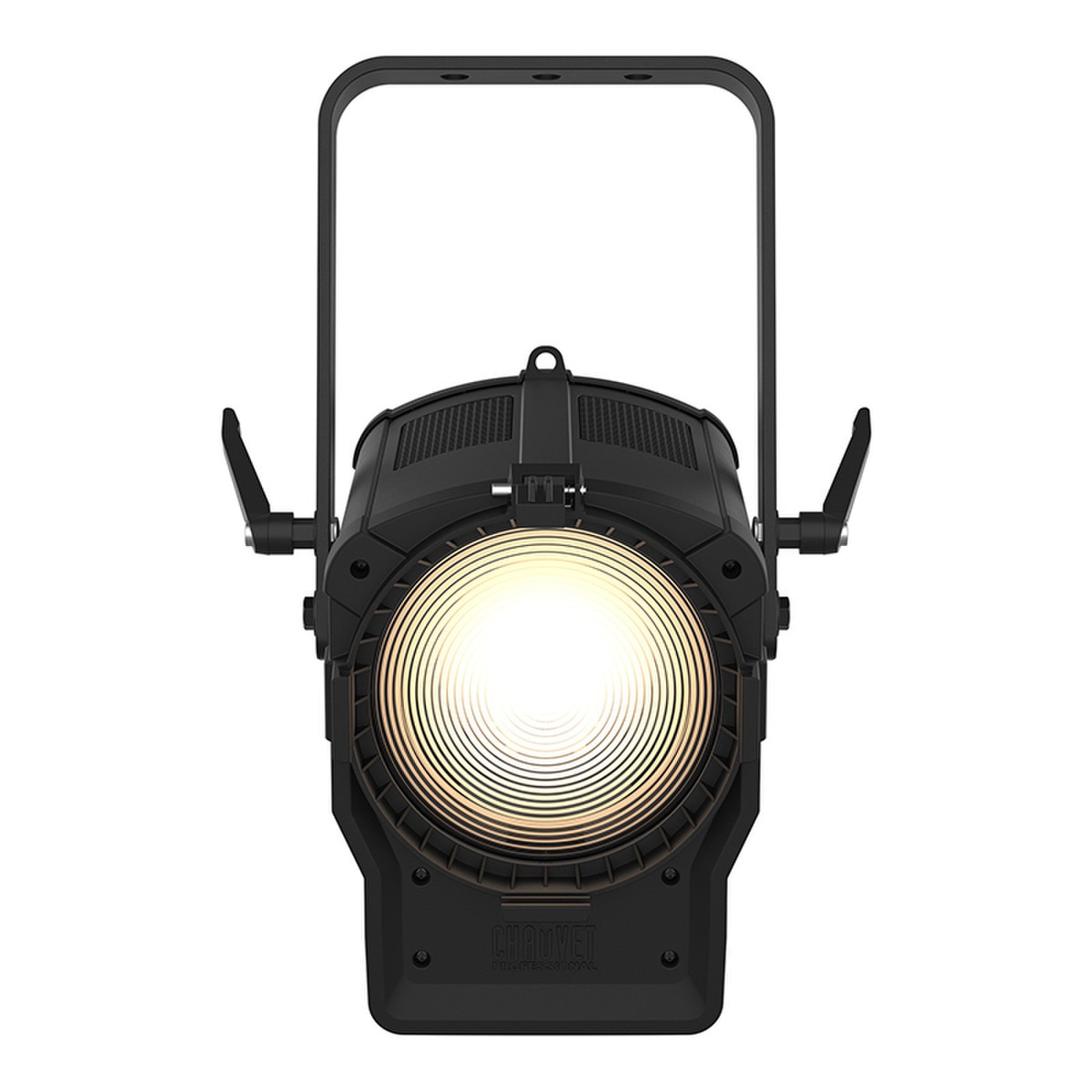

Chauvet Professional Ovation F‐145WW

A versatile LED Fresnel delivering a soft, flat field of high-CRI warm white light, complete with a motorized zoom range of 16° to 65° and smooth 16-bit dimming control.

The Ovation F-145WW is perfect for theatrical and studio applications where virtually quiet operation and high-quality, controllable illumination are required.

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

At A Glance:

• Features a 70W warm white LED with output comparable to a 650W incandescent Fresnel.
• Delivers superior color rendering with a high CRI of 97 and 3096 K color temperature.
• Offers exceptionally smooth fades with 16-bit dimming and four selectable dim modes.
• Engineered for virtually silent operation, ideal for noise-sensitive theatrical and studio use.
• Supports both DMX and RDM protocols for versatile and simplified fixture management.
• Allows for simple power linking of up to 35 units at 230 V for fast setups.

Features:

• Powerful Fresnel Output: This warm white Fresnel delivers a powerful output comparable to a traditional 6-inch, 650-watt Fresnel.
• Even Light Distribution: Produces a consistently soft and even field of light for flawless illumination.
• High Resolution Dimming: Achieve exceptionally smooth fades with high-resolution 16-bit dimming control.
• Silent Operation: Its virtually silent operation makes it ideal for use in any noise-sensitive situation.
• Motorized Zoom: Easily adjust the beam angle from a narrow 16° to a wide 65° using the motorized zoom, controllable manually or via DMX.

Specifications:
Optical:

• Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
• Color Temperature (at full): 3096 K
• CRI: 97
• Beam Angle: 16° to 48°
• Field Angle: 25° to 65°
• Zoom Range: 16° to 65°
• Lumens (25°): 2,787
• Lumens (65°): 4,266
• Illuminance (25°): 1,290 lux @ 5 m
• Illuminance (65°): 252 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4

Control:

• Protocol(s): DMX, RDM
• DMX Channels: 1, 2, 2 or 5
• Modes/Personalities: 4 personalities (1, 2, 2, 5)

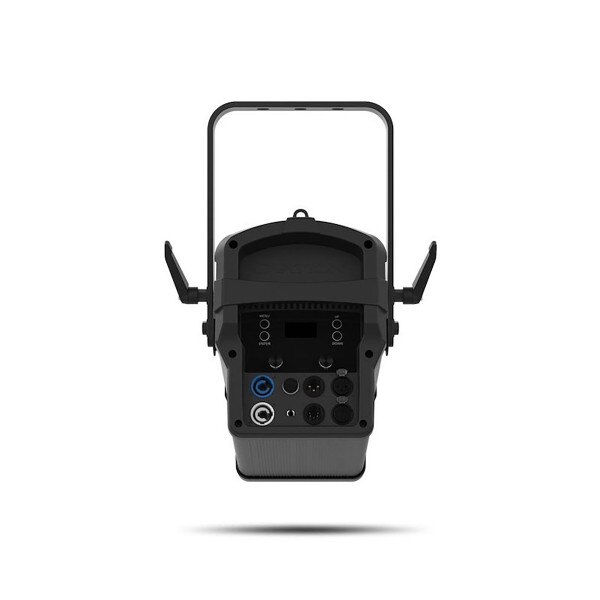

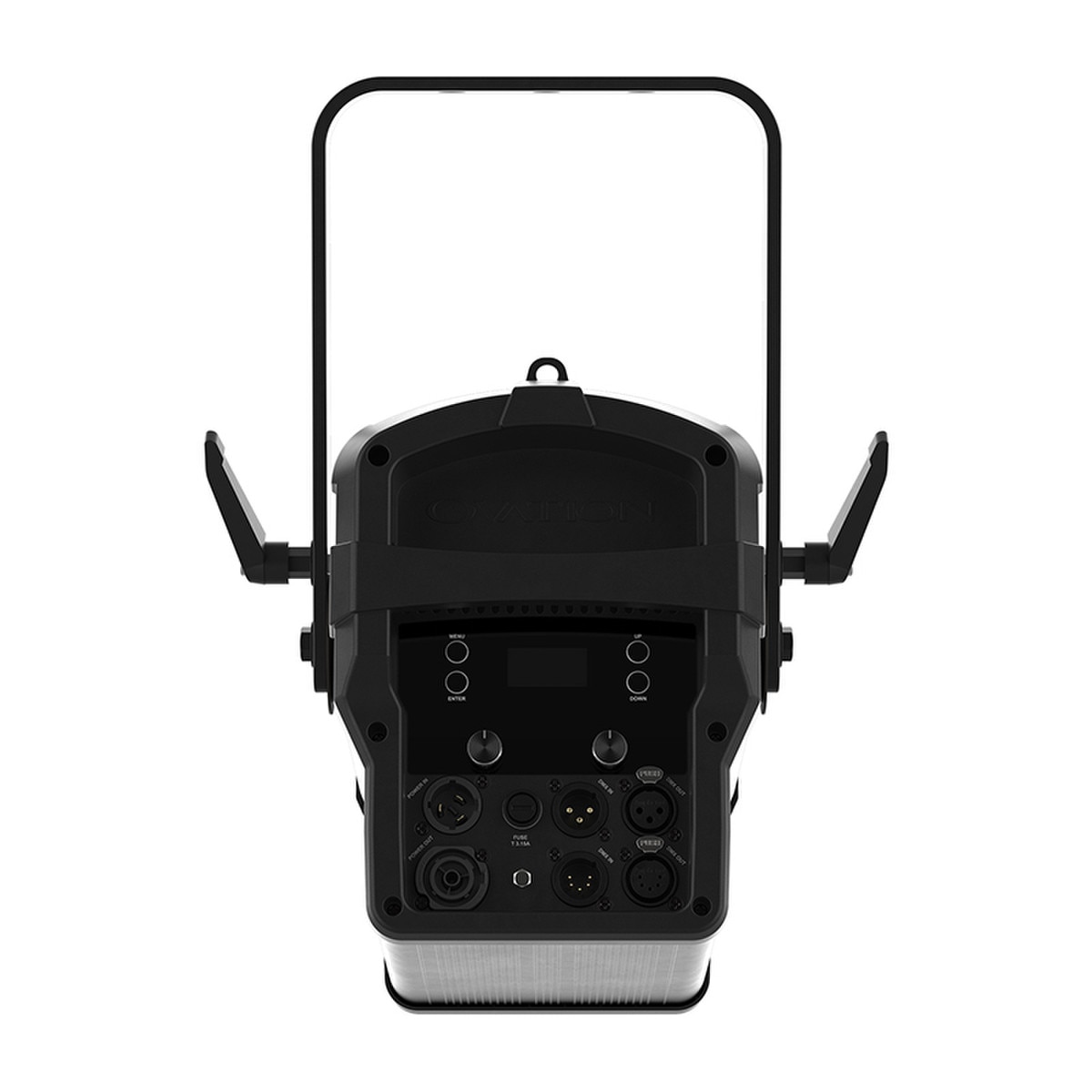

Connections:

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 18 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
• Power and Current: 75 W, 0.635 A @ 120 V, 60 Hz
• Power and Current: 73 W, 0.373 A @ 208 V, 60 Hz
• Power and Current: 73 W, 0.337 A @ 230 V, 60 Hz

Construction/Physical:

• Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
• Weight: 11 lb (5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

Certifications/Qualifications:

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• Ovation F-145WW
• Seetronic Powerkon IP65 power cord
• Gel Frame

Compatible Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN
• TRUE1 Style Power Extension cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F6.25” Barndoor
