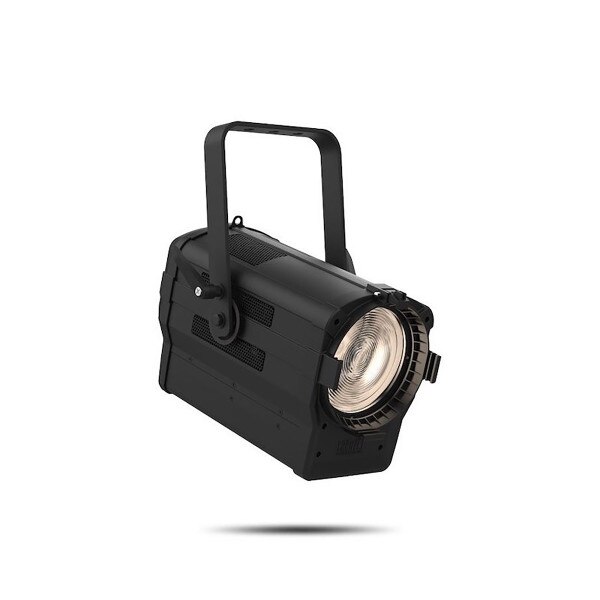

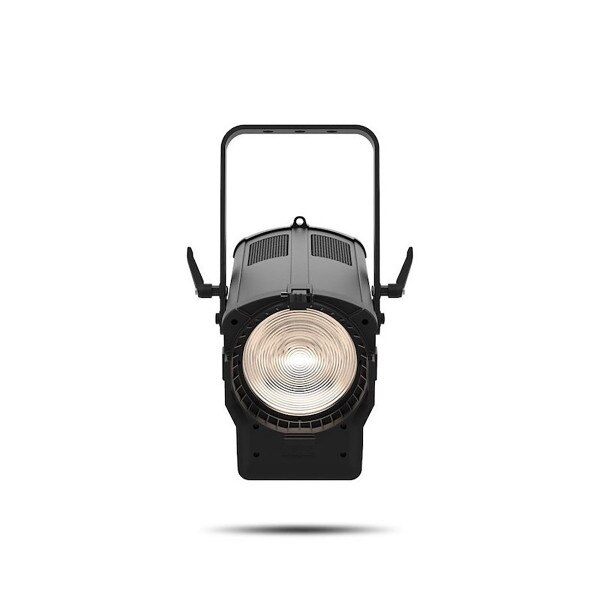

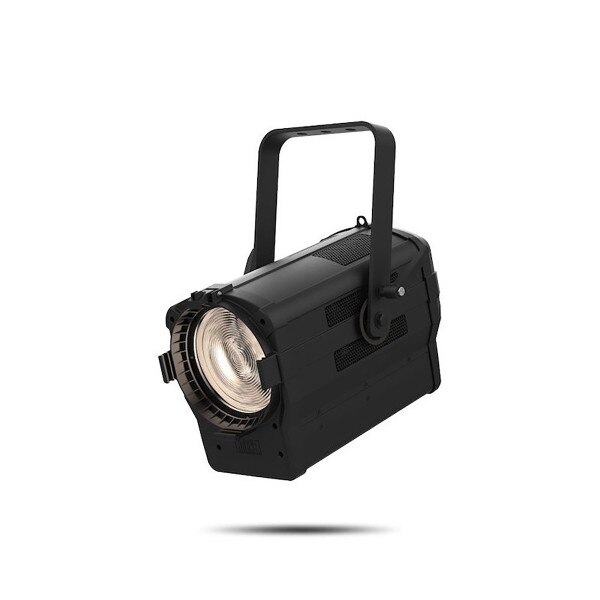

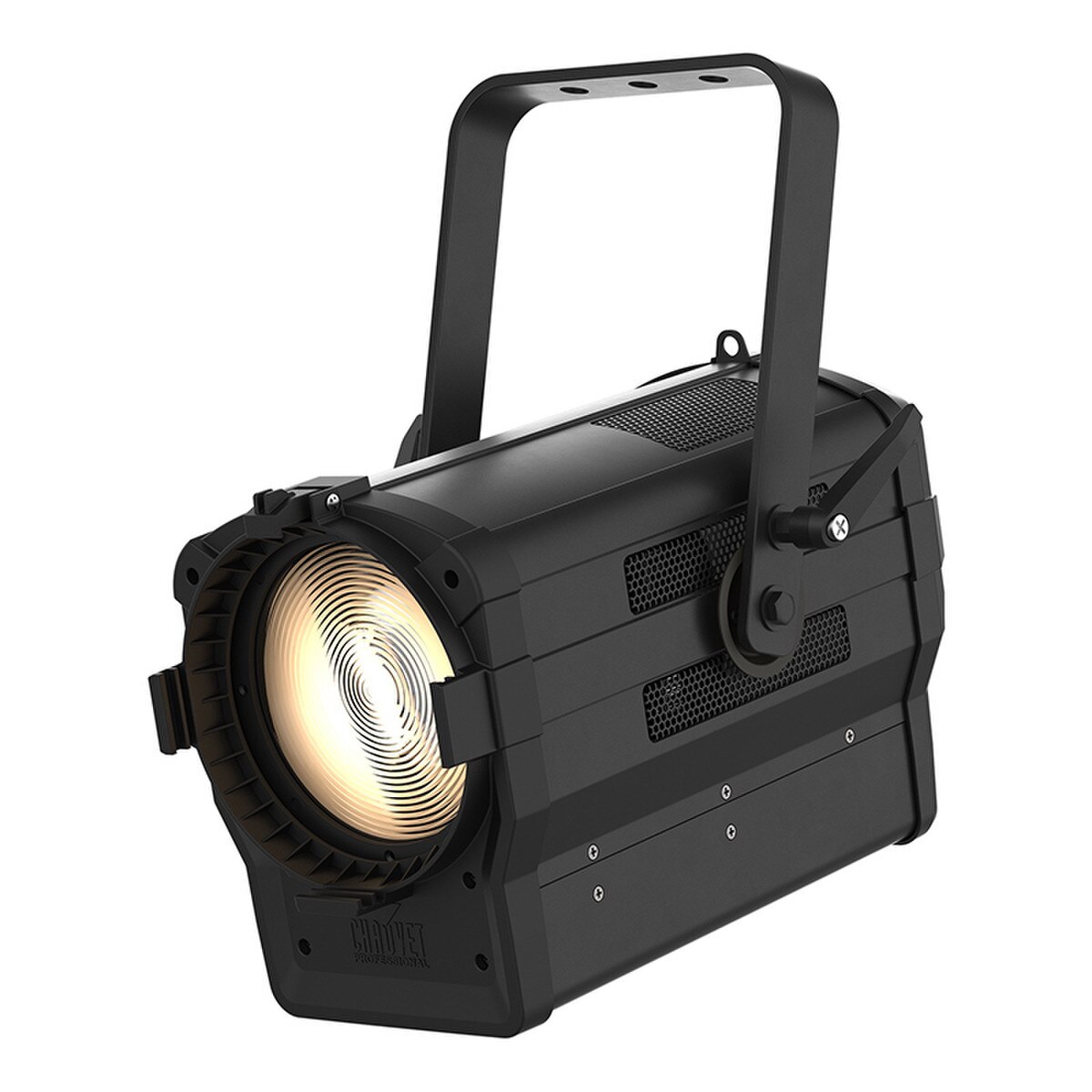

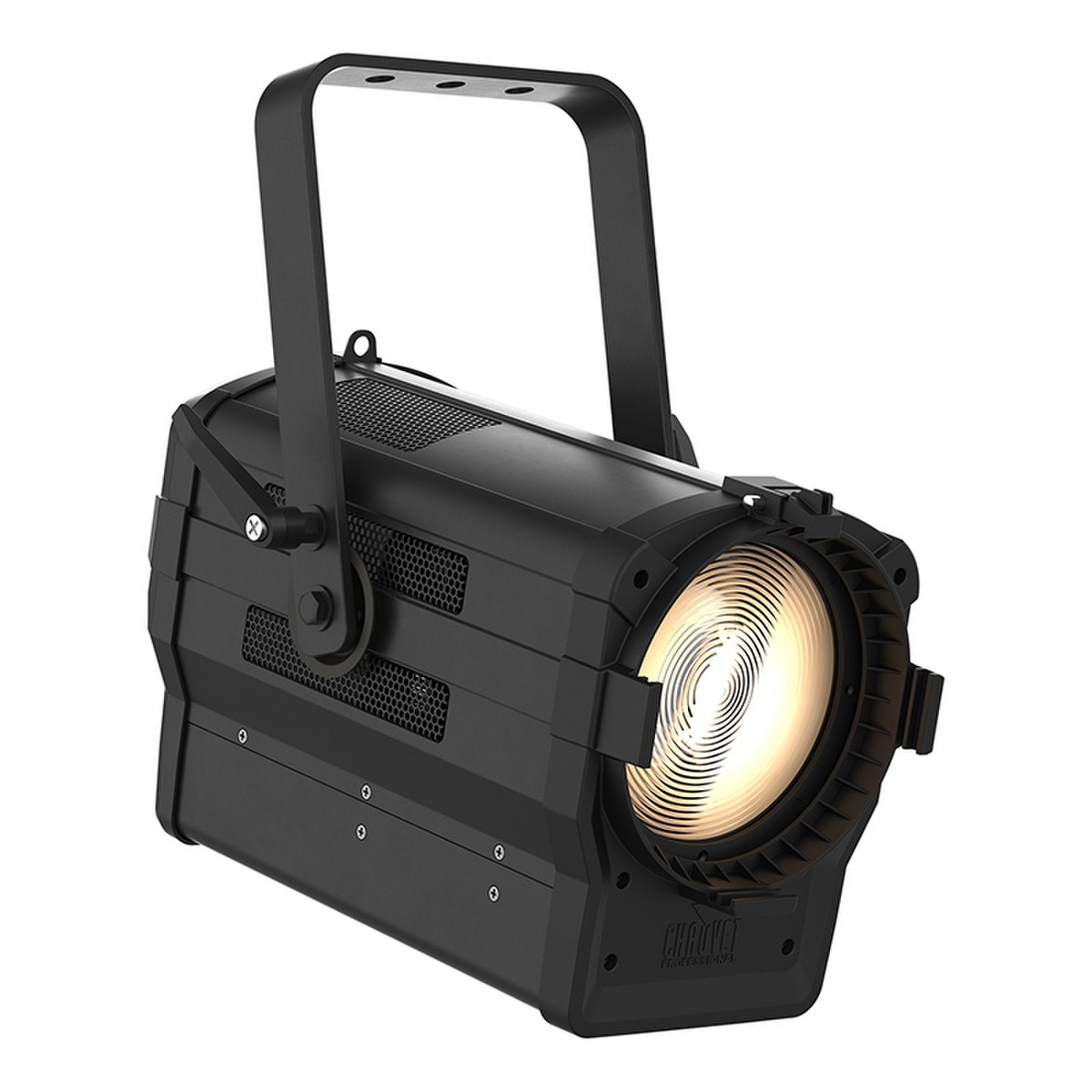

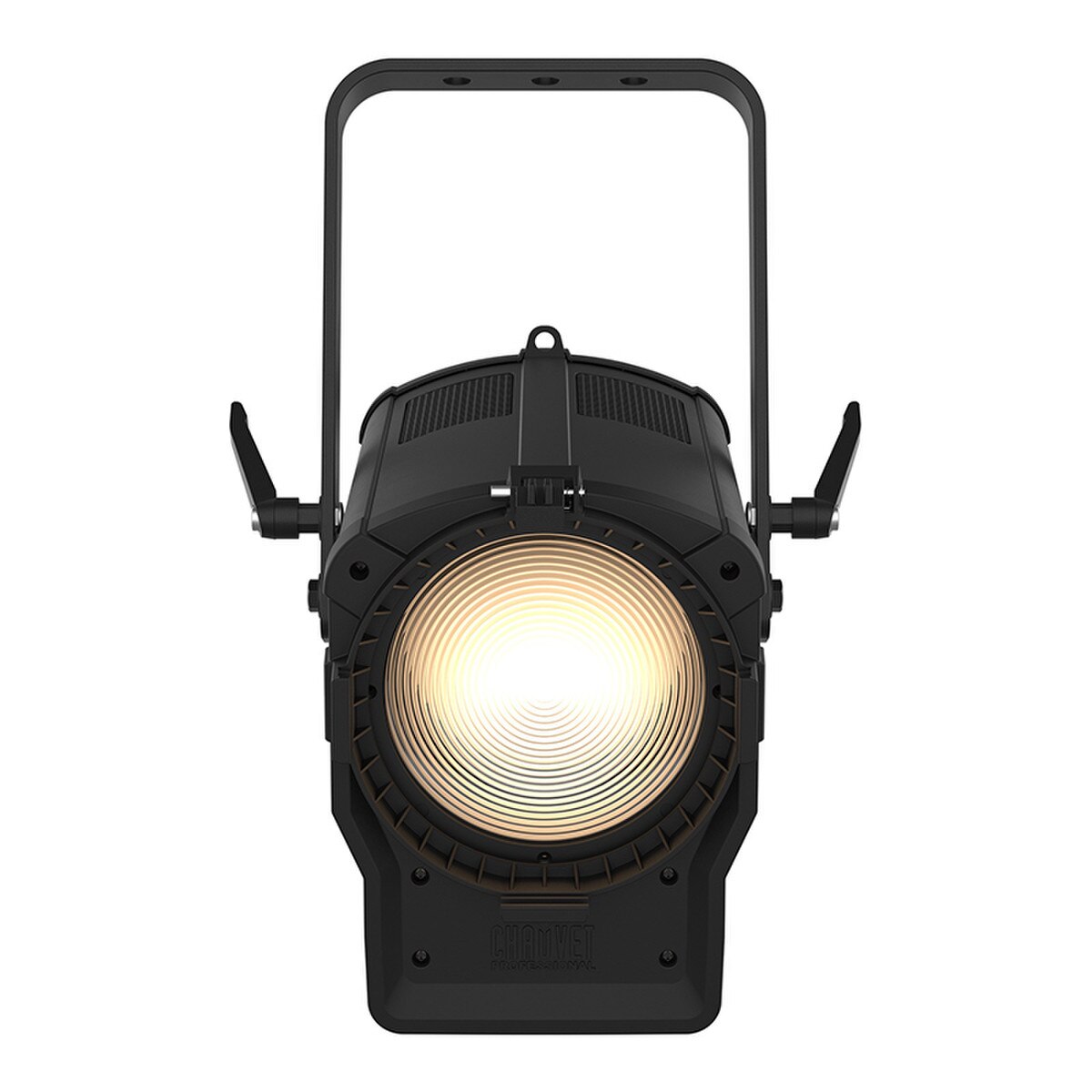

Chauvet Professional Ovation F‐415VW

A 6-inch Fresnel-style fixture that leverages a unique 6-color LED system to project a bright, soft, variable white field of light with high CRI, motorized zoom, and precise +/- green adjustment.

Perfectly suited for theatre and television studio applications, its high-quality color rendering, flicker-free operation, and battery power option provide ultimate versatility.

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.

At A Glance:

• Features a smooth, motorized zoom with a versatile field range from 14° to 68°.
• Delivers an expansive color temperature range from 2800 K to 8000 K.
• Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
• Supports 28 VDC external battery power via 3-pin XLR for mobile applications.
• Provides virtually silent operation, ideal for noise-sensitive studio and theatre environments.
• Offers independent 6-color engine control for vibrant color accents when needed.

Features:

• Versatile LED Fresnel: A variable white LED Fresnel fixture designed for professional theatre, film, and production applications.
• Superior Light Quality: Delivers a consistently soft and even field of light for flawless illumination.
• Motorized Zoom: Offers a smooth, motorized zoom range from a narrow 14 degrees to a wide 68 degrees.
• Wide Color Temperature Range: Features presets from 2800 K to 8000 K, ensuring high color rendering with excellent CRI and CQS ratings.
• External Battery Power Option: A 28 VDC power input via 3-pin XLR allows the fixture to be powered by an external battery pack.
• High-Resolution Dimming: Achieves exceptionally smooth fades and intensity changes with beautiful 16-bit dimming control.
• Consistent Light Output: The proprietary LED engine ensures powerful and equal output across the entire color temperature range.

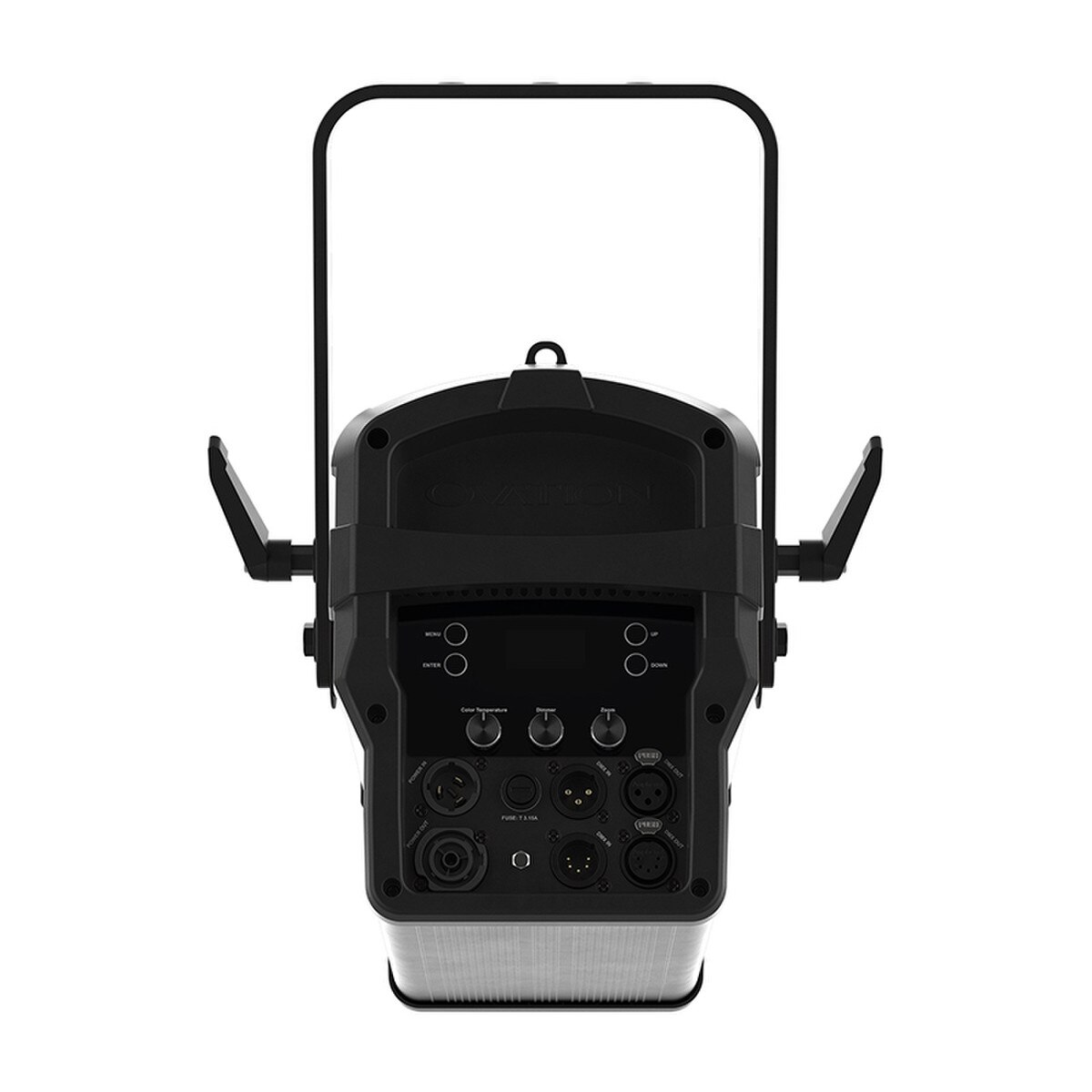

• Simple Onboard Controls: Easily adjust color temperature, zoom, and dimming directly on the fixture with an intuitive interface.
• Plus/Minus Green Adjustment: Fine-tune your lighting with plus or minus green correction, accessible via DMX or on-board controls.
• 6-Color Engine Control: Gain independent control over the 6-color engine to introduce a vibrant splash of color when desired.
• Remote Device Management: RDM capability allows for remote addressing and configuration, adding operational flexibility.
• Flicker-Free Operation: Adjustable Pulse Width Modulation (PWM) eliminates on-camera flickering, making it perfect for broadcast.
• Silent Operation: Its virtually silent performance is ideal for noise-sensitive environments like studios and theatres.

Specifications:
Optical:

• Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 89 to 93
• Beam Angle: 14° to 43°
• Field Angle: 27° to 68°
• Zoom Range: 14° to 68°
• Lumens (27°): 1,631
• (68°) : 2,408
• Illuminance (27°): 800 lux @ 5 m
• (68°): 152 lux @ 5 m
• Illuminance drop percentage (fan silent): 23%
• (fan off) : 59%
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects:

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: No

Construction/Physical:

• Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
• Weight: 12.79 lb (5.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

Connections:

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Connector: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Power Connection: 3-pin XLR
• Power Input: 28 VDC, 3-pin XLR
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control:

• Control Protocol: DMX, RDM
• DMX Channels: 2, 5, 7, 10, 14, 17 or 19
• Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Input Voltage: 28 VDC
• Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
• Power and Current: 125 W, 1.054 A @ 120 V, 60 Hz
• Power and Current: 122 W, 0.613 A @ 208 V, 60 Hz
• Power and Current: 121 W, 0.569 A @ 230 V, 50 Hz

Certifications/Qualifications:

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Noise Levels: Noise Level (Idle): 3.1 dB(A) @ 1 m
• Noise Level (Auto): 17.0 dB(A) @ 1 m
• Noise Level (On): 28.3 dB(A) @ 1 m
• Noise Level (Off): 4.4 dB(A) @ 1 m
• Noise Level (silent): 20.9 dB(A) @ 1 m

Compatible Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon IP65 cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 6.25″ Barndoor V1

What's Included:

• Ovation F-415VW
• Seetronic Powerkon IP65 power cord
• Gel frame holder (6.25 in/158.75 mm accessories)
