Chauvet Professional Ovation H-55FC - Black

(0)No Reviews yet
$840.00
SKU: Chauvet Professional OVATIONH55FCBLK2

Details

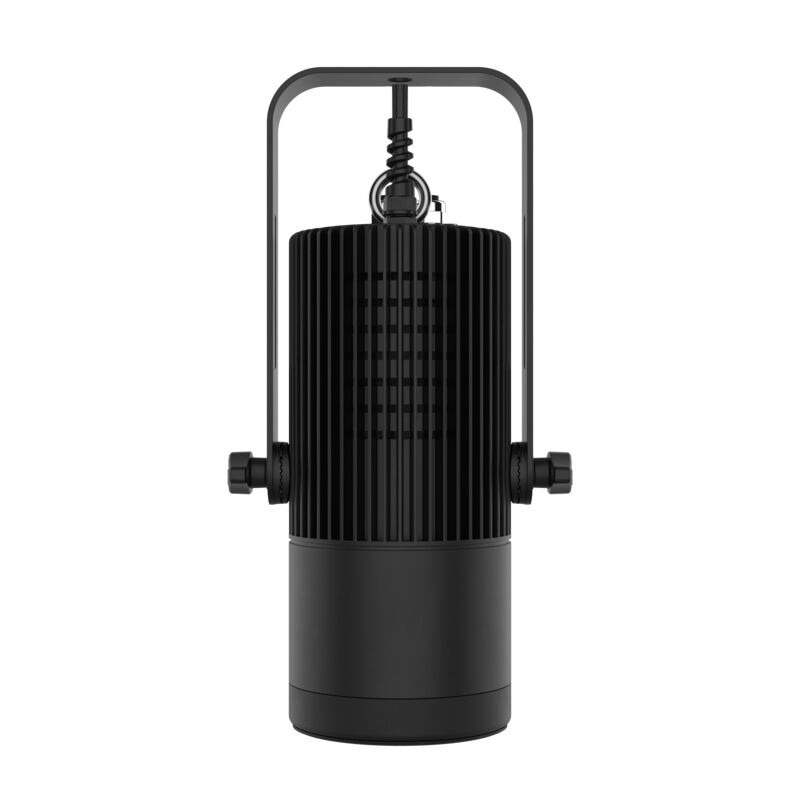

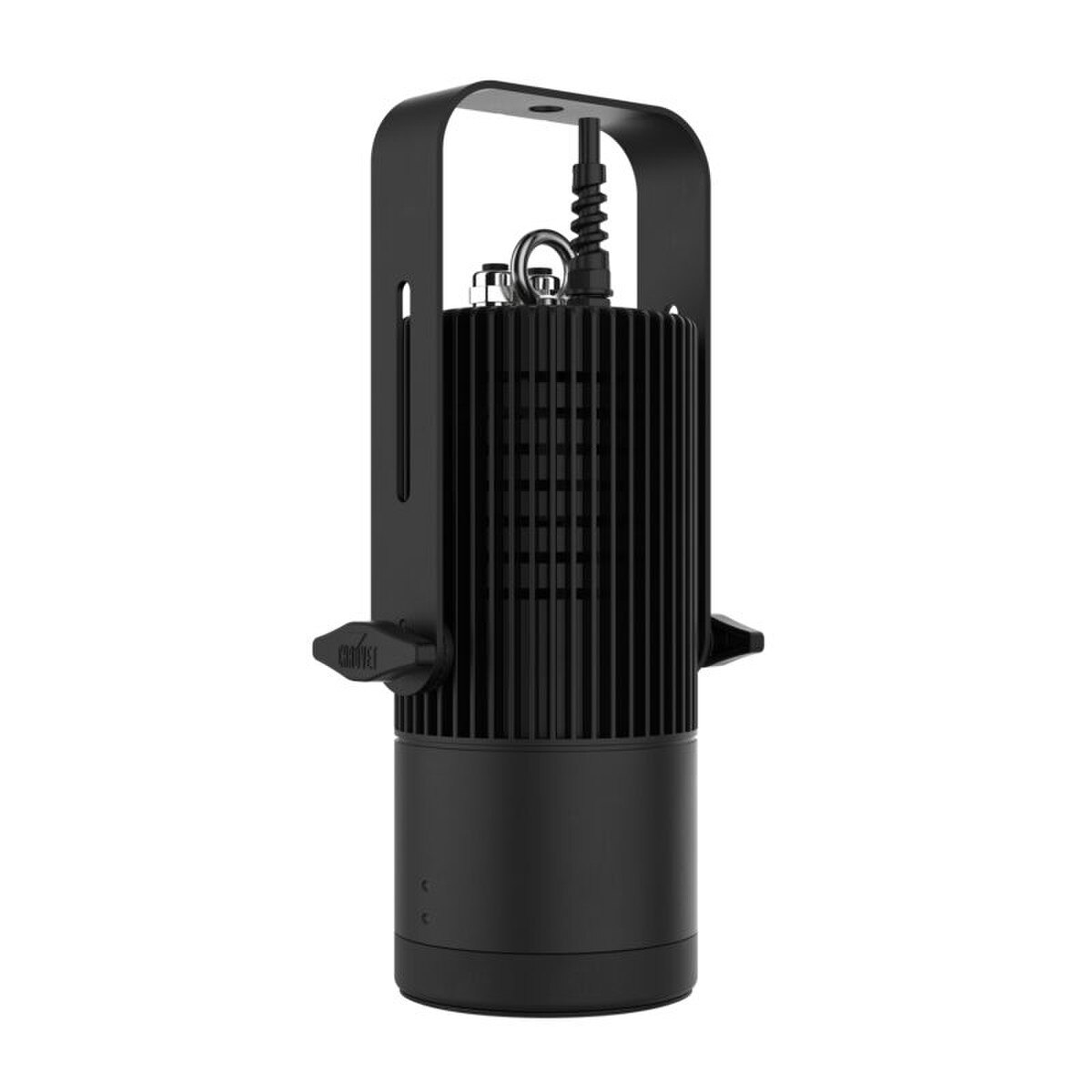

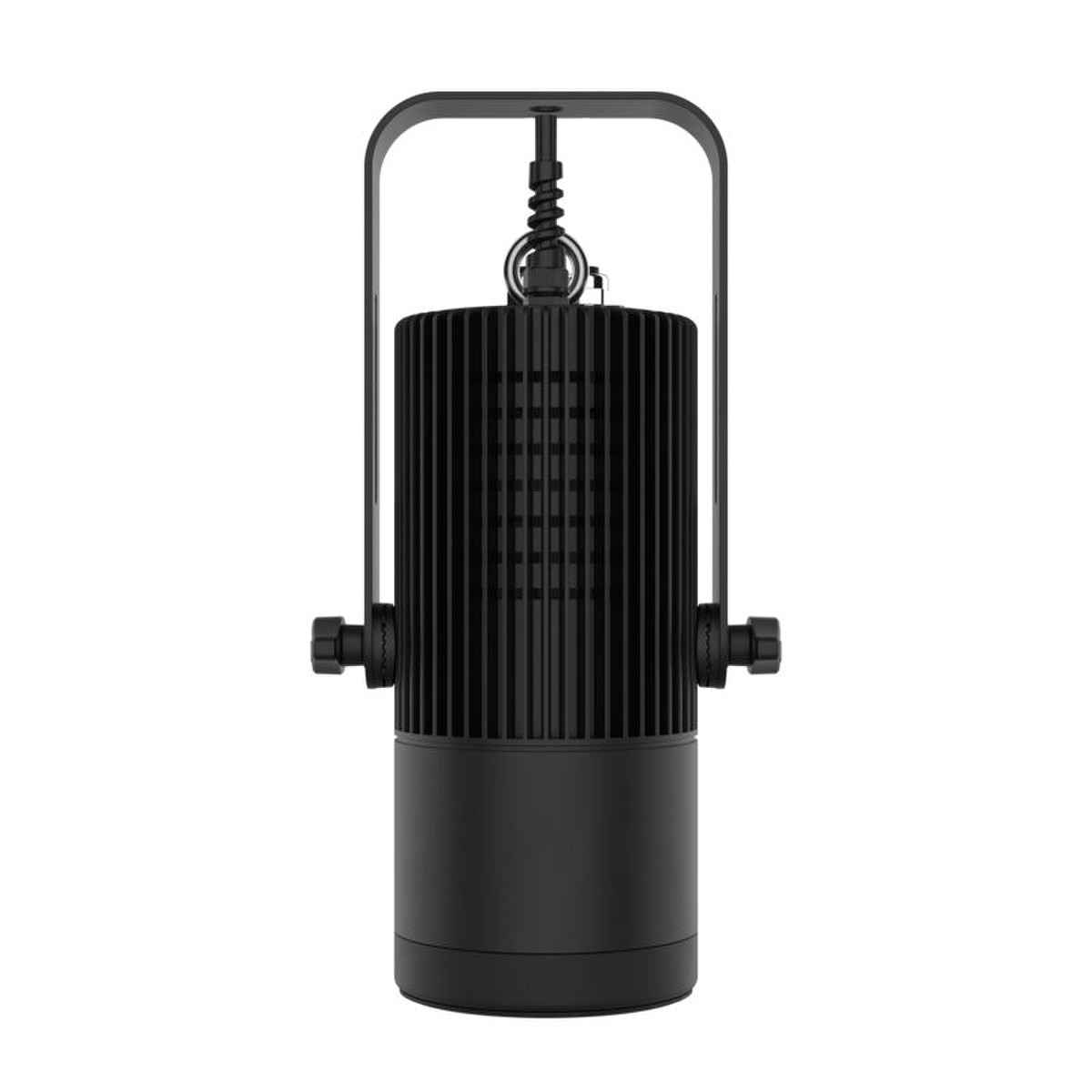

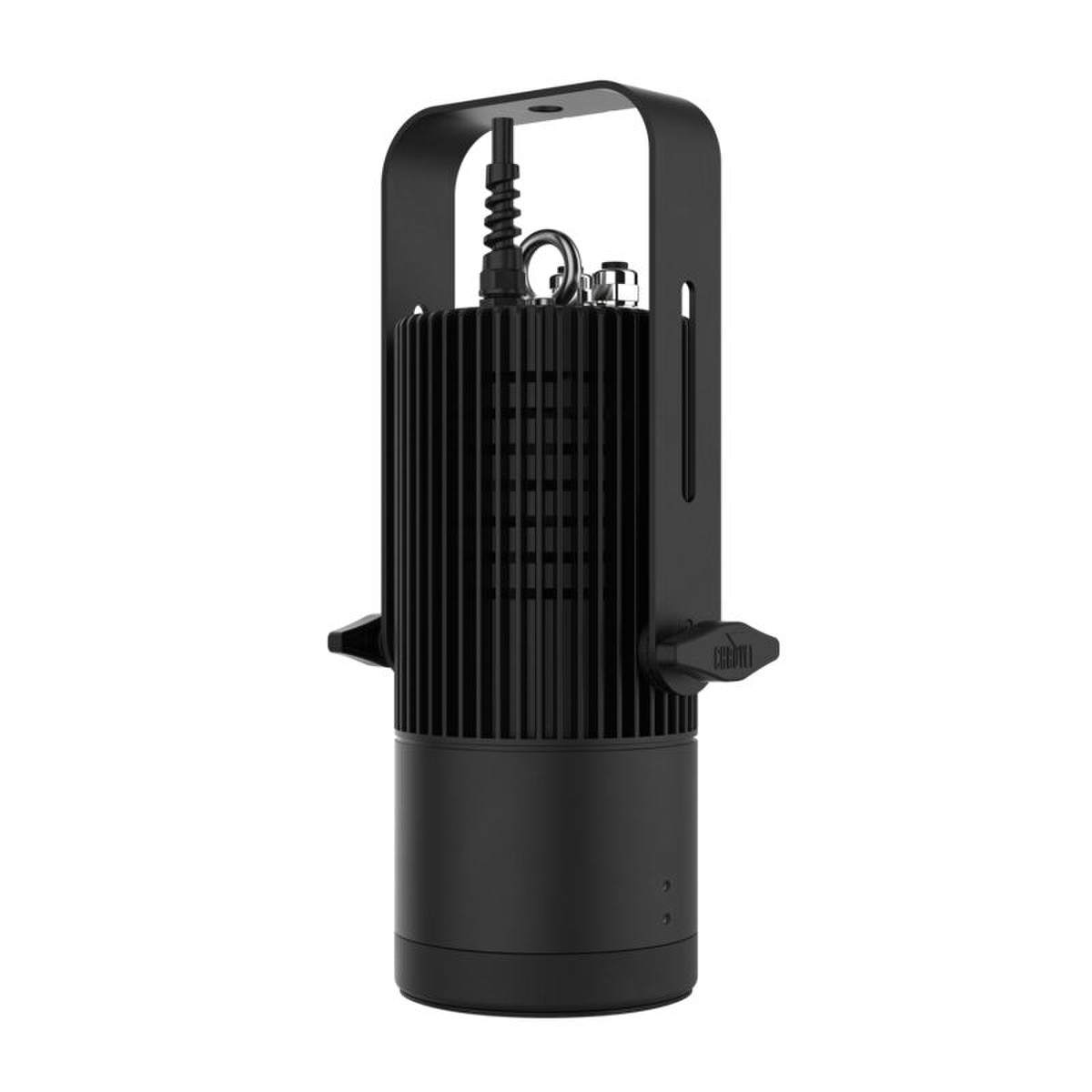

Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.

At a Glance:

  • Compact, full color (RGBAL), convection cooled houselight
  • Interchangeable lens plates to adapt to different mounting heights
  • 5-pin XLR and terminal blocks for DMX connections
  • Use included yoke for mounting, or suspend from integrated loop-eye
  • Included recess and sconce mounting kits
  • 16-bit dimming for ultra-smooth fades
  • DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Specifications:
Optical:

  • Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 4807 K
  • CRI: 82
  • Beam Angle (w/80° filter): 46.1°
  • Beam Angle (w/65° lens): 63.3°
  • Beam Angle (w/45° lens): 38.8°
  • Beam Angle (w/25° lens): 24.7°
  • Field Angle (w/80° filter): 76.8°
  • Field Angle (w/65° lens): 86.9°
  • Field Angle (w/45° lens): 78.4°
  • Field Angle (w/25° lens): 46.7°
  • Illuminance (w/80° filter): 152 lux @ 5 m
  • Illuminance (w/65° lens): 115 lux @ 5 m
  • Illuminance (w/45° lens): 173 lux @ 5 m
  • Illuminance (w/25° lens): 430 lux @ 5 m
  • Lumens (w/80° filter): 2,698
  • Lumens (w/65° lens): 2,928
  • Lumens (w/45° lens): 2,691
  • Lumens (w/25° lens): 2,849
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Color Temperature Presets: Yes/No
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical:

  • Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
  • Weight: 7.4 lb (3.4 kg)
  • Exterior Color: Black

Connections:

  • Power Connection: Bare-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR, Phoenix connector
  • Cable Length (power): 15 ft (4.5 m)

Control:

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
  • Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
  • Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz

Certifications / Qualifications:

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)

What's Included:

  • Ovation H-55FC65°, 40° and 25° Lens
  • 80° Filter
  • Egg Crate
  • Recess and Sconce Mounting Kits

Required Accessories:

  • RDM2go or other RDM capable interface for fixture set-up

Optional Accessories:

  • W-DMX™ Transmitter
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • 5-pin DMX Cables
  • RDM2go™


Ovation H-55FC Quick Reference Guide.pdf
Ovation H-55FC Photometrics Report.pdf
Ovation H-55FC DMX Chart.pdf
