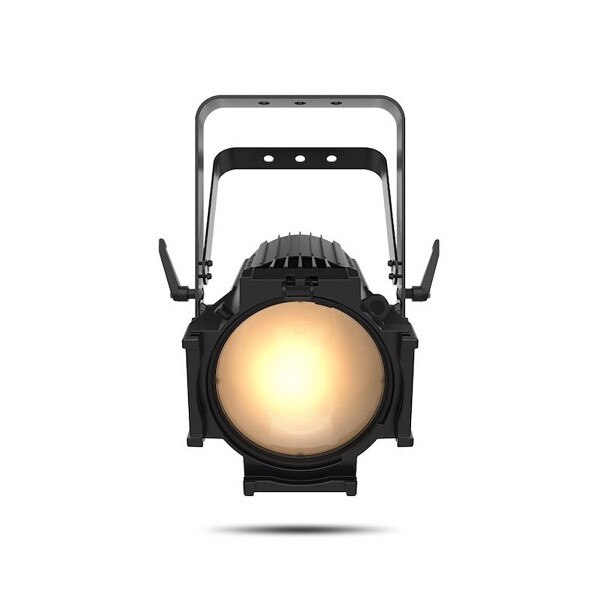

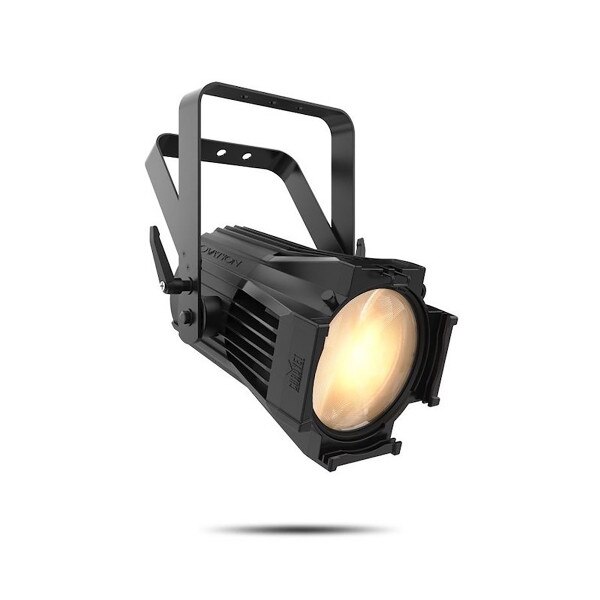

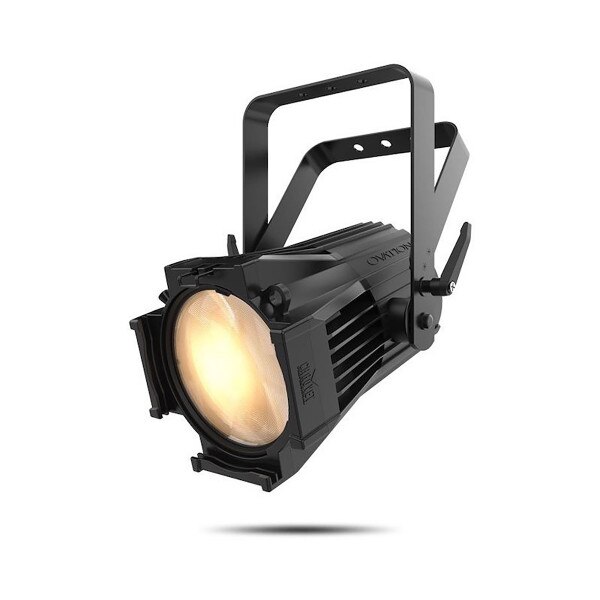

Chauvet Professional Ovation P‐56VW

Ovation P-56VW is a compact, bright, and virtually silent par that produces a homogenized, flat and even field of light from an advanced, single source LED. The unit features the same 6-color LED system found in the Ovation E-930VW ellipsoidal to produce nearly any temperature of white with high CRI and CQS. The par’s Color Temperature can be even further adjusted for +/- green, making it ideal for TV studios and broadcasted events.

Features:

• Variable white PAR-style fixture with homogenized single source of light
• Interchangeable lens plates included for medium and wide beam angles
• Soft, even field of light
• Quiet operation for use in any situation with fan speed control
• +/- Green adjustment via DMX or on-board control
• Independent color control over the 6-color engine when a splash of color is needed
• RDM and variable Pulse Width Modulation for setup ease
• Accepts standard 7.5” beam shaping accessories
• 16-bit dimming resolution for smooth fades

Specifications:

• Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 92-93

Beam Angle:

• (Medium lens): 21°
• (Wide lens): 54°

Beam Angle:

• (Wide lens w/ egg crate): 40°
• (Medium lens): 35°

Field Angle:

• (Wide lens): 84°
• (Wide lens w/ egg crate): 66°

Lumens:

• (Medium Lens): 3,967
• (Wide Lens): 4,476

Illuminance:

• (Medium Lens): 1220 lux @ 5 m
• (Wide Lens): 220 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 29 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight: 12 lb (5.5 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

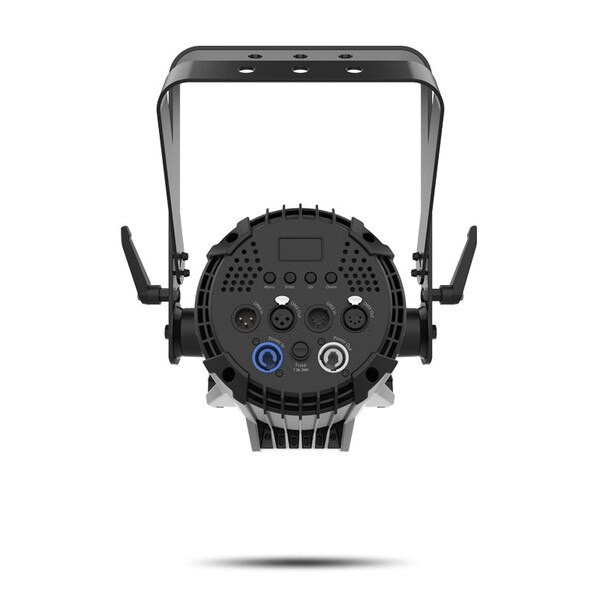

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Control Protocol: DMX, RDM
• DMX Channels: 3, 5, 6, 8, 11, 15 or 17
• Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 11 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V

Power and Current:

• 150 W, 1.22 A @ 120 V, 60 Hz
• 155 W, 0.70 A @ 208 V, 60 Hz
• 158 W, 0.66 A @ 230 V, 50 Hz
• CE, METIP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• Ovation P-56VW
• Neutrik powerCON power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Wide and Medium Lenses

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5” Barn door
• Ovation 60 deg, 7.5” Honeycomb
