Chauvet Professional STRIKE Array 2C

(0)No Reviews yet
$1,800.00
SKU: Chauvet Professional STRIKEARRAY2C

Details

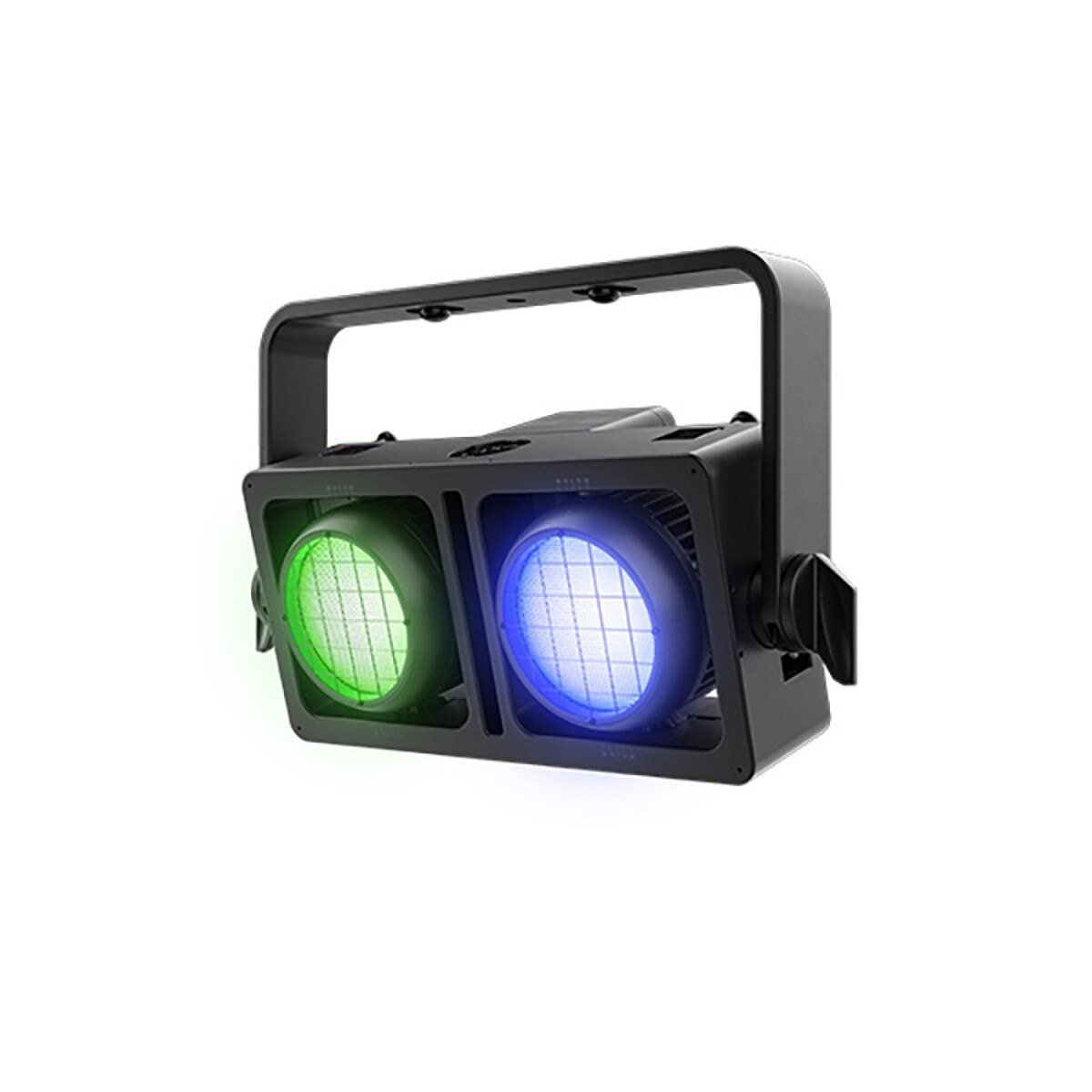

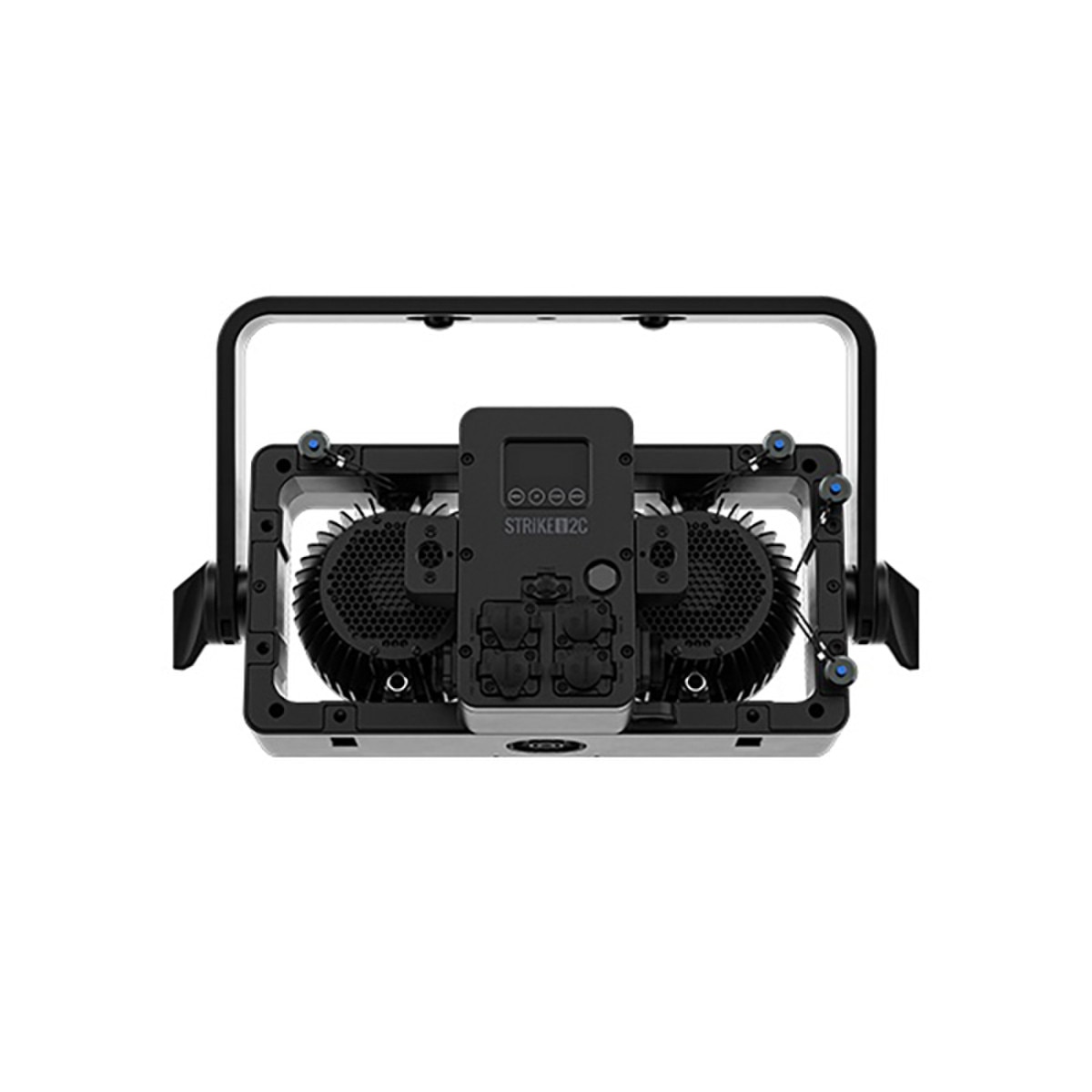

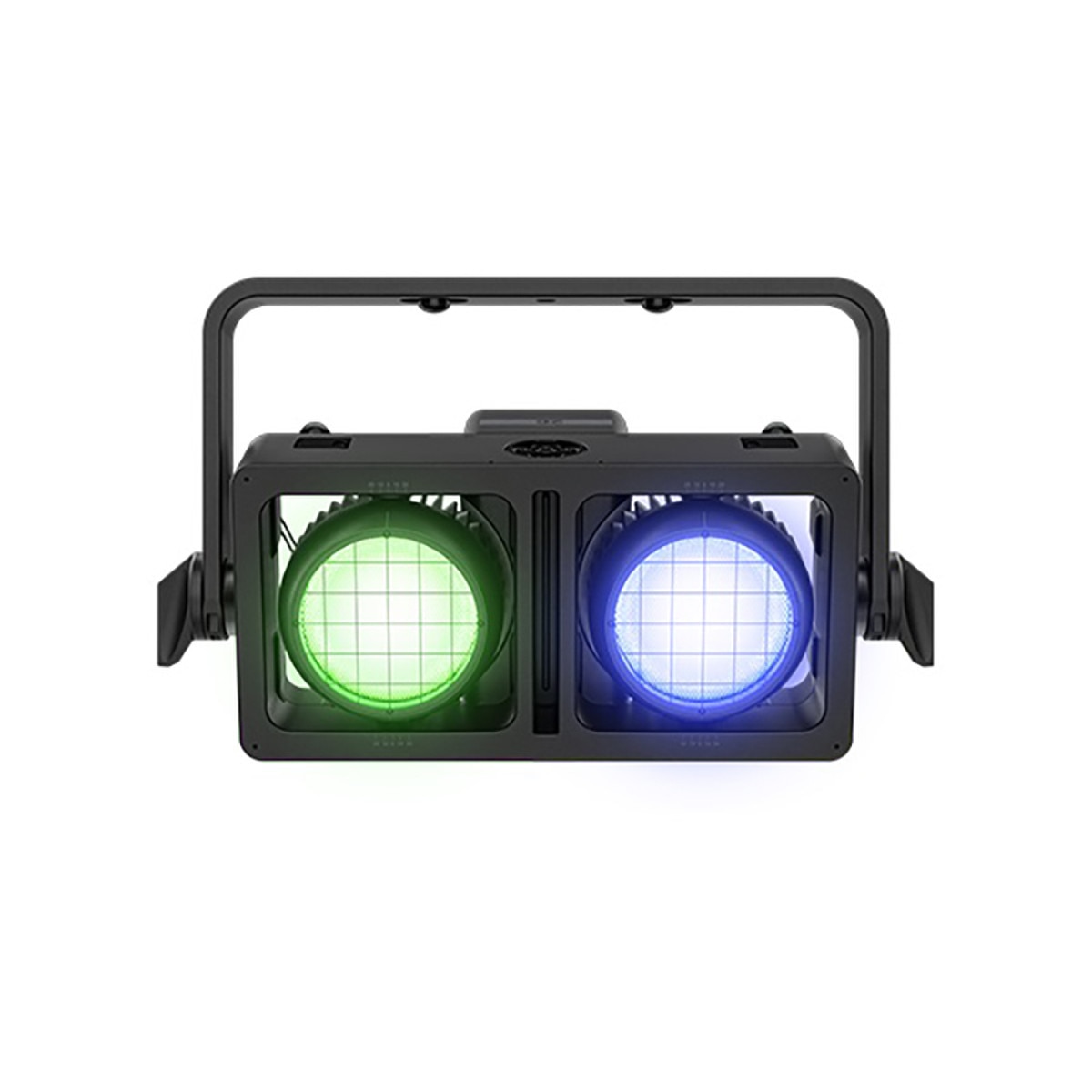

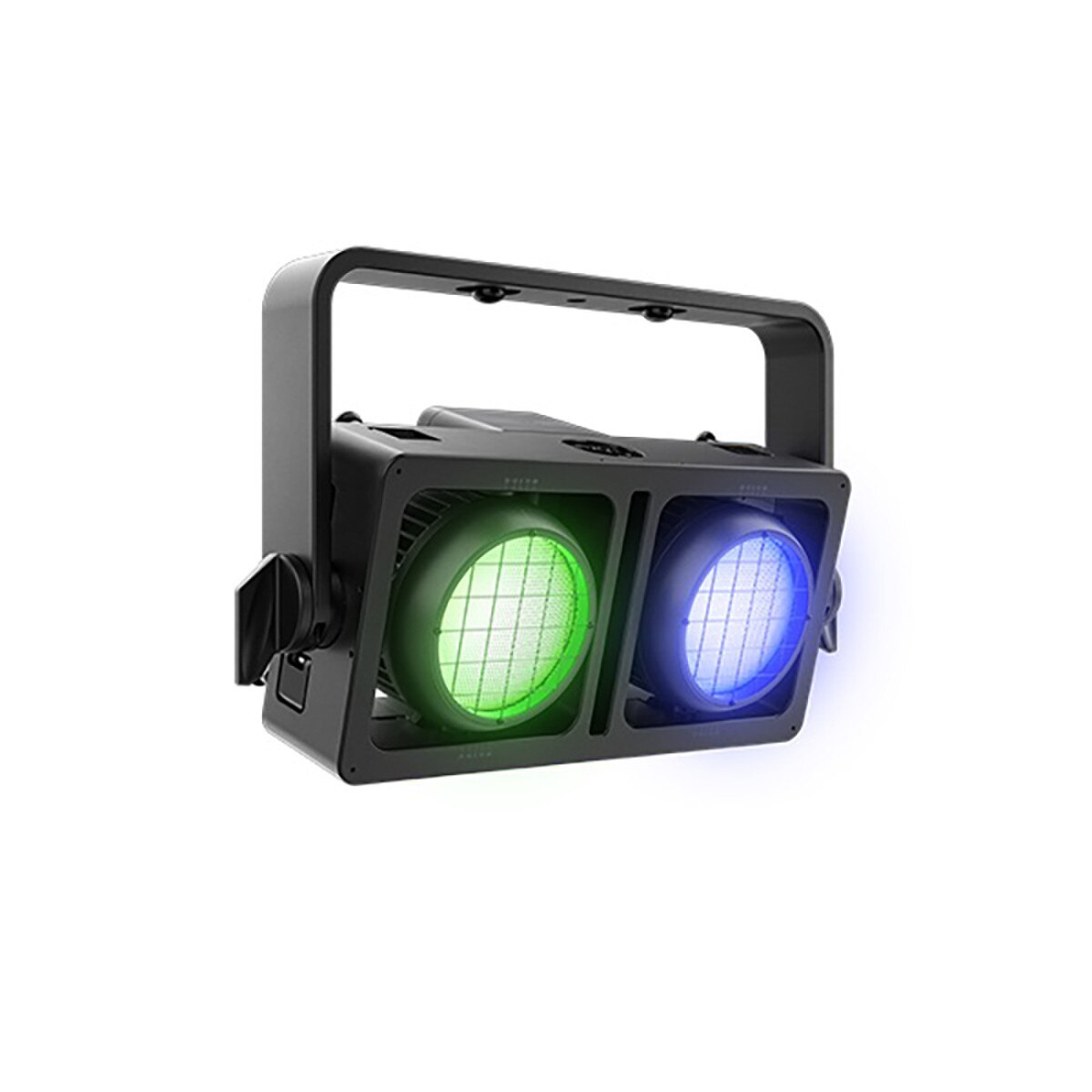

STRIKE Array 2C is an IP65-rated audience blinder with two independently focusable pods. Intense RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures with exceptional color rendering. Offering the industry leading low end dimming performance our STRIKE Array fixtures are known for as well as Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make this the ideal blinder for broadcast applications. Its proprietary Tool-Free interlocking system enables STRIKE Array 2C to be easily interconnected with multiple Array units for scalable configurations. Omega-Bracket locks are also installed on both the yoke and the rear of the fixture to streamline the truss mounting process.

At a Glance:

  • Intense 2 pod color blinder/strobe rated IP65 for all-weather use
  • Full range of color and excellent rendition of any color temperature of white
  • Emulated “red shift” to mimic incandescent fixtures perfectly.
  • Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
  • Innovative interlocking system to connect multiple STRIKE Array family fixtures together.
  • Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
  • Independent pod control and strobe functionality for high-impact effects on the fly
  • Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

Specifications:
Optical:

  • Light Source: 134 LEDs (56 quad-color RGBA, 78 WW) 2.7 to 4.32 W, (871 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 6528 K
  • CRI: 94.4
  • CRI (@3200K): 94.4
  • Beam Angle: 59.1°
  • Field Angle: 102.1°
  • Lumens: 25,917
  • Illuminance (total): 979 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construction / Physical:

  • Dimensions: 19.13 x 7.45 x 10.37 in (486 x 189.3 x 263.5 mm)
  • Weight: 20.6 lb (9.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy

Connections:

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
  • Cable Length (power): 5 ft (1.5 m)
  • Software Update: USB-C

Control:

  • Control Protocol: Art-Net, sACN, DMX, RDM
  • Modes/Personalities: 10 personalities (1ch, 3ch, 5ch, 7ch, 10ch, 12ch1, 12ch2 13ch, 16ch, HSV)

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
  • Power and Current: 600 W, 5.000 A @ 120 V, 60 Hz
  • Power and Current: 583 W, 2.780 A @ 208 V, 60 Hz
  • Power and Current: 581 W, 2.491 A @ 230 V, 50 Hz

Certifications / Qualifications:

  • CE, MET, FCC, ETL, cULus
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

  • STRIKE Array 2C
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware

Optional Accessories:

  • STRIKE Array Flush Bracket
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-08
  • IP Rated Seetronic® Powerkon Extensions
  • IP Rated DMX cables
  • IP Rated EtherCon Cables
  • UPLOAD 03 software uploader




STRIKE Array 2C Quick Reference Guide.pdf
STRIKE Array 2C User Manual.pdf
STRIKE Array 2C DMX Chart.pdf
STRIKE Array 2C Photometrics Report.pdf
