Chauvet Professional WELL Fit - 6 Pack with Road Case
Details

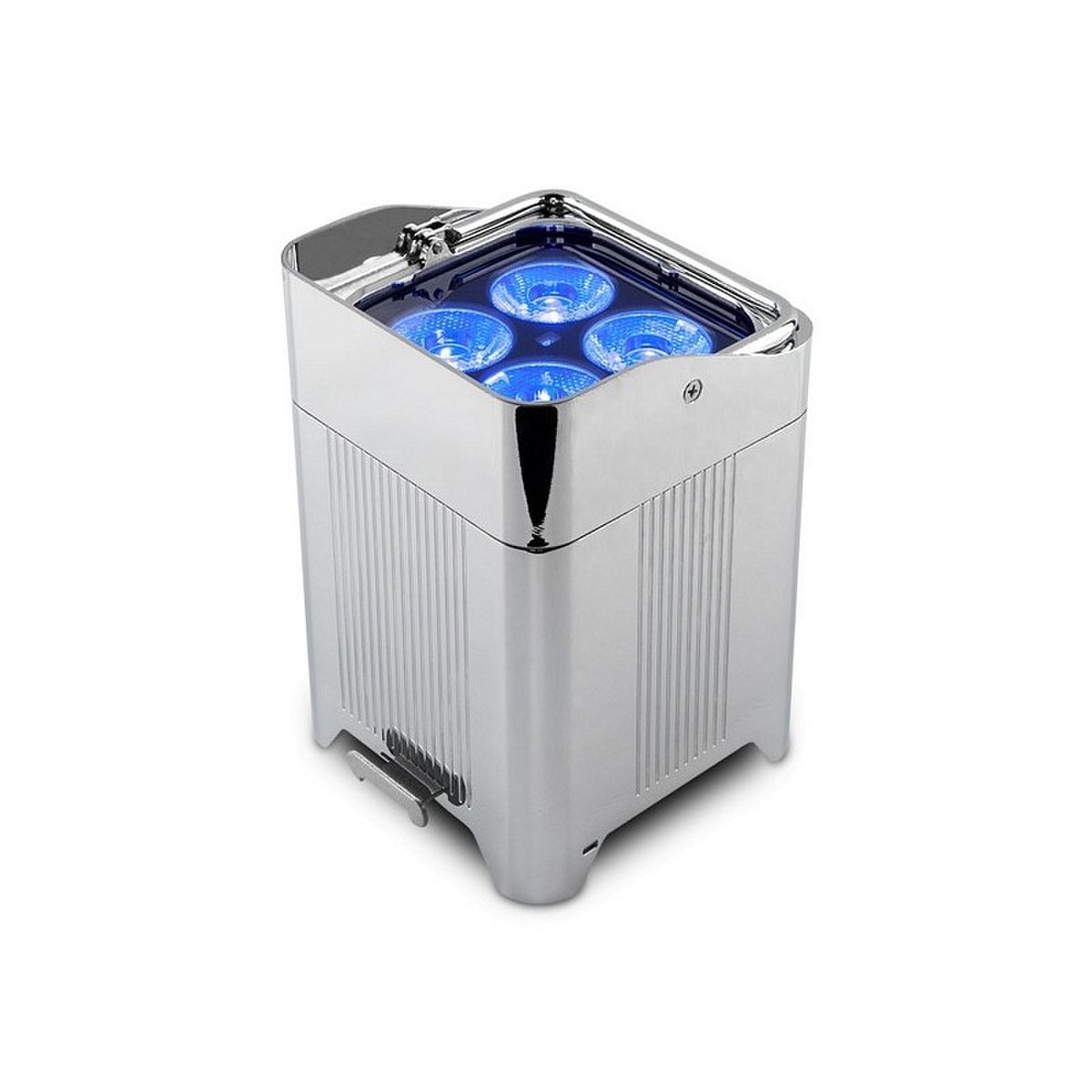

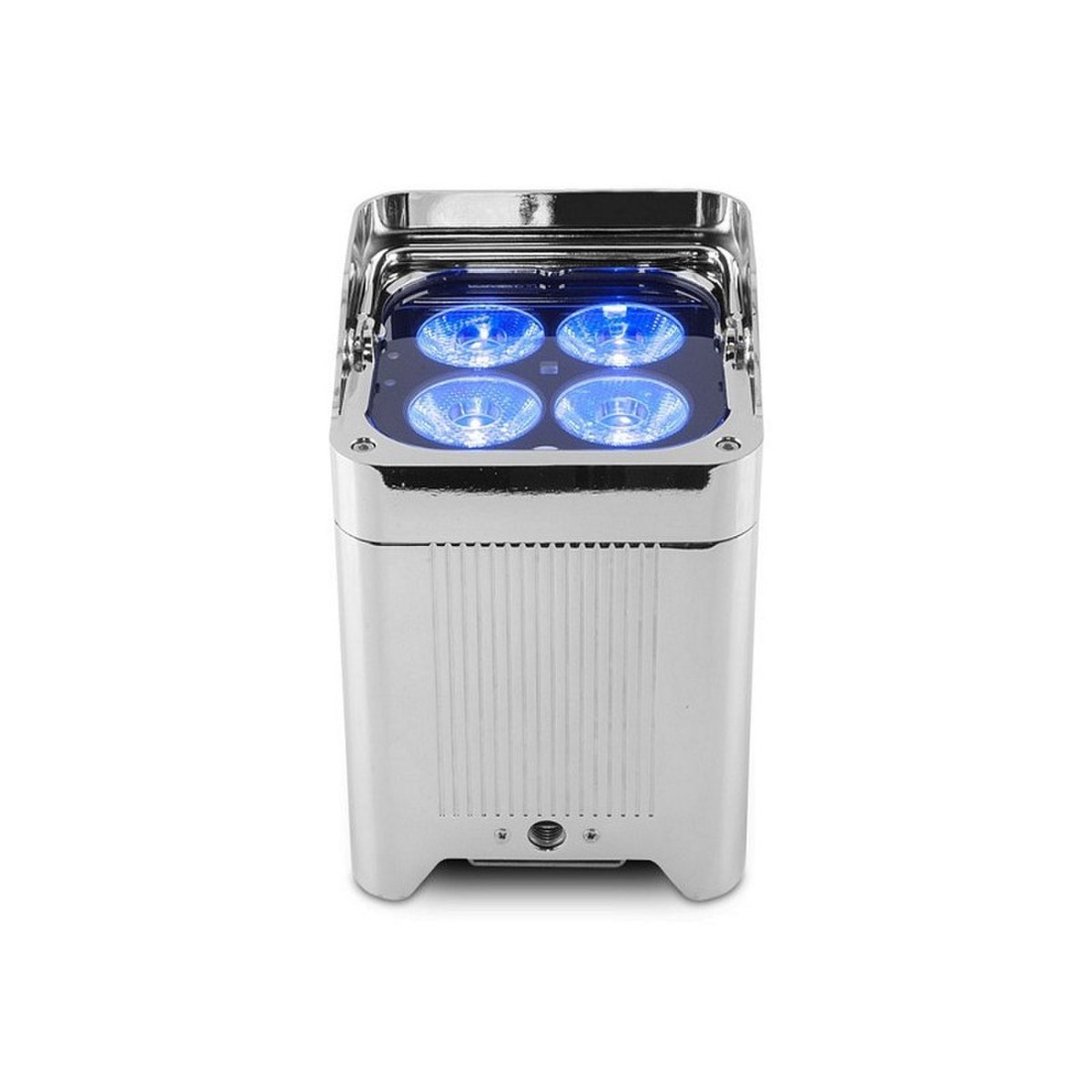

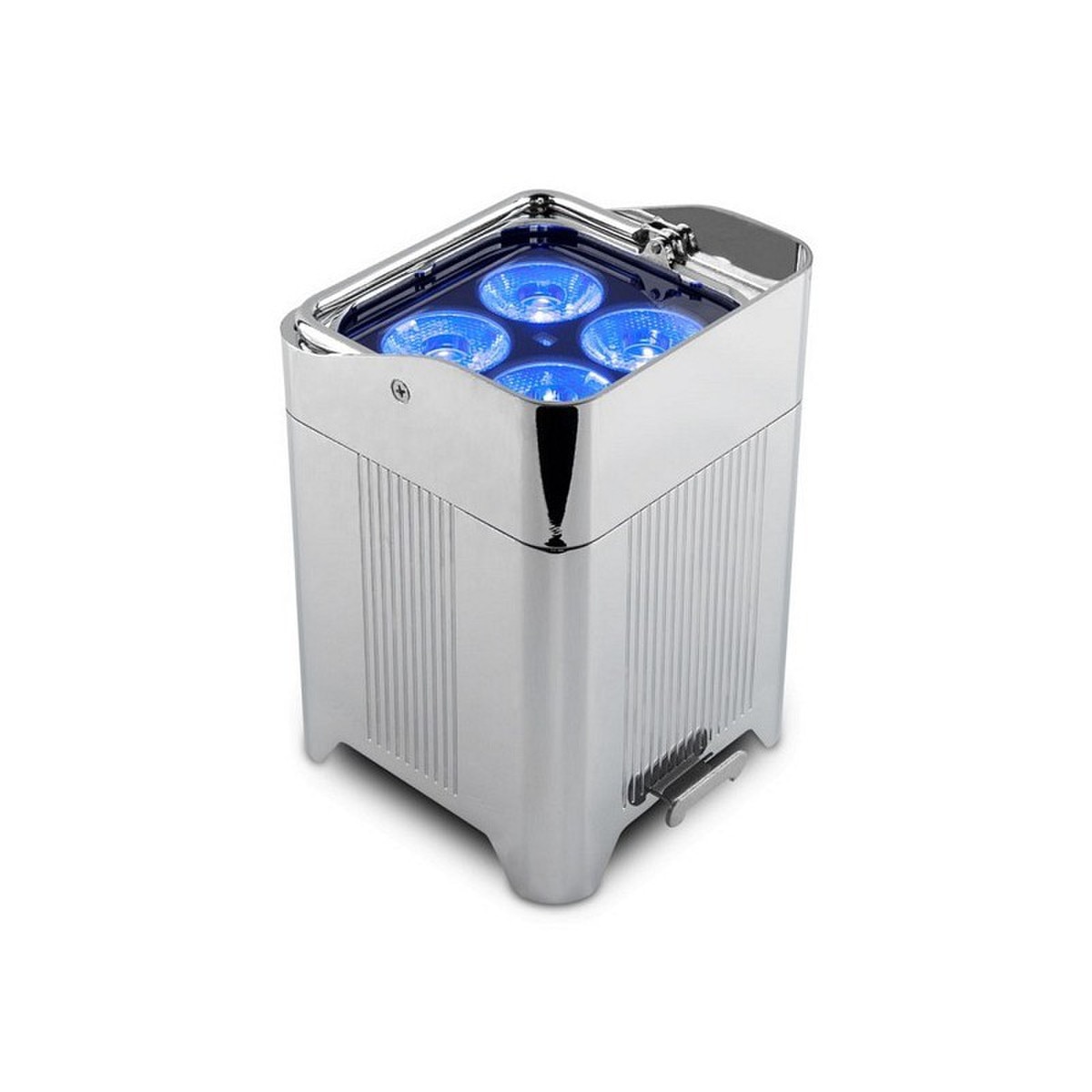

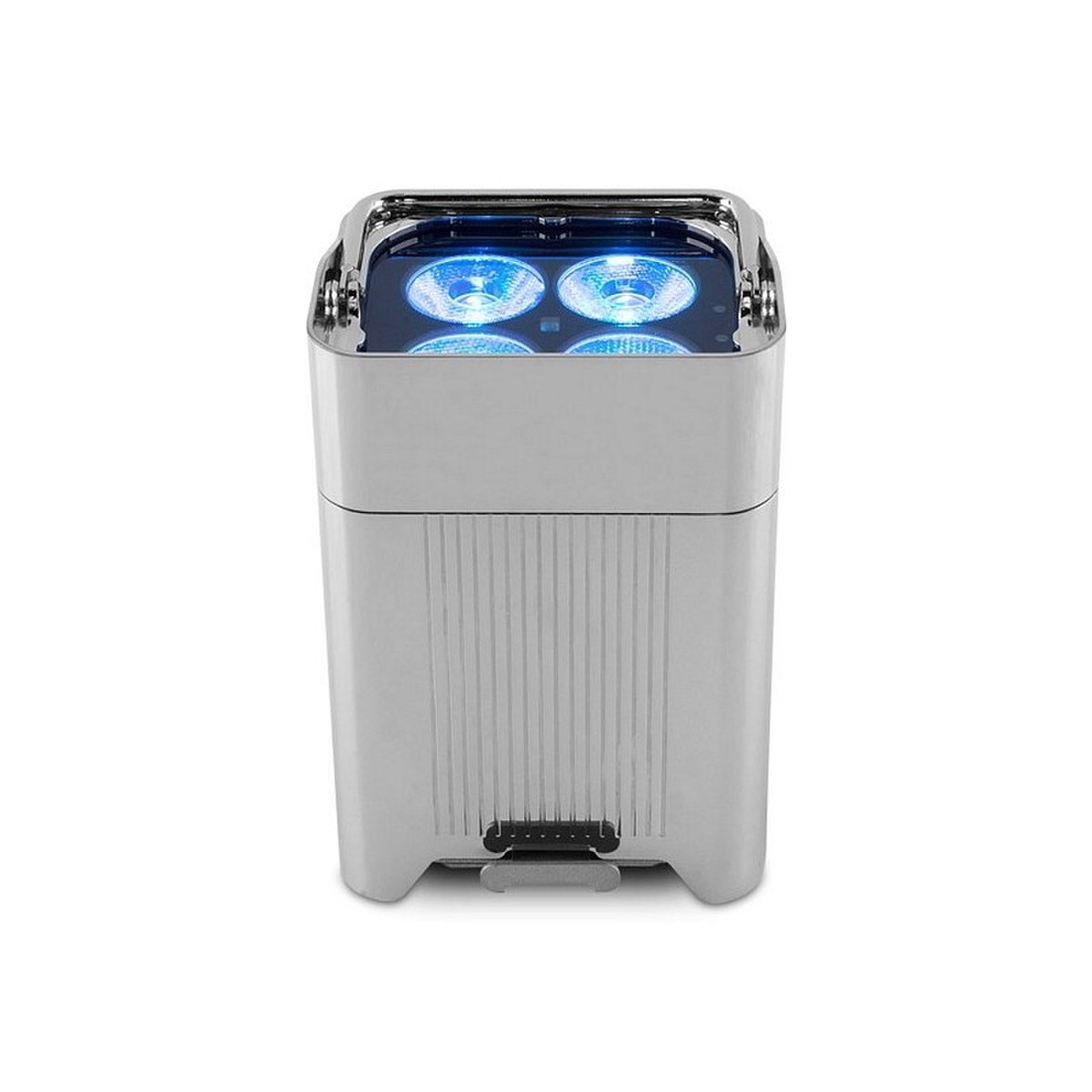

WELL Fit is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any décor.
WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.
Features:
- A completely wireless IP 65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.
- Chrome exterior for blending into its surroundings.
- Drop in case charging for easy storage and re-charging of the battery.
- 8 hours of operation at full and a quick 5 hours charging time for frequent use.
- Built in automated programs recallable by IR, WDMX or manually.
- M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.
What's Included:
- WELLFITX6
- (6) WELL FIT
- (1) Charging case
- (1) IR remote
- (1) powerCON power cable with Edison plug
- (1) QRG
- (1) Warranty card
Specifications:
Optical:
- Light Source: 4 LEDs (quad- color RGBA) 10W, (720 mA), 50,000 hours life expectancy).
- Beam Angle: 11 degrees
- Field Angle: 18 degrees
- Illuminance (18 degrees ): 800 lux @ 5 m
- PWM Frequency: 1200 Hz
Dynamic Effects:
- Color Macros: 5 macros
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 24 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical:
- Dimensions: 5.4" x 5.7" x 8" (138 x 145 x 202 mm)
- Dimensions (charging case): 20.4" x 18.5" x 21.2" (519 x 470 x 540 mm)
- Weight (single unit) 7.4 lbs (3.4 kg)
- Weight (charging case): 103.6 lbs (47 kg)
- Exterior Color: Chrome
- Housing Material: Aluminum die-cast
Connections:
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Cable Length (power): 5' (1.5 m)
Control:
- Control Protocol: W-DMX, IRC
- DMX Channels: 3, 4, 6 or 10
- Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current (single unit charging): 48W, 0.44A @ 120V, 60 Hz
- Power and Current (charging case): 288W, 2.44A @ 120V, 60 Hz
- Power and Current (single unit charging): 48W, 0.25A @ 208V, 60 Hz
- Power and Current (charging case): 288 W, 1.5A @ 208V, 60 Hz
- Power and Current (single unit charging): 48W, 0.23A @ 230V, 50 Hz
- Power and Current (charging case): 288W, 1.38A @ 230V, 50 Hz
Battery:
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 5 hours
- Battery Life: (all on) 8 hours, (single LED) 20 hours
- Battery Power: 14.8V, 11 Ah
Certifications / Qualifications:
- CE
- IP Rating: IP65, temporary outdoor/wet use
Optional Accessories:
- Clamps
- W-DMX Transmitter
WELL Fit User Manual.pdf
WELL Fit Quick Reference Guide.pdf
WELL Fit DMX Chart.pdf
