Chauvet Professional WELL STX180 6-Pack

(0)No Reviews yet
$4,135.00
SKU: Chauvet Professional WELLSTX180X6

Details

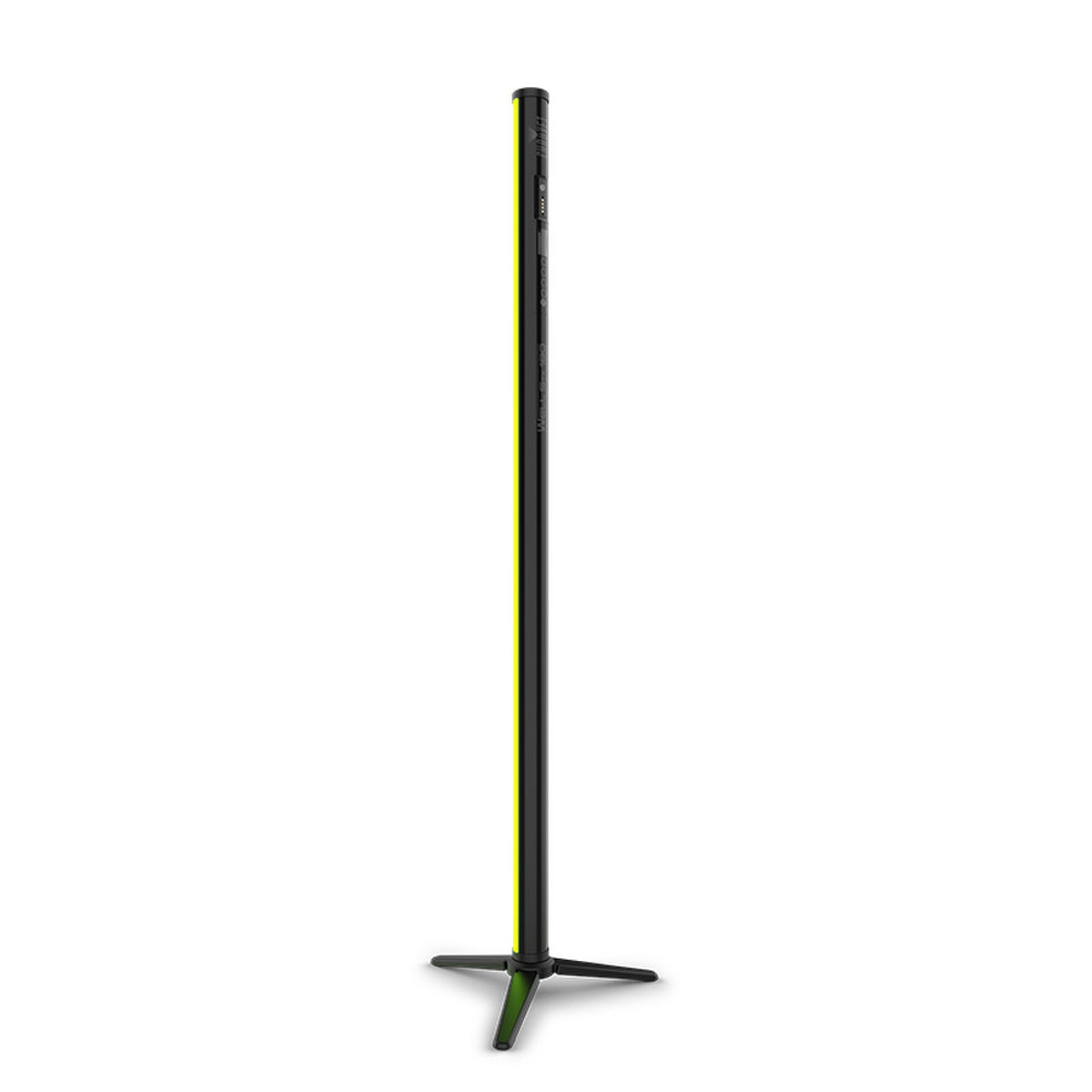

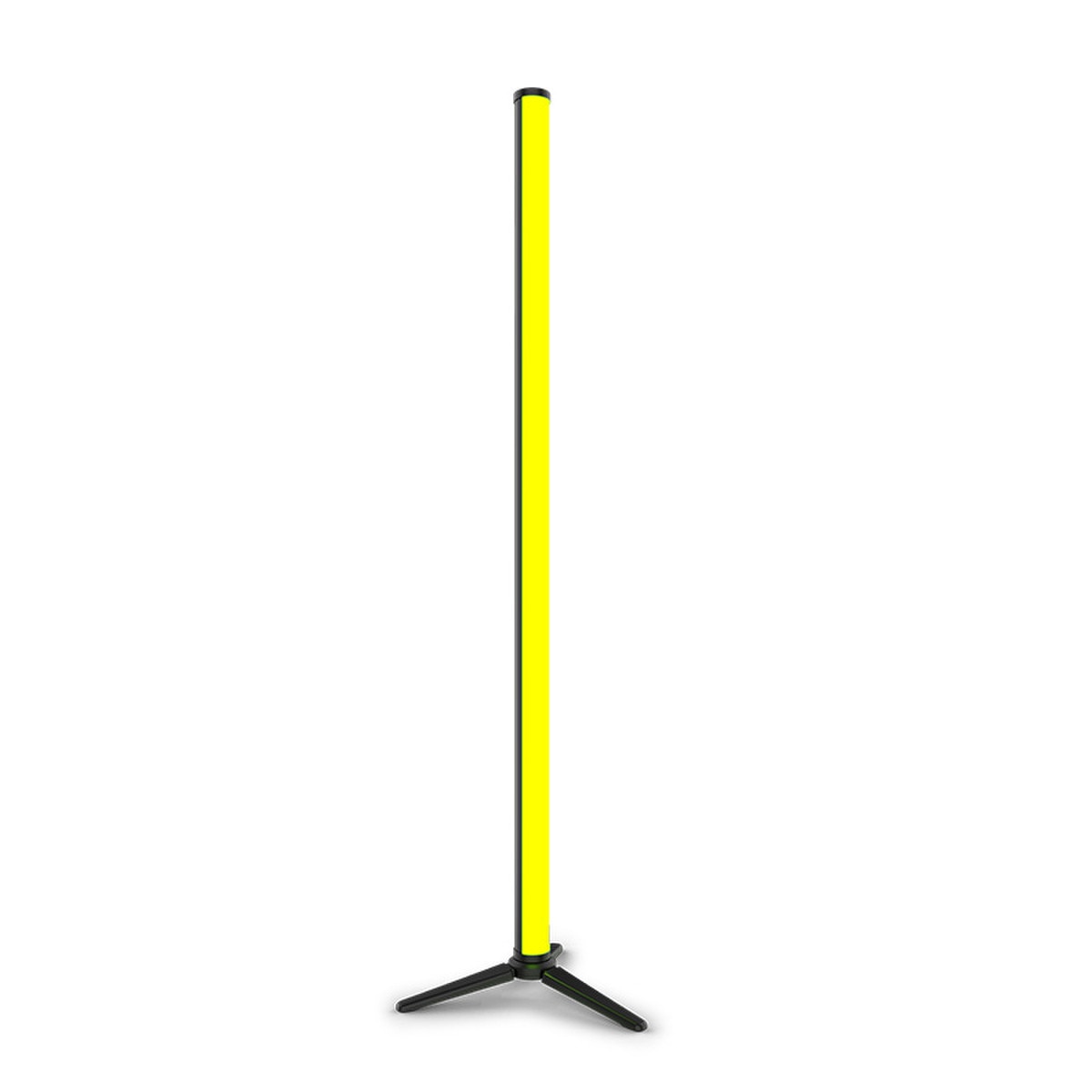

WELL STX 180 is a dynamic freestanding, battery-operated, and outdoor-ready LED tube that emits 180° of ultra-bright, high-quality, pixel-mappable light with an optional stealth filter for a complete disappearing effect when off. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 180 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 6 WELL STX 180, 12 Magnetic Brackets for attaching to steel surfaces, 6 eyebolts for suspended hanging options, 6 folding floor stands, 6 stealth black diffusers 1 IR Remote, and 1 ABS Plastic charging flight case.

At A Glance:

  • (6) pixel-mapping, battery-operated, 1 meter, IP65-rated LED strips with 180 degree viewing angle, including (6) mounting stands, (12) magnetic brackets, (6) hanging eye bolts, (6) stealth black filters (1) IR remote, and (1) charging case
  • 16 individual zones of control for pixel mapping effects
  • High CRI LEDs for fantastic skin tone rendering
  • Simple and complex operational modes
  • Built-in editable pre-programmed effects that are controllable from the menu and over DMX
  • 3, 5, 8, and 12-hour settings for optimizing performance time
  • Included accessories for several mounting options
  • Included charging flight case for easy transportation and charging of fixtures
  • Update software over USB-C connection in flight case (upload all 6 fixtures at once)
  • Works in both standalone modes and under DMX over W-DMX
  • Works perfectly with the WELL-COM controller and app

Specifications:
Optical:

  • Light Source: 128 LEDs (64RGB / 64WW) SMD 5050, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 9936 K
  • CRI: 94 @4000 K
  • Beam Horizontal Angle: 126°
  • Beam Vertical Angle: 125°
  • Field Horizontal Angle: 214°
  • Field Vertical Angle: 210°
  • Illuminance (total): 17 lux @ 5 m – 3 hr run time
  • Lumens – Output : 1387 – 3 hr run time

Dynamic Effects:

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 22 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

 Construction/Physical:

  • Dimensions: 39.3 x 1.6 x 1.6 in (1000 x 42.4 x 42.4 mm)
  • Weight: 3.4 lb (1.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Plastic

Connections:

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65

Control:

  • Control Protocol: W-DMX, IRC
  • DMX Channels: 4, 15, 64 or 67
  • Modes/Personalities: 4 personalities

Electrical:

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
  • Power and Current (single unit charging): 30 W, 0.336 A @ 100 V, 60 Hz
  • Power and Current (charging case): 167 W, 1.687 A @ 100 V, 60 Hz [
  • Power and Current (single unit charging): 30 W, 0.105 A @ 120 V, 60 Hz
  • Power and Current (charging case): 165 W, 1.396 A @ 120 V, 60 Hz
  • Power and Current (single unit charging): 27 W, 0.298 A @ 208 V, 60 Hz
  • Power and Current (charging case): 160 W, 0.848 A @ 208 V, 60 Hz
  • Power and Current (single unit charging): 26 W, 0.262 A @ 230 V, 50 Hz
  • Power and Current (charging case): 159 W, 0.769 A @ 230 V, 50 Hz
  • Power and Current (single unit charging): 26 W, 0.266 A @ 240 V, 50 Hz
  • Power and Current (charging case): 156 W, 0.738 A @ 240 V, 50 Hz

Battery:

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 6 hours
  • Battery Life: 3,5,8,12 hour settings for optimizing performance time
  • Battery Power: 14.8 V, 6.7 Ah

Certifications/Qualifications:

  • CE, FCC, UKCA
  • IP Rating: IP65, for temporary outdoor use

What's Included:

  • (6) WELL STX 180
  • True 1 style power cord with Edison plug (EU bare end)
  • Charging flight case
  • (6) stands
  • (12) magnetic clamps
  • (6) hanging eye bolts
  • (6) Stealth filters
  • Quick Reference Guide

Optional Accessories:

  • Safety Cable: SC-07
  • IP Rated Seetronic® Powerkon Extensions

WELL-STX-180_2D.pdf
WELL_STX_180_UM_Rev1.pdf
WELL_STX_180_QRG_Rev4_ML5.pdf
WELL_STX_180_DMX_Chart_Rev3.pdf
