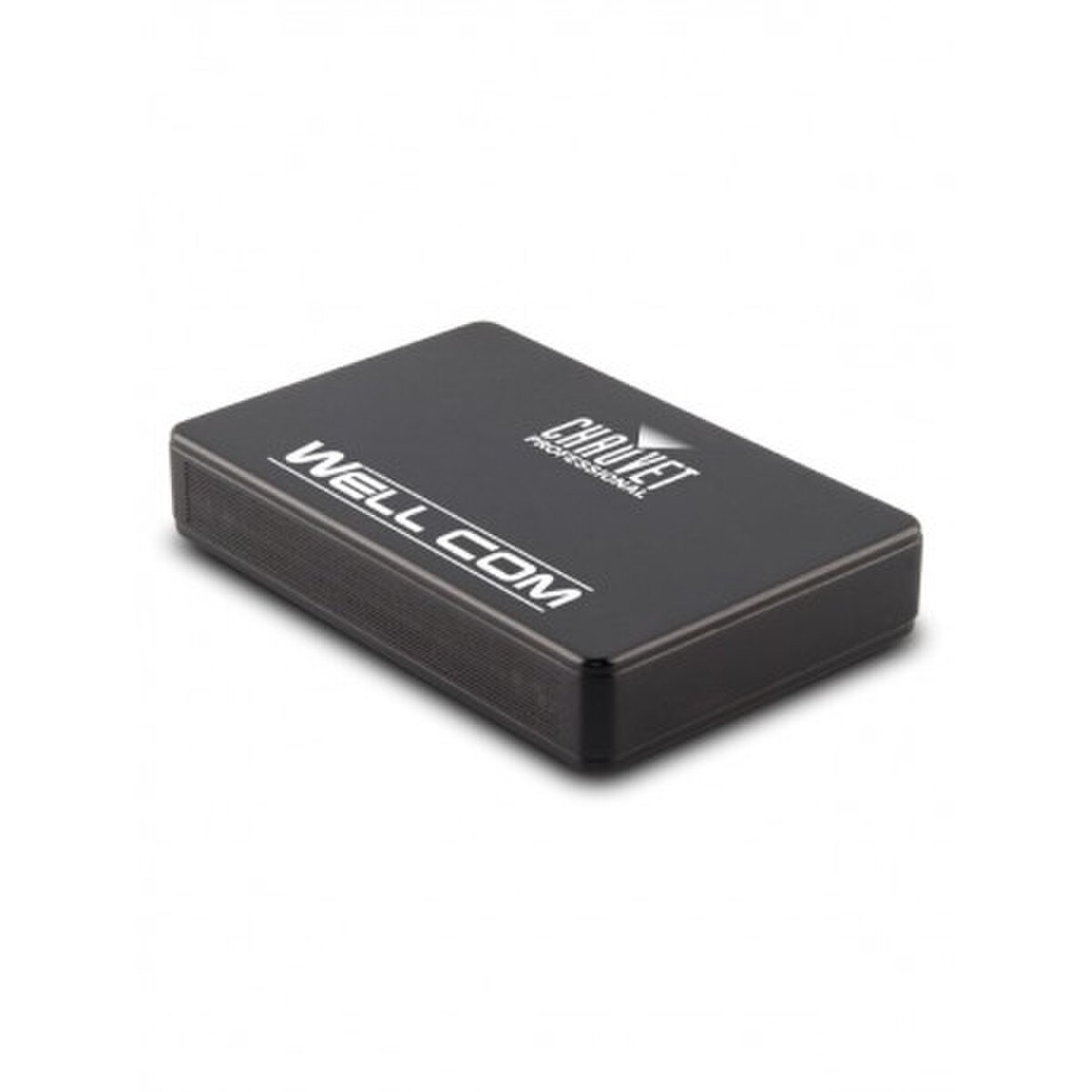

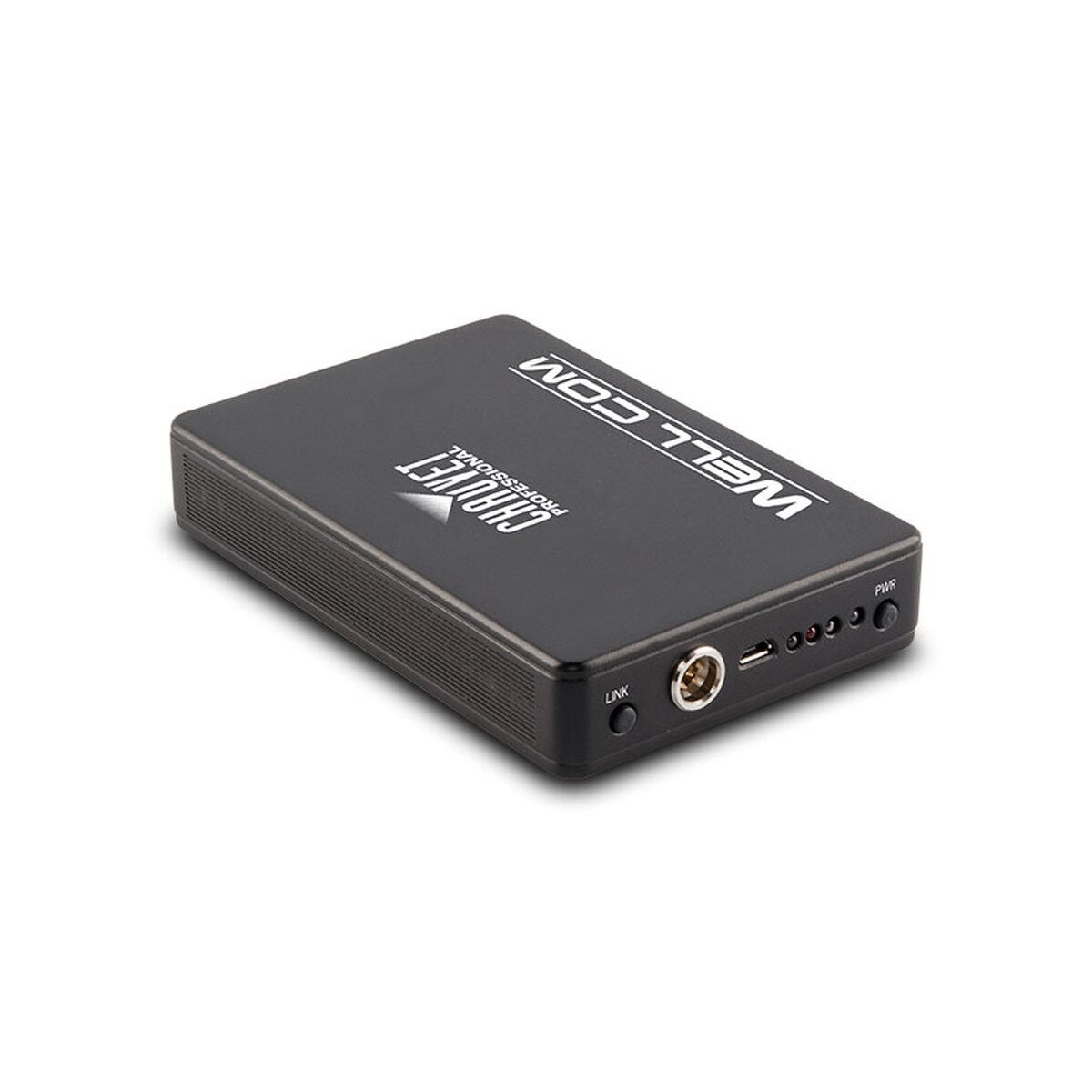

Chauvet Professional WELL Com v2

WELL Com makes it possible to control your W-DMX enabled lights from a smartphone or a tablet. This wireless interface gives you full control over your fixtures including the ability to build and save static looks or timed chases via a free downloadable app that supports a full universe of DMX and can save scenes and chases.

Compatible with both Android and iOS®.

Features:

• Compact, easy-to-use battery powered Wi-Fi™ receiver and wireless WDMX™ transmitter combined with an Android™ or iOS® based control app.
• 8 Hours of usage on a full charge
• Compatible with Android™ and iOS® on both smartphones and tablets
• Output can be used in wireless WDMX™ or wired DMX protocols
• Full universe of DMX available for programming larger events
• Built in color picker and color macros for use with RGB, RGBA, RGBW wash fixtures
• Program up to 24 steps per scene with selectable fade and hold times for building chases and cues
• A total of 18 scenes available for playback
• Easy to navigate user interface
• Line-of-sight distance up to 200m

What's Included:

• WELL COM
• USB-A Male to Micro USB-B Male - 3'
• 5-pin DMX adaptor
• External power supply

Specifications:

Dynamic Effects:

• Standalone Color Mixing: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction/Physical:

• Dimensions: 5.13" x 3.34" x 0.98" (130.4mm x 85mm x 25mm)
• Weight: 0.6 lbs (0.3kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections:

• Power Input: Micro USB-B Male
• Data Connectors: 5-pin XLR
• Cable Length (DMX): 17" (0.43m)
• Cable Length (power): 3' (0.91m)

Control:

• Control Protocol: DMX, W-DMX™, Wi-fi
• DMX Channels: 512

Electrical:

• Input Voltage: 5 VDC, 1600 mA (external power supply: 100-240 VAC 47/63 Hz)
• Power and Current: 7W, 0.125A @ 120V, 60 Hz
• Power and Current: 6W, 0.078A @ 208V, 60 Hz
• Power and Current: 6W, 0.075A @ 230V, 50 Hz

Battery:

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 8 hours
• Battery Power: 3.7V, 6,000 mAh

Certifications/Qualifications:

• CE, FCC
• IP Rating: IP20, dry location

Required Accessories:

• WELL COM App available for download on iOS or Android store

Optional Accessories:

• DMX Cables
