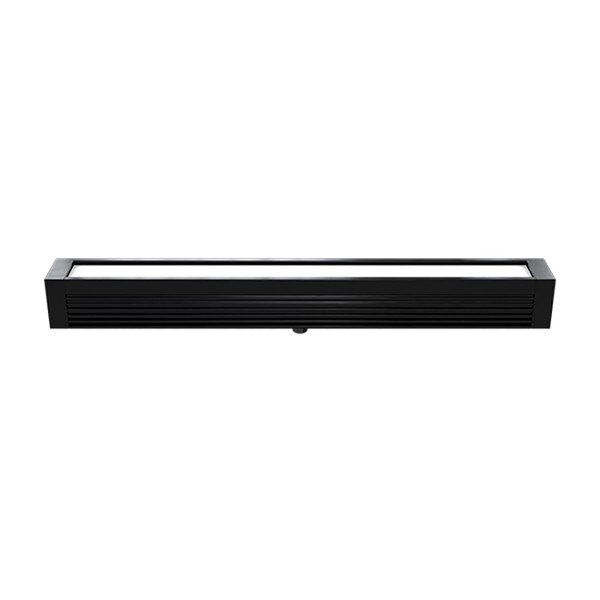

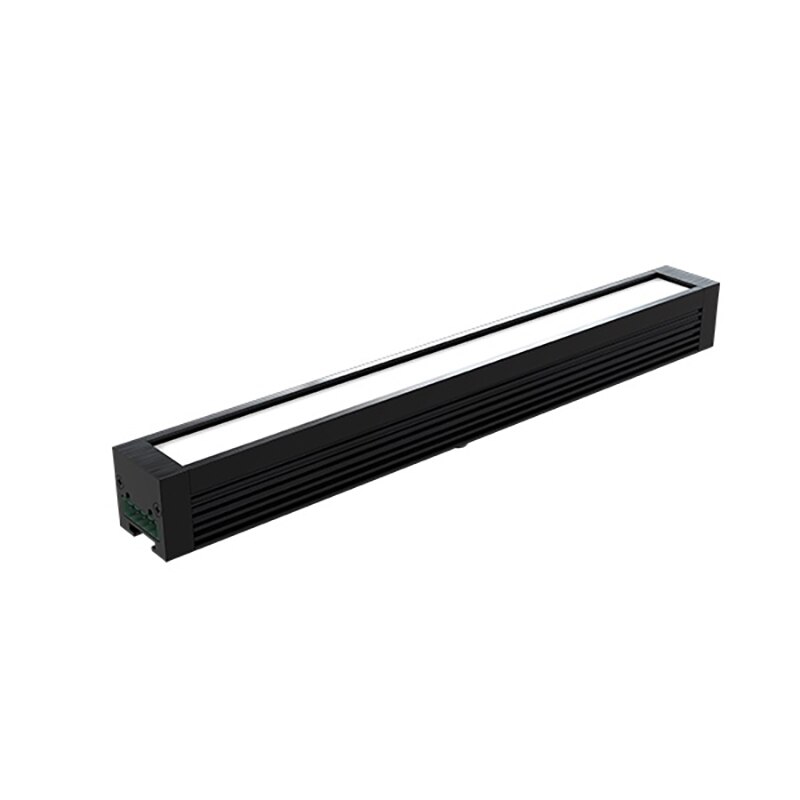

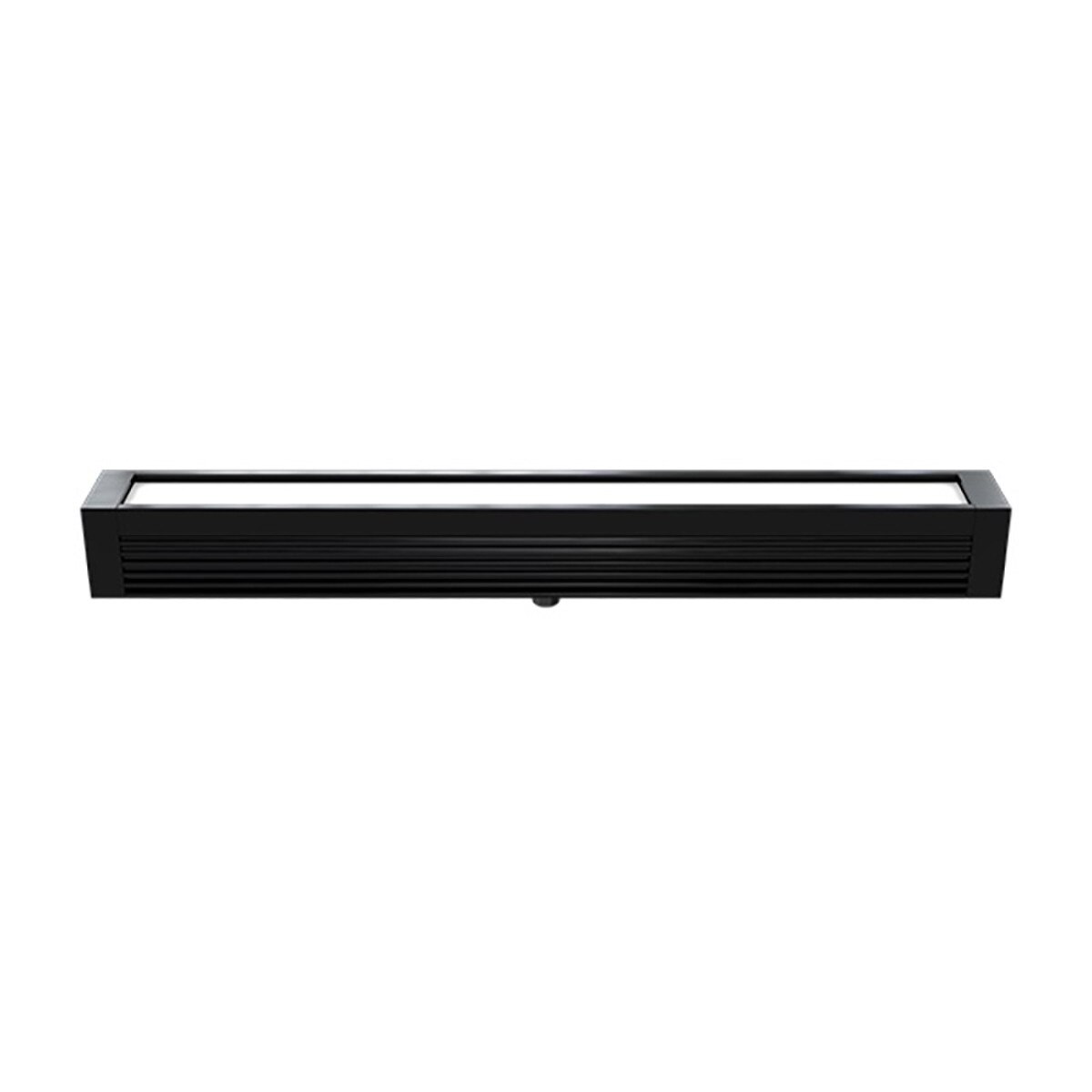

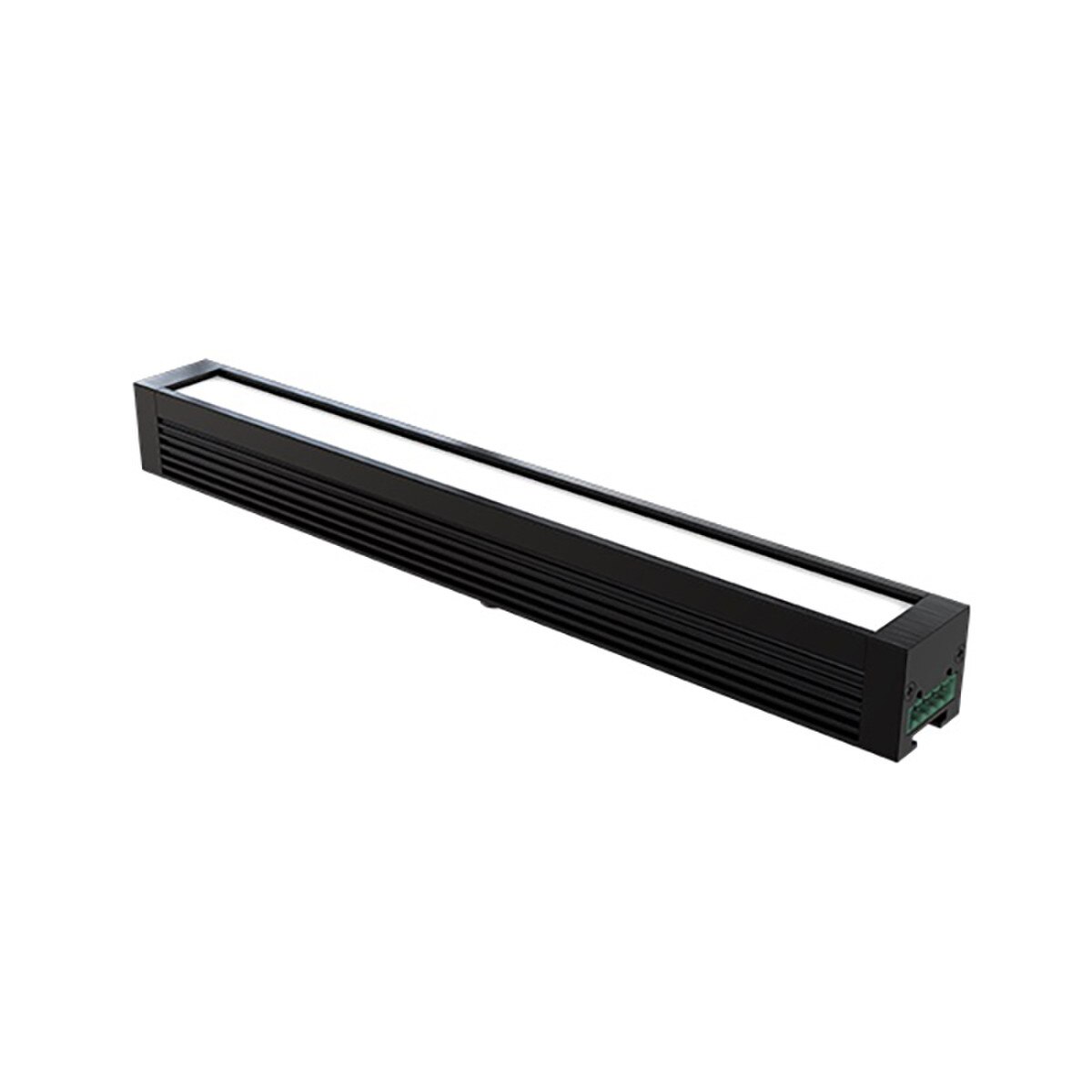

Chauvet Professional onAir Flex 12

Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.

Features:

• Full spectrum LED soft catch light for short throw studio applications
• High quality white light and color
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive
• Completely silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.

Specifications:
Optical:

• Light Source: 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
• Light Source: 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Color Temperature (at full): 9190 K
• CRI: 96
• Beam Angle - Medium: 96.1° x 64.3°
• Beam Angle - Light: 111° x 62°
• Beam Angle - Heavy: 93.3° x 72.2°
• Field Angle - Medium: 148.8° x 123.8°
• Field Angle - Light: 149.8° x 126.3°
• Field Angle - Heavy: 151.7° x 136°
• Lumens - Medium: 765 lm
• Lumens - Light: 810 lm
• Lumens - Heavy: 734 lm
• Illuminance - Medium : 17 lux @ 5 m
• Illuminance - Light : 16 lux @ 5 m
• Illuminance - Heavy : 15 lux @ 5 m
• Selectable PWM: via onAir Flex Drive

Construction/Physical:

• Dimensions: 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
• Shipping Dimensions: 15 x 6.5 x 4 in (381 x 165 x 102)
• Weight: 0.975 lb (0.442 kg)
• Exterior Color: Black
• Housing Material: Extruded Aluminum

Connections:

• Power Connection: Phoenix connector to Bare-wire
• Physical Linking: Phoenix connector to Bare-wire

Control:

• Control Protocol:DMX
• DMX Channels: 8 or 10
• Modes/Personalities: 8ch-RGBWx2, 10ch-RGBW+Dx2

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 26 W, 0.28 A @ 120 V, 60 Hz
• Power and Current: 24 W, 0.31 A @ 208 V, 60 Hz
• Power and Current: 24 W, 0.29 A @ 230 V, 50 Hz

Cable:

• Connector: Phoenix
• Pins: 5

Certifications/Qualifications:

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• OnAir Flex 126cm Cable
• 12cm Cable
• Blanks Connectors
• Light Filter
• Heavy Filter

Required Accessories:

• onAir Flex Drive
