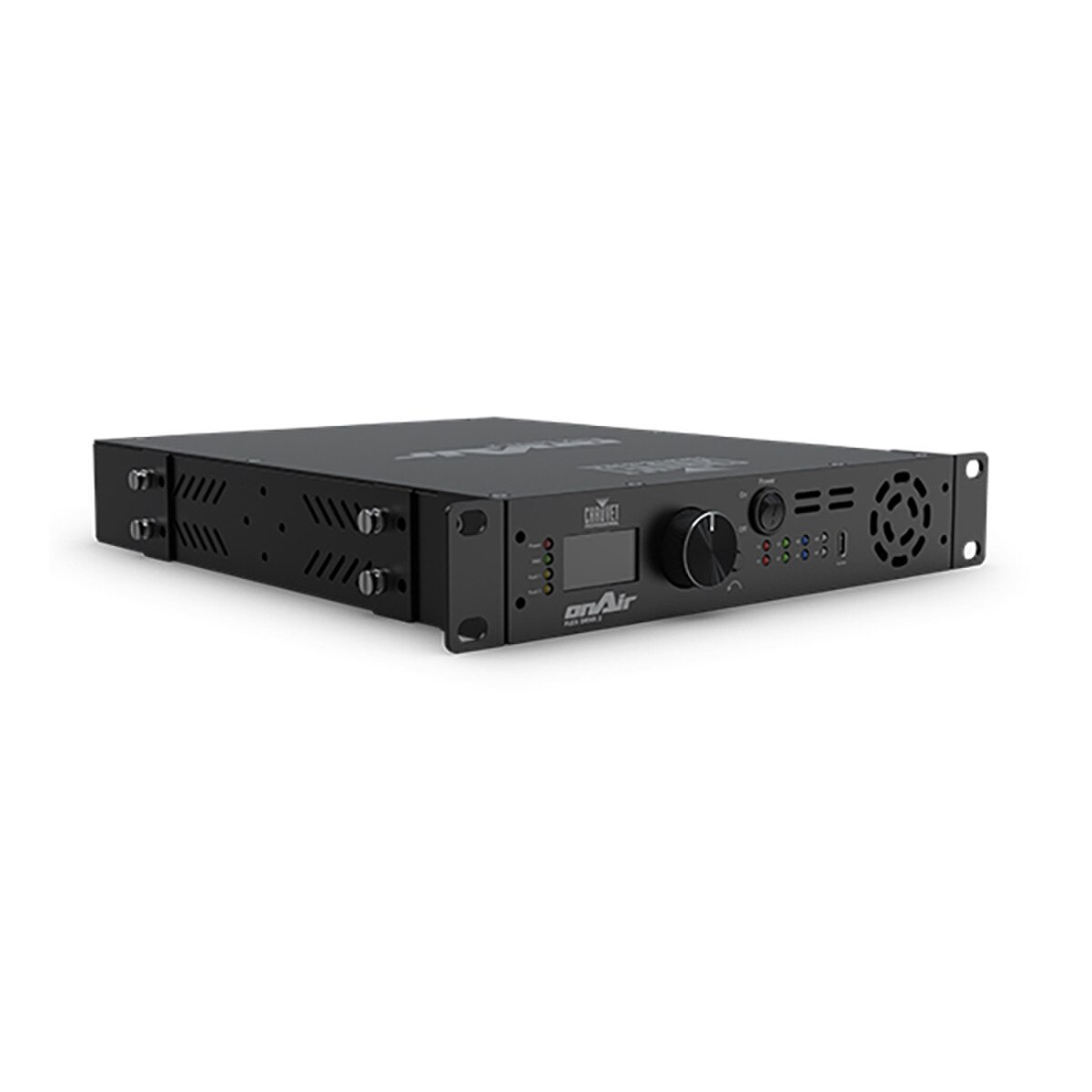

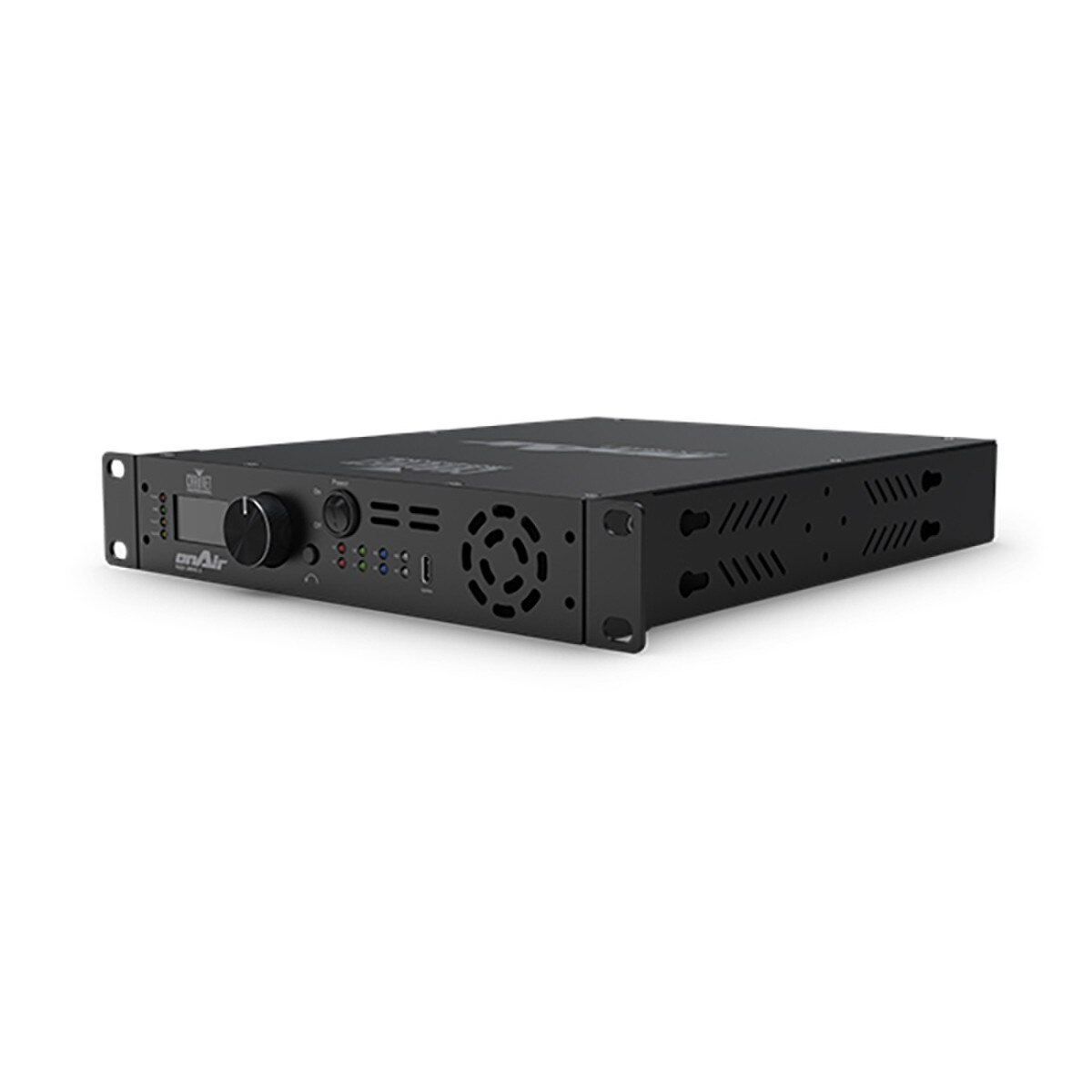

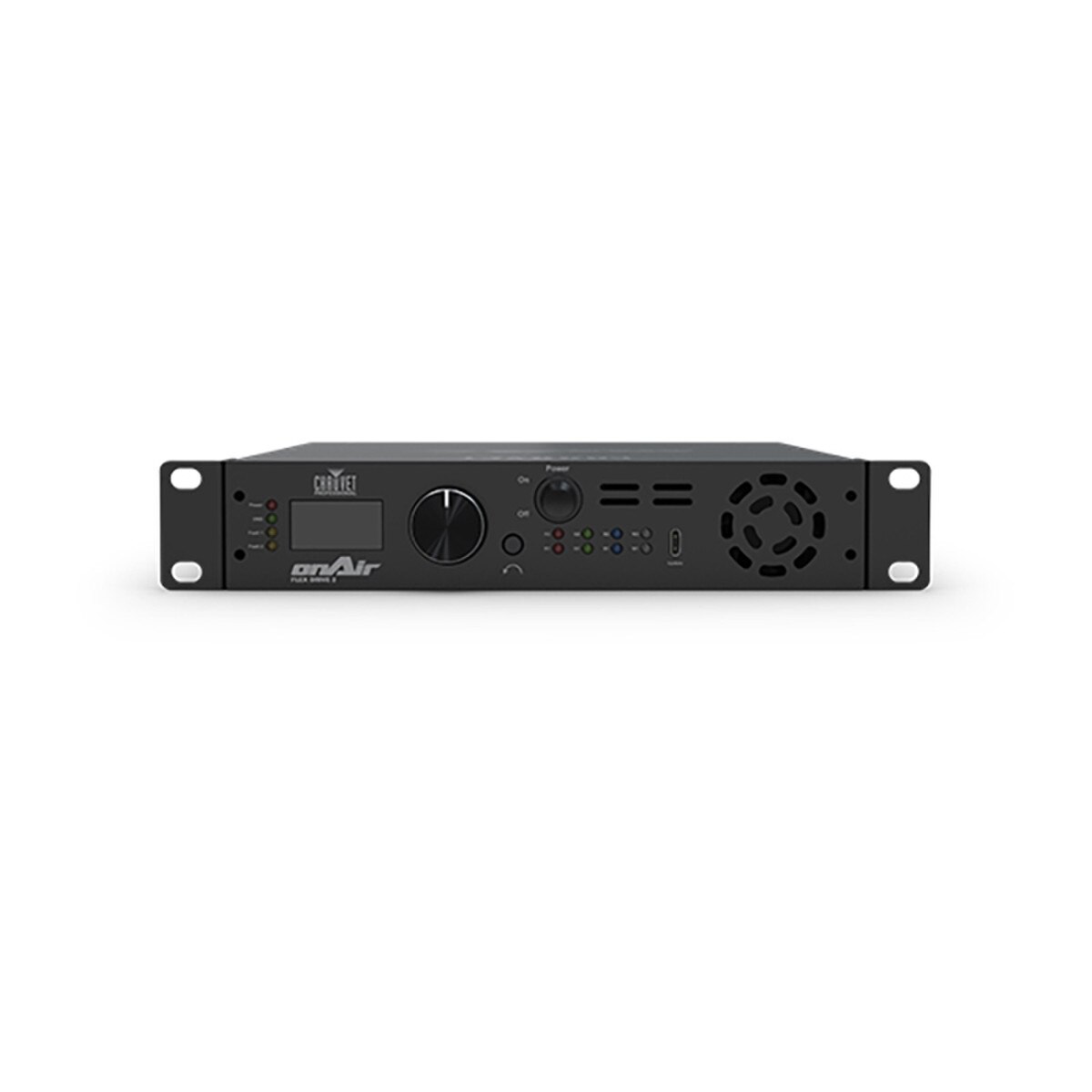

Chauvet Professional onAir Flex Drive 2

onAir Flex Drive 2 is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.

Features:

• TV focused 24 VDC constant voltage LED Driver with integrated power supply
• Adjustable PWM makes this product ideal for broadcast compatibility
• Two outputs support RGBW or generic 4-channel control for up to 350W of total power
• Assisted convection cooling utilizes a quiet fan for studio environments
• Built in overcurrent and short circuit protection with indicator LEDs
• RDM supported for remote device management
• Scalable rack mount system, two per 1U space
• DMX 5pin and Phoenix connector for installation support

Specifications:
Construction/Physical:

• Standalone Color Mixing: Yes
• Built-in Automated Programs: Yes

Construction/Physical:

• Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)
• Weight: 5.4 lb (2.44 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

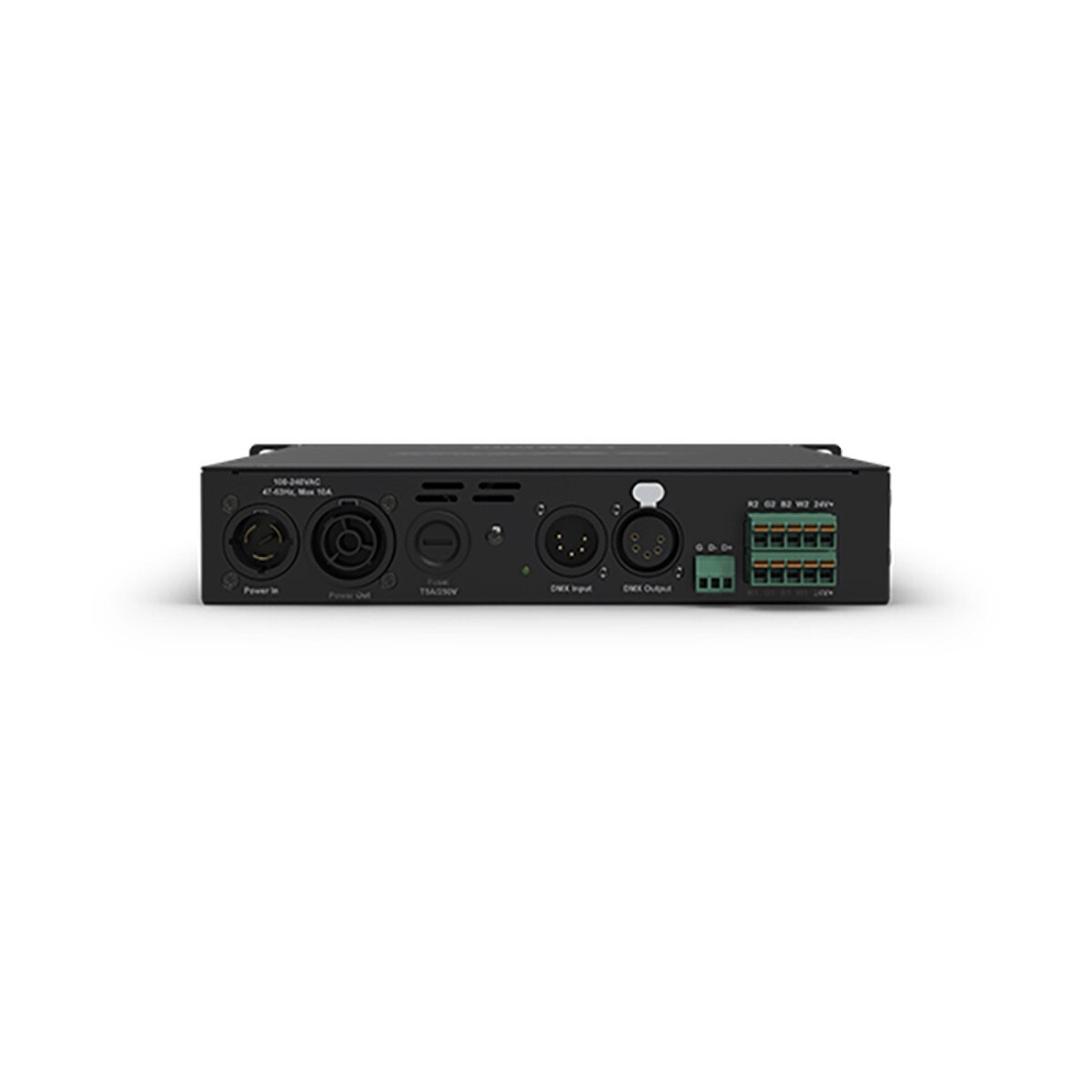

Connections:

• Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible
• Power Input: Seetronic Powerkon (powerCON Compatible)
• Power Output: Seetronic Powerkon (powerCON Compatible)
• Device Outputs (5-pin Phoenix Connector): 2
• Physical Linking Per Port: 2 RGBW Tape
• Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector
• Cable Length (power): 5 ft (1.5 m)
• Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG

Control:

• Control Protocol: DMX
• DMX Channels: 8 or 10
• Modes/Personalities: RGBW, RGBW+D
• Total Output Power (Per Port): 200 W
• Total Output Power (Total): 350 W

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz
• Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz
• Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz

Certifications/Qualifications:

• CE
• US Safety: UL 8750
• Canadian Safety: CSA C22.22 No. 250.13
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• onAir Flex Drive 2
• Neutrik powerCON TRUE1 power cord
