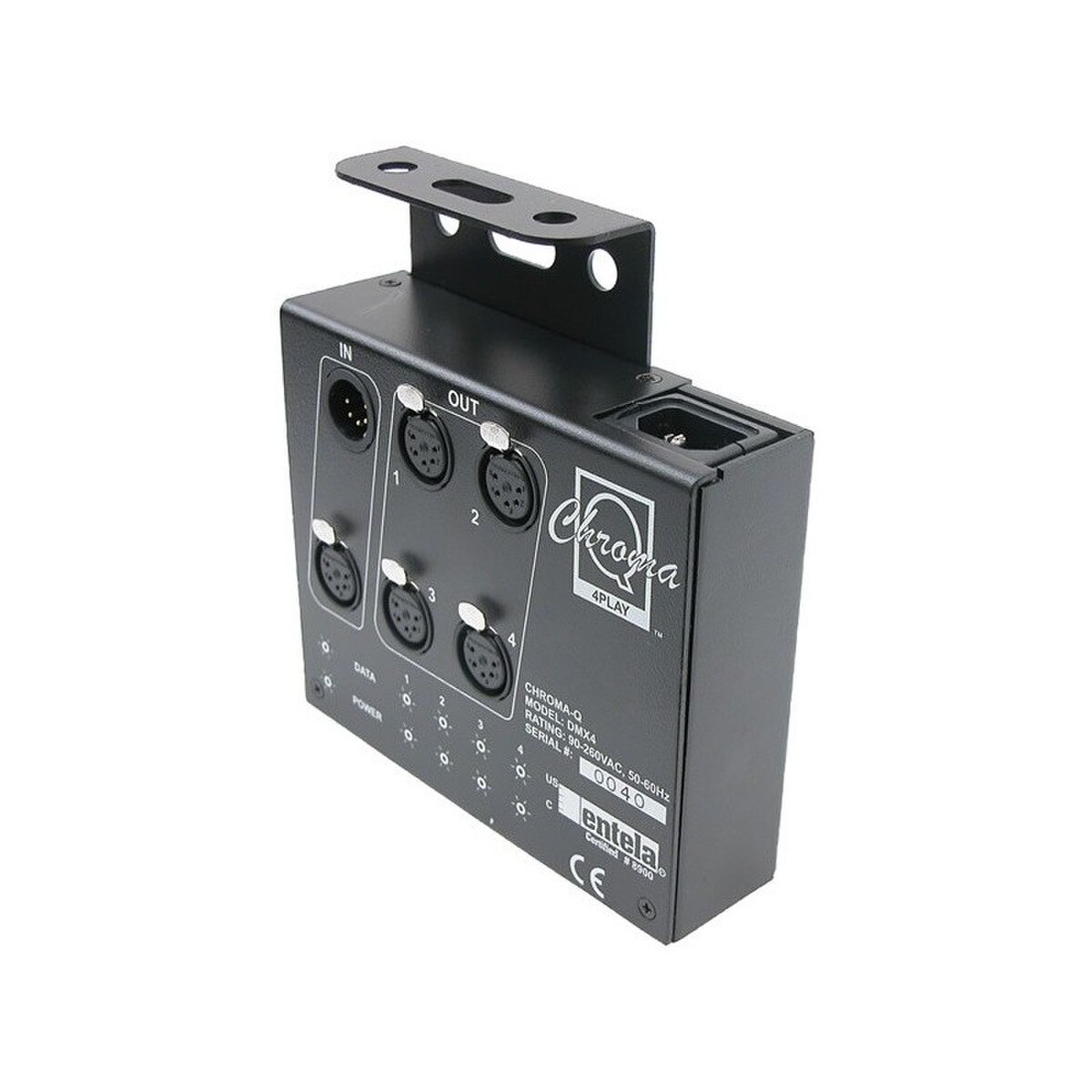

Chroma-Q 4Play DMX Buffer Box

The 4Play is a fault tolerant, self healing 4 way DMX buffer designed to fully isolate all outputs from each other. Supplied with 4 x 5 pin connectors, each output is separately generated and boosted from the original DMX signal. The 4Play is suitable for truss mounting with a normal hook clamp and will work with mains voltages world-wide. It also features a chassis mounted IEC male to assist international cabling.

Features:

• 4 way DMX buffer
• Fault tolerant, self healing
• Each output fully isolated
• 4 x 5 pin XLR connector outputs
• 1 x 5 pin XLR connector input and through
• Each output is separately generated and boosted from the original DMX signal
• Data and power indicators
• Suitable for truss mounting with a normal hook clamp

Specifications:

• Power connector: 100-240V 50/60Hz, 15W, IEC chassis male
• DMX connector in/out: XLR5
• DMX connector out: XLR5
• DMX connector thru: XLR5
• Dimensions: 5.9" (148mm) x 6.3" (158mm) x 1.6" (40mm)
• Weight: 0.6kg / 1.3lbs
