Chroma-Q Color Block 30 Way Power Supply Unit
Details

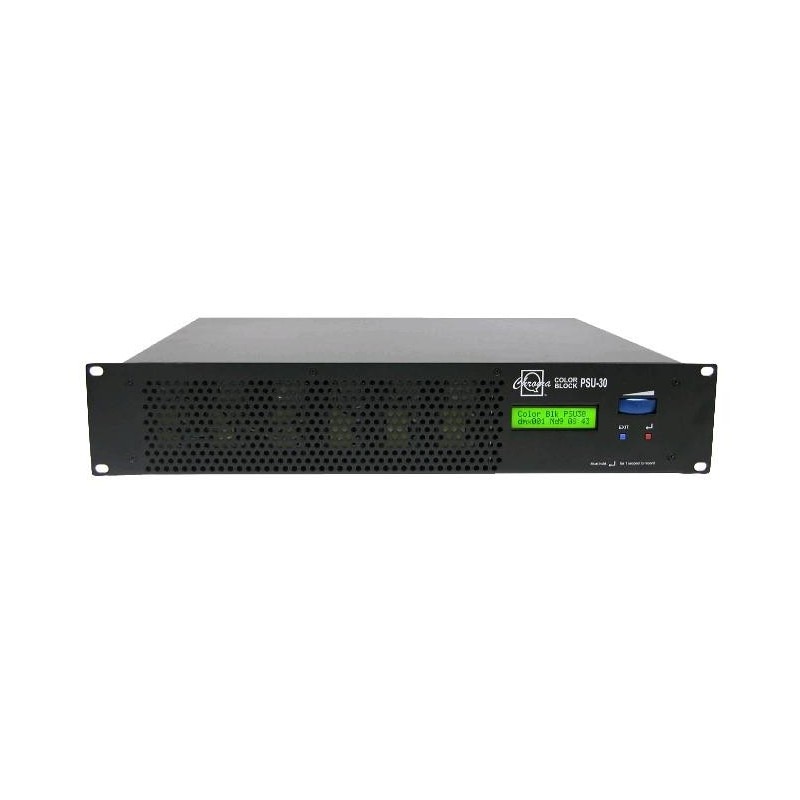

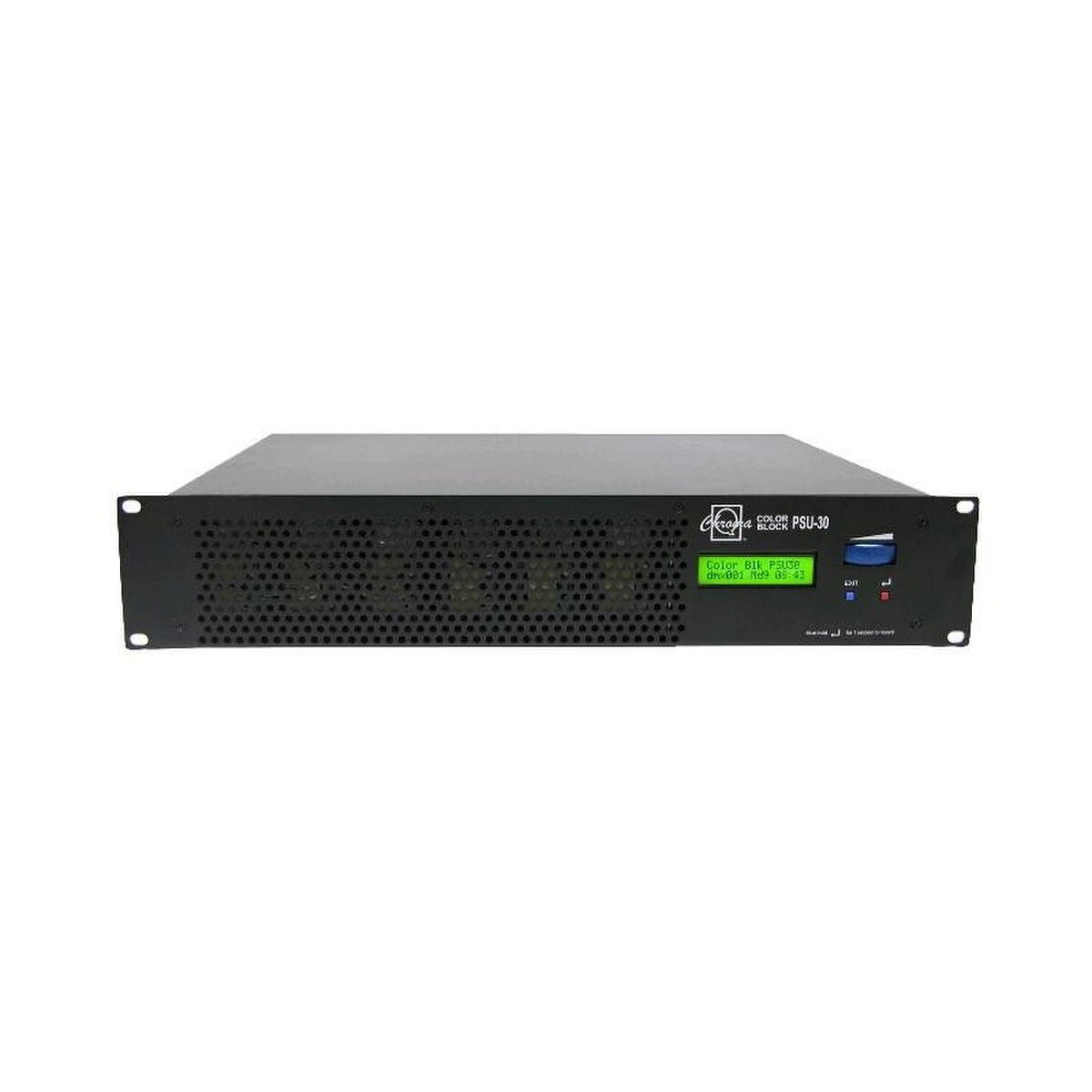

The Color Block PSU-30 is a 2U 19" rack mounted power supply suitable for up to 30 Color Block DB4 LED fixtures. It can be controlled remotely via ANSI E1.11 USITT DMX 512-A in a variety of modes to accommodate most applications or can operate independently as a standalone system.
Specifications:
- Power: 100-240VAC 50/60Hz
- Power consumption: 18A @ 120VAC; 9A @ 230VAC
- DMX connector in/out: XLR5
- Control: USITT DMX512 (1990)
- Power connector: Trailing lead
- Color: Black powder coated paint
- IP rating: IP20
- Approvals: Pending EN55103-1 & 2, IEC60950 EN61000-3-3 & EN61000-3-2
- Dimensions: 19" (483mm) x 14.5" (368mm) x 3.5" (89mm)
- Weight: 11.1kg / 24.5 lbs
