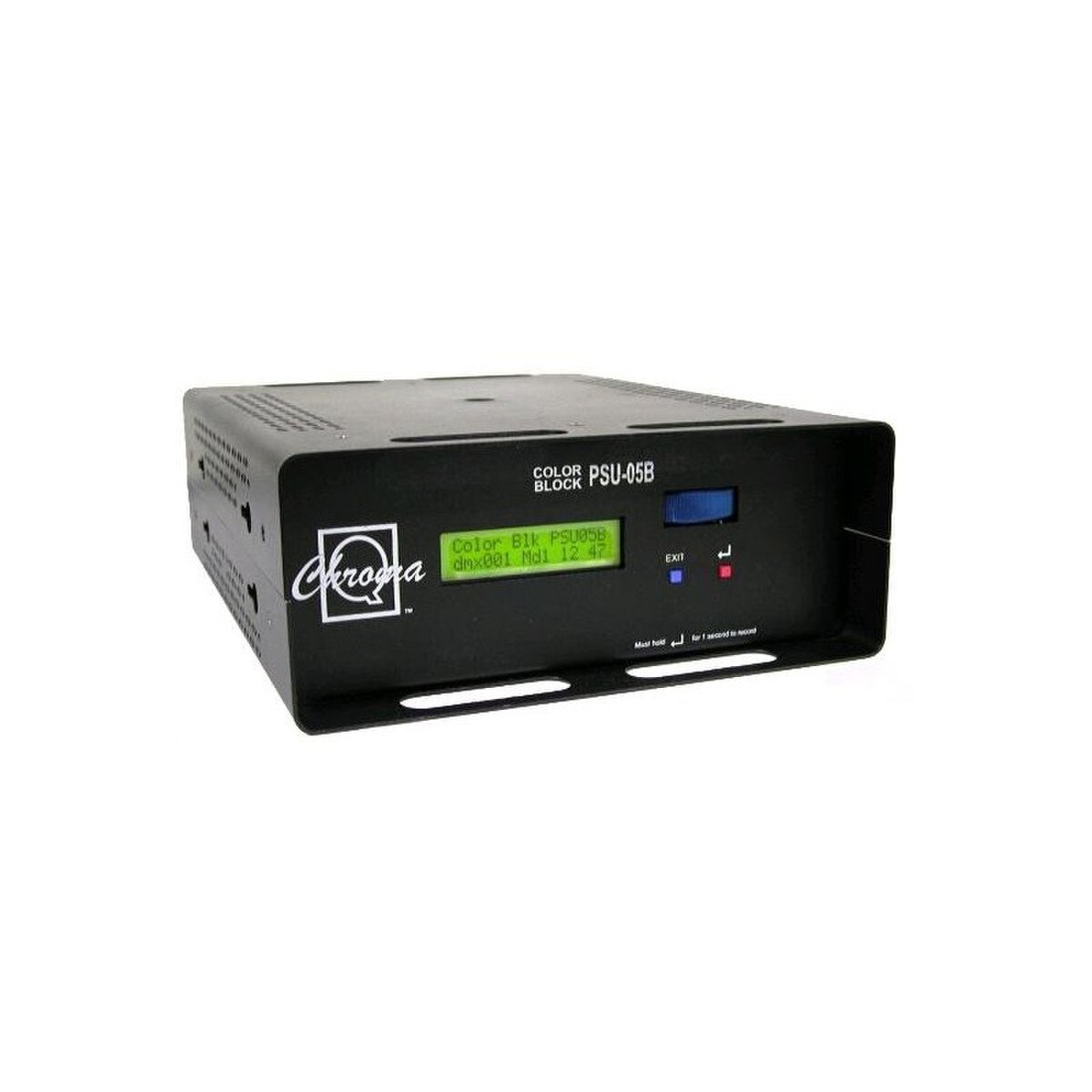

Chroma-Q Color Block 5 Way Power Supply Unit
Details
The Color Block PSU-05B is a power supply suitable for up to 5 Color Block DB4 LED fixtures. It can be controlled remotely via ANSI E1.11 DMX 512-A in a variety of modes to accommodate most applications or can operate independently as a standalone system.
Spec_Sheet_2631_File_2.pdf
User_Manual_2631.pdf
User_Manual_Version_2_2631_File_4.pdf
Specifications:
- Power: 100-240VAC 50/60Hz
- Power consumption: 4A @ 120V AC; 2A @ 230V AC
- DMX connector in/out: XLR5
- Control: ANSI E1.11 USITT DMX512-A XLR5 in and through
- Power connector: IEC
- Colour: Black powder coated paint
- IP rating: IP20
- Approvals: Pending EN55103-1 & 2, IEC60950, EN61000-3-3 and EN61000-3-2
- Dimensions: 8.6" (219mm) x 3.5" (88mm) x 11" (279mm)
- Weight: 3.9kg / 8.6lbs
