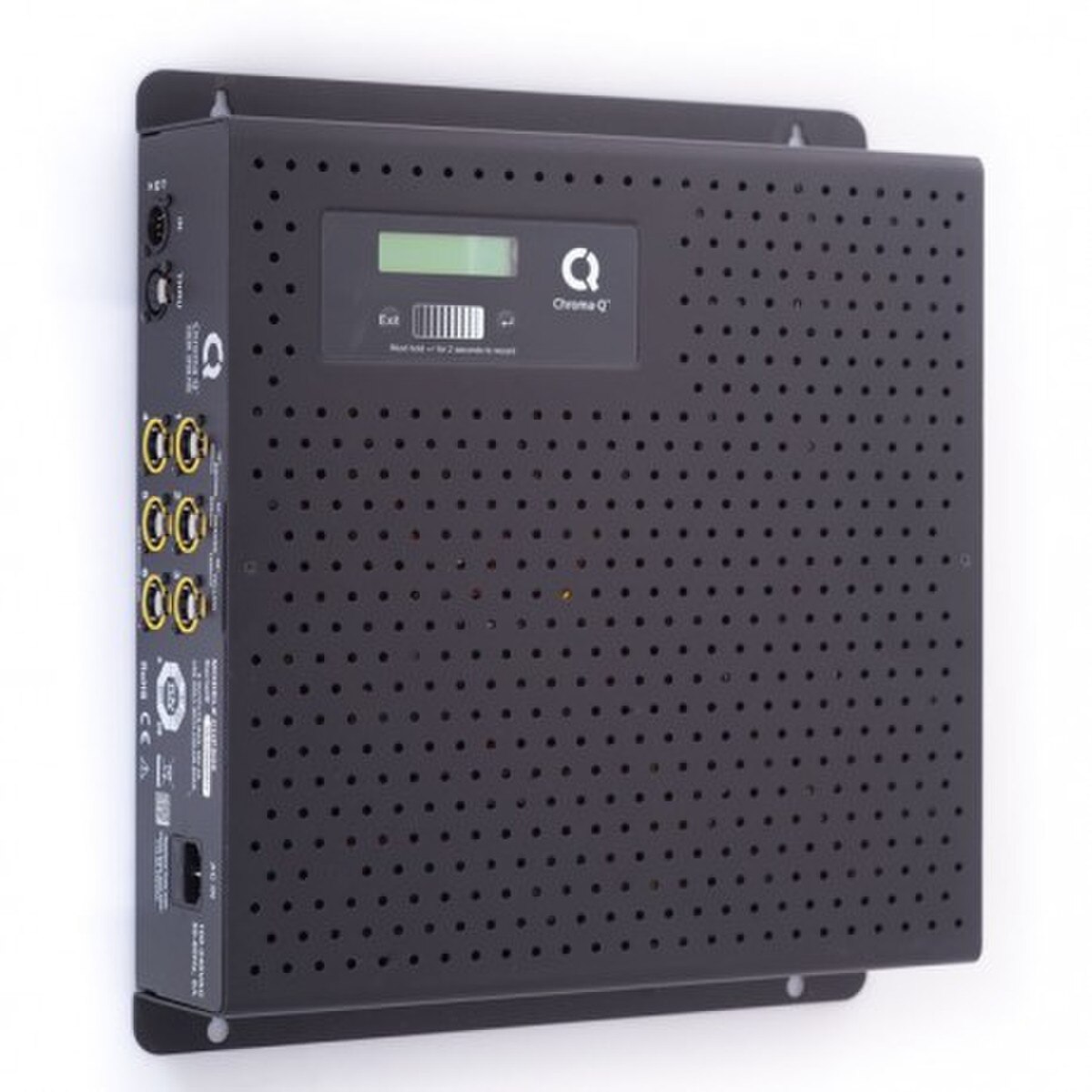

Chroma-Q Color Span PSU06

The power supply shall:

• Provide control of multiple fixtures up to 1,200mm / 48” each in length.
• Feature a large backlit LCD display.
• Feature built-in programming modes.
• Work as a stand-alone unit.
• Feature a real-time clock.
• Come with nine pre-programmed looks and store up to 42 custom looks on board.

Controls multiple 1,200mm / 48” Color Span / Color Span 2 fixtures.

• Nine pre-programmed looks.
• Stores up to 42 user programmed looks.
• Real-time clock
• Synchronisation across power supply for the effects engine.
• True random strobe effect.
• 12 control modes.
• Three grouping modes.
• Backlit LCD display.
• Choice of DMX or stand-alone control modes.

Specifications:

• Net dimensions:
  • Width: 405mm / 16”
  • Height: 362mm / 14.3”
  • Depth: 91mm / 3.6”
• Net weight: 9.4kg / 20.6lbs
• Shipping dimensions:
  • Width: 510mm / 20.0”
  • Height: 450mm / 17.7”
  • Depth: 145mm / 5.7”
• Shipping weight: 10.5kg / 23lbs
• Power input rating: 100-240V AC, 50-60Hz, 6A
• Power consumption: 6A @ 120V AC; 3.5A @ 230V AC
• Typical power & current: Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Power connector in/out: IEC chassis male
• Data connectors in/out: RJ45
• Max cable run: 5m / 16’
• Control protocol: ANSI E1.11 USITT DMX 512-A
• Cooling system: 1 x fan, ventilation required at the front & rear
• Operating temperature: 0°C to 40°C
• Construction: Powder coated steel
• Colour: Black
• IP rating: IP20
• Approvals: EN55103-1:1996, EN55103-2:1996, ICES-003:2004, FCC Part 15 Subpart B:2006, CAN/CSA-C22.2 No. 60950-1-07, UL 60950-1:2007
• Control modes: 25 channels fxHSI, 18 channels HSI, 18 channels RGB, 9 channels fxHSI, 3 channels HSI, 3 channels RGB, 24 channels RGBA, 24 channels RGBI, 4 channels RGBA, 4 channels RGBI, 1 channel LkSel, Demo
• Variable effects engine: Yes
• Effects parameters: Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan
