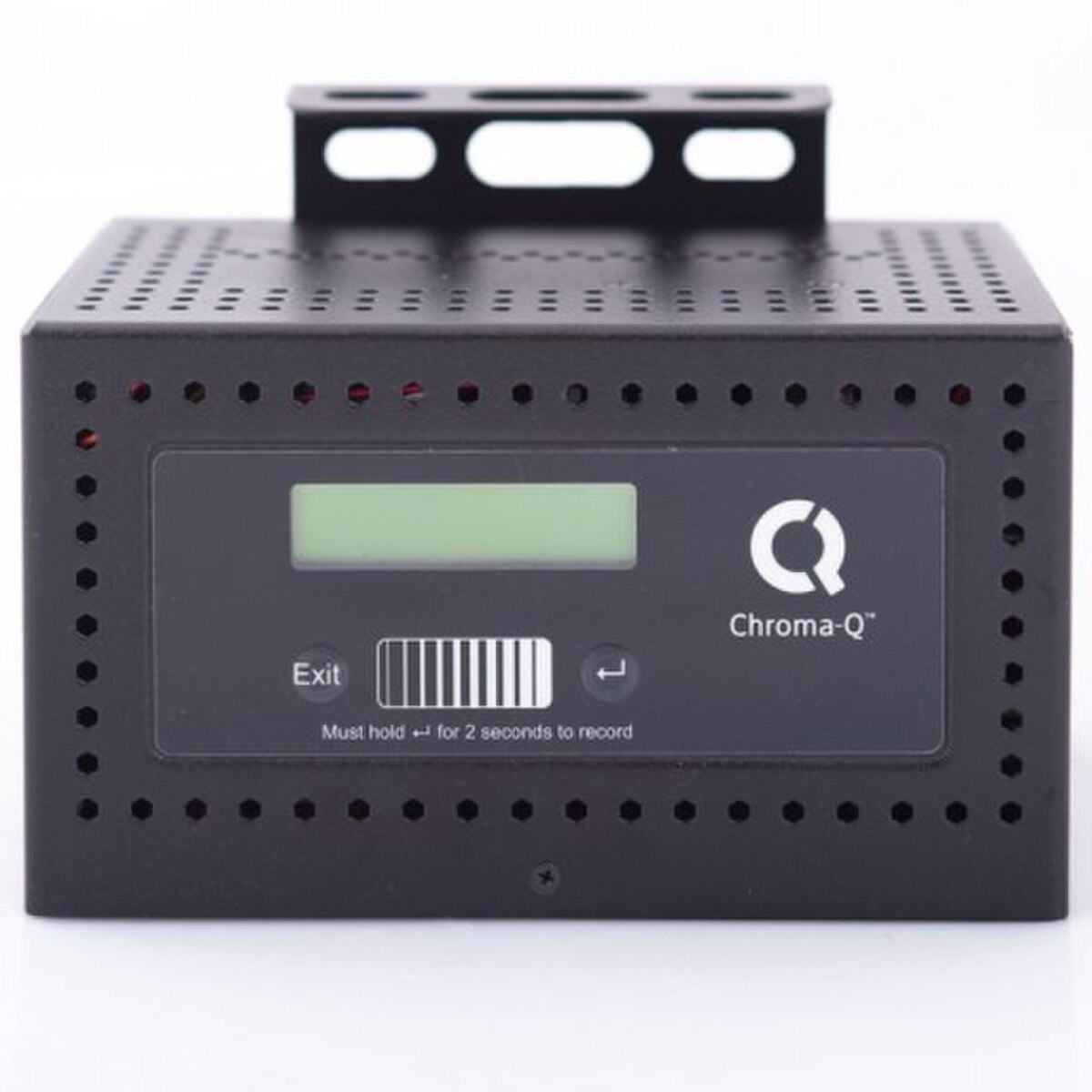

Chroma-Q Color Span PSU18

The power supply shall:

• Provide control of multiple fixtures up to 1,200mm / 48” each in length.
• Feature a large backlit LCD display.
• Feature built-in programming modes.
• Work as a stand-alone unit.
• Feature a real-time clock.
• Come with nine pre-programmed looks and store up to 42 custom looks on board.

Controls multiple 1,200mm / 48” Color Span / Color Span 2 fixtures.

• Nine pre-programmed looks.
• Stores up to 42 user programmed looks.
• Real-time clock
• Synchronisation across power supply for the effects engine.
• True random strobe effect.
• 12 control modes.
• Three grouping modes.
• Backlit LCD display.
• Choice of DMX or stand-alone control modes.

Specifications:

• Net dimensions:
  • Width: 660mm / 26”
  • Height: 483mm / 19”
  • Depth: 88mm / 3.5”
• Net weight: 22kg / 49lbs
• Shipping dimensions:
  • Width: 810mm / 32”
  • Height: 520mm / 20.5”
  • Depth: 165mm / 6.5”
• Shipping weight: 25kg / 55lbs
• Power input rating: 100-240V AC, 50-60Hz, 16A
• Power consumption: 20A @ 120V AC; 10A @ 230V AC
• Typical power & current: Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Power connector in/out: Trailing lead
• Data connectors in/out: RJ45
• Max cable run: 5m / 16’
• Control protocol: ANSI E1.11 USITT DMX 512-A
• Cooling system: 5 x rear, 1 x side mounted fans, ventilation required at the front & rear
• Operating temperature: 0°C to 40°C
• Construction: Powder coated steel
• Colour: Black
• IP rating: IP20
• Approvals: EN55103-1:1996, EN55103-2:1996, ICES-003:2004, FCC Part 15 Subpart
  B:2006, CAN/CSA-C22.2 No. 60950-1-07, UL 60950-1:2007
• Control modes: 61 channels FxHSI, 54channels HSI, 54 channels RGB, 9 channels FxHSI, 3 channels HSI, 3 channels RGB, 72 channels RGBA, 72 channels RGBI, 4 channels RGBA, 4 channels RGBI, I channel LkSel, Demo
• Variable effects engine: Yes
• Effects parameters: Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan
