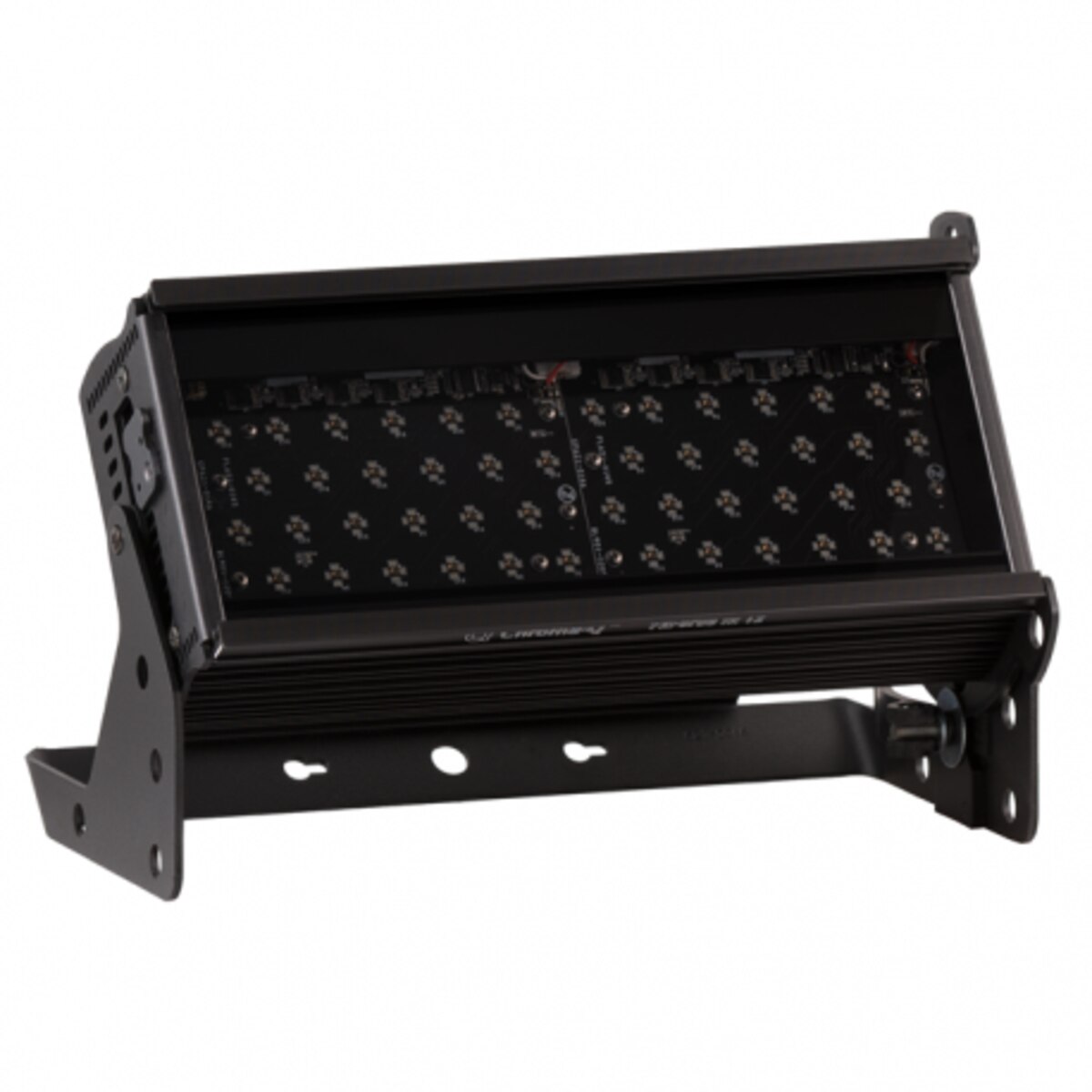

Chroma-Q FxForce IR 12

The new Chroma-Q® FxForce IR™ 12 is a Infra-red lighting fixture which utilizes the same core innovative LED technologies found in the Color Force™ range to provide a brilliant IR light ideal for infrared filming and night mode video. Successfully used in the Film and TV market, it can be used in many other applications including image capturing photography. Designed for practicality, the unit is equipped with a manual control mode and a range of optional accessories.

Features:

• Brilliant IR light for Infrared filing and night video mode
• Extremely smooth, uniform wash
• Theatrical grade dimming
• Ideal for TV and film
• 335mm / 1ft* length ideal for floor, wall or truss mounting
• Camera friendly
• PowerCon input and output for easy daisy chaining of fixtures
• Broad range of accessories available
• Flat end plates for seamless washing
• Built-in power supply
• Hidden quick release fixings
• Rugged extruded aluminum body

Specifications:

Net Dimensions (Without Fixings)

• (335mm x 190mm x 219mm / 13.2" x 7.5" x 8.6"

Net Weight

• (Without Fixings) 4.4kg / 9.6lbs

Shipping Dimensions

• 432mm x 343mm x 279mm / 17” x 13.5” x 11”

Shipping Weight

• 6kg / 13lbs

Power Supply

• Built-in

Power Input Rating

• 100-240V AC, 50-60 Hz, 160VA

Power Factor

• 0.9

Power Consumption

• 110W (maximum intensity); 6W (stand-by)

Typical Power & Current

• Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

Power Connectors In/Out

• powerCon

Data Connectors In/Out

• XLR 5-pin

Max cable run

• N/A

Control Protocol

• ANSI E1.11 USITT DMX 512-A

Cooling System

• Forced - 1 fan

Operating Temperature

• 0°C to 40°C

Construction

• Black anodised aluminium extrusion

Colour

• Black

Built-In Hardware

• Quick release lever for tilt adjustment

Wavelength

• 940nm

IP Rating

• IP20

Approvals

• CISPR 22:2008/EN55022 :2010 & CISPR 24 :2010/EN55024 :2010, ICES-003 :2004 & FCC Part 15 Subpart B: 2010, CSA C22. No. 166-M1983:R2008 UL 1573:2003
