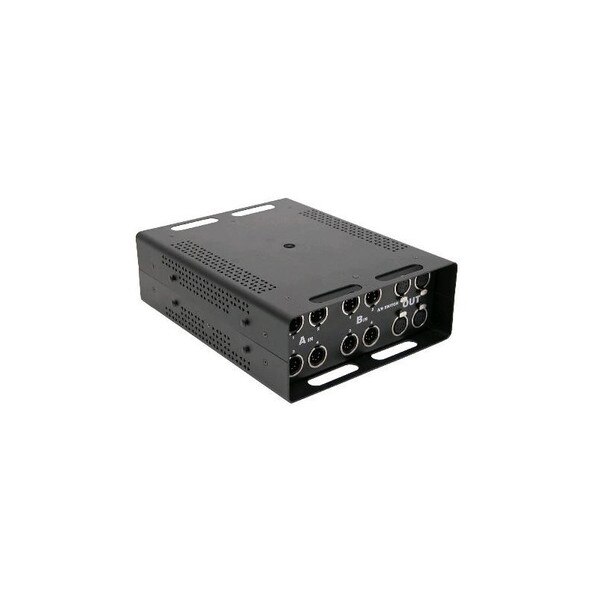

Chroma-Q CHMBDMXAB

The Magic Box DMX 8>4 A/B Switch uses a manual switch to change the DMX source between two 2048 channel lighting consoles e.g. master and back-up. The cost effective unit is unpowered and doesn't incorporate any electronics or software, so is unlikely to let you down when it counts most! The unique Magic Box interlocking enclosure facilitates rack mounting when used in pairs and truss mounting via captive nut insert.

Features:

• Changes the DMX source between two lighting consoles
• Controlled by simple but effective manually operated switch
• Reliable - the unit uses no power, electronics or software
• Unique Magic Box interlocking enclosure
• Designed for customized front house racks

Specifications:

• DMX connector in: 8 x XLR5
• DMX connector out: 4 x XLR5
• Dimensions: 8.6" (220mm) x 3.5" (88mm) x 11" (280mm)
• Weight: 2.7kg / 6lbs
