Chroma-Q Magic Box EtherSwitch w/ Fiber Optic Output

The Magic Box™ EtherSwitch 7F is a heavy duty, high speed unmanaged network switch that supports simultaneous computer connections. Designed to satisfy the requirement of entertainment touring applications, this stand-alone unit enables the concurrent use of various multimedia devices within a network without traffic restrictions. In addition to being equipped with seven shielded EtherCon ports (RJ45), the EtherSwitch 7F™ features one OpticalCon fiber optic connector, together providing 10 / 100 / 1000 Mbps bandwidth in full-duplex mode.

Features:

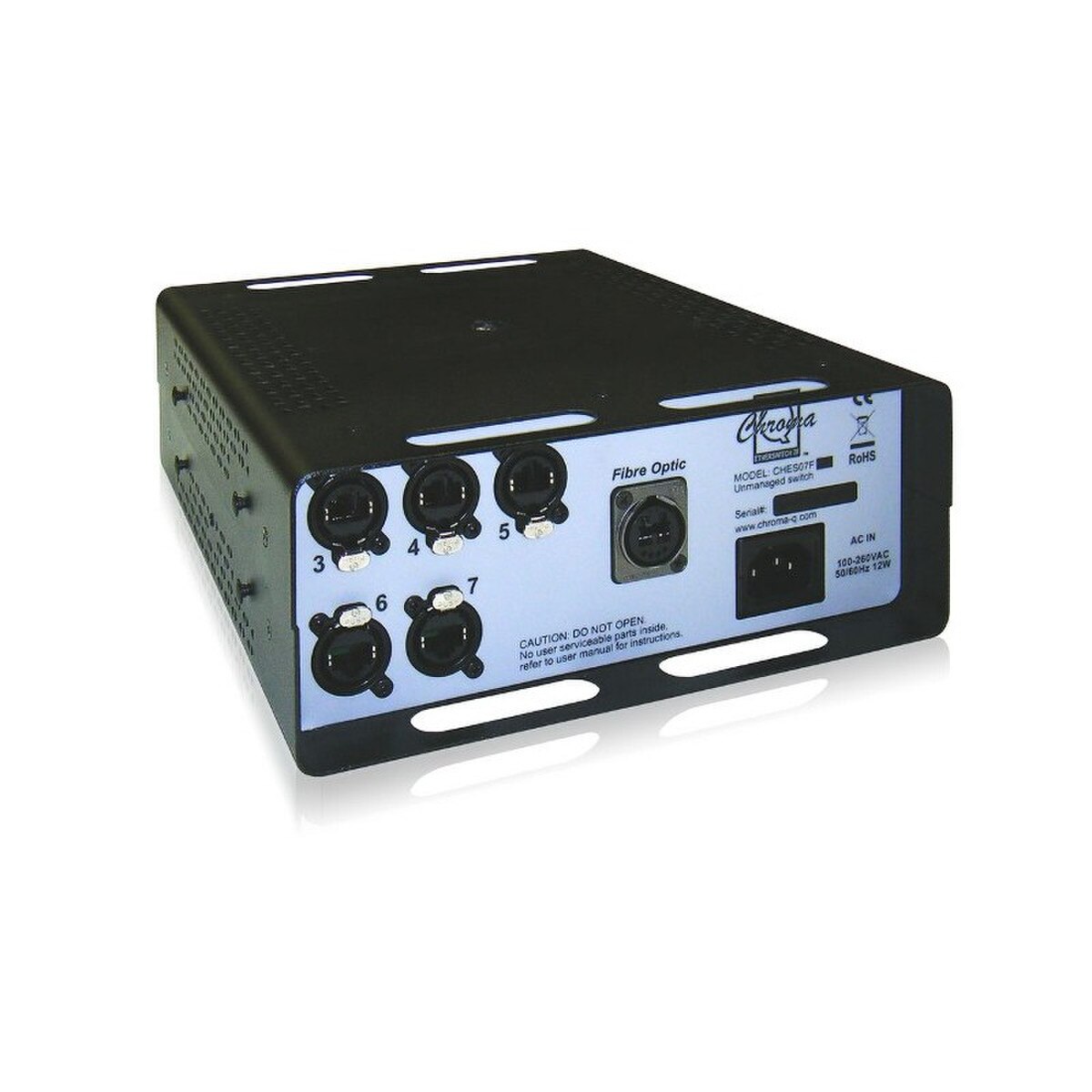

• One OpticalCon fiber optic connector at the rear panel
• Two shielded EtherCon ports (RJ45) at the front panel
• Five shielded EtherCon ports (RJ45) at the rear panel
• Unique Magic Box interlocking enclosure
• For fiber optic cable lengths of up to 1800 ft (550m)
• For Cat5e cable lengths up to 295 ft (90m) per port
• For customized front of house racks

Specifications:

• Power: 100-240V AC, 50/60Hz, 15W, IEC chassis male
• Ethernet Switch Type: Intelligent store & forward
• Ethernet Protocols: all IEEE 802.3
• RJ45 / EtherCon port: Shielded 10BaseT / 100BaseTX / 1000BaseT
• RJ45 / EtherCon: Auto-negotation
• RJ45 / EtherCon MDI/MDIX: Auto-crossover
• RJ45 / EtherCon TD & RD polarity: Auto-polarity
• MAC Addresses Supported: 8192
• VLAN Supported: 4096
• Jumbo Frame Support: Up to 9.6K
• Buffer Memory: 144 Kbytes
• Memory Bandwidth: 16 Gbps for full wire speed on all ports

Forwarding Rate:

• 10 Mbps : 10,880pps
• 100 Mbps : 148,81pps
• 1000 Mbps : 1488,1pps
• Port Connection: Link and activity LED
• Max Cat5e Cable Run: 90m / 295ft
• DMX Connector: XLR5 in, out and through
• OpticalCon Port: 1000 Mbps
• Max Fiber Optic Cable Run: 550m / 1800ft multi-mode 50 / 125

Dimensions:

• A: 8.6" (220mm)
• B: 3.5" (88mm)
• C: 11" (280mm)
• Weight: 7.8 lbs (3.5kg)
