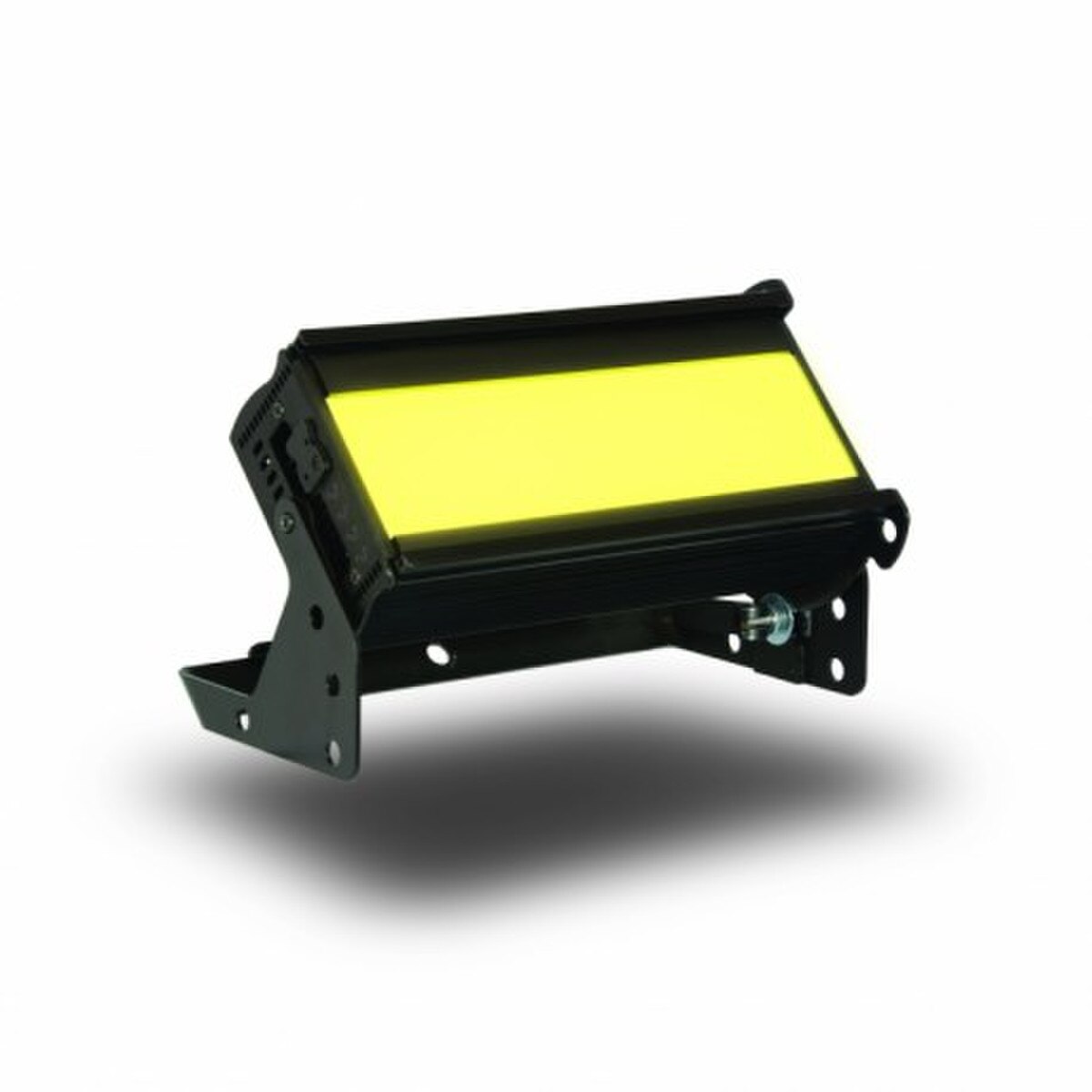

Chroma-Q Studio Force T 12 Phosphor

The new Chroma-Q® Studio Force T 12 Phosphor™ is a 3,200K CCT, tungsten white fixture which utilises innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,120 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, colour touch screen interface, fanless, studio & full modes for maximum control of the units and a range of optional accessories.

Features:

• 3,200K CCT tungsten white
• Extreme output – up to 8,120 lumens
• Extra soft beam – very wide output
• Extremely smooth, uniform wash
• Theatrical grade dimming
• Ideal for film and studio applications
• Factory calibrated to match Black Body Locus
• 335mm / 13.2" length ideal for floor, wall or truss mounting
• Camera friendly
• PowerCon input and output for easy daisy chaining of fixtures
• Broad range of accessories available, including barn door and spigot adaptor
• Fanless, studio & full control modes
• Intuitive colour touch screen interface
• Flat end plates for seamless wall-washing
• Built-in power supply
• Hidden quick release fixings
• Rugged extruded aluminium body
• Also available as a DC battery-powered version

Specifications:

Dimensions*

• 335mm x 190mm x 218mm / 13.2"x 7.5" x 8.6"

Weight

• 4kgs / 9lbs

Shipping Dimensions

• 432mm x 343mm x 279mm / 17" x 13.5" x 11"

Shipping Weight

• 6kgs / 13lbs

Power Supply

• Built-in

Power Input Rating

• 100-240V AC, 50-60 Hz, 160VA

Power Factor

• 0.998

Power Consumption

• 150W

Typical Power & Current

• Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

Power Connector

• In/Out PowerCon

Data Connectors

• In/Out XLR 5-pin

Control Protocol

• ANSI E1.11 USITT DMX 512-A

Cooling System

• Forced - 1 fan

Operating Temperature

• 0°C to 40°C

Construction

• Anodised aluminium extrusion

Colour

• Black

Built-In Hardware

• Quick release lever for tilt adjustment

IP Rating

• IP20

Approvals

• CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCC Part 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009
