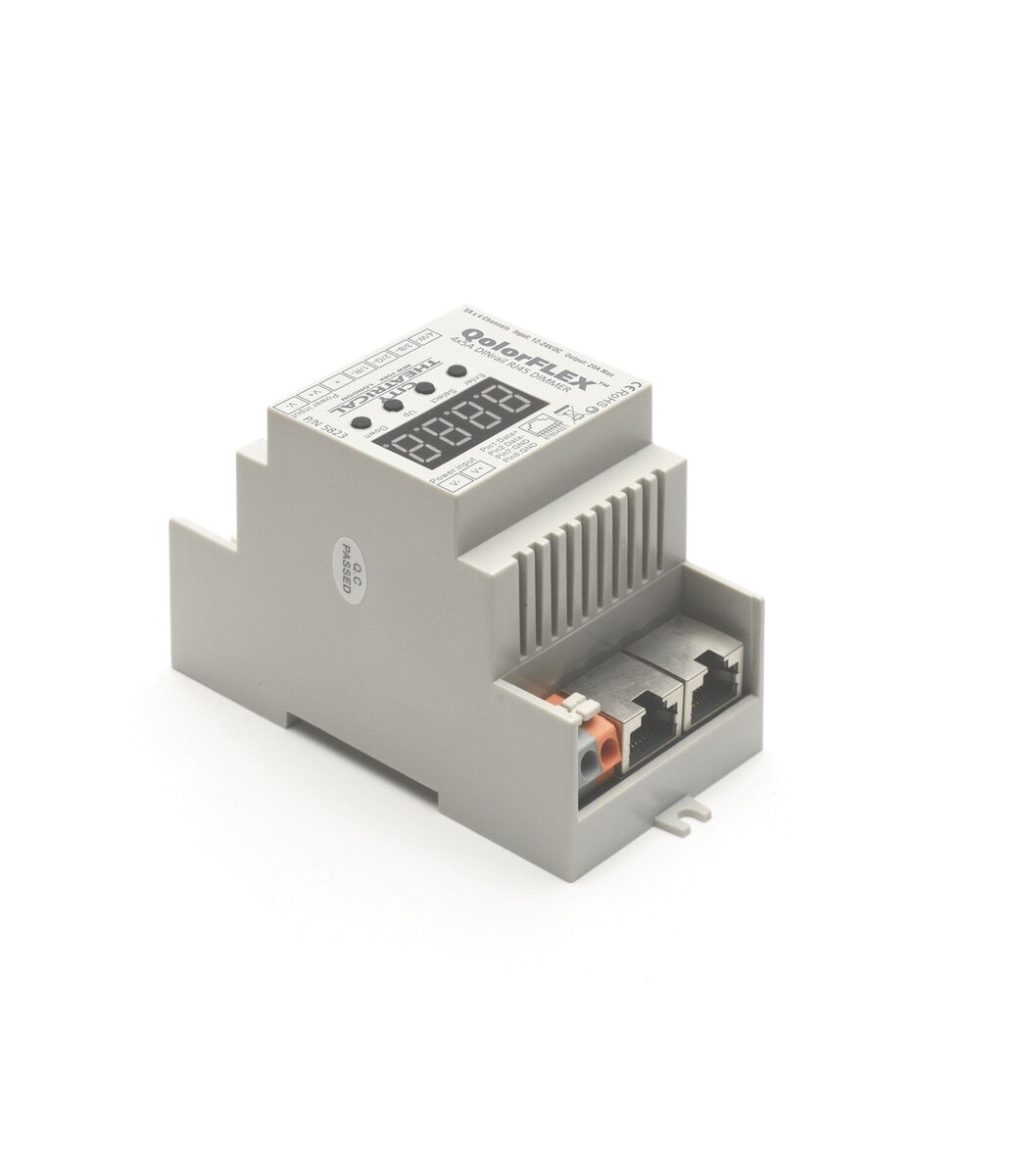

City Theatrical QolorFLEX 4x5A DINrail RJ45 Dimmer

The QolorFLEX™ 4x5A DINrail RJ45 Dimmer can control a full 20A of LED tape spread over four channels of 5A each. It uses constant voltage technology which ensures consistent full range dimming that is especially important at low end light levels.

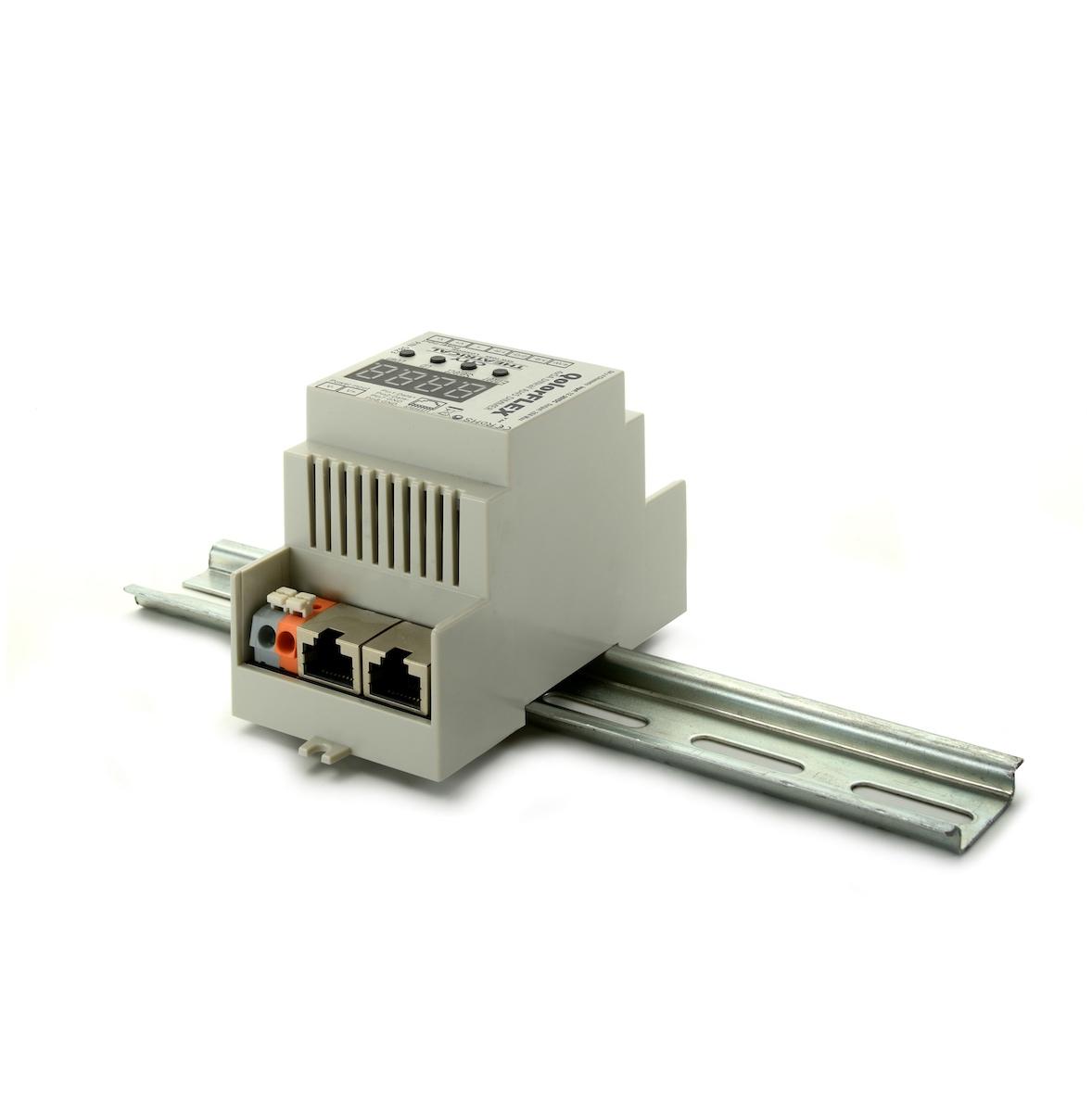

The unit mounts to a standard hat section DINrail, and features two RJ45 connectors for DMX communication.

It is designed to operate perfectly with City Theatrical QolorFlex LED tape, the LED tape of professionals on Broadway, network television, and architectural lighting installations.

Features:

• Maximum Current per device: 0A
• Maximum load per output channel: 5A
• User Interface: 4 button, plus alpha/numeric display
• Output channels: User selectable of one to four
• Resolution: User selectable- 8 bit or 16 bit
• PWM Frequencies: User selectable- 500Hz to 30KHz
• Dimming Curves: User selectable- 99
• DMX Connections: 2x RJ45
• RDM capable: Yes
• Construction: NEMA 1 ABS enclosure
• Compliance: CE, RoHS, FCC

Physical:

• Weight: .25 lbs (.11kg)
• Dimensions (W x L x H): 2.1” x 4.32" x 2.56" (53.4mm x 110mm x 65mm)


qolorflex-4x5a-dinrail-rj45-dimmer-5823-cut-sheet (2).pdf
qolorflex-4x5a-dinrail-rj45-dimmer-quick-start-guide (1).pdf
