City Theatrical AuquaFog 3300 230V

(0)No Reviews yet
$4,525.40
SKU: City Theatrical 3303

Details

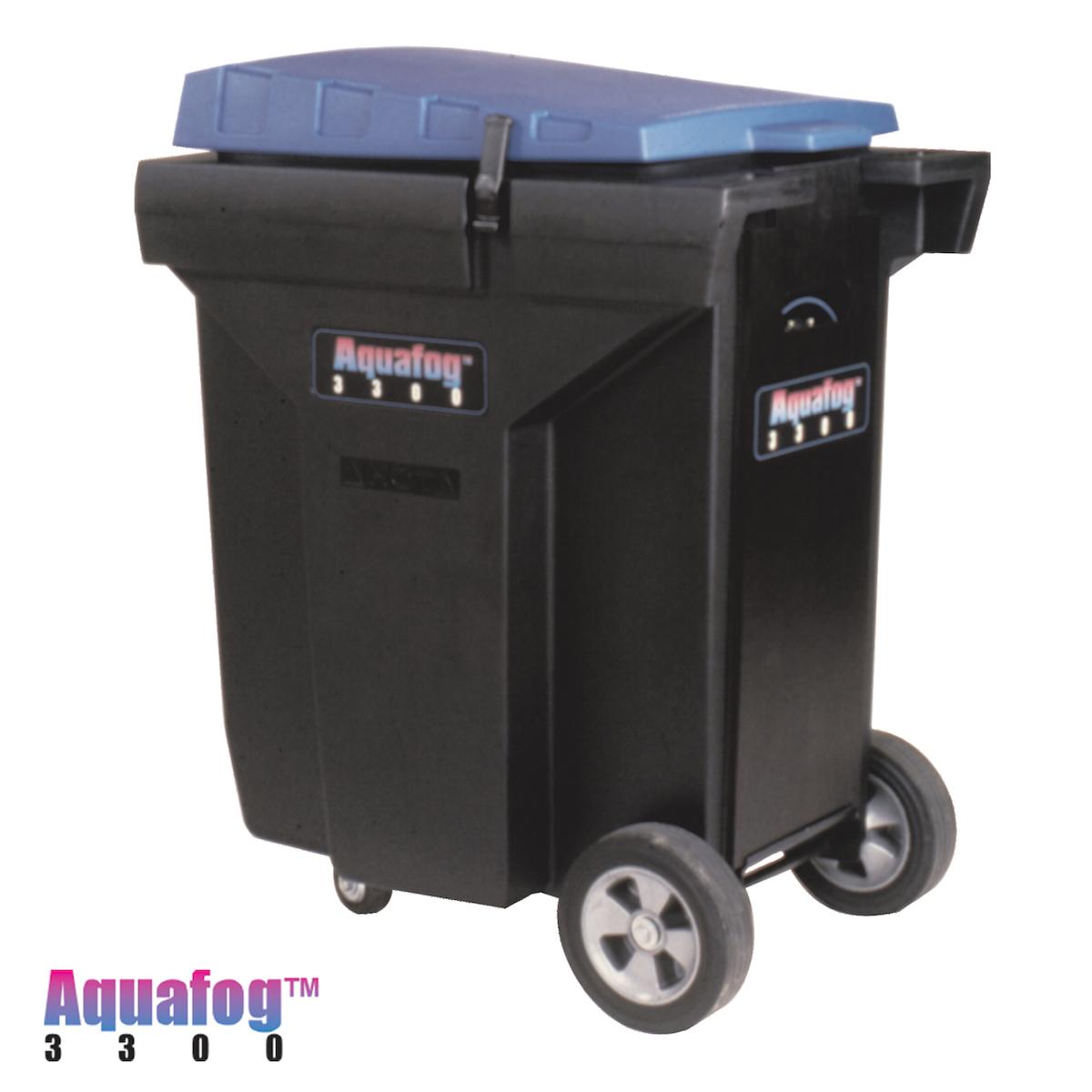

A new concept in dry ice fog. This water-based system is light-weight, portable and durable, allowing you to create large amounts of billowing fog. The AQUAFOG 3300 features a durable molded thermoplastic tank for corrosion resistance and light weight. No more rusting steel drums to replace. The large lid lifts for easy loading of the stainless steel ice shelf. All electrical components are conveniently located behind the electrical panel. A powerful stainless steel pump brings heated water from the tank up to the dry ice. A 6" fan pressurizes the tank and sends the fog out to the stage.

Tank:

The heart of the AQUAFOG 3300 is our custom designed and molded plastic tank. Plastic is both lightweight and corrosion resistant, and many of the plumbing and electrical fittings use pressure seals to ensure extended leak-proof use. The large lid makes it easy to lay the ice in the machine.

Electrical:

AQUAFOG 3300 conveniently plugs into wall outlets, no need for 220 volts. Circuit breakers control the dual 1650 watt heating elements, fan and pump. Indicator lights show the status of the water temperature and heating elements at a glance. A low water level cutout switch assures that the heaters will not operate if the water is low. The sophisticated adjustable water temperature circuit will bring the temperature from a range of 100 through 160 degrees (F) and will maintain termperature all through your long rehearsals. The convenient 4-plug system allows for easy remote control.

Dolly:

The large 8" rear wheels and the 3 1/2" front swivel casters make moving a breeze.

Features:

  • Award winning lightweight, portable, dry ice fog machine holds 28 gallons of water and 75 lbs. of dry ice.
  • 230v electrical system with circuit breakers, indicator lights for water temperature and heating element status, low-water cutout protection and an adjustable sensing circuit to maintain temperature over extended use periods.
  • Non-corroding thermoplastic tank features an extra large access lid for easy loading with integral casters for transport.

Specifications:

Tank:

  • Material: High-temperature plastic polymer
  • Dimensions: 21.5 x 31 x 38 (including casters) (546mm x 787mm x 965mm)
  • Water Capacity: 28 gallons (106 litres)
  • Ice Capacity: 75 lbs (34 kg)
  • Casters: 3.5 (88.9mm) swivel front, 8 (203mm) fixed rear
  • Hose Vent: 4 (101.6mm) molded into tank
  • Fill Door: 20 x 30 (508mm x 762mm)
  • Weight (empty): 115 lbs (52kg)
  • Shipping weight: 130 lbs (59kg)
  • Weight (fully loaded): 455 lbs (208.19 kg)

Plumbing:

  • Pump: Stainless steel 10GPM (37.85 litres/min)
  • Fittings: All stainless, brass or high-temperature plastic

Electrical:

  • Voltage: 230v
  • Heating Elements: 230v 3000 watt (two) screw in
  • Thermostat: adjustable automatic control (100 degrees F-160 degrees F) (38 degrees C-71 degrees C)
  • Overtemperature: 175 degrees F (79 degrees C) cutout, manual reset
  • Low-Water Cutout: Turns off heaters when water is low
  • Blower: 240 CFM axial (6.799 CMM)
  • Circuit Breakers-Type: 20A on heating element 2A (lighted) on fan & pump



Dry_Ice_FAQ_94586_File_1.pdf
Material_Safety_Data_Sheet_CO2_94586_File_2.pdf
Material_Safety_Data_Sheet_Dry_Ice_94586.pdf
Product_Manual_94586_File_4.pdf
