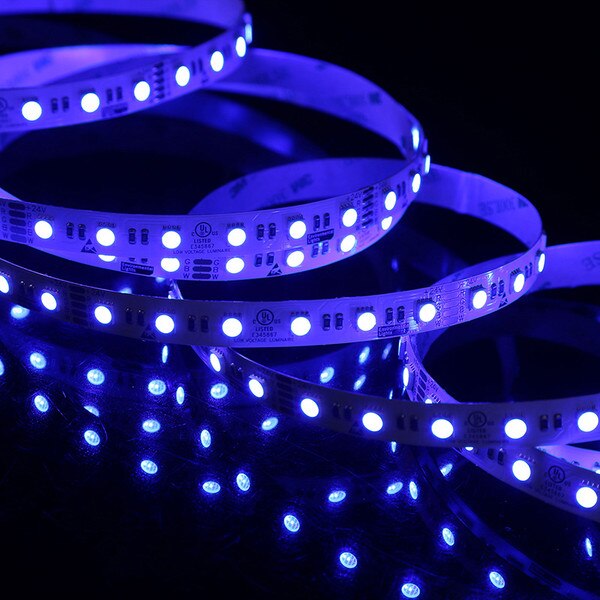

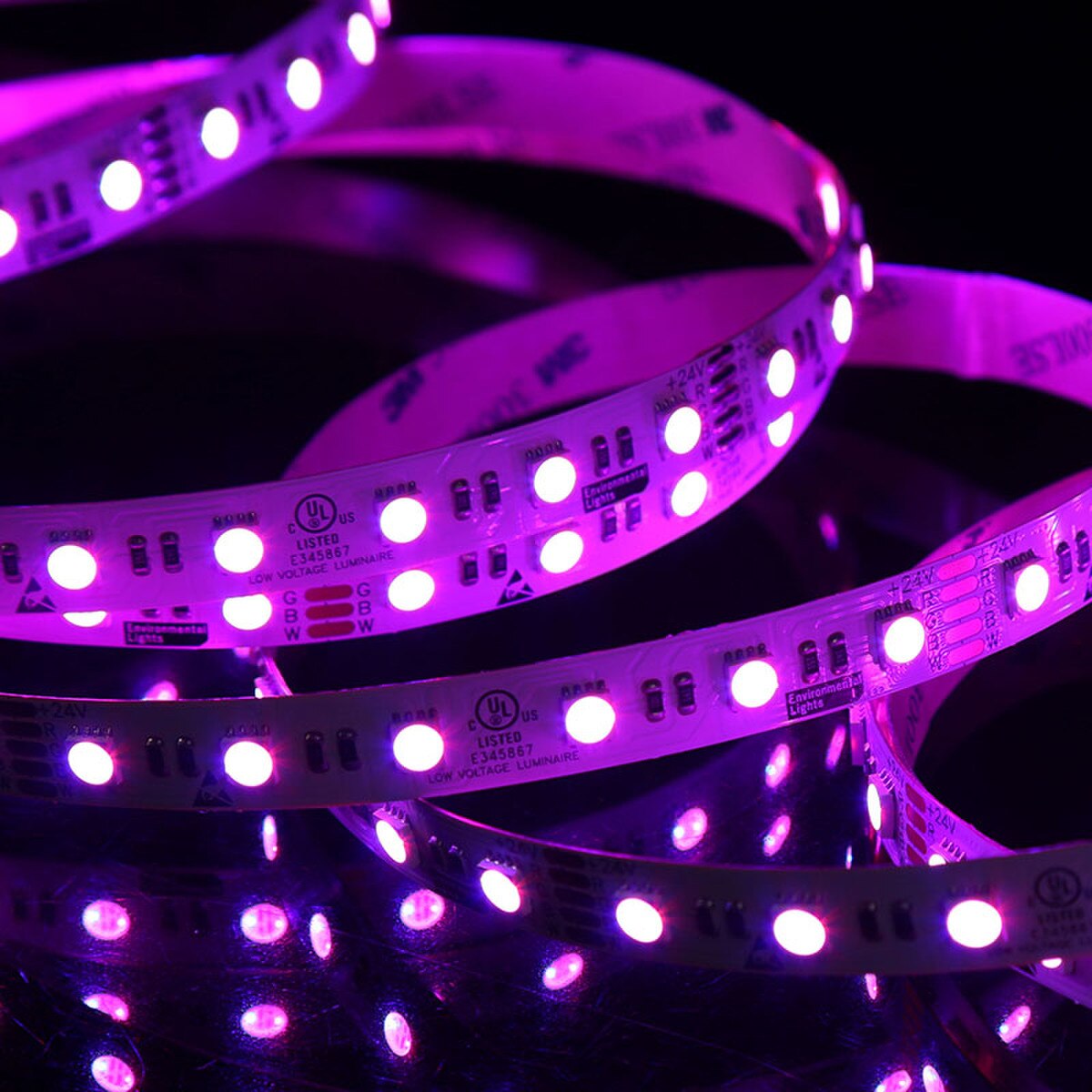

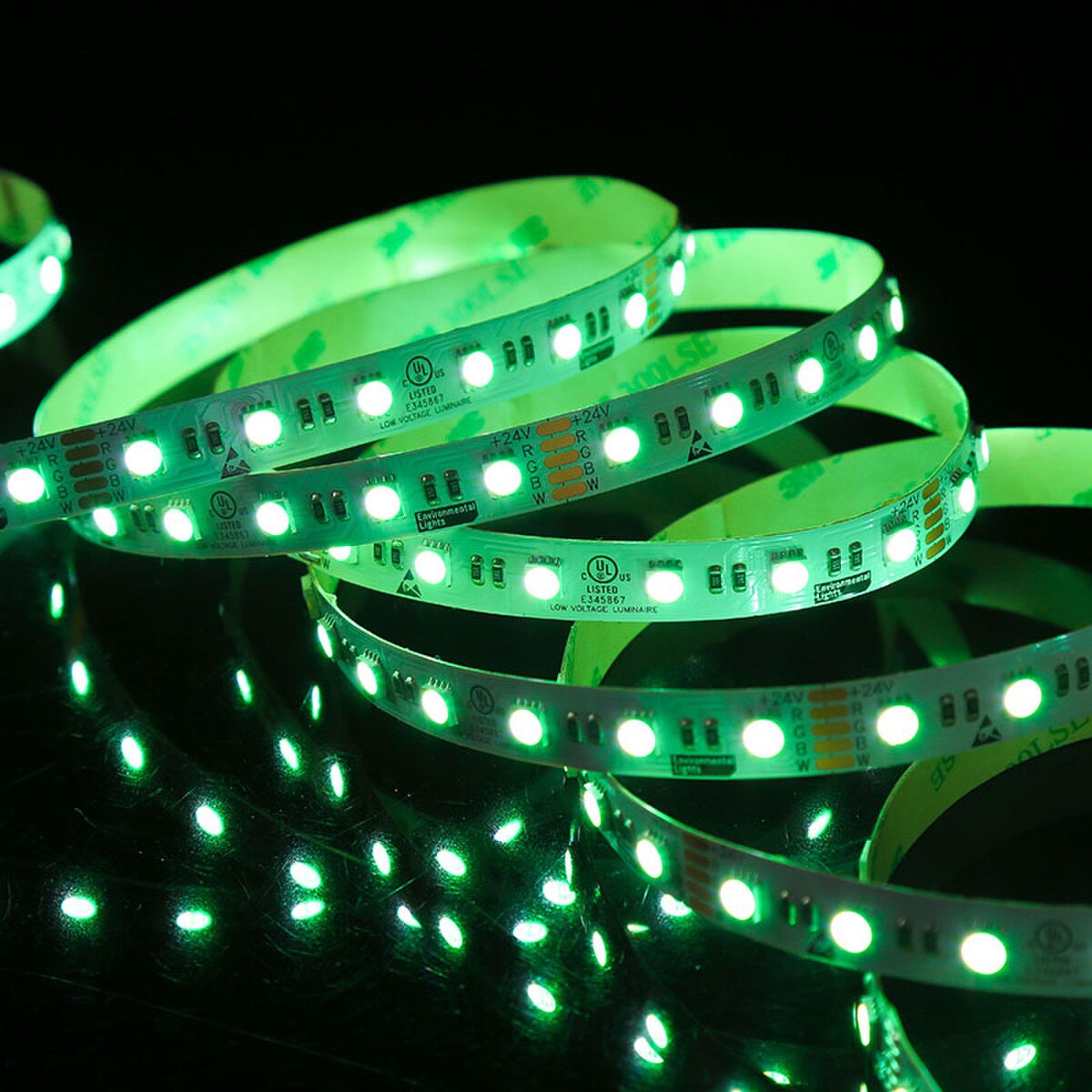

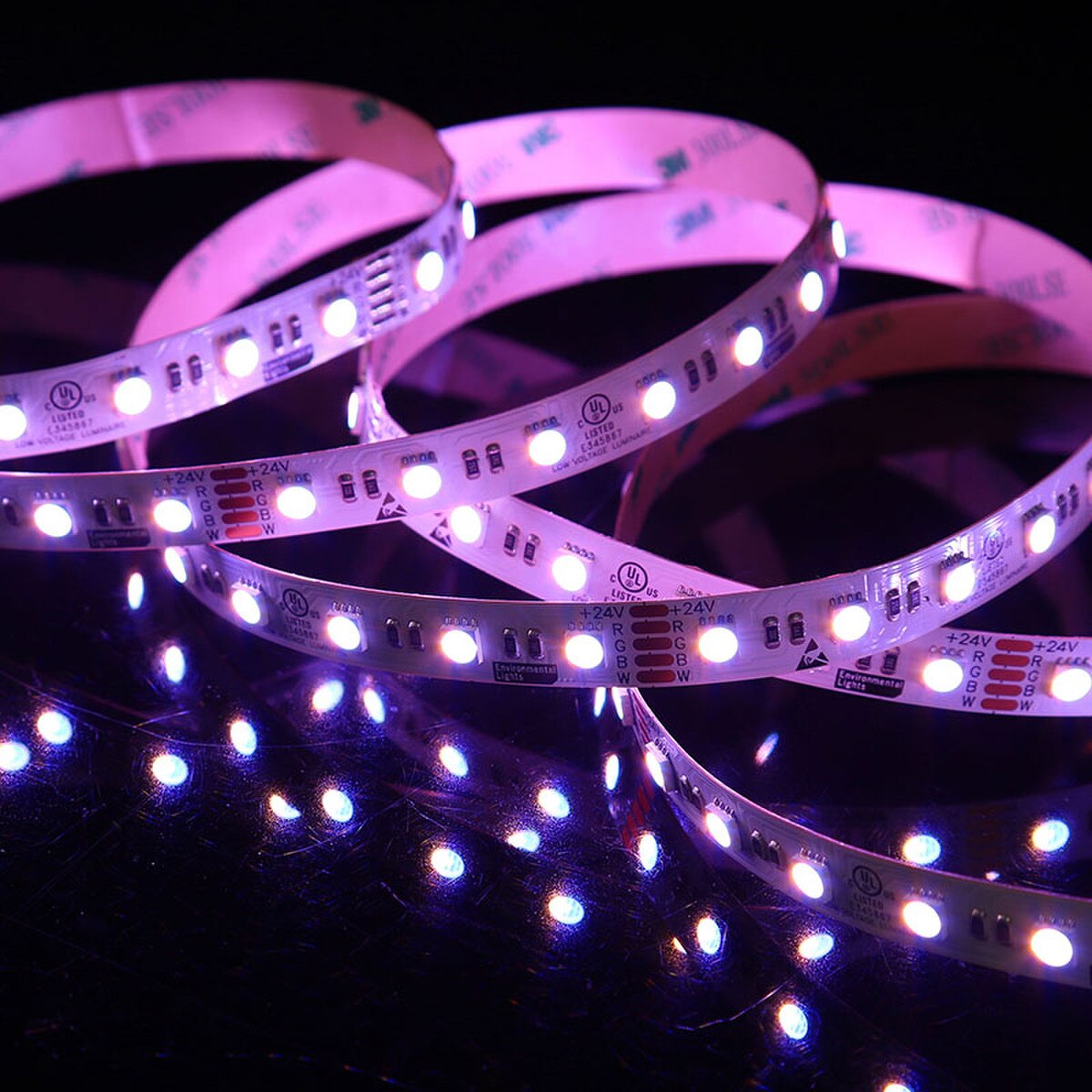

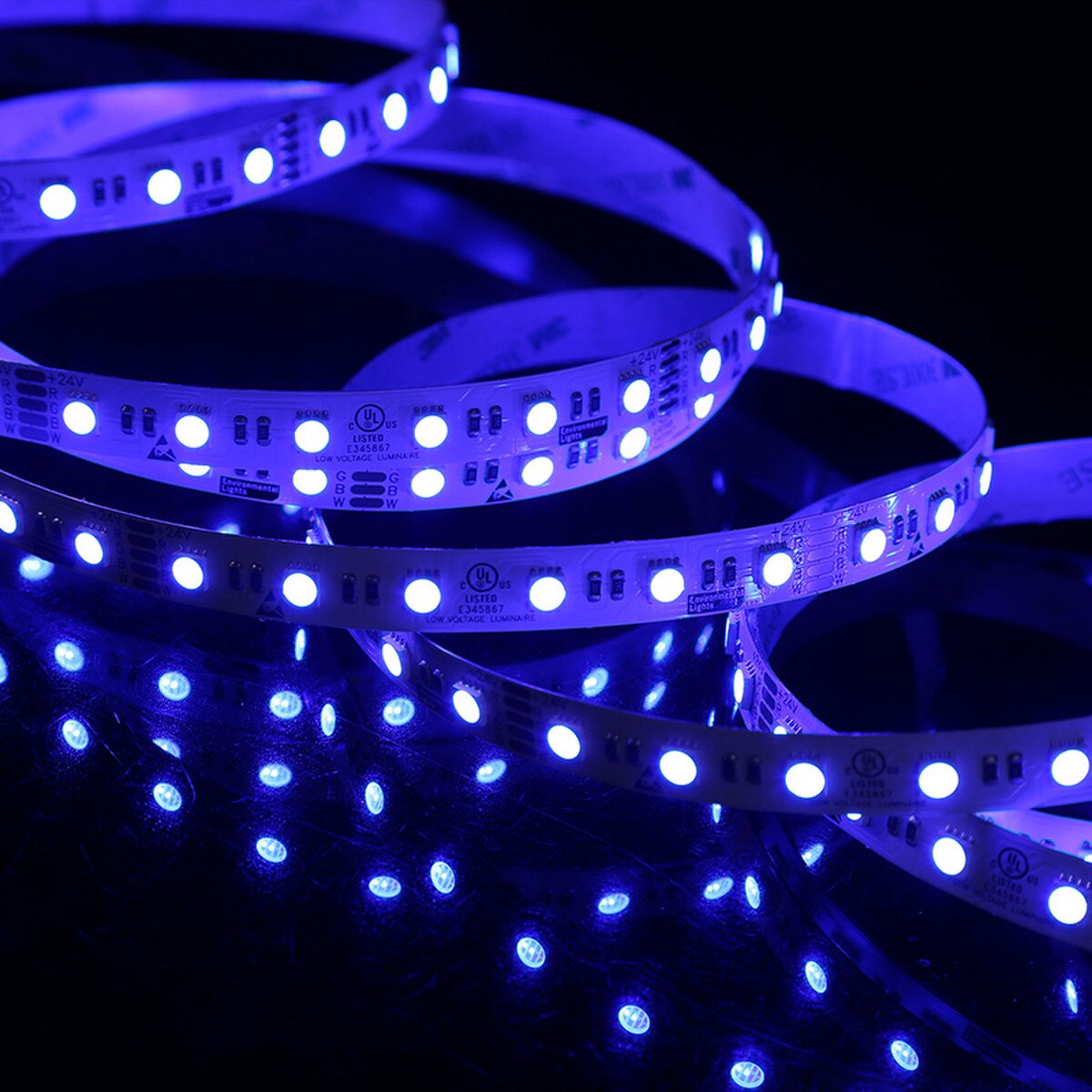

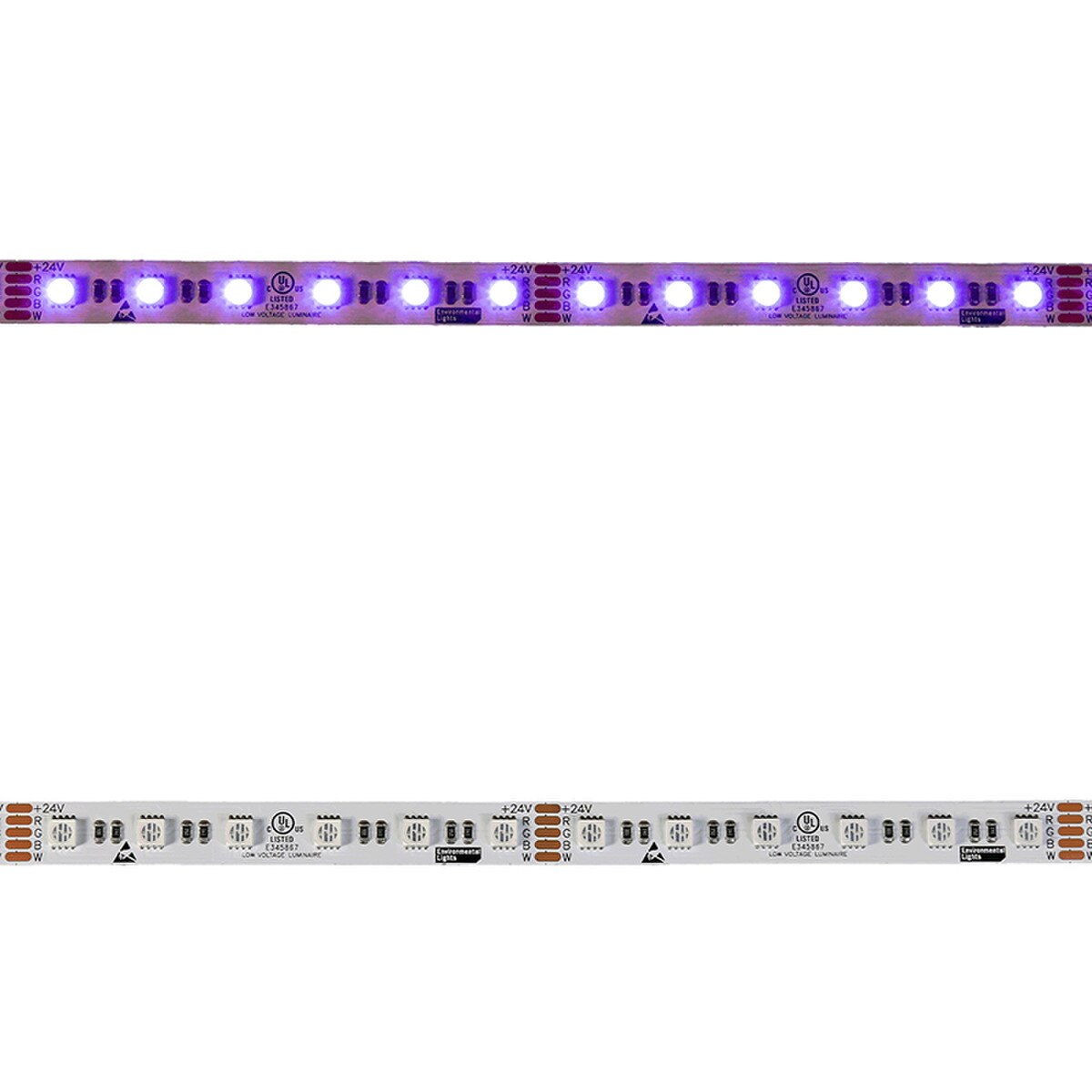

City Theatrical Eluxtra 4-in-1 - RGB + Indigo - 60/m - 24 VDC - 5m Reel

Eluxtra™ 4-in-1 LED Strip Light, 24V, Indoor is UL Listed and features 60 LEDs per meter. Eluxtra 4-in-1 LED Strip Lights are 24V and allow you to run a full reel without any visible voltage drop or corresponding color changes along the length of the run. Mix all four diodes together to create a vast spectrum of vibrant colors for indoor LED tape installations.

Eluxtra 4-in-1 LED Strip Light, 24V, Indoor is a high quality and extremely dependable strip light that is an ideal lighting solution for utilizing color in dynamic set designs, eye-catching displays, and so much more. Eluxtra 4-in-1 LED Strip Light, 24V, Indoor is sold in 5-meter reels or in cut-to-order lengths.

Color variations include:

• RGB + 2700K White
• RGB + 6500K White
• RGB + Amber
• RGB + Indigo

Additionally, Eluxtra 4-in-1 LED Strip Light is available in IP65-rated waterproof versions to protect against dust, splashes, and rain.

Eluxtra represents the next evolution in LED tape light technology. It is engineered to enhance performance and simplify installation for professionals across many industries. Delivering consistent performance, simplified wiring, and vibrant colors, Eluxtra makes it easier for lighting designers to achieve their goals with minimal complexity. All configurations are UL Listed and feature 60 LEDs per meter.

Specifications:
Physical:

• Length: 5m (16.404 ft)
• Width: 12mm (0.47 in)
• Height: 2mm (0.08 in)

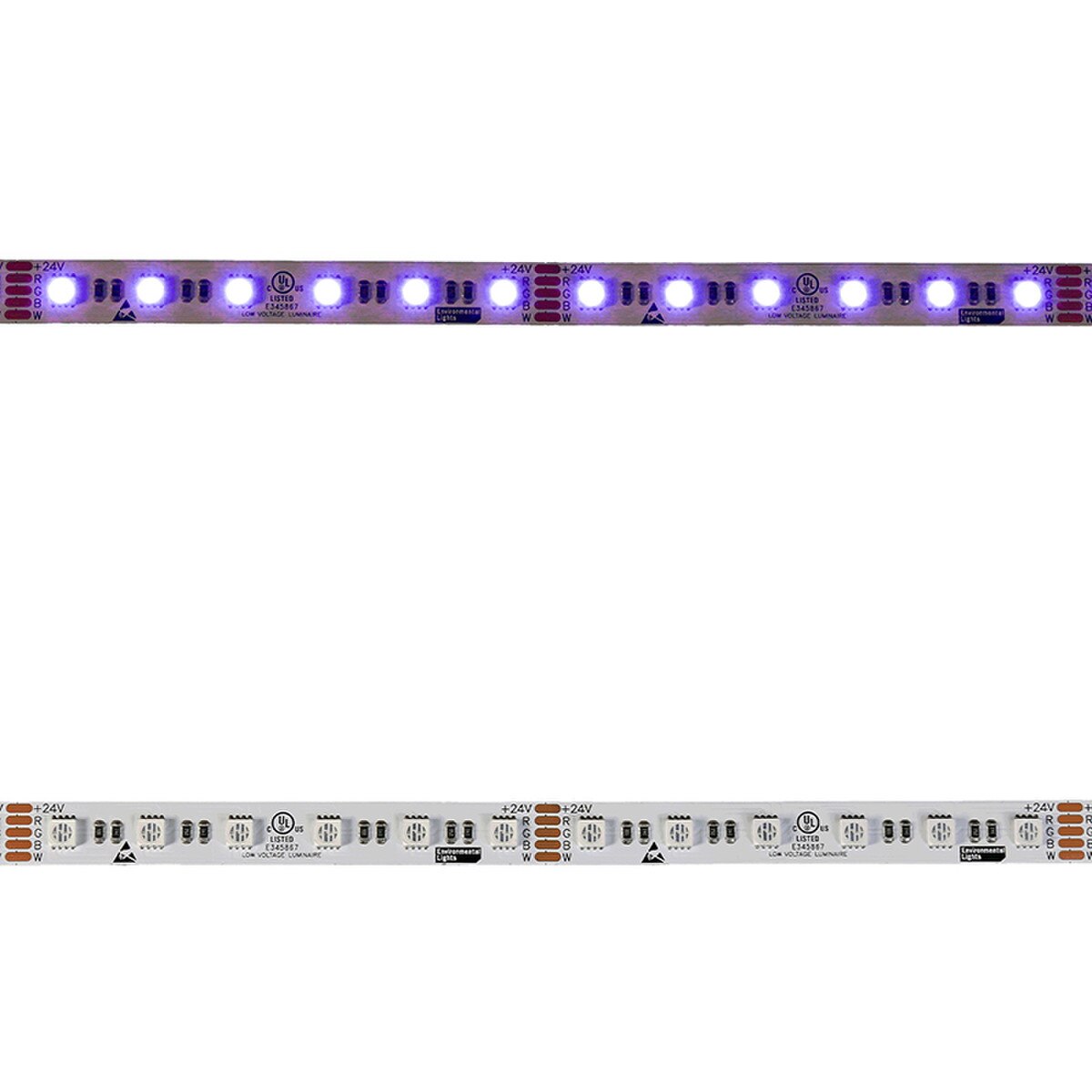

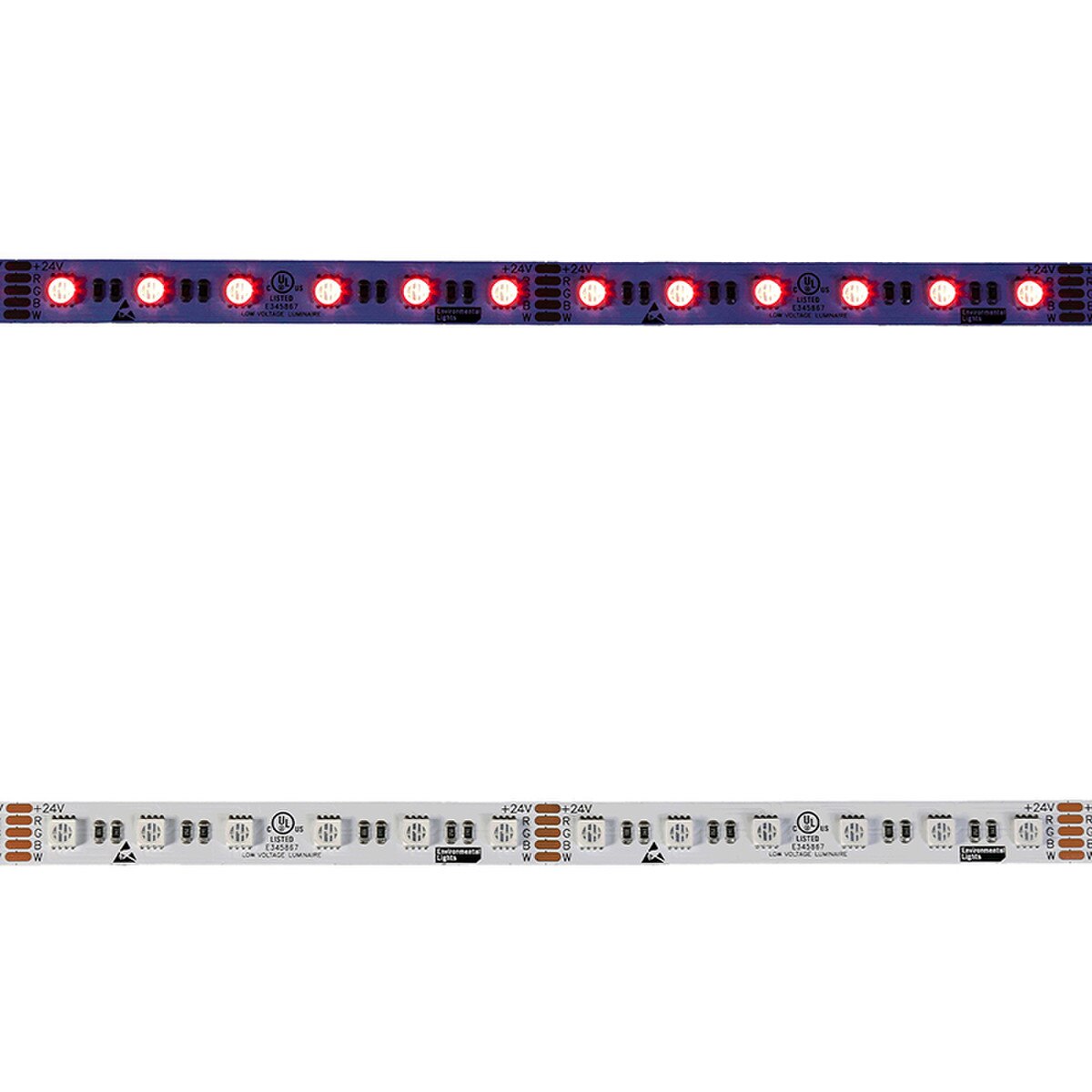

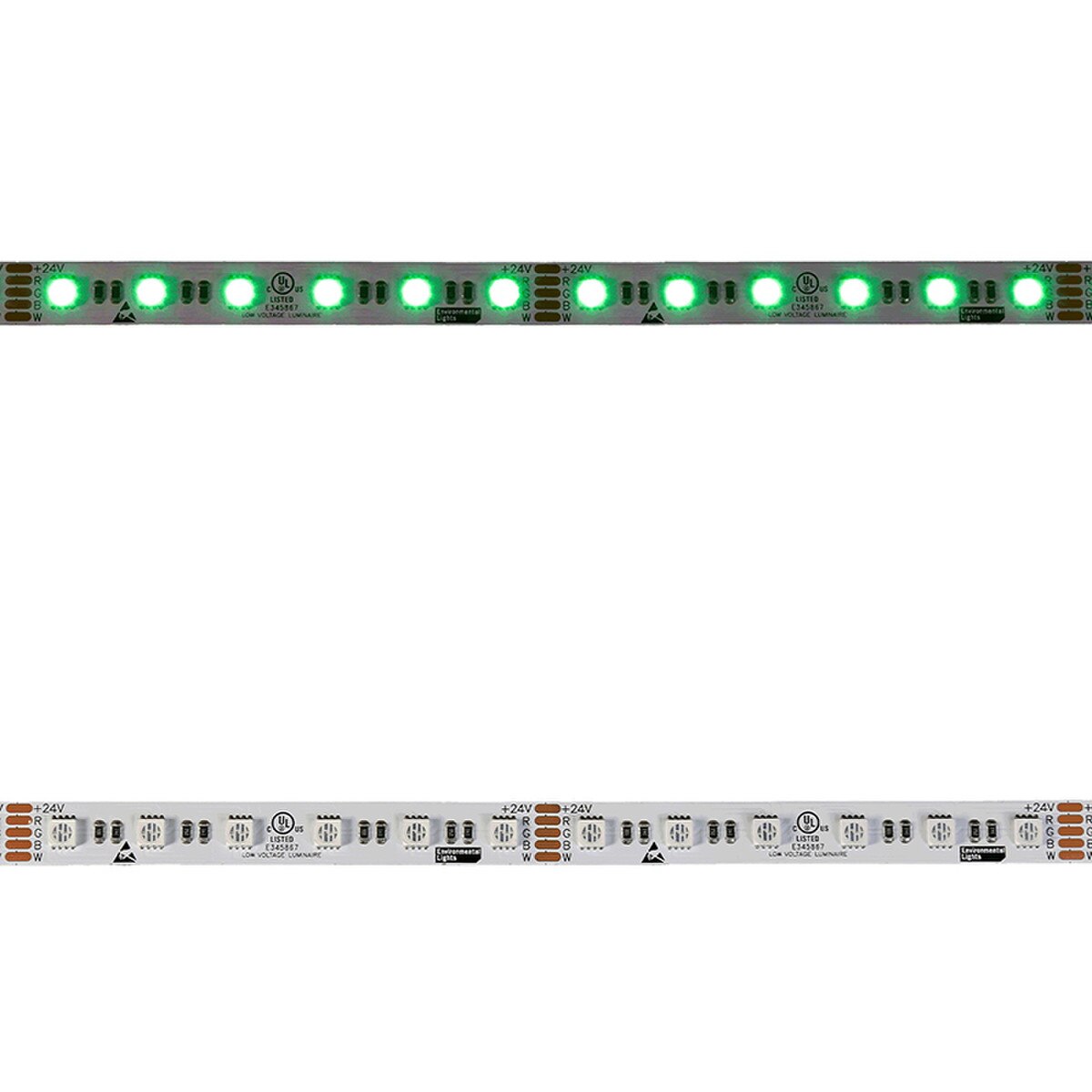

• Cutting Increment: 100.00mm (3.94 in)
• LED Spacing: 16.7mm (0.657 in)

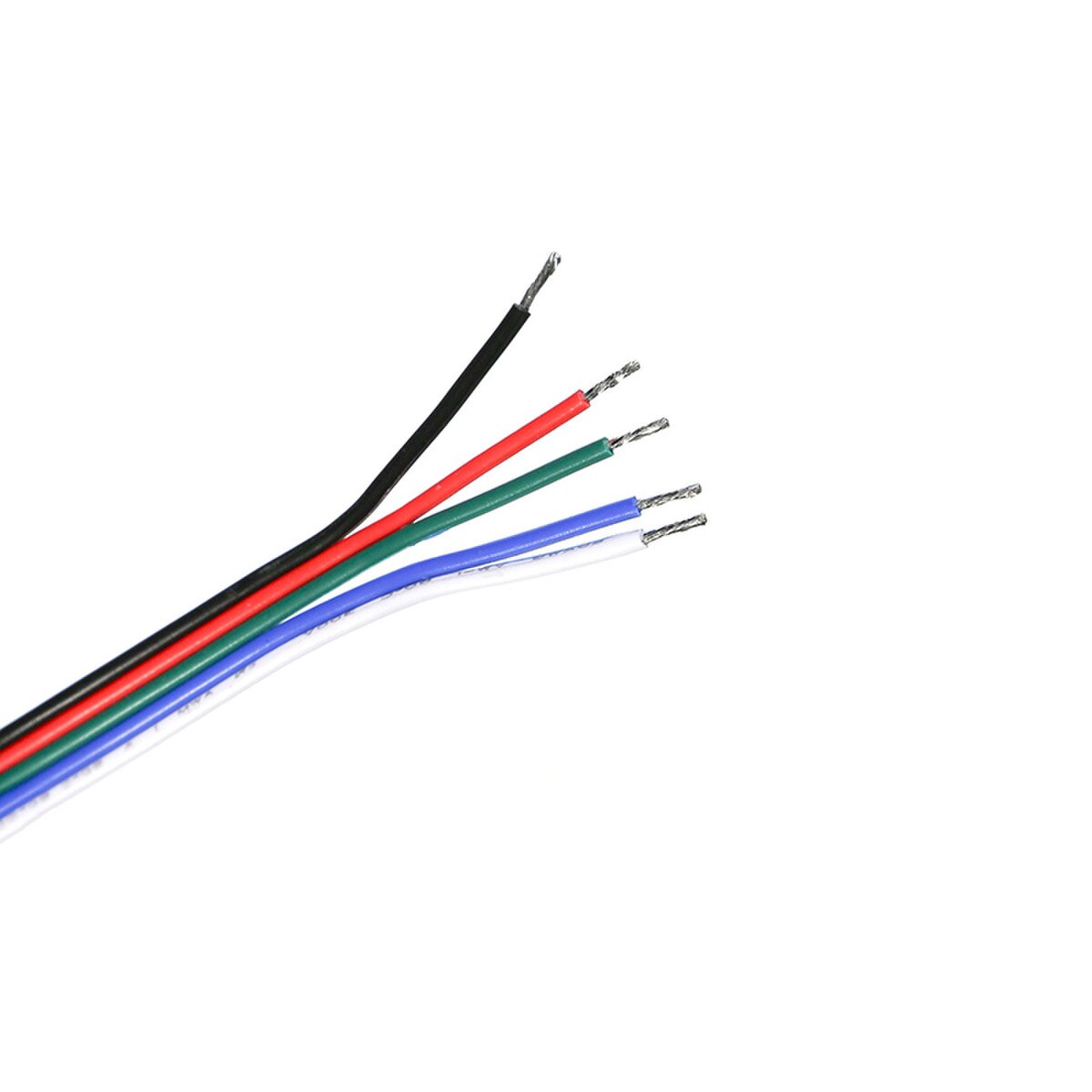

• Lead Detail: 200mm (7.874 in) long flat cable on both ends, stripped 10mm and tinned
• Backing Color: White

Output:

• Color(s): Red, Green, Blue, Indigo
• Brightness: 110 / 340 / 70 / 50 lm/m
• Beam Angle: 120°

Electrical:

• Operating Voltage: 24V DC
• Current (A/5m): 3A
• Power Consumption (w/m): 14.4 w/m
• Power Consumption (w/ft): 4.4 w/ft
• Density (LEDs/m): 60 LEDs/m
• LED Chip Size: 5050

Product Information:

• Use Environment: Indoor
• Ambient Temperature: -20° C to 40° C
• Dimmable: Fully Dimmable
• Average Life: 50,000 Hours
• Warranty: Five years limited
• IP Rating: IP20
• Compliance: UL, RoHS

Eluxtra 4-in-1 LED Strip Light, RGBW, RGBA, RGBI 24V Datasheet.pdf
