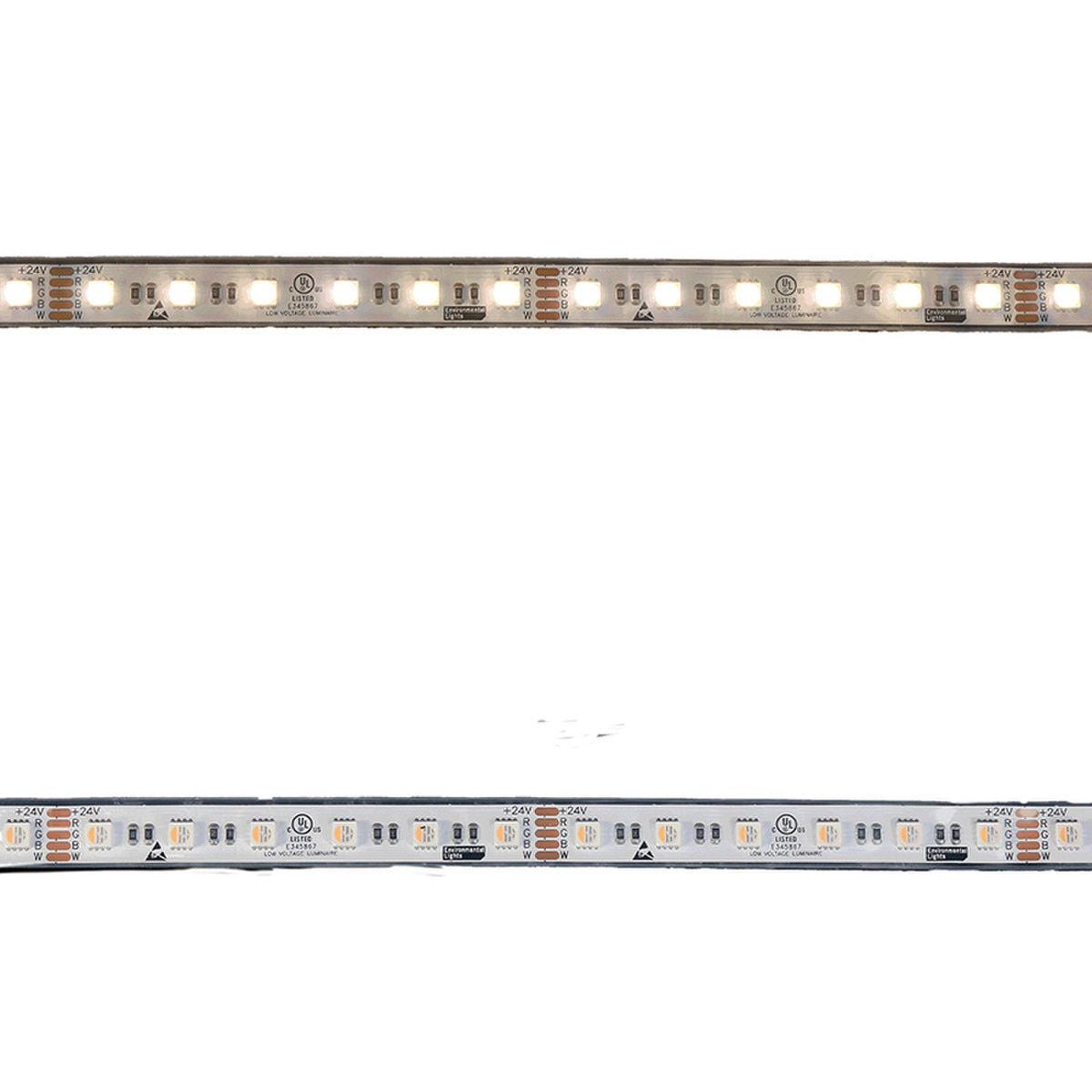

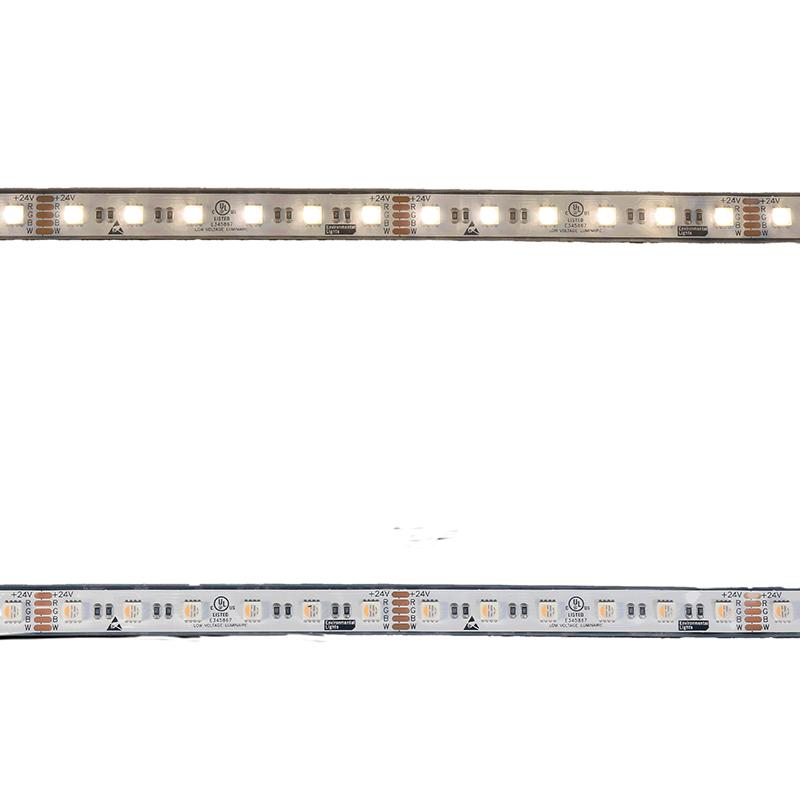

City Theatrical Eluxtra 4-in-1 - Waterproof - RGB + 2700K Cool White - 60/m - 24 VDC - 5m Reel

Eluxtra™ 4-in-1 LED Strip Light, 24V, outdoor is UL Listed and features 60 LEDs per meter. Eluxtra 4-in-1 LED Strip Lights are 24V and allow you to run a full reel without any visible voltage drop or corresponding color changes along the length of the run. Mix all four diodes together to create a vast spectrum of vibrant colors for outdoor LED tape installations.

Eluxtra 4-in-1 LED Strip Light, 24V, Outdoor is a high quality and extremely dependable strip light that is an ideal lighting solution for utilizing color in dynamic set designs, eye-catching displays, and so much more. Eluxtra 4-in-1 LED Strip Light, 24V, Outdoor is sold in 5-meter reels or in cut-to-order lengths.

Color variations include:

• RGB + 2700K White
• RGB + 6500K White
• RGB + Amber

Eluxtra 4-in-1 LED Strip Light, 24V, Outdoor is IP65-rated waterproof to protect against dust, splashes, and rain. Additional Eluxtra 4-in-1 LED Strip Light options are available with an IP20 rating for indoor installations.

Eluxtra represents the next evolution in LED tape light technology. It is engineered to enhance performance and simplify installation for professionals across many industries. Delivering consistent performance, simplified wiring, and vibrant colors, Eluxtra makes it easier for lighting designers to achieve their goals with minimal complexity. All configurations are UL Listed and feature 60 LEDs per meter.

Specifications:
Physical:

• Length: 5m (16.404 ft)
• Width: 12mm (0.47 in)
• Height: 2 mm (0.08 in)
• Cutting Increment: 100.00 mm (3.94 in)
• LED Spacing: 16.7 mm (0.657 in)
• Lead Detail: 200 mm (7.874 in) long flat cable on both ends, stripped 10 mm and tinned
• Backing Color: White (with clear waterproof silicone coating)

Output:

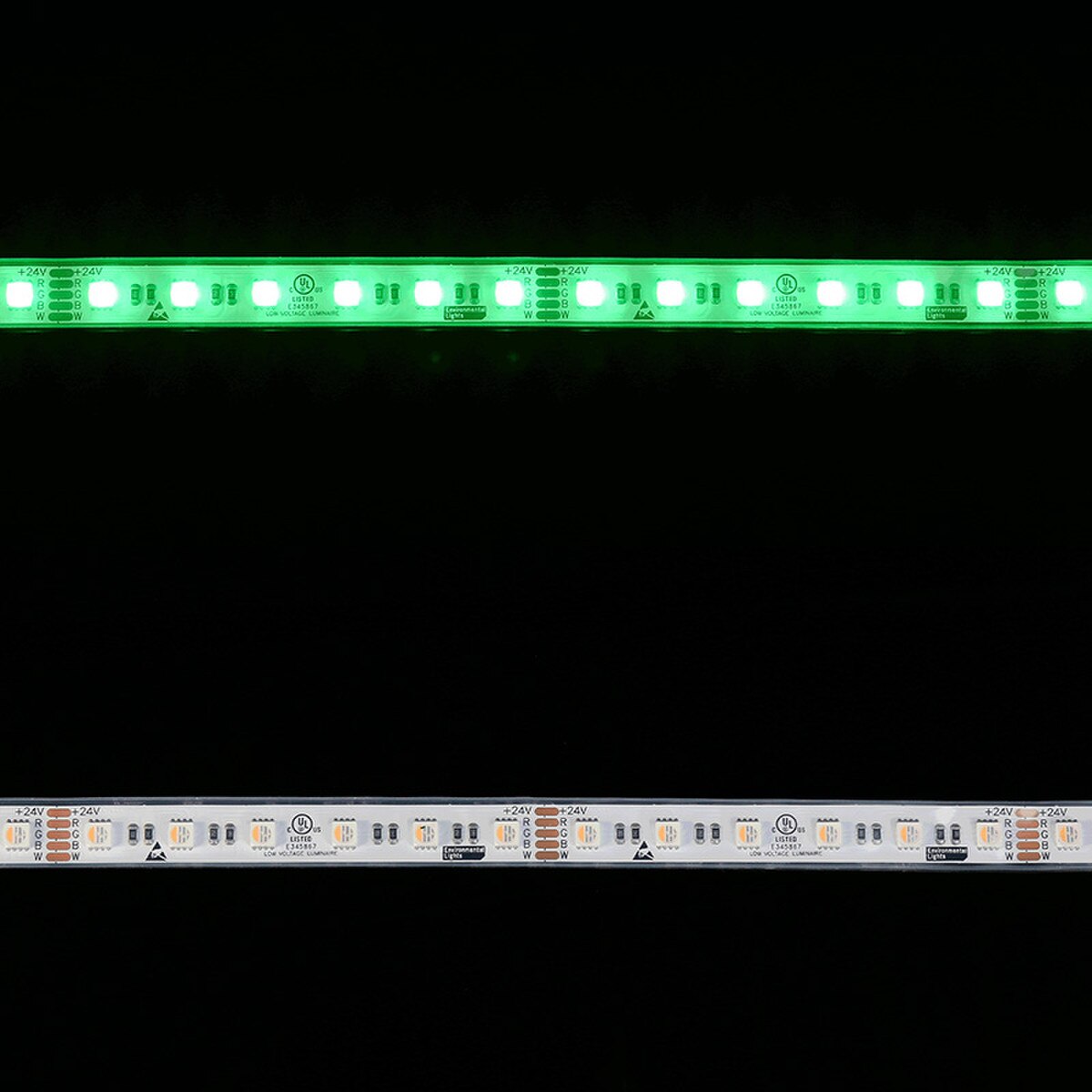

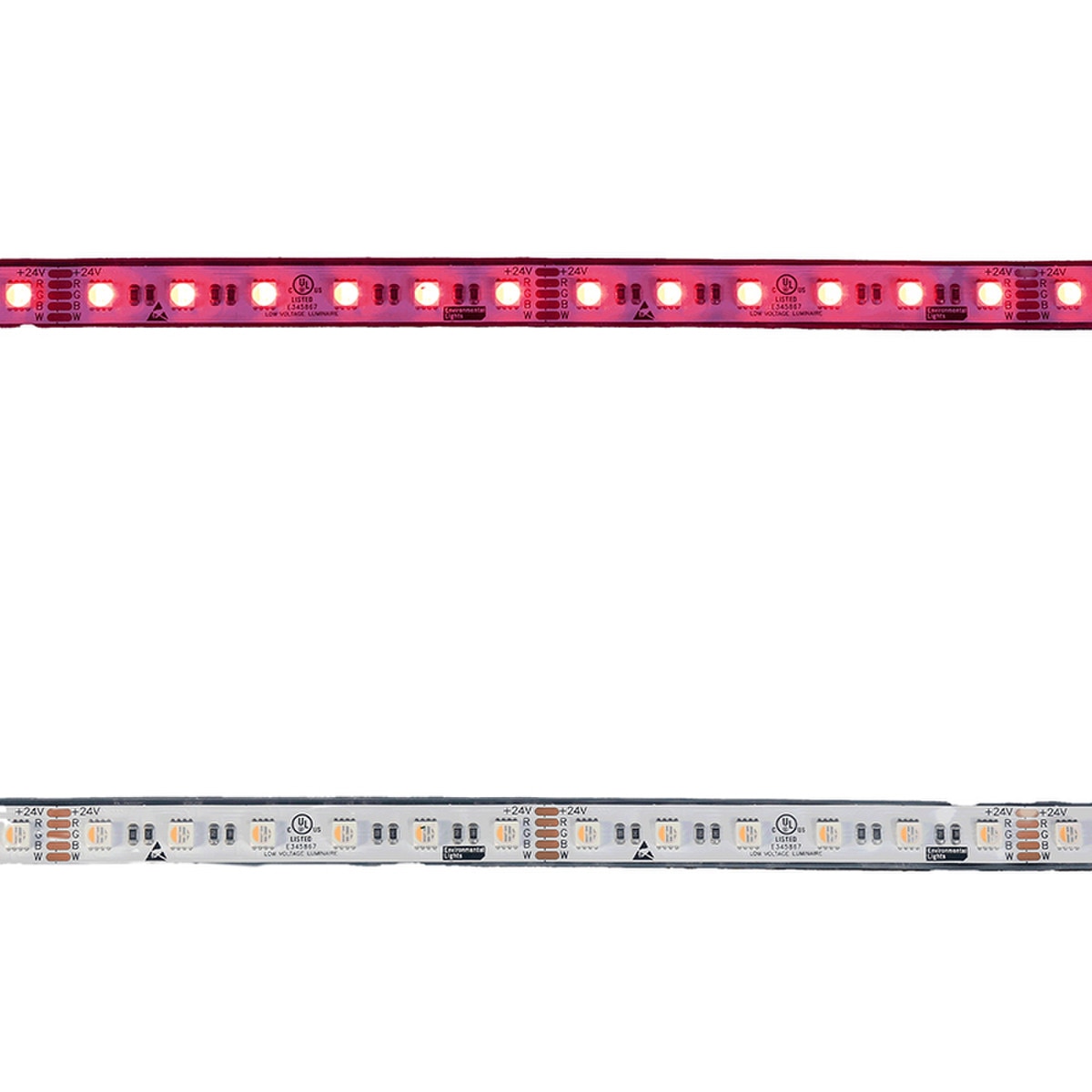

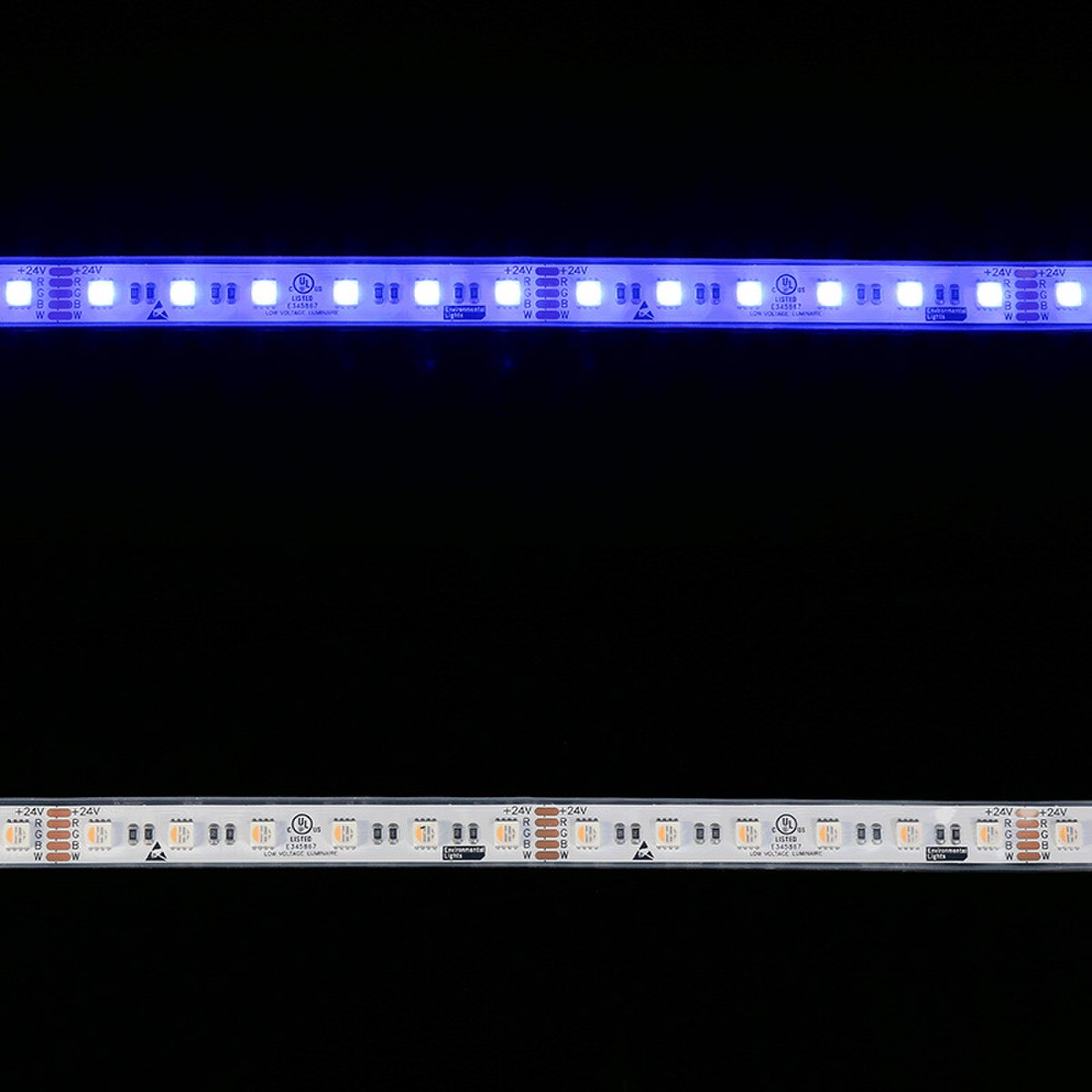

• Color(s): Red, Green, Blue, 2700K White (Cool White)
• Color Temperature: N/A
• Brightness: 110 / 315 / 75 / 335 lm/m
• Beam Angle: 120°

Electrical:

• Operating Voltage: 24VDC
• Current (A/5m): 3A
• Power Consumption (w/m): 14.4 w/m
• Power Consumption (w/ft): 4.4 w/ft
• Density (LEDs/m): 60 LEDS/m
• LED Chip Size: 5050

Product Information:

• Use Environment: Outdoor
• Ambient Temperature: -20° C to 40° C
• Dimmable: Fully Dimmable
• Average Life: 50,000 Hours
• Warranty: Five years limited
• IP Rating: IP65
• Compliance: UL, RoHS

Eluxtra 4-in-1 LED Strip Light, RGBW, RGBA, RGBI 24V Datasheet.pdf
