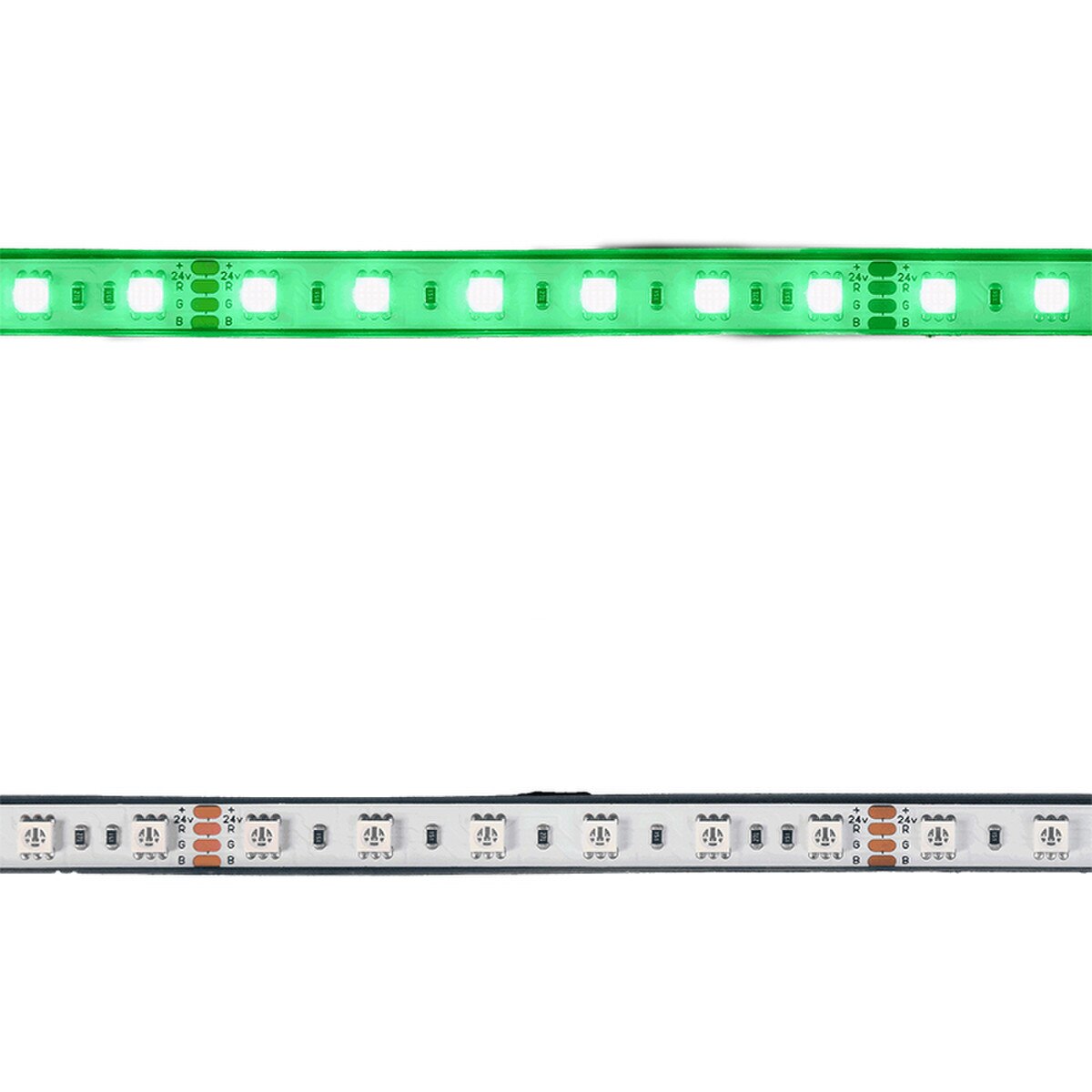

City Theatrical Eluxtra RGB - Waterproof - 60/m - 10 mm wide - 24 VDC - 5m Reel

(0)No Reviews yet
$252.45
SKU: City Theatrical 20815

Details

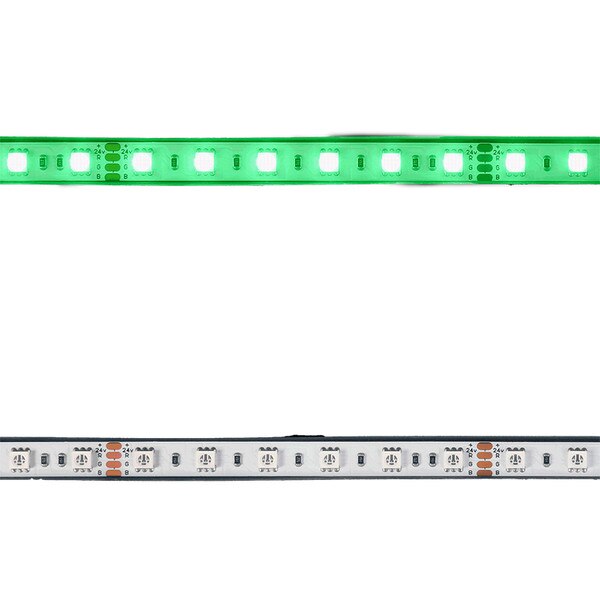

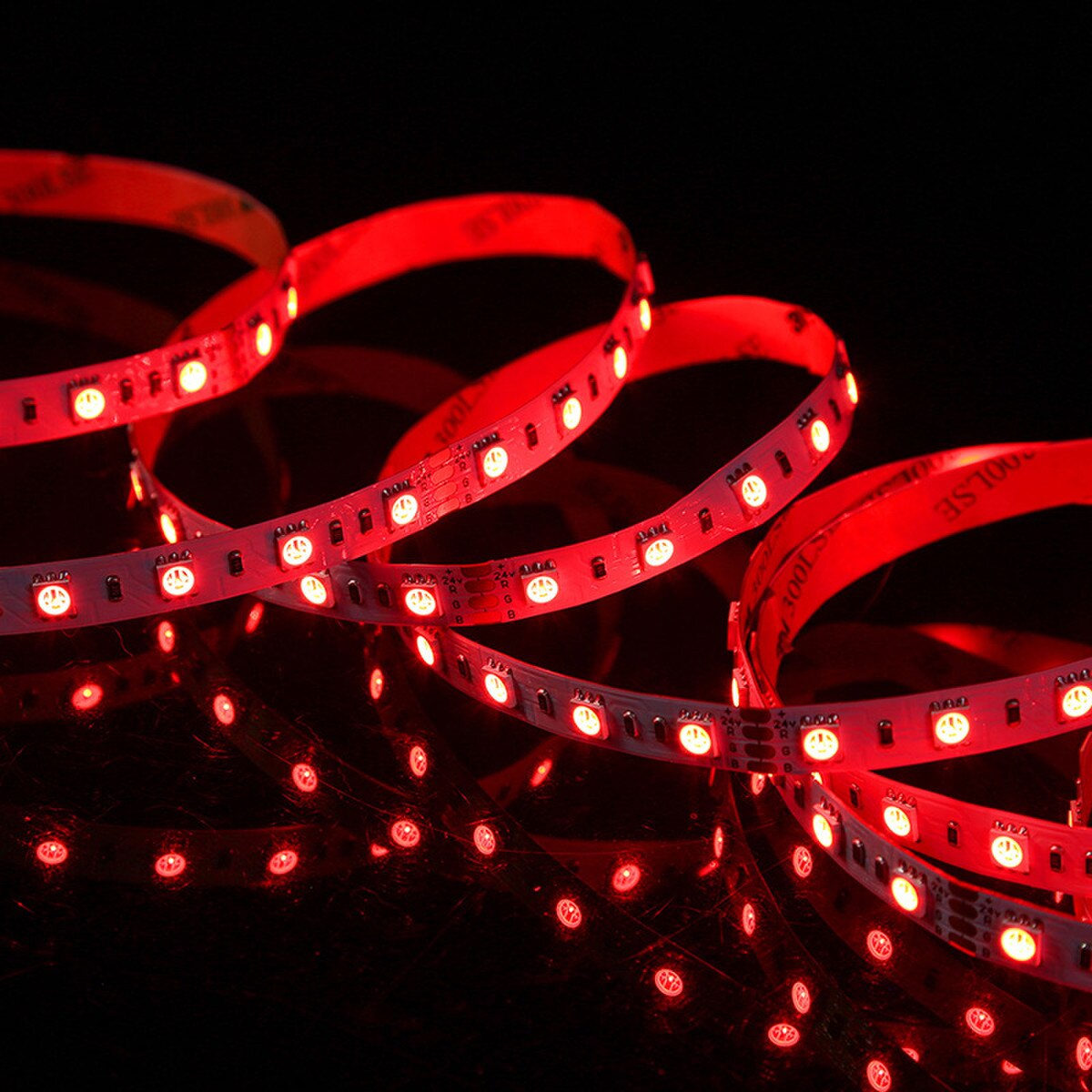

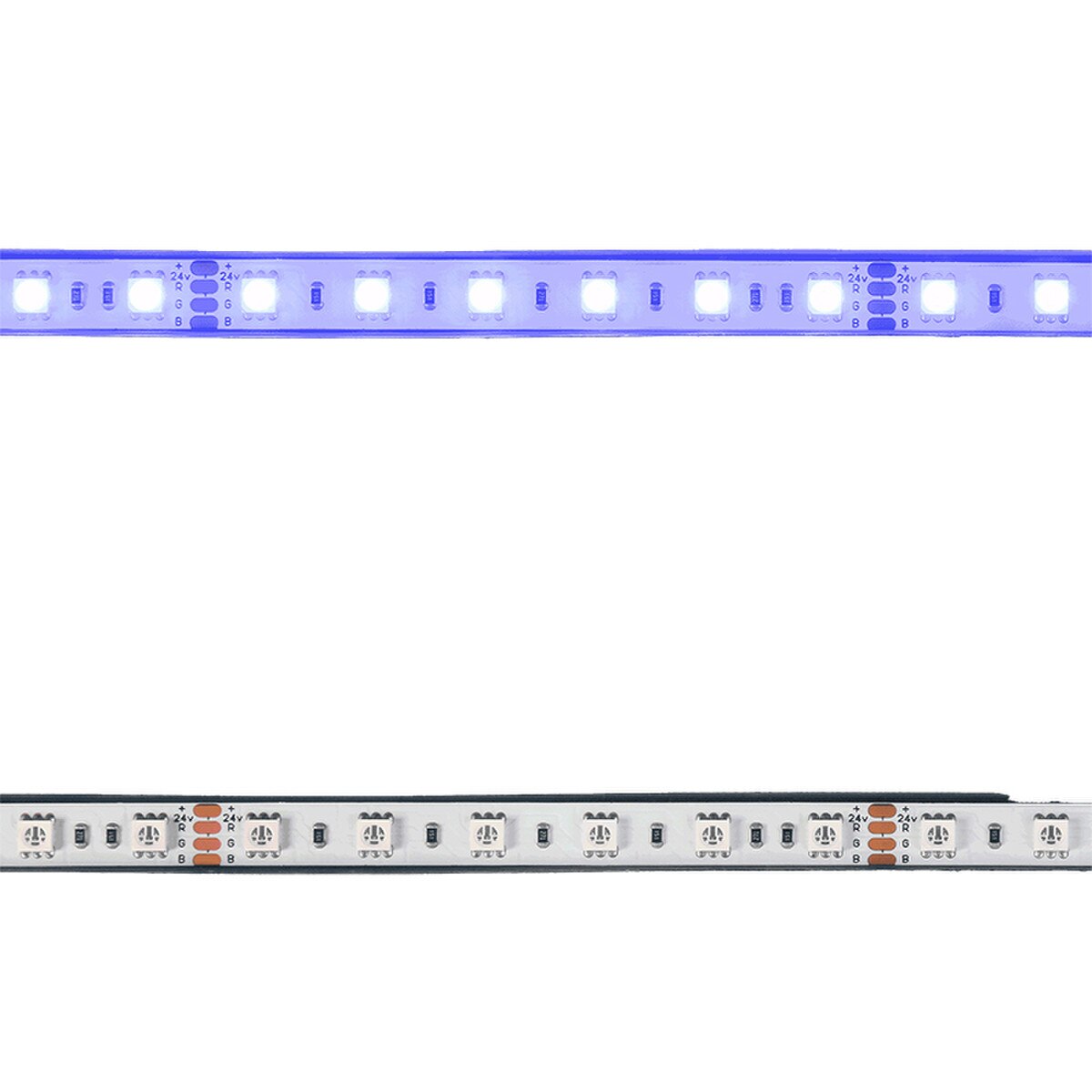

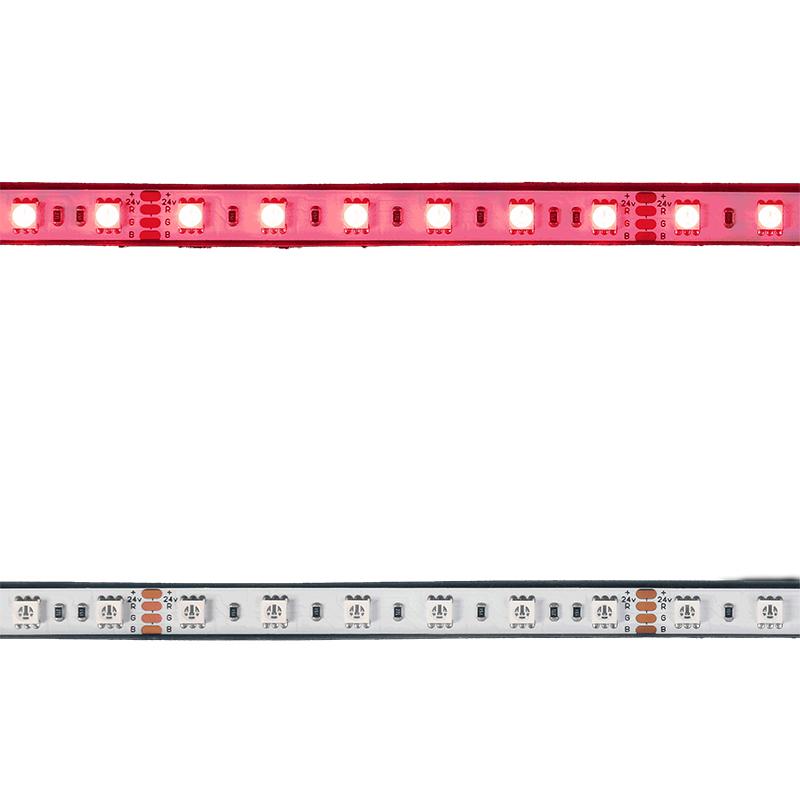

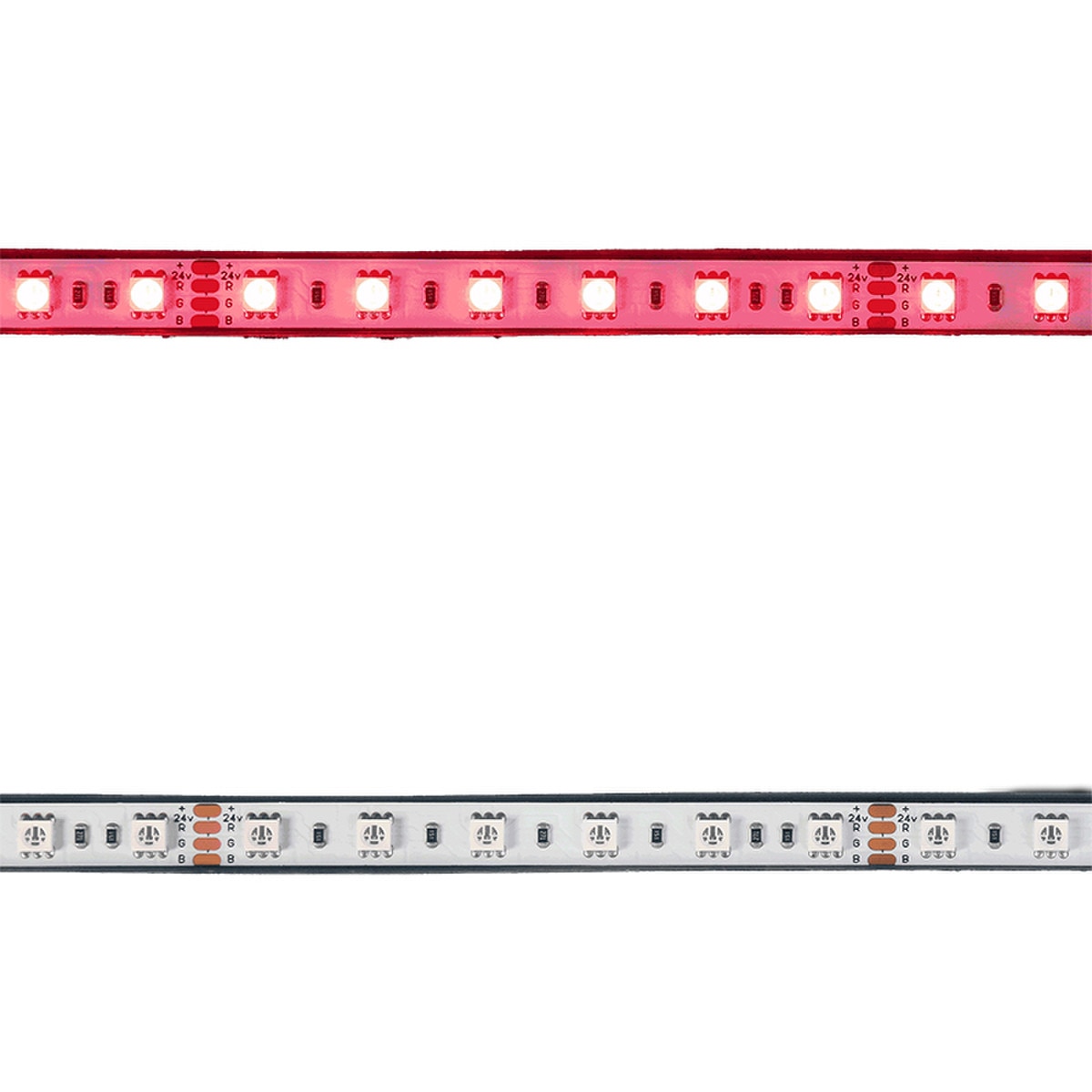

Eluxtra™ RGB LED Strip Lights are UL Listed and feature 60 LEDs per meter. Eluxtra™ RGB Strip Lights are 24V and allow you to run a full reel without any visible voltage drop or corresponding color changes along the length of the run. Create and control numerous RGB color combinations using compatible RGB controllers or LED dimmers.


Eluxtra RGB LED Strip Light is sold in 5-meter reels or in cut-to-order lengths. This high quality and extremely dependable strip light is an ideal lighting solution for utilizing color in dynamic set designs, eye-catching displays, and more.

Eluxtra RGB LED Strip Light, 24V variations include:

  • RGB, 24V Indoor
  • RGB, 24V Outdoor/Waterproof

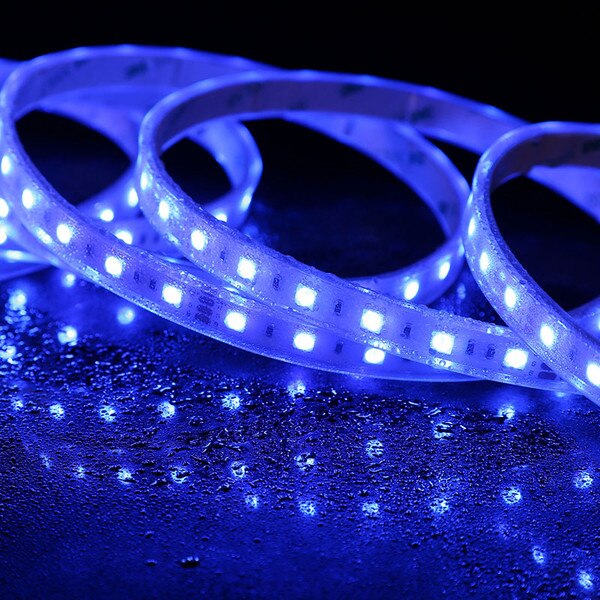

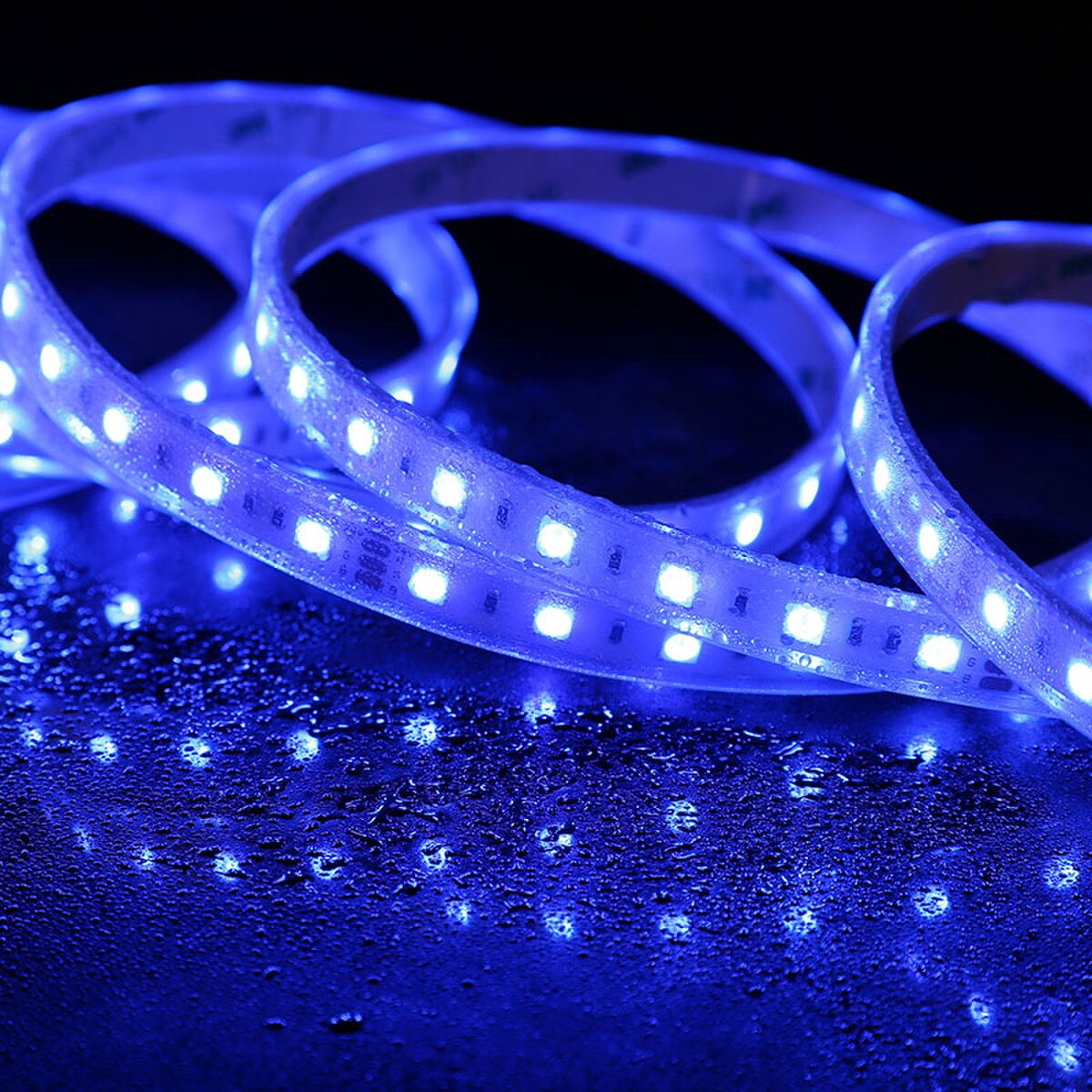

Additionally, Eluxtra RGB LED Strip Light is available in IP65-rated waterproof versions to protect against dust, splashes, and rain.


Eluxtra represents the next evolution in LED tape light technology. It is engineered to enhance performance and simplify installation for professionals across many industries. Delivering consistent performance, simplified wiring, and vibrant colors, Eluxtra makes it easier for lighting designers to achieve their goals with minimal complexity. All configurations are UL Listed and feature 60 LEDs per meter.

Specifications:
Physical:

  • Length: 5m (16.404 ft)
  • Width: 10 mm (0.39 in)
  • Height: 2 mm (0.08 in)
  • Cutting Increment: 100.00 mm (3.94 in)
  • LED Spacing: 16.7 mm (0.657 in)

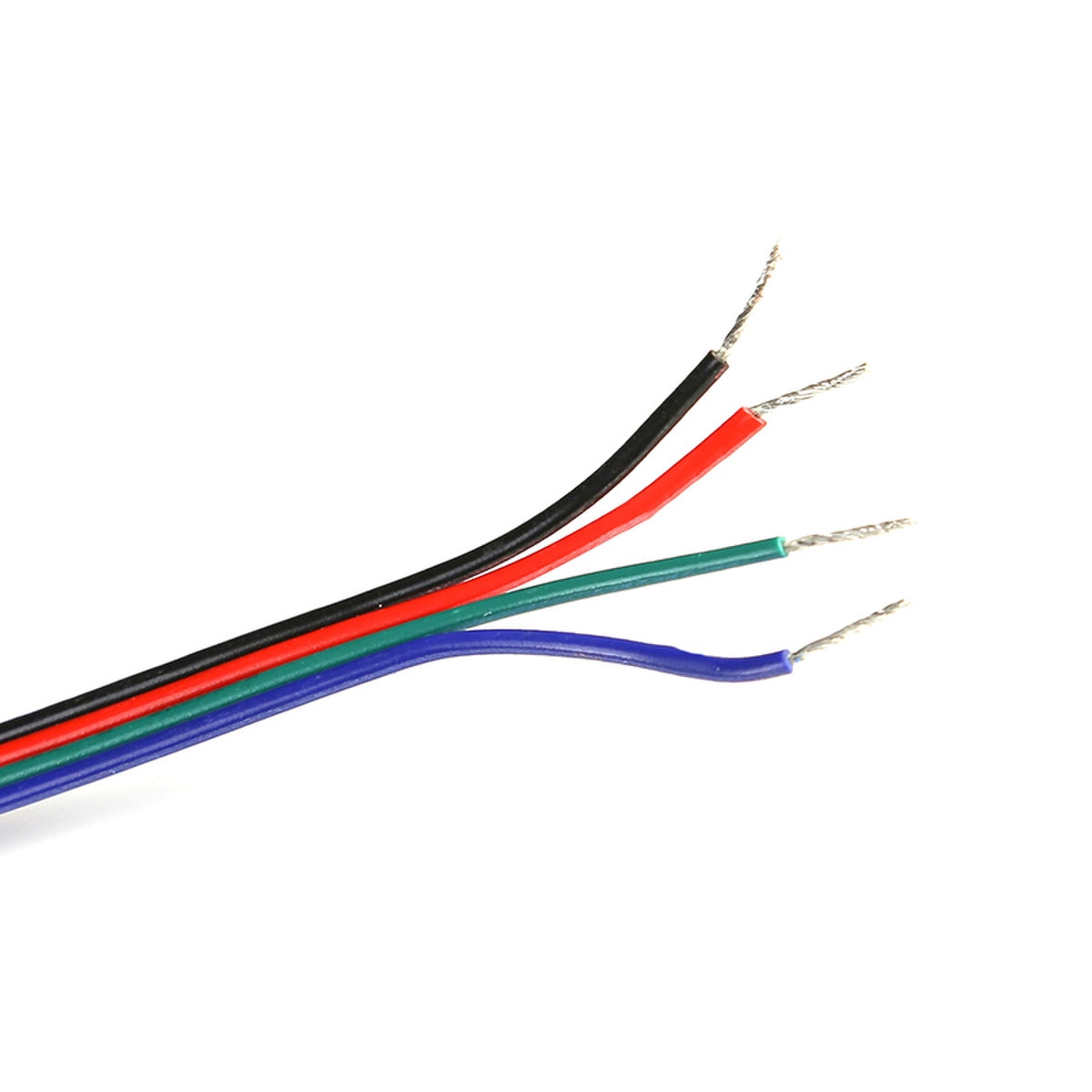

  • Lead Detail: 200mm (7.874 in) long flat cable on both ends, stripped 10mm and tinned
  • Backing Color: White (with clear waterproof silicone coating)

Output:

  • Color Detail: Red, Blue, Green
  • Brightness: 140 / 385 / 85 lm/m
  • Beam Angle: 120°

Electrical:

  • Operating Voltage: 24VDC
  • Current (A/5m): 3A
  • Power Consumption (w/m): 14.4 w/m
  • Power Consumption (w/ft): 4.4 w/ft
  • Density (LEDs/m): 60 LEDs/m
  • LED Chip Size: 5050

Product Information:

  • Use Environment: Outdoor
  • Ambient Temperature: -20° C to 40° C
  • Dimmable: Fully Dimmable
  • Average Life: 50,000 hours
  • Warranty: Five years limited
  • IP Rating: IP20
  • Compliance: UL, RoHS


RGB 5050 60 24V X Eluxtra Cutsheet.pdf
