City Theatrical Multiverse SHoW Baby DMX Transceiver

(0)No Reviews yet
$414.30
SKU: City Theatrical 5900

Details

With tens of thousands of units sold since their introduction in 2011, ShoW Baby plug and play transceivers set the standard for ease of use and reliability at an affordable price point. The addition of Multiverse radio technology enhances performance even more.

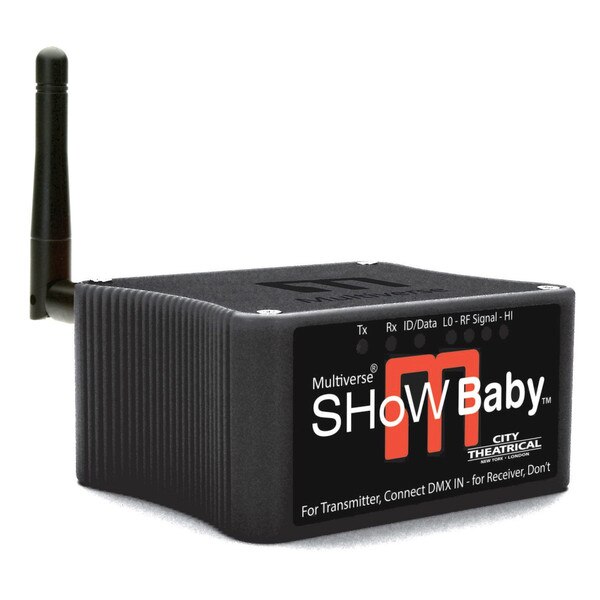

City Theatrical’s new Multiverse® SHoW Baby® is a wireless DMX transceiver that delivers breakthrough plug and plays wireless DMX and RDM transmission. In its default mode, it works like any other SHoW Baby 6 Transceiver, with six user-selectable SHoW IDs. By connecting an RDM controller, like DMXcat® Multi-Function Test Tool, all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible.


Right out of the box, Multiverse SHoW Baby is fully compatible with all legacy SHoW DMX SHoW Baby® systems. Use it to build new single universe Multiverse systems, or use Multiverse SHoW Baby as a receiver on multiple universe systems with a Multiverse Transmitter.

Features

  • Full compatibility with all previous SHoW Babys right out of the box
  • Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t!
  • Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
  • Wirelessly broadcast and receive a full Universe (512 slots) of DMX
  • Robust wireless DMX512 and RDM data transmission

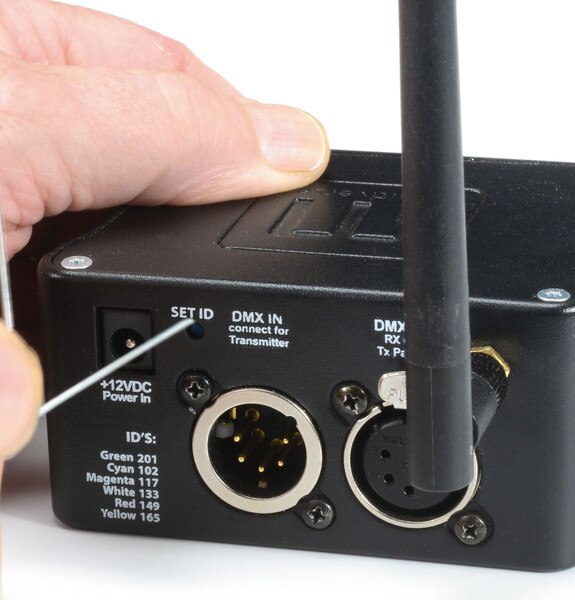

  • Six user selectable SHoW IDs accessible on the “SET ID” button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.
  • Extremely low 4mS latency
  • RDM proxy and responder functions

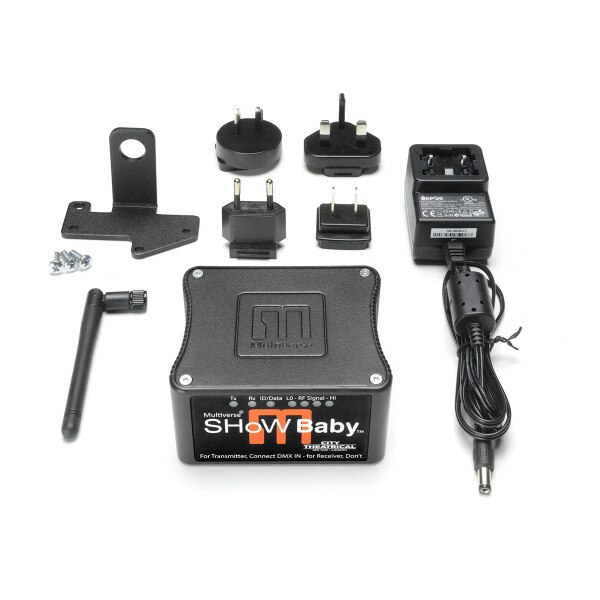

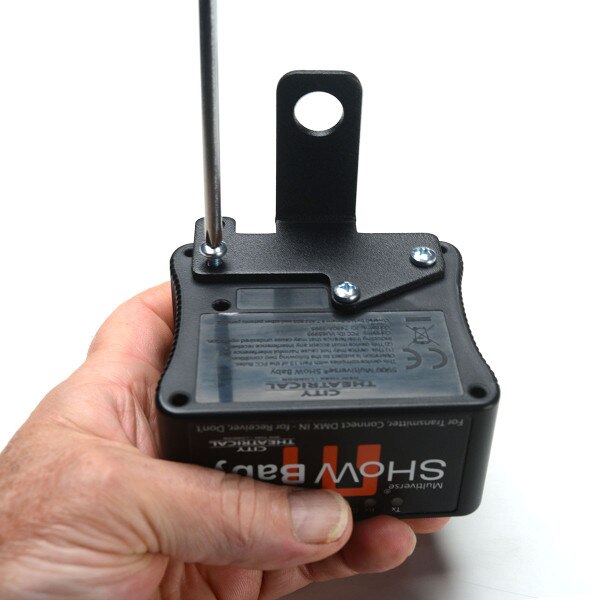

  • Mounting bracket for installation with C-Clamp or similar hanging hardware
  • Included CL2 Power Supply
  • Included 2dBi omnidirectional antenna
  • Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

Specifications:
Product Information:

  • Product Name: Multiverse SHoW Baby
  • Part Number: 5900
  • Maximum Concurrent Universes: 1
  • Frequency Range: 2400 – 2480 MHz

Physical Specifications:

  • Length: 92mm (3.625 in)
  • Width: 76mm (3.00 in)
  • Height: 46mm (1.80in)
  • Weight: 0.16 Kg (0.35 lb)
  • Construction: Steel, ABS plastic, Black

Connection Specifications:

  • DC Jack, 5.5mm x 2.1mm barrel, center positive, 9mm mating depth (this power supply connector is not compatible with Multiverse Node)
  • Neutrik® 5-Pin XLR connectors for DMX512 IN and OUT/thru ports
  • RP-SMA female antenna connector
  • USB Type-A port, internal (requires removing cover and circuit board)

Functionality:

  • User Interface: 1 Button/LEDs
  • RDM Features: RDM Proxy, RDM Responder

Power:

  • Input Power: 5-30VDC, 0.8W
  • Max Draw: 66mA max draw at 12V
  • AC Adapter Voltage: 100VAC to 240VAC 50/60Hz

Radio Technology:

  • Latency: 4 ms average
  • RF Sensitivity: -95dBm
  • Loss of Data Behavior: Output stops
  • Broadcast Power: 2.5mW, 8mW, 25mW, 80mW EIRP
  • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
  • Show IDs: 217 (Americas and Worldwide)

Additional Product Information:

  • Use Environment: Indoor
  • Operating Temperature: 0° C to 40° C
  • Storage Temperature: -40° C to 85° C
  • IP Rating: IP50
  • Compliance: FCC, IC, CE, ARIB, RoHS
  • Warranty: One year









5900-multiverse-show-baby-cutsheet.pdf
Multiverse_SHoW_Baby_Manual.pdf
5900-multiverse-show-baby-quick-start-guide.pdf
2022-04 Antenna Adapter Matrix Chart for Multiverse and Legacy SHoW DMX Neo wireless DMX products.pdf
5729 2dBi Indoor Omni Antenna, 2.3” Cut Sheet.pdf
advances-in-wireless-dmx.pdf
