City Theatrical Multiverse Studio Kit 2.4GHz

City Theatrical’s Multiverse® Studio Kit brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit.

The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set.

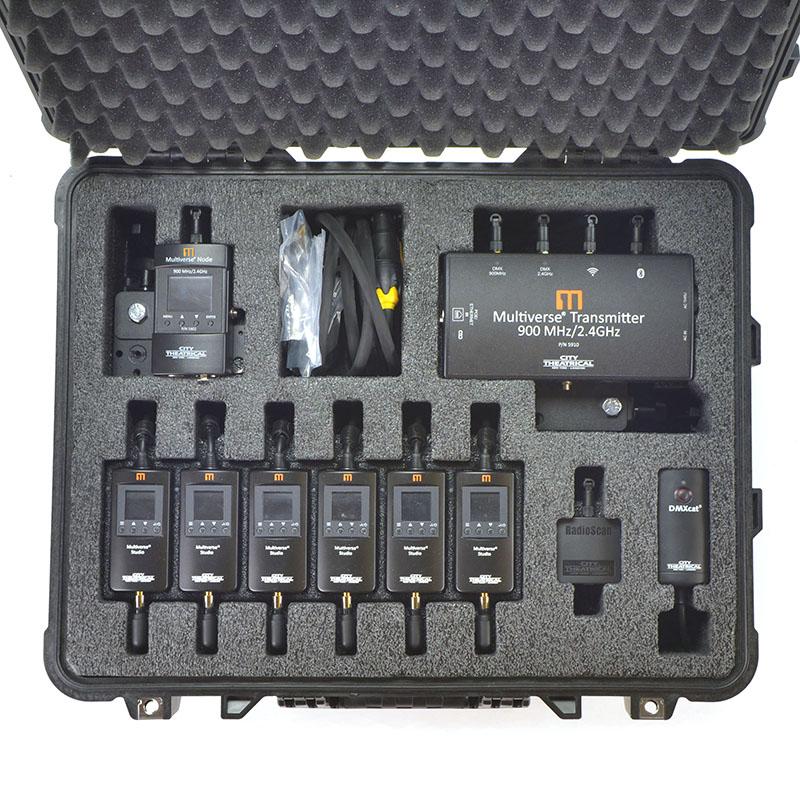

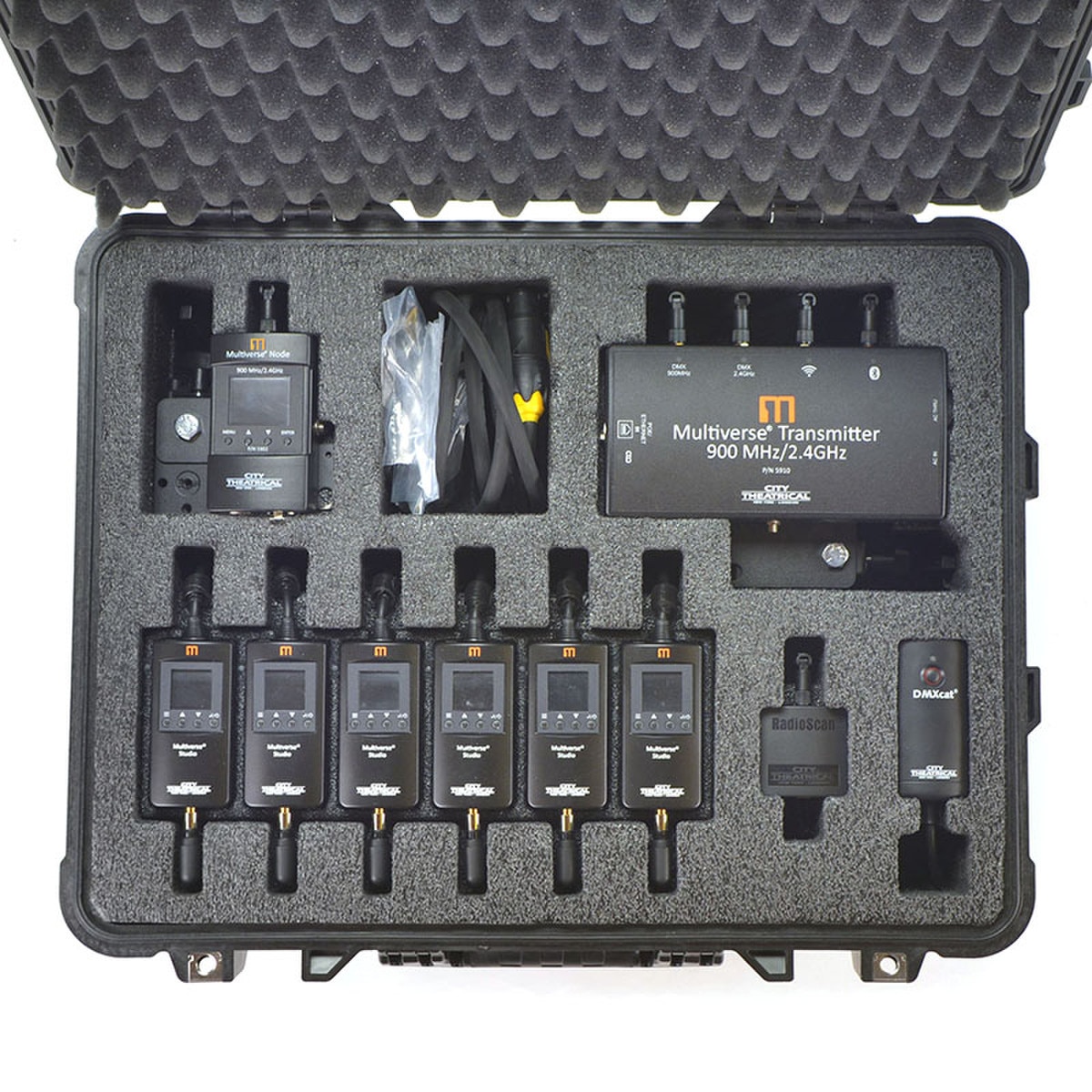

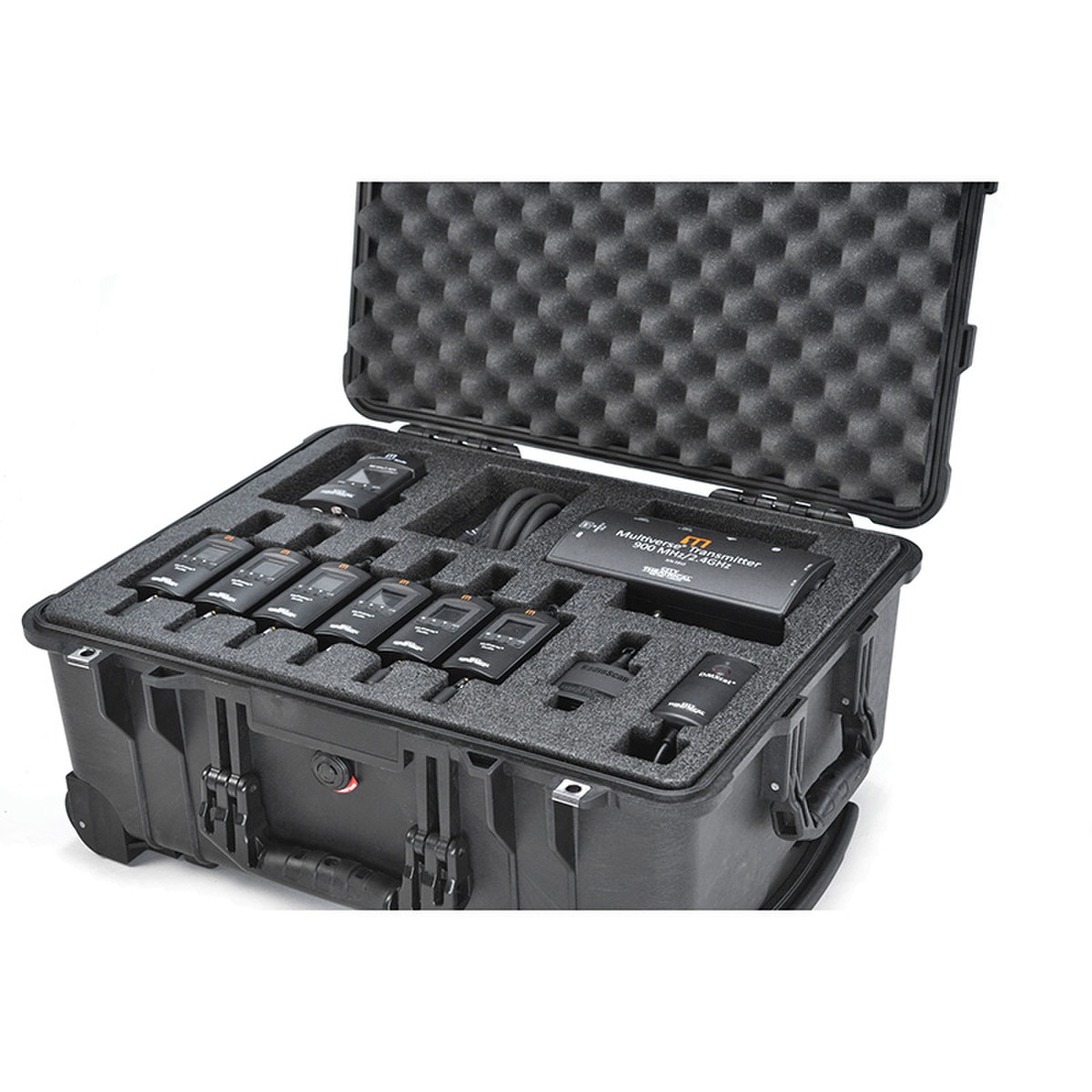

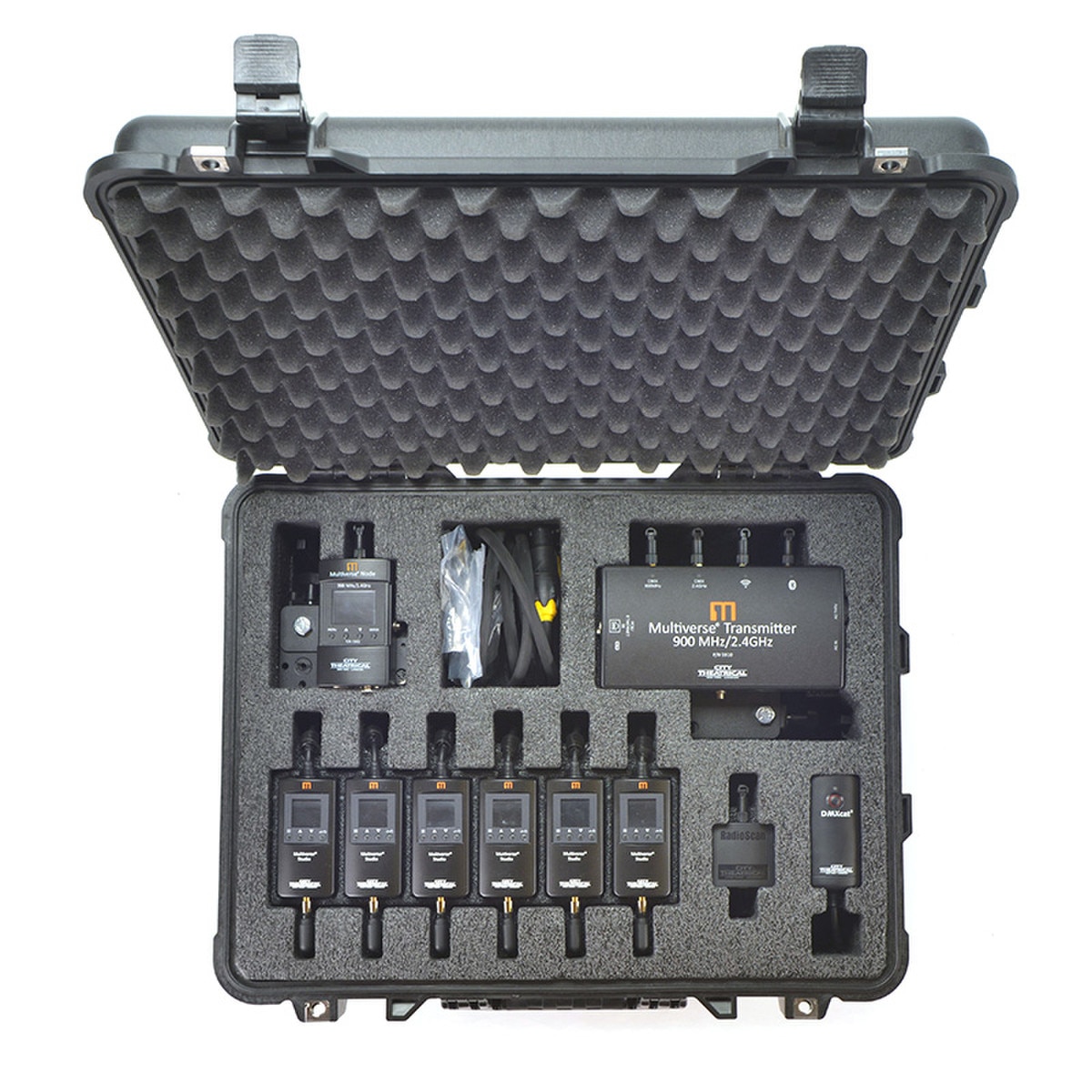

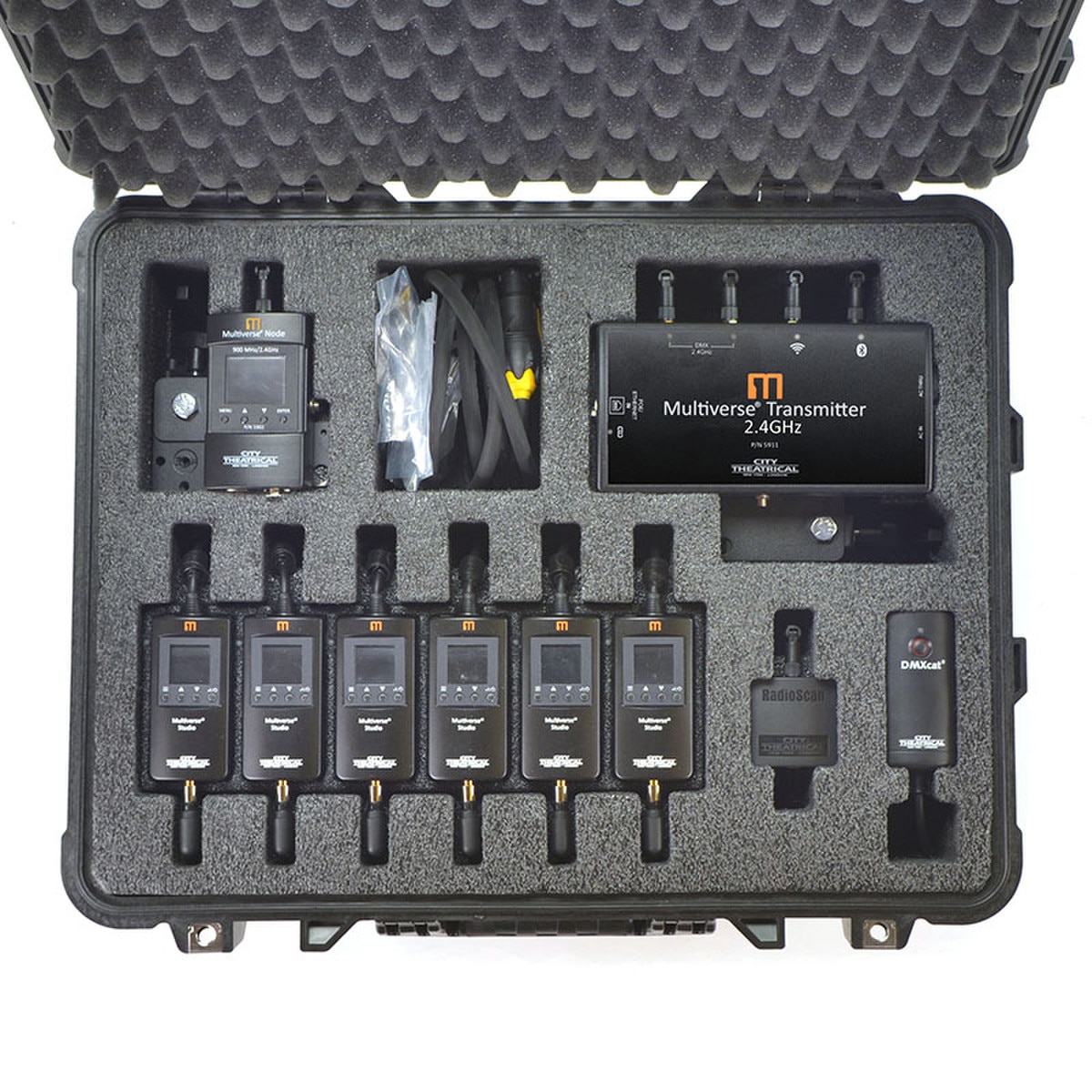

Each Multiverse Studio Kit Includes:

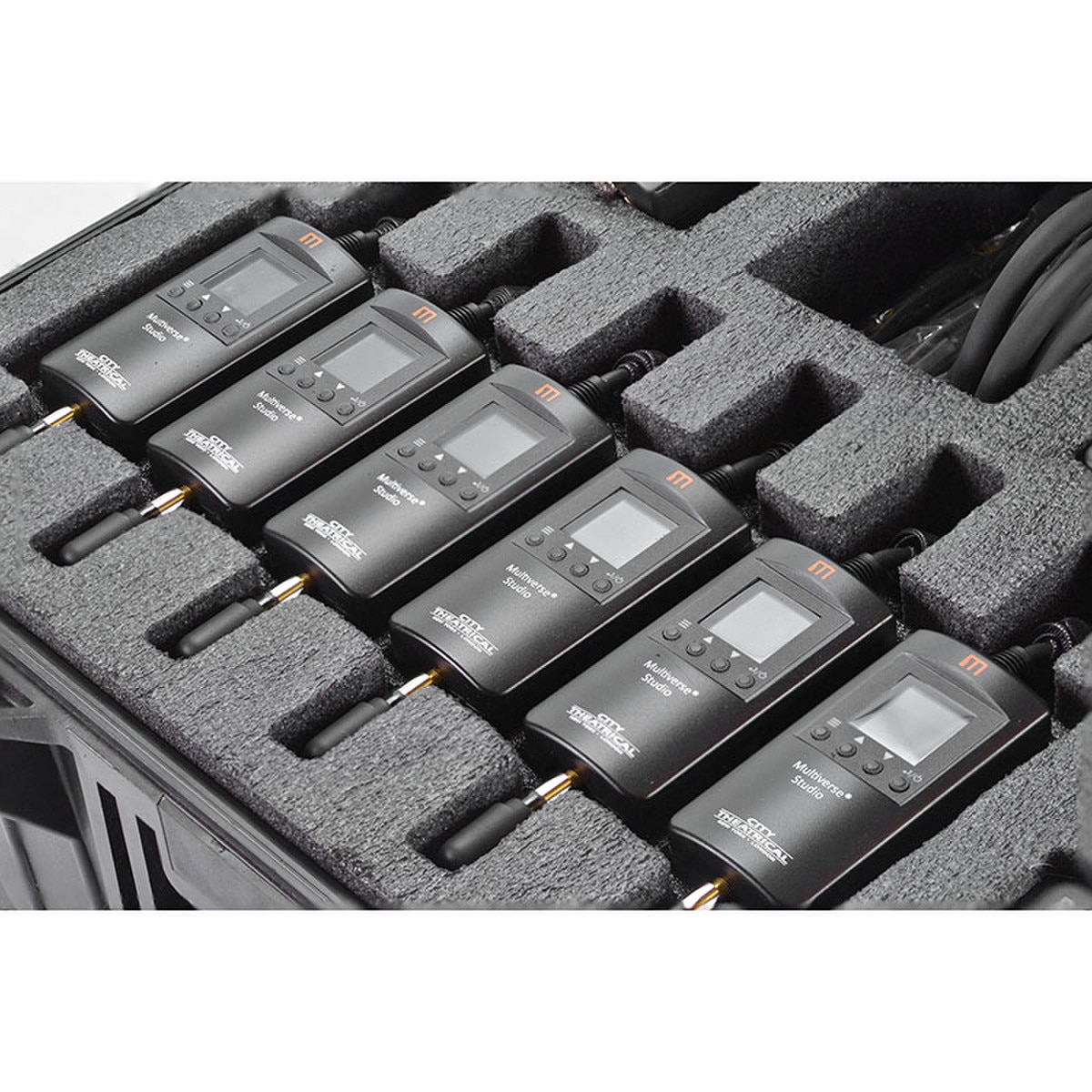

• (6) Multiverse Studio Receivers, Battery Powered

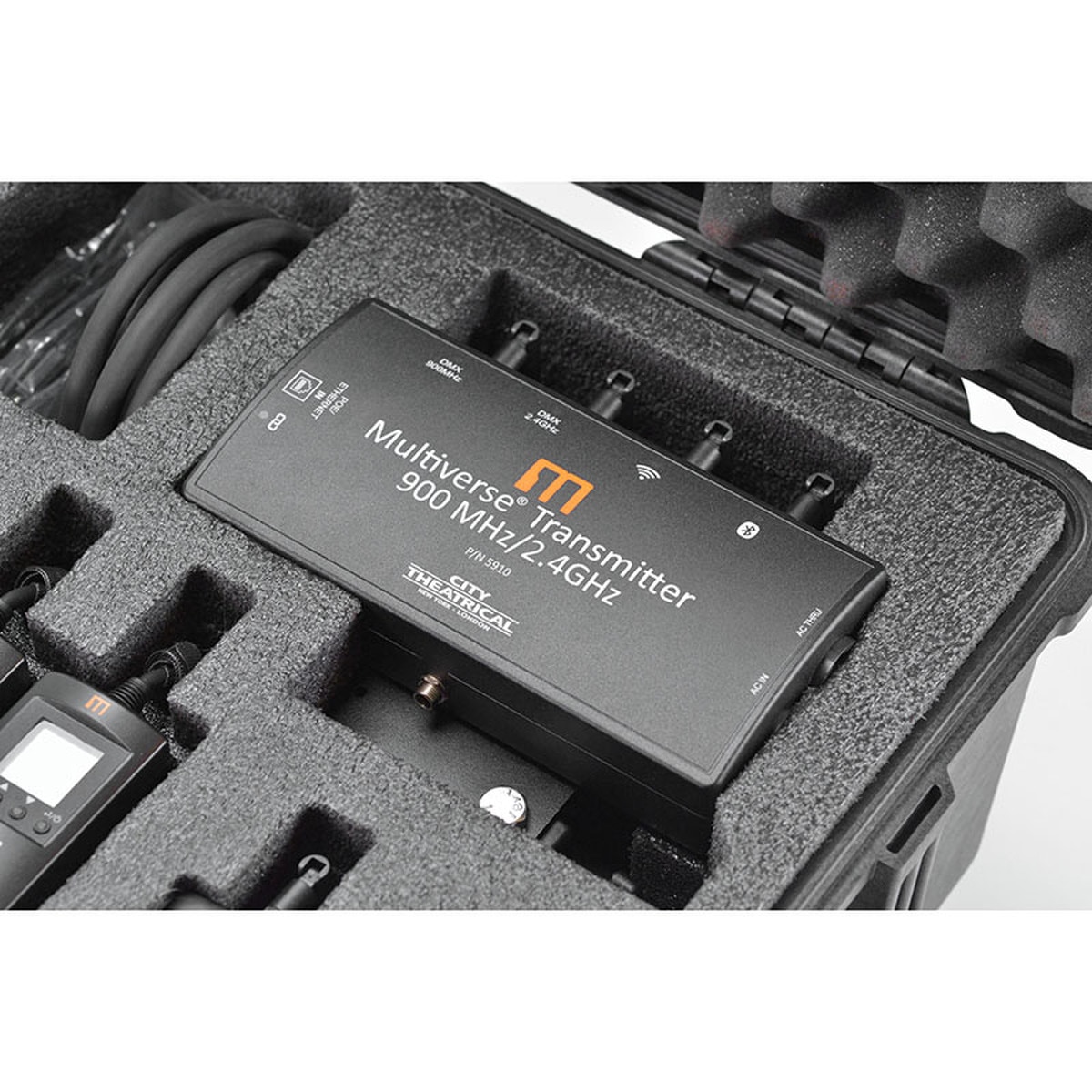

• (1) Multiverse Transmitter with hanging bracket and clamp (for multi universe broadcasts)
• (1) Multiverse Node with hanging bracket and clamp (for single universe broadcasts)

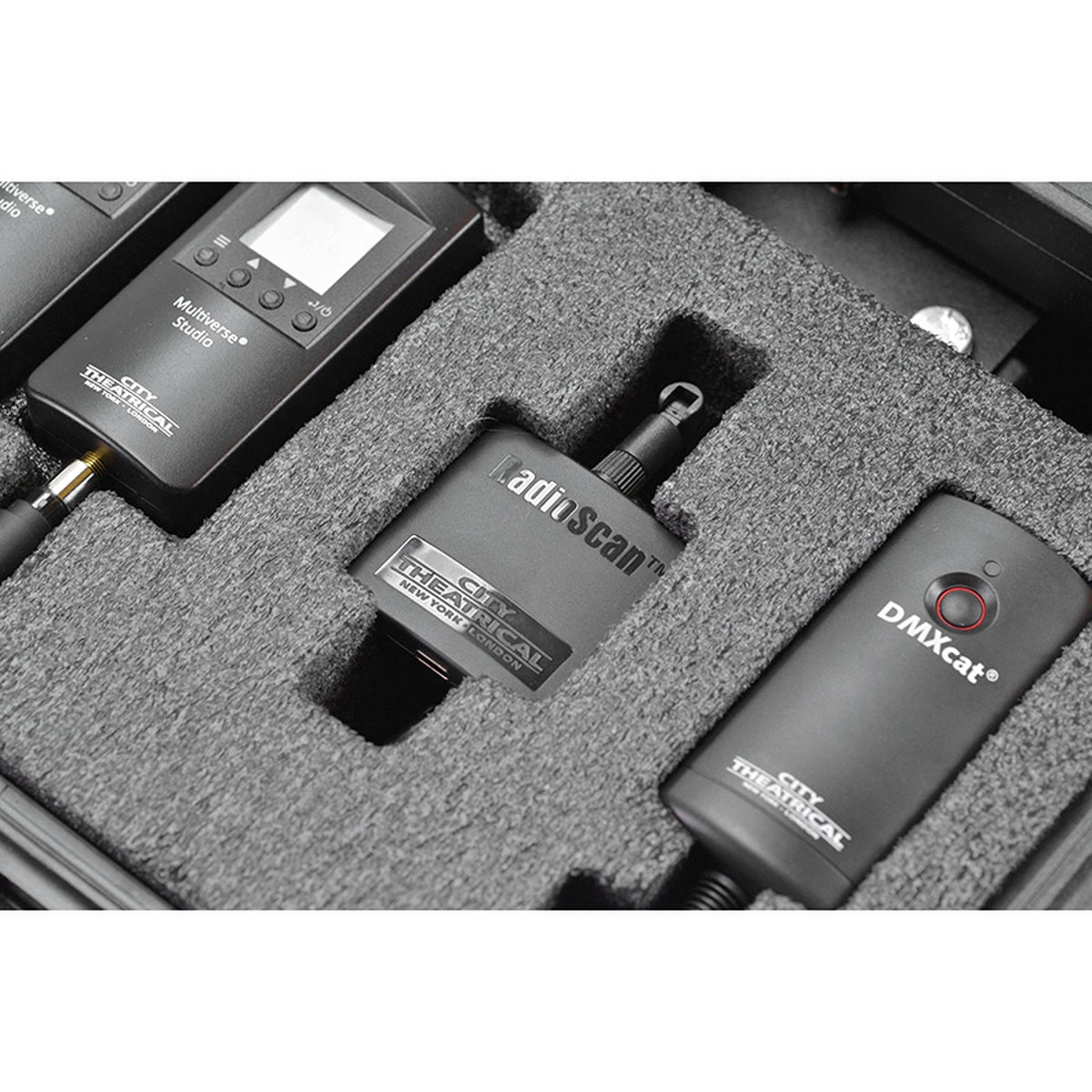

• (1) DMXcat Multi-Function Test Tool (to turn on and troubleshoot any lighting fixture on set)
• (1) RadioScan Spectrum Analyzer (for broadcast planning)
• (6) USB-A to USB-C cable, 1m
• (2) Power Cord, PowerCON True 1, 8’ long
• (2) Mounting Clamps (attached to Multiverse Transmitter and Multiverse Node)

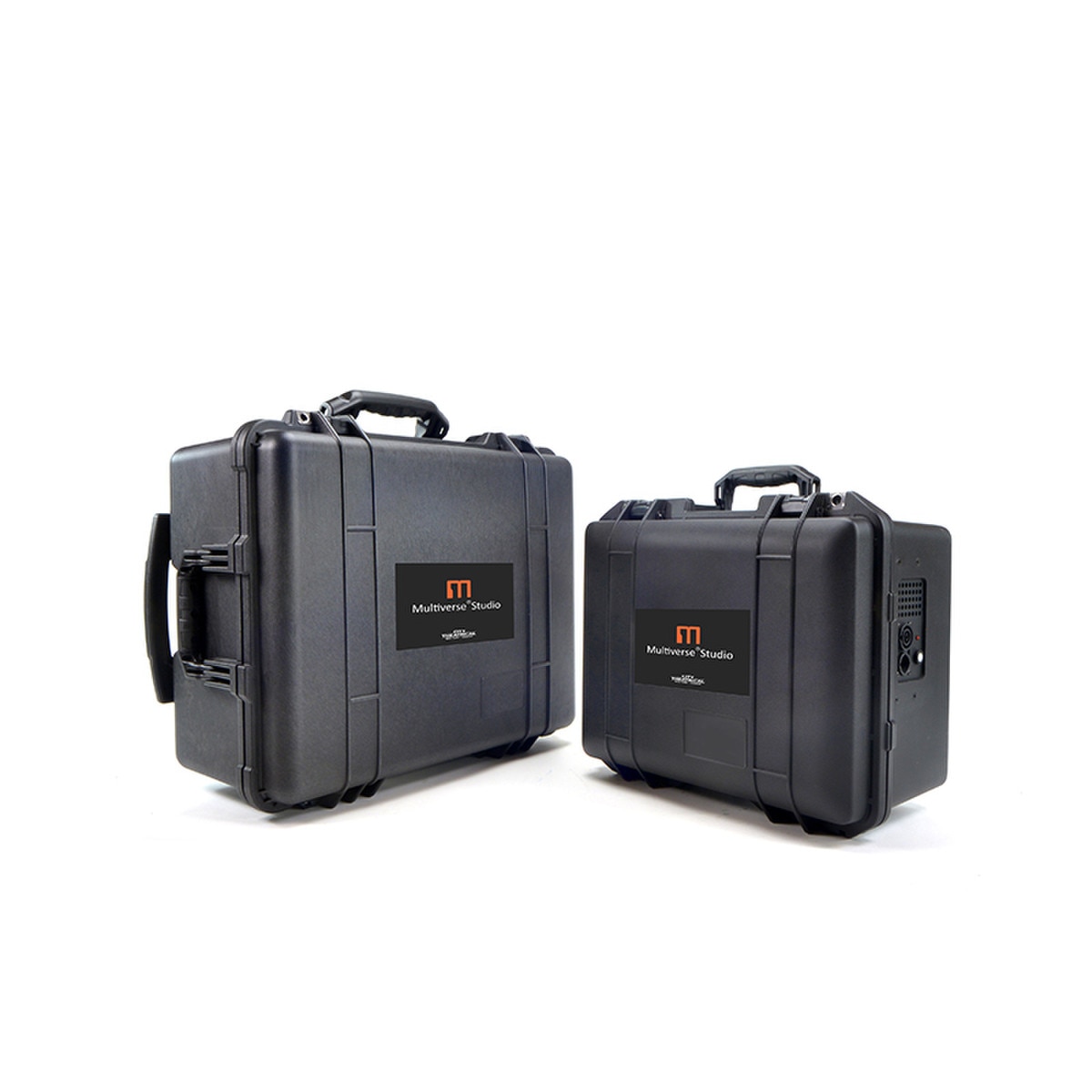

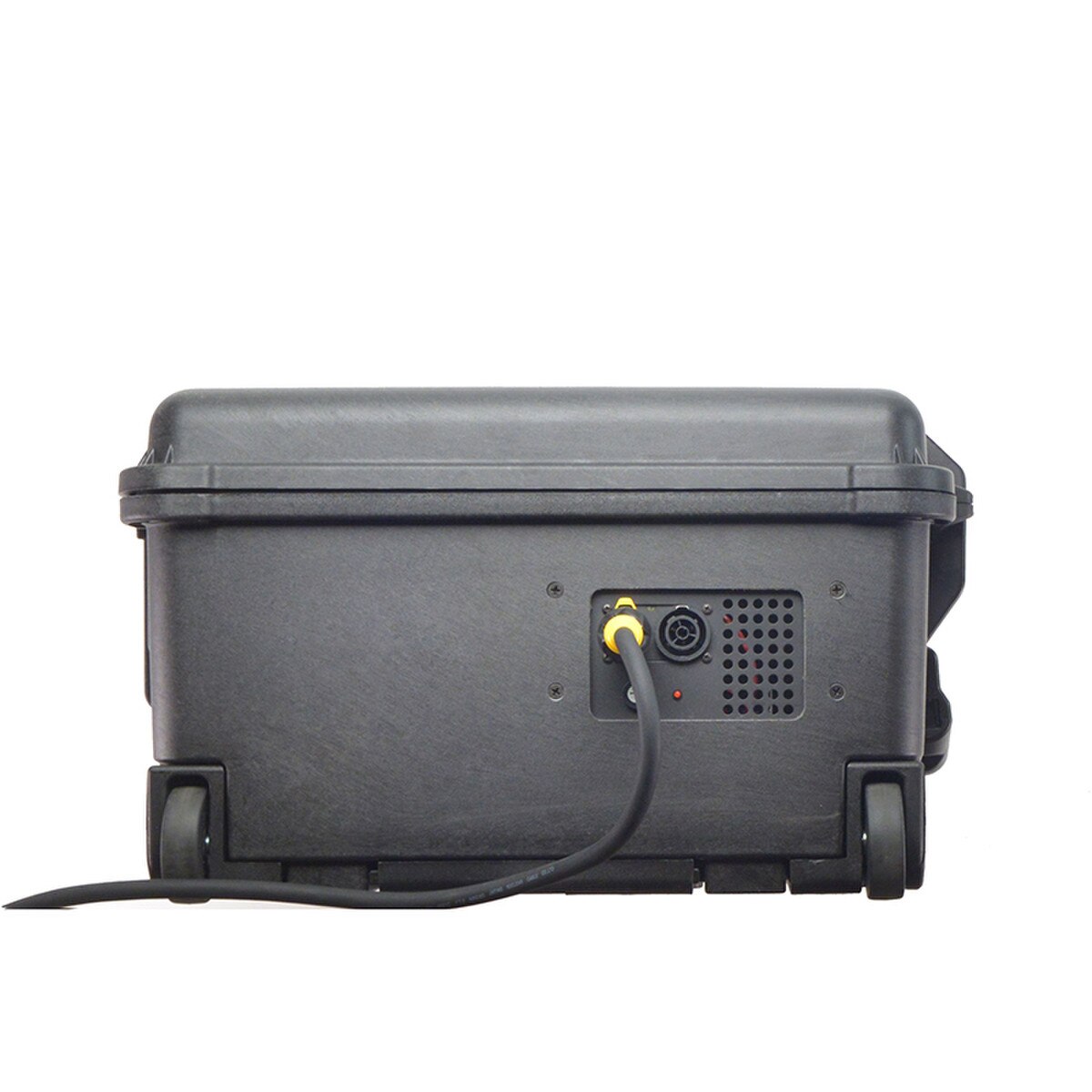

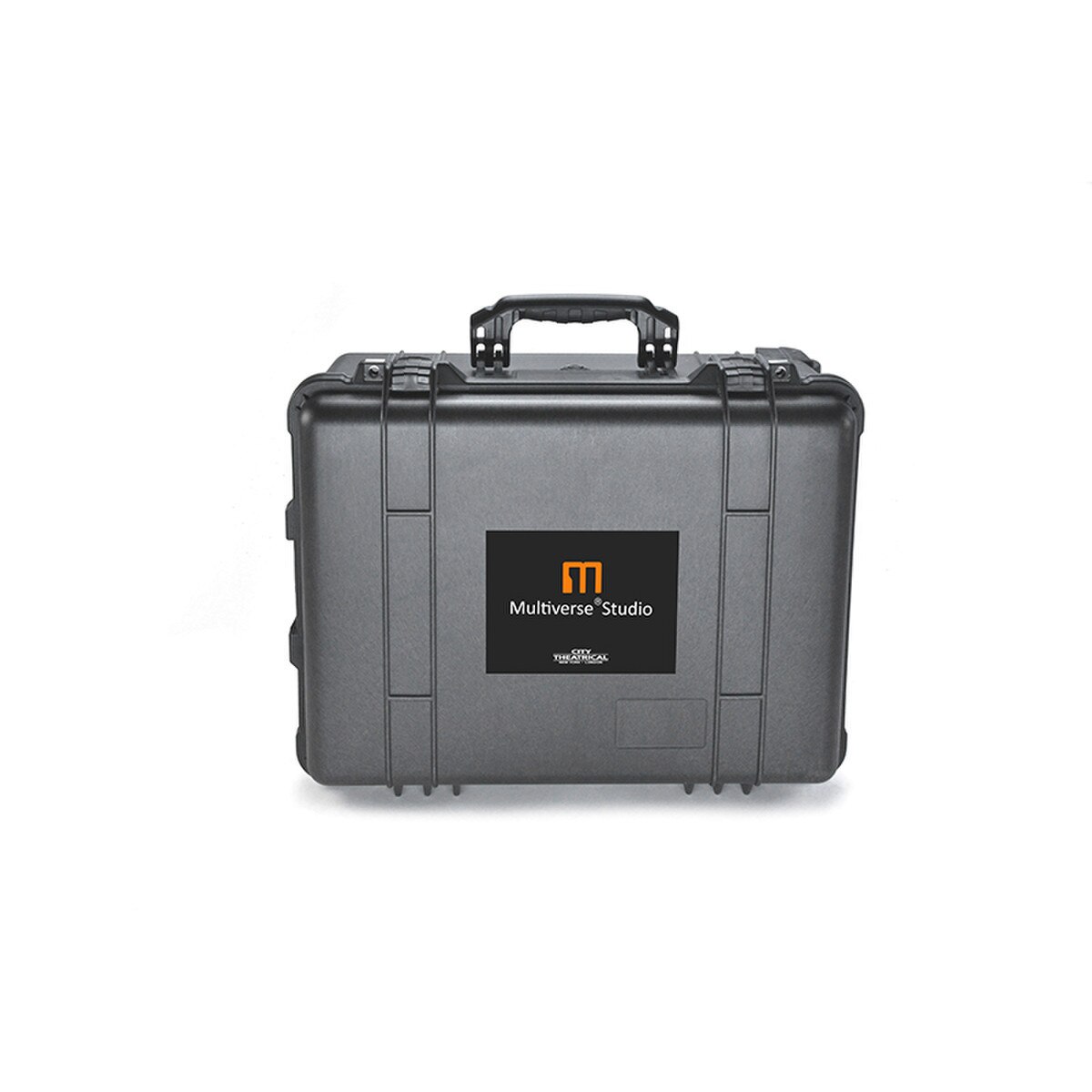

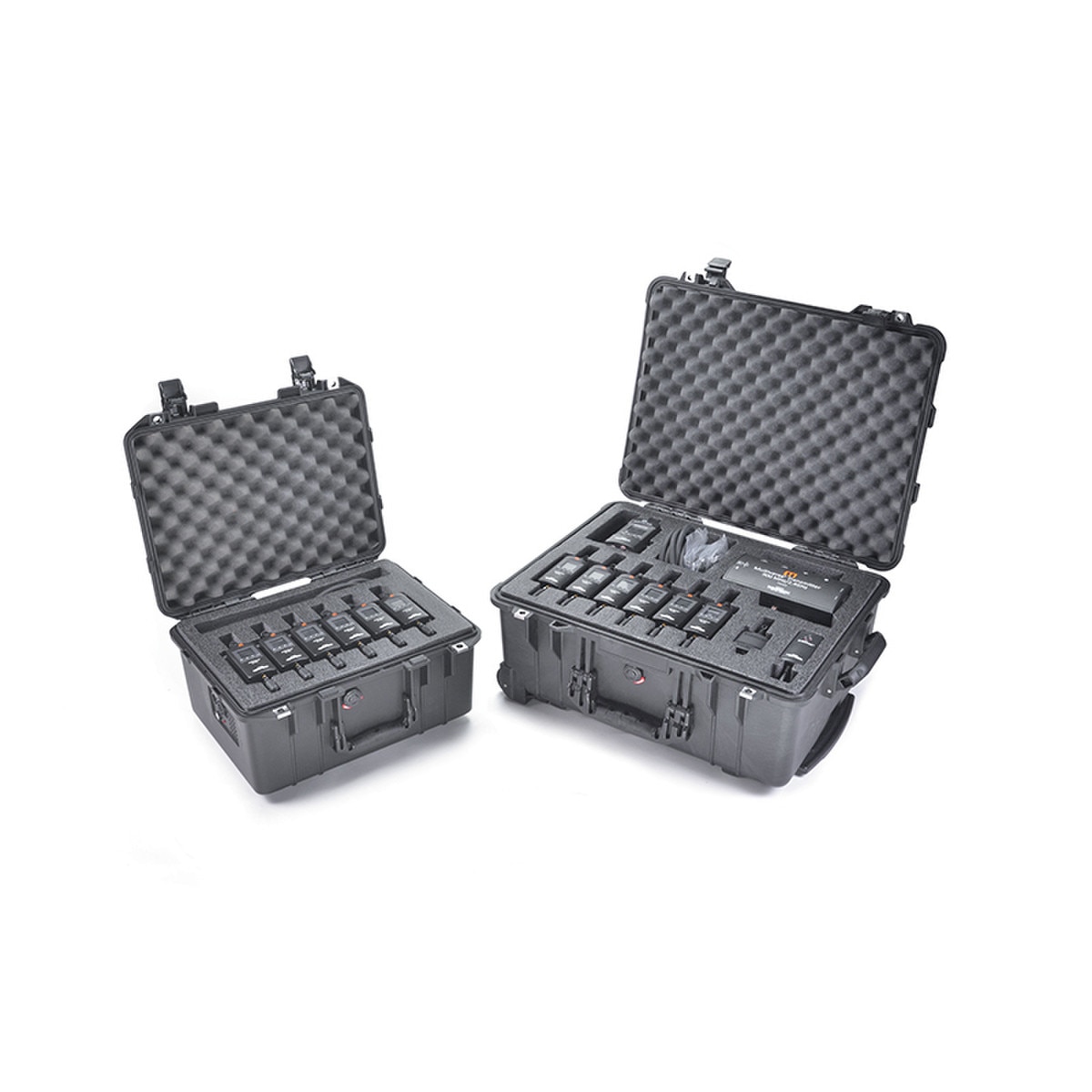

• (1) Pelican case with contactless charging
• (6) Power Supplies, 100-240VAC input, 5VDC output
• (1) USB flash drive with product manuals, software, and other information

The Multiverse Studio Kit 900MHz/2.4GHz for dual band Multiverse wireless DMX technology in the 2.4GHz (for worldwide use) and 900MHz (for use in the Americas only) bands.

Features:

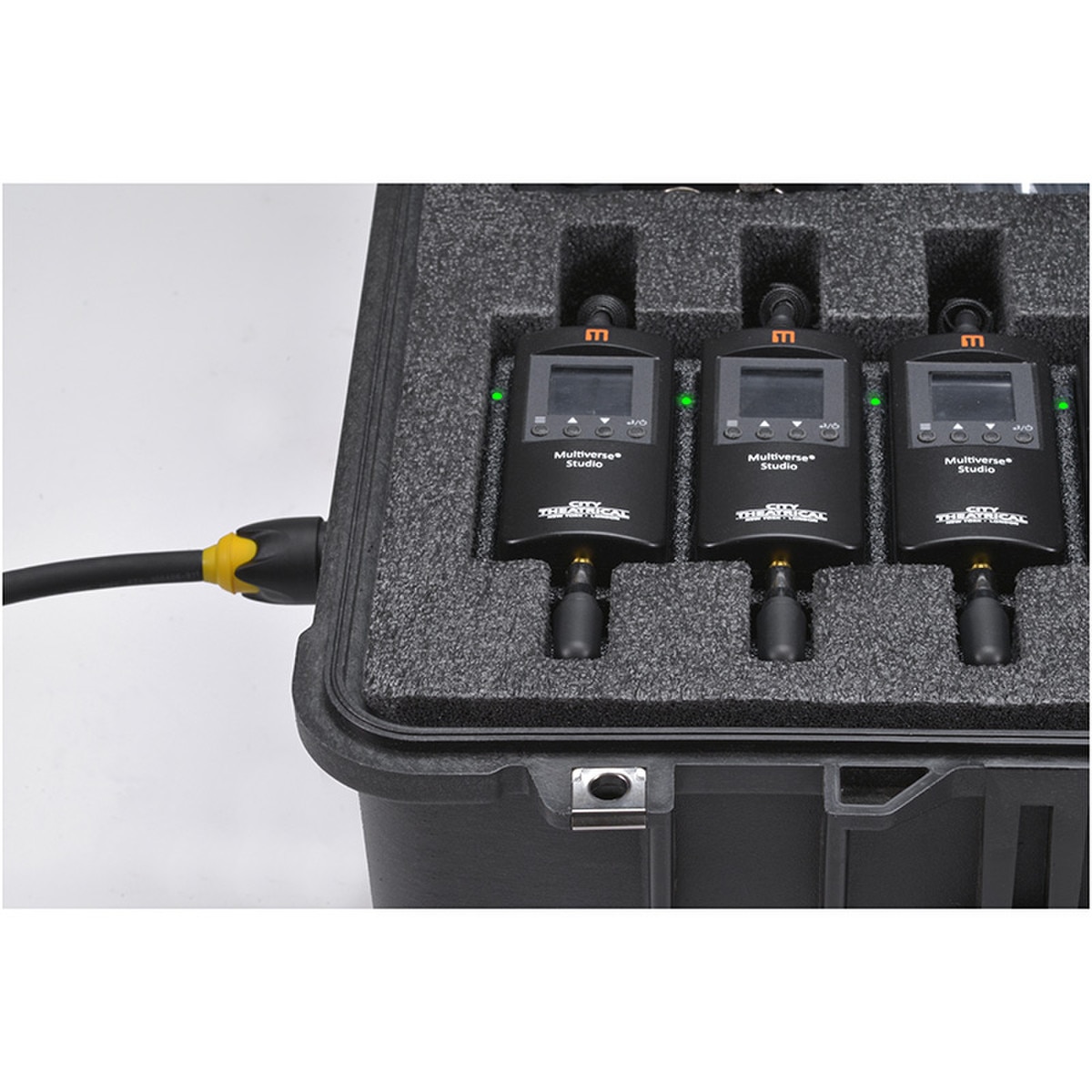

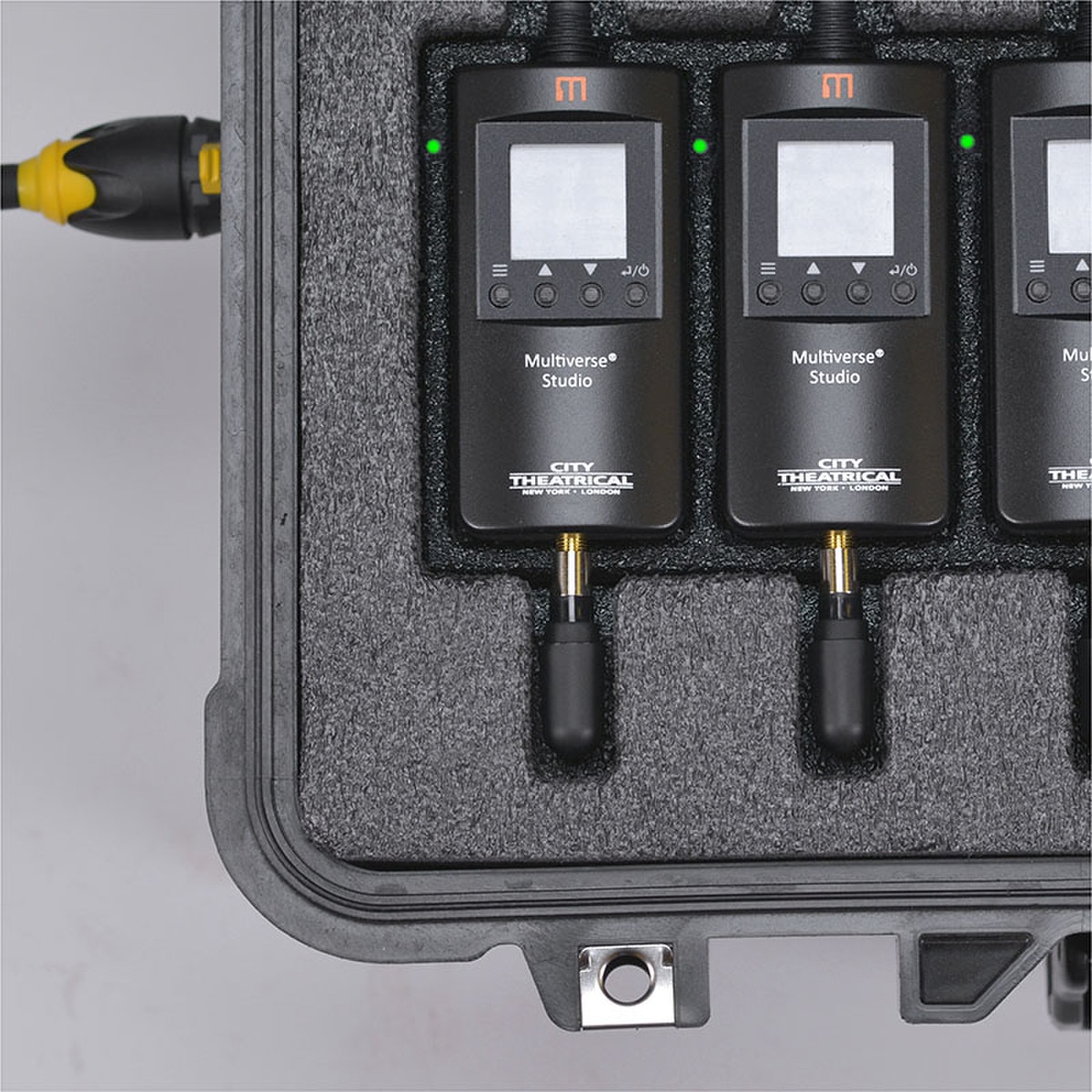

• Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
• Choice of Broadcast Radio: Transmit and receive on either the 2.4GHz band or the 900MHz band. (P/N 5905 transmits and receives on the 2.4GHz band only.)
• Long Life Rechargeable Battery: 20 hour battery life with default settings
• Rugged and Splashproof: An IP61 rated plastic case, making it splashproof and rainproof (but not for permanent outdoor use).
• User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method.
• Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
• Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
• Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
• Ultra Low Latency: Total average system latency of 4ms.
• mDMX (Multiverse SHoW IDs only)
• mRDM (Multiverse SHoW IDs only)
• SHoW Key Security (Multiverse SHoW IDs only)
• Forward Error Correction (Multiverse SHoW IDs only)
• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
• Compatible with all Multiverse and SHoW DMX Neo products
• User can select a single universe to receive
• A very simple user interface to set SHoW ID, universe, and other features
• RDM proxy and responder functions
• USB-Power Adaptor and USB-A to USB-C cable included
• Selectable display timeout and brightness level
• Selectable Auto Off Timeout
• Battery Time Remaining displayed in both hours/minutes and percent

Need help getting started? The USB flash drive included with each kit contains the user manual for each product in the kit, software downloads, and other useful information. Here are the three basic steps involved in setting up a system:

1. Use the RadioScan Spectrum Analyzer to view the radio activity in the spectrum around you, and choose the area of the spectrum in which you want to broadcast. Use the Multiverse SHoW IDs tab on RadioScan to help choose a SHoW ID.
2. Enter the SHoW ID you chose into the Multiverse Transmitter or Multiverse Node you are using, and into each Multiverse Studio Receiver.
3. Enter the universe you are broadcasting, and an optional SHoW Key, into the Multiverse Transmitter or Multiverse Node you are using, and into each Multiverse Studio Receiver.

Specifications:

• Maximum Concurrent Universes: 1 – 10
• Frequency Range: 2400 – 2480 MHz

Power (Kit):

• Input Power: 100-240VAC 50-60Hz
• Max Draw: 0.95A

Radio Technology:

• Latency: 4 ms average
• RF Sensitivity: -95dBm
• Loss of Data Behavior: Output stops
• Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
• Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
• Show IDs: Multiverse: 217; Neo: 70
• RDM Features: RDM Proxy, RDM Responder

Product Information:

• IP Rating: IP20
• Compliance: FCC, IC, cETLus Listed, CE, RoHs
• Operating Temperature: 0º to 40ºC when charging
• Warranty: One year
