City Theatrical Multiverse Studio Receiver 2.4GHz

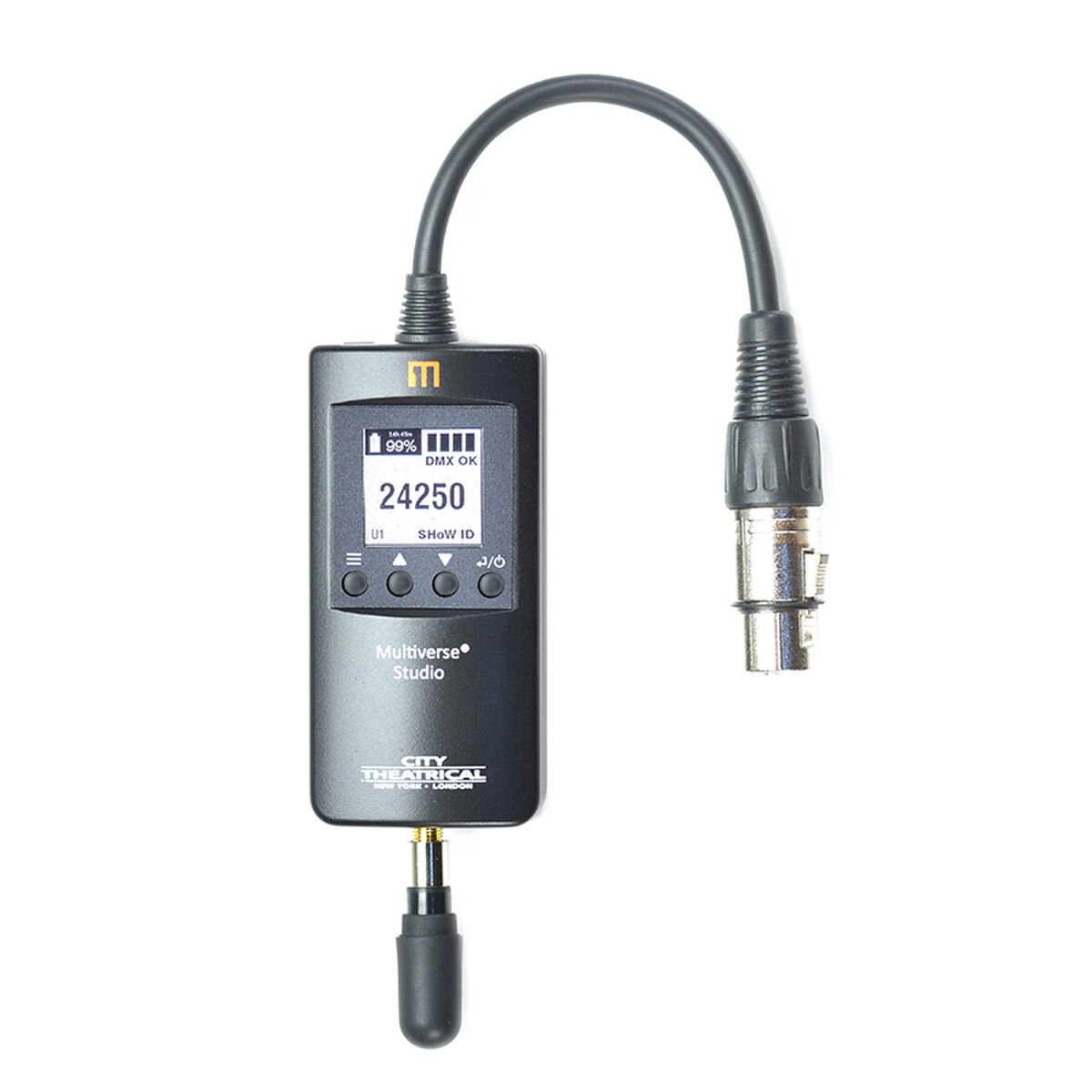

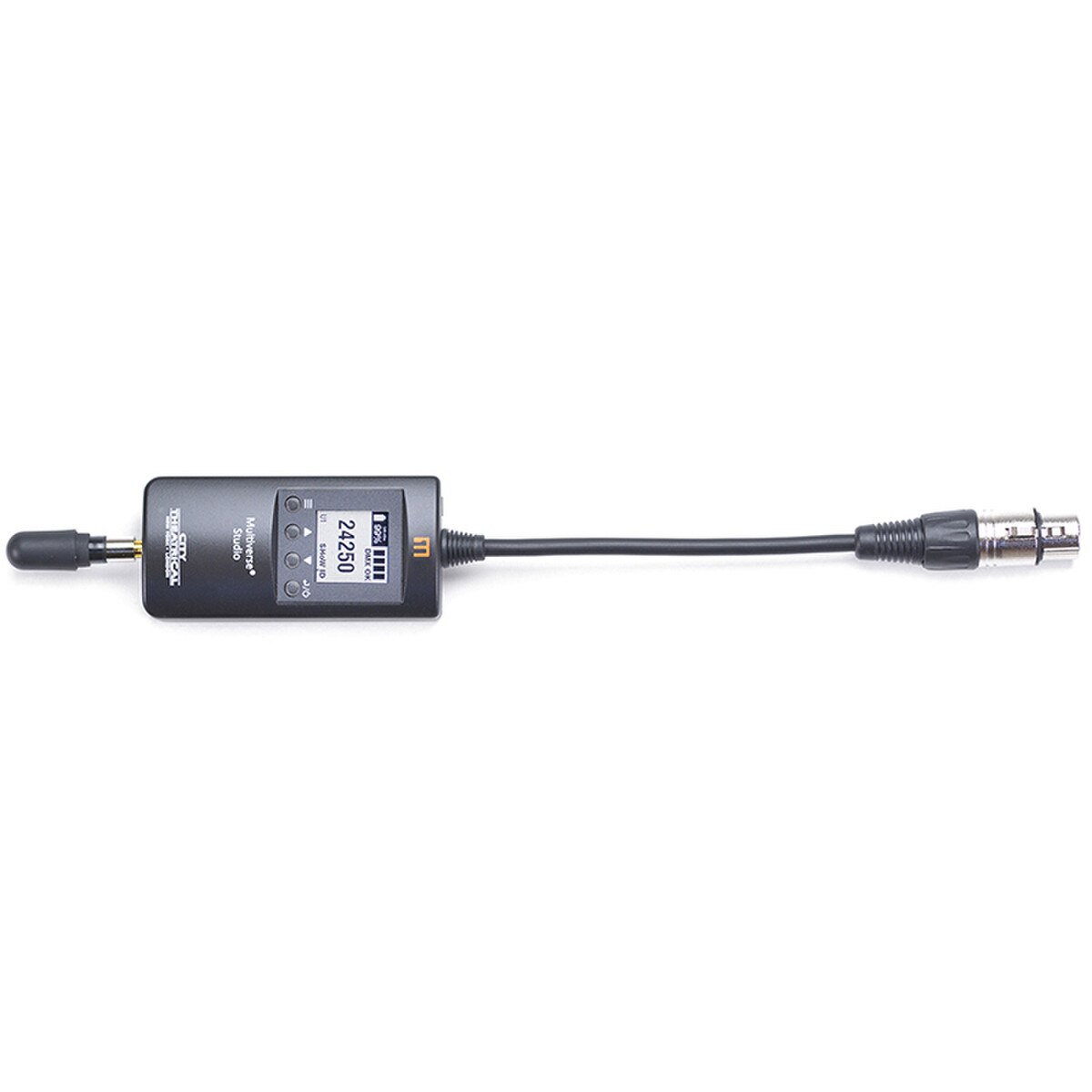

City Theatrical’s Multiverse® Studio Receiver brings the advanced features of the Multiverse wireless DMX/RDM system to the film and video world, where fast setup and reliability are key objectives. The weather resistant Multiverse Studio Receiver contains a long-life lithium-ion polymer battery giving 20 hours of use. The Multiverse Studio Receiver has a full four button user interface with a backlit LED display that makes setup easy and gives feedback on system performance. Its case is IP61 rated plastic, making it splashproof and rainproof (but not for permanent outdoor use).

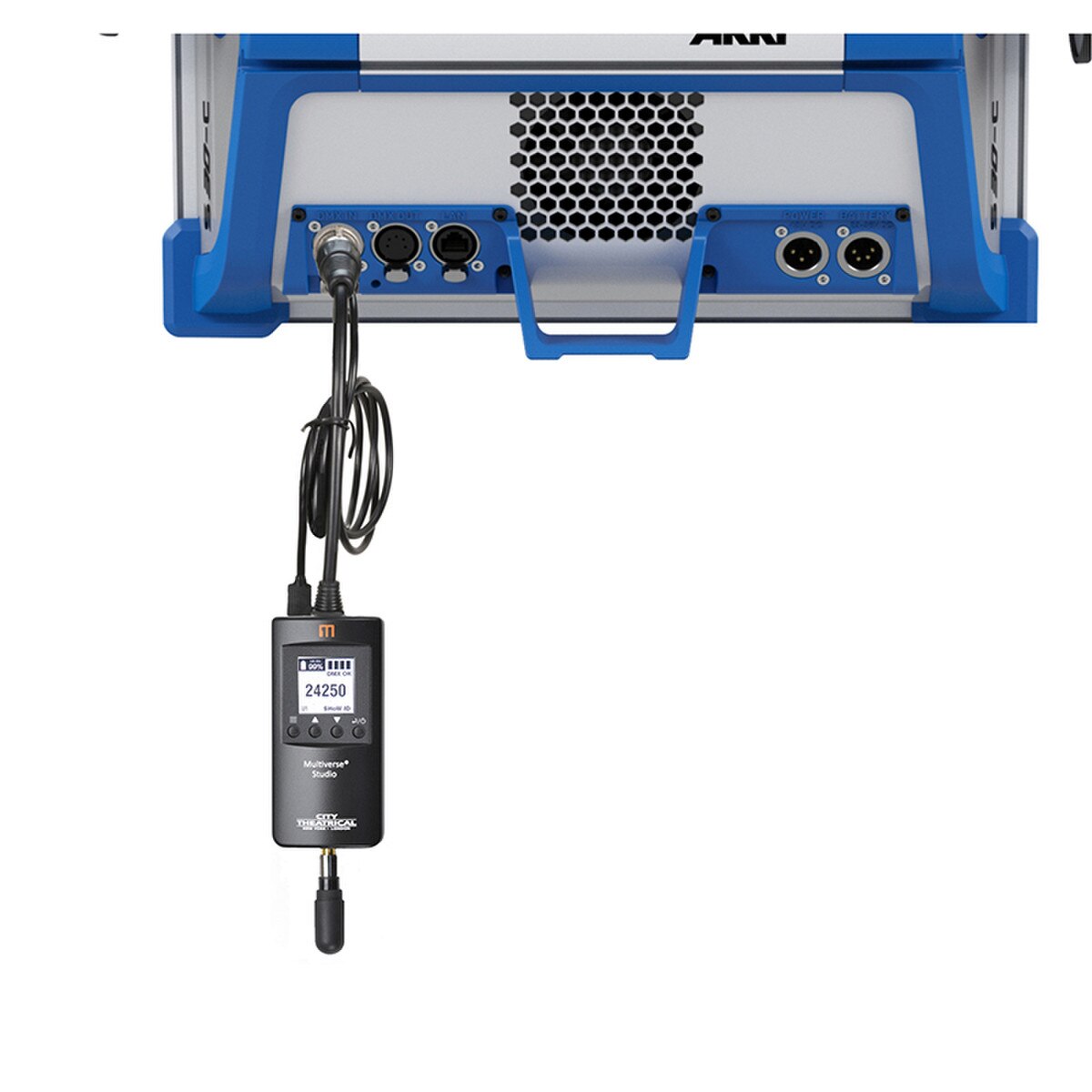

The DMX corded connector allows the Multiverse Studio Receiver and external antenna to hang below the lighting fixture, giving improved data fidelity.

The Multiverse Studio Receiver 2.4GHz (P/N 5905) contains a 2.4GHz radio, and allows the user to select which single universe to receive, and which radio band to use via the Multiverse SHoW ID. This model can be used worldwide.

Features:

Choice of Broadcast Radio:

• Transmit and receive on either the 2.4GHz band or the 900MHz band. (P/N 5905 transmits and receives on the 2.4GHz band only.)

Long Life Rechargeable Battery:

• 20 hour battery life with default settings

Rugged and Splashproof:

• An IP61 rated plastic case, making it splashproof and rainproof (but not for permanent outdoor use).

User Selectable SHoW IDs:

• City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.

Adaptive Spread Spectrum Frequency Hopping:

• Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.

Adjustable Output Power:

• Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.

Ultra Low Latency:

• Total average system latency of 4ms.

mDMX:

• (Multiverse SHoW IDs only)

mRDM

• (Multiverse SHoW IDs only)

SHoW Key Security:

• (Multiverse SHoW IDs only)

Forward Error Correction:

• (Multiverse SHoW IDs only)

Protocols Supported:

• ANSI E1.11 DMX512-A; E1.20 RDM

Specifications:

• Compatible with all Multiverse and SHoW DMX Neo products
• User can select a single universe to receive
• A very simple user interface to set SHoW ID, universe, and other features
• RDM proxy and responder functions

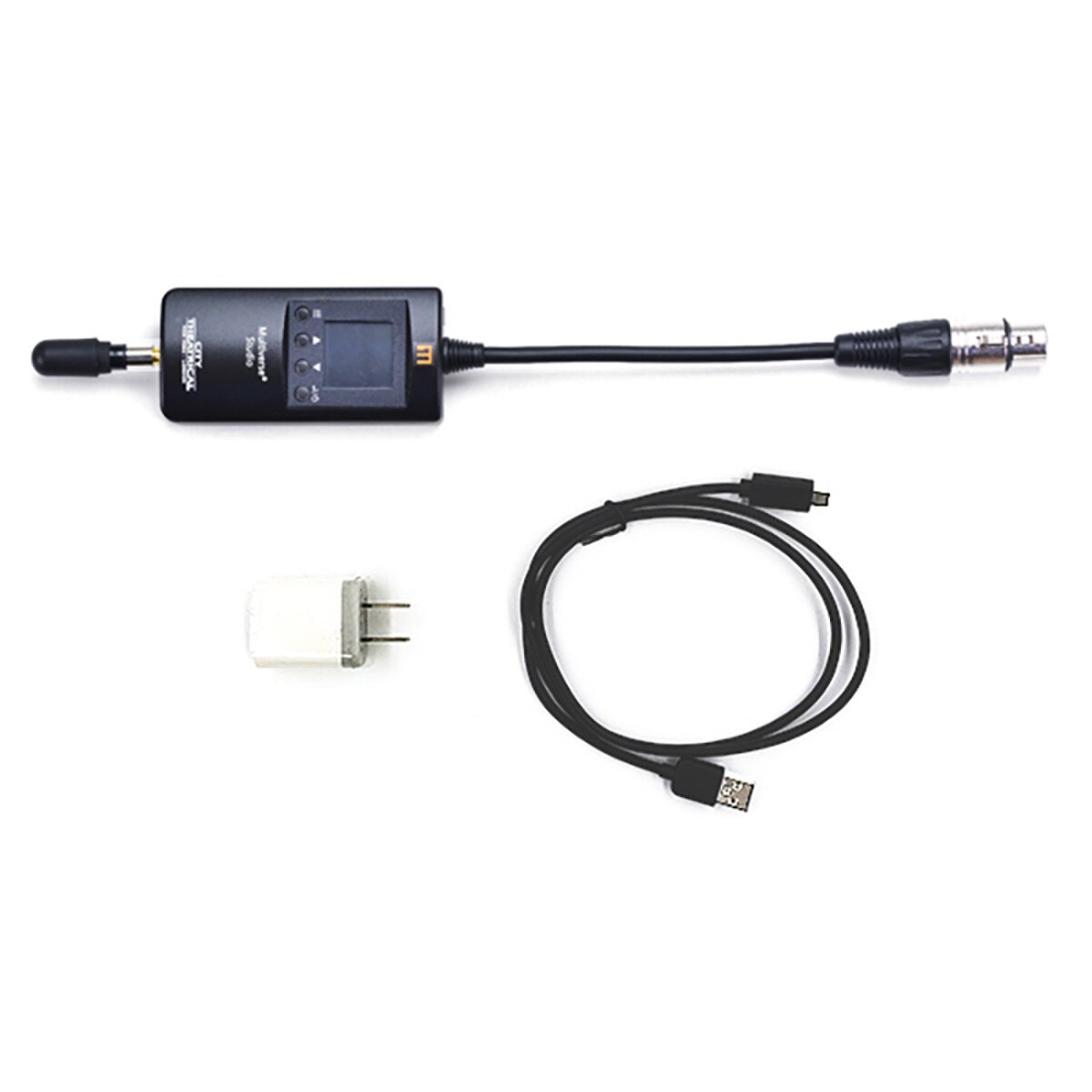

• USB-Power Adaptor and USB-A to USB-C cable included
• Selectable display timeout and brightness level
• Selectable Auto Off Timeout
• Battery Time Remaining displayed in both hours/minutes and percent
• Contactless charging with the Multiverse Studio Kit or Multiverse Studio Add On Kit

Physical Specifications:

• Length: 95.25mm (3.75 in)
• Length with antenna: 139.7mm (5.5 in)
• Width: 46.0mm (1.812 in)
• Height: 25.4mm (1.0 in)
• Antenna: 2.4GHz 3.8dBi

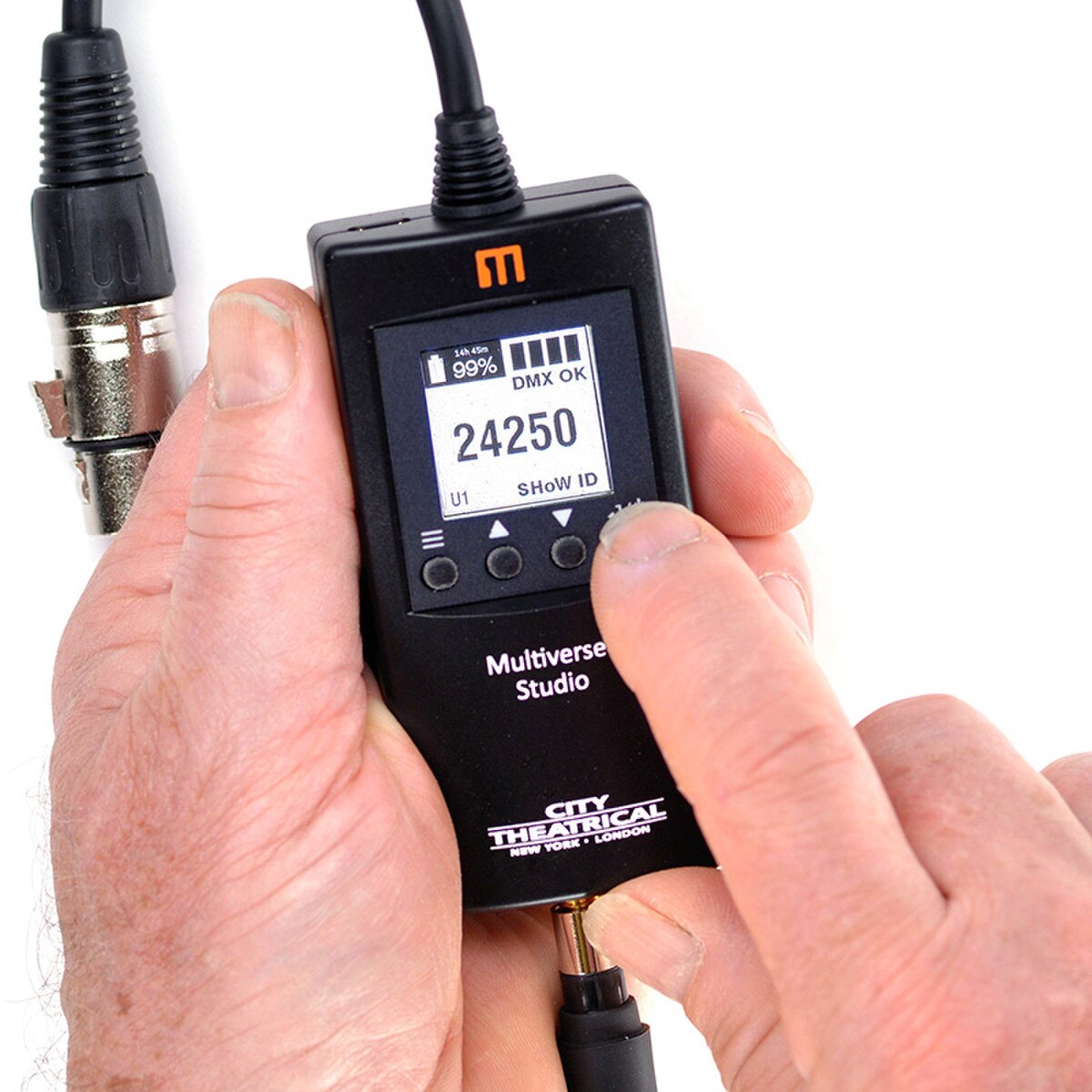

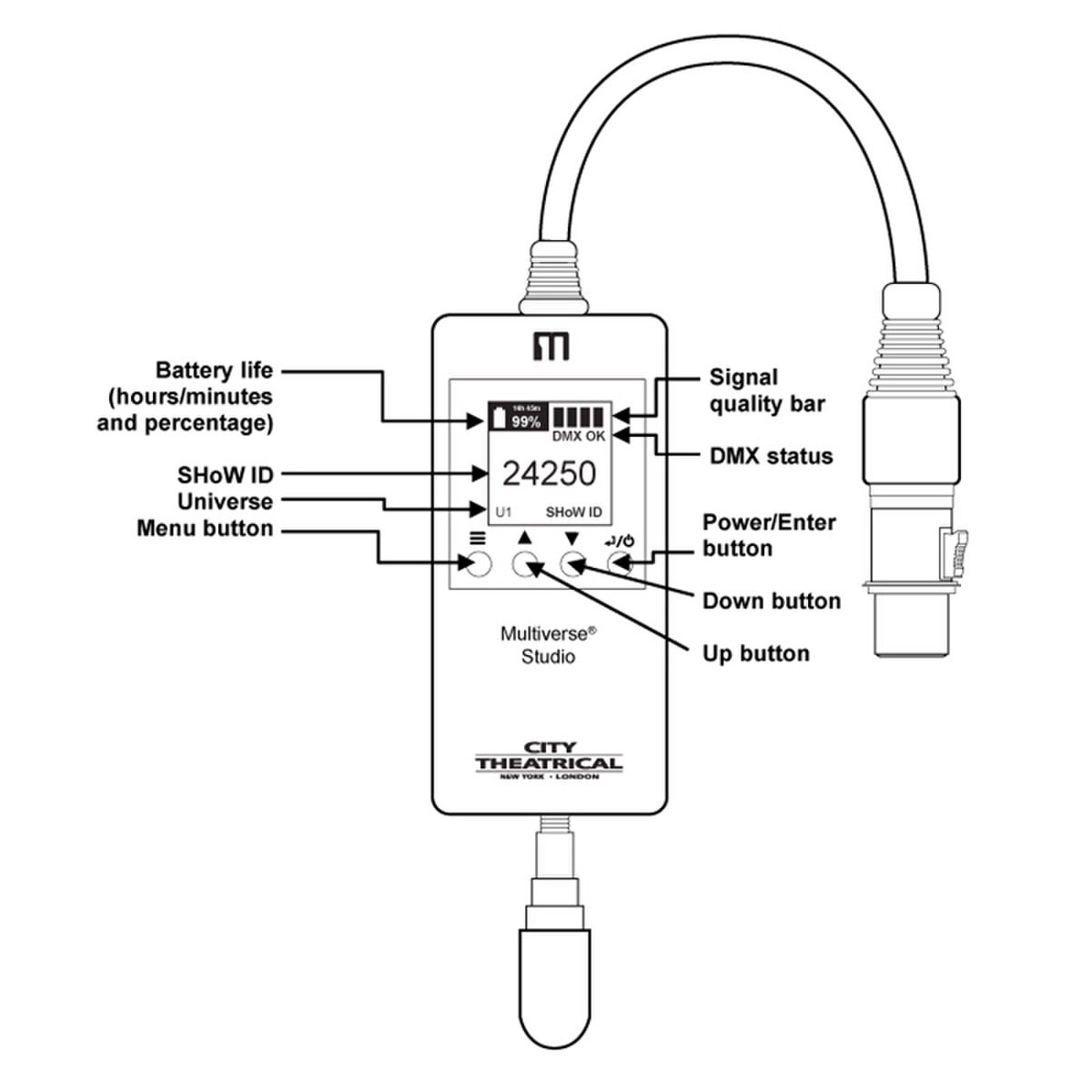

• User Interface: 4 Button/Backlit LCD display
• Construction: ABS plastic

Electrical:

• Power: Internal battery; included external power supply 100-240VAC input, 5VDC output USB-A
• Battery: Internal lithium-ion polymer, 20-hour life on default operating settings
• Charge time: Contactless charger: 3.5 hours, USB-C: 2.5 hours

Radio Technology:

• Latency: 4 ms average
• RF Sensitivity: -95dBm
• Loss of Data Behavior: Output stops
• Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
• Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
• Show IDs: Multiverse: 217; Neo: 70
• RDM Features: RDM Proxy, RDM Responder

Product Information:

• Use Environment: Indoor, Outdoor (splashproof, but not for permanent outdoor use)
• Operating Temperature: -20º to 50ºC, 0 to 40ºC when charging
• IP Rating: IP61
• Compliance: FCC, IC, CE, UKCA, ARIB, RoHS
• Warranty: One year

Maximum Concurrent Universes:

• 1

Frequency Range:

• 2400 – 2480 MHz
