City Theatrical Projector Dowser

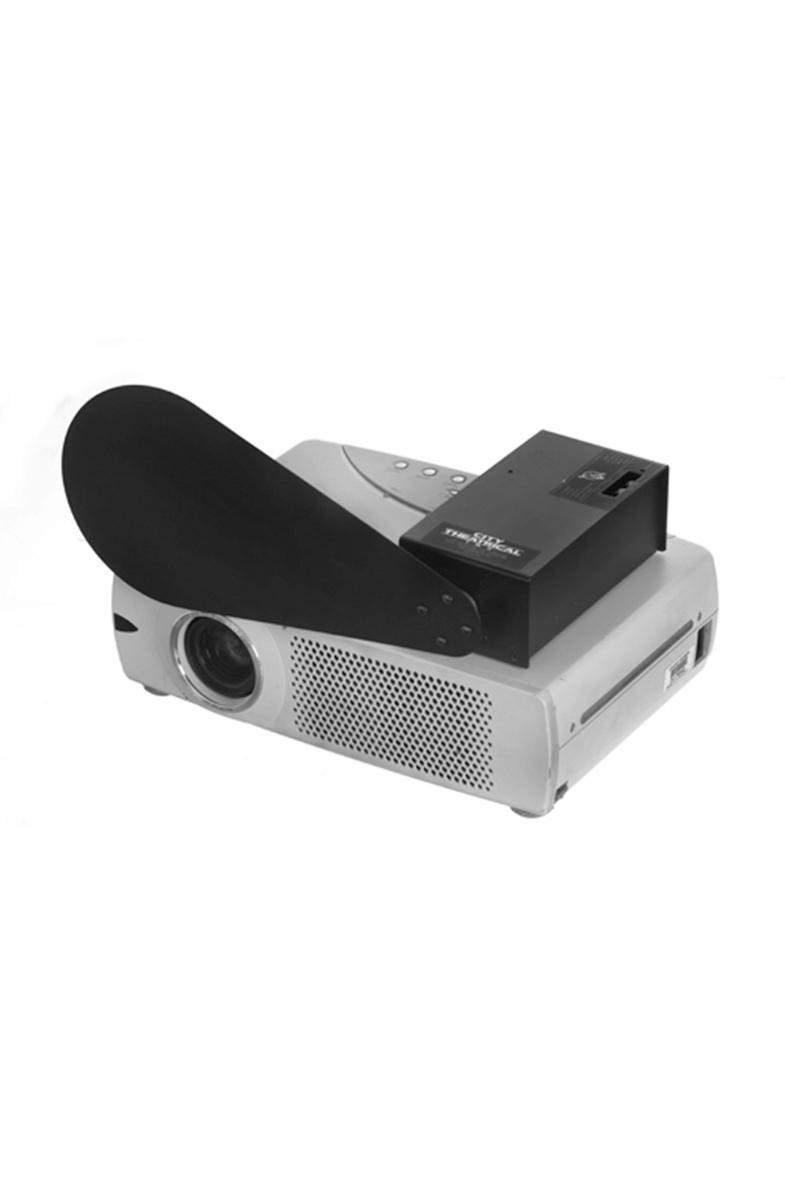

The City Theatrical Part Projector Dowser is a DMX 512 controlled mechanical dowser for use with digital projectors. The Projector Dowser changes "video black" to a real blackout by positioning a large flag in front of the projectors lens.

Features:

• A large flag is adjustable on the motor shaft to allow the Dowser to be placed above, below, or to either side of the projector
• Travel of the flag is DMX adjustable within a range of 90 degrees. (Full 90 degree travel takes under one second at full speed)
• Large flag may be trimmed with heavy shears or tin snips to suit your application
• Connects via industry standard DMX/accessory power 4 Pin XLR cables
• Compatible with CTI # 2199 Power Supply, or Wybron Forerunner, Chroma Q, Rainbow, Spectra and Rosco PS power supplies
• Dry closure control input for operation without DMX provides local manual control, or connection to a show controller
• LED status indication
• Uses a single DMX channel, addressable as any DMX value from 1 to 512. Addressing is controlled by a standard array of three 10 digit BCD switches, configured as 100s, 10s, and 1s
• Comes with accessory kit including an accessory plate, velcro pad kit, allen key, and rubber feet
• Power: 24VDC, 250mA
