City Theatrical QOLORFLEX RGBCW LED STRIP 1-9 PCS-5m

(0)No Reviews yet
$246.50
SKU: City Theatrical 5050-24-RGBCW-60-5-20-1

Add this item to get free shipping! (Motor Freight Excluded)

Details

LED tape is a revolutionary product, allowing LED lighting users to put light in places that were impossible in the past and to create lighting fixtures and lighting effects in new and inexpensive ways. It is disruptive technology at its best with a strip.

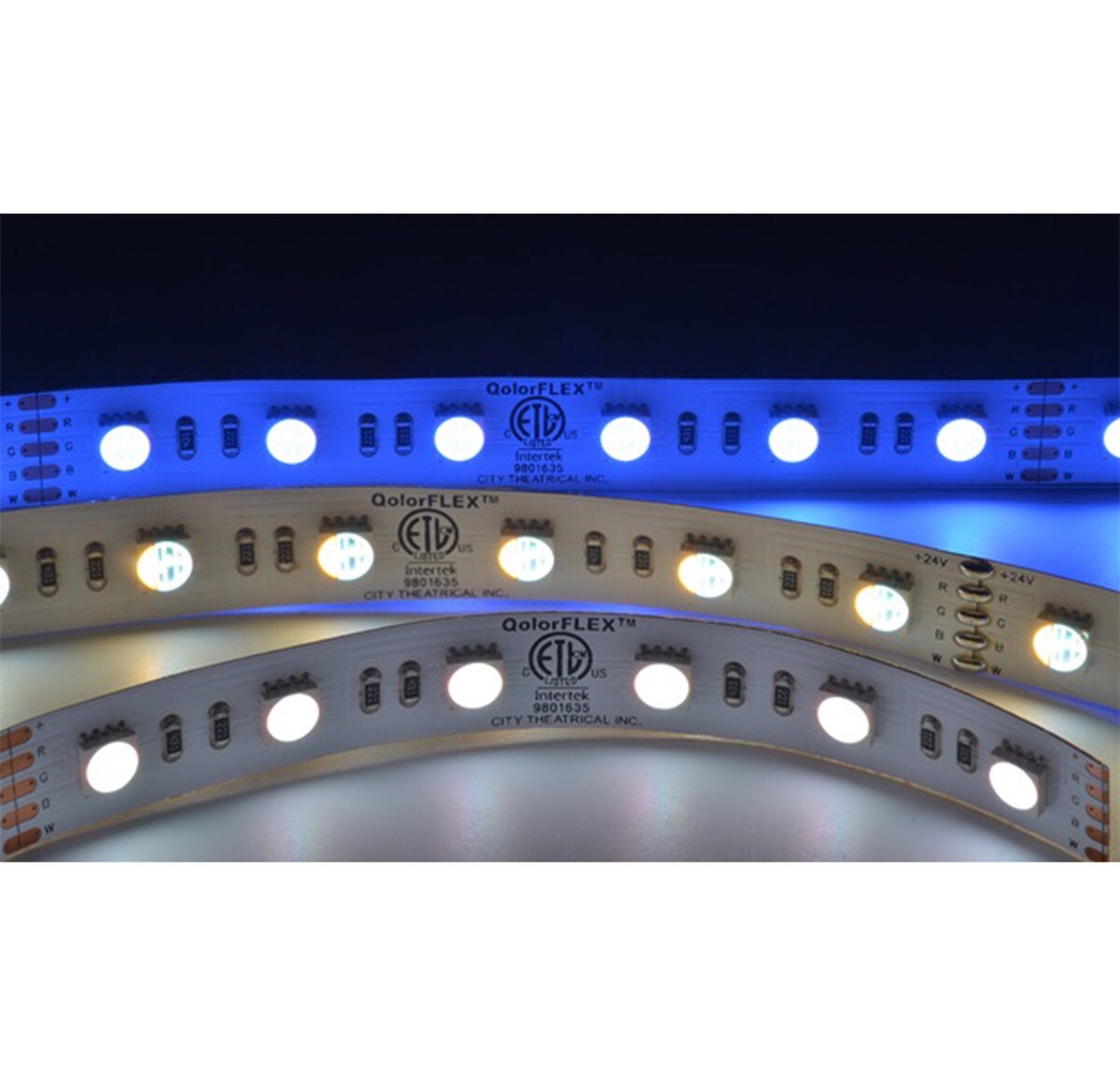

Our QolorFLEX® LED tape is manufactured to City Theatrical’s exact specifications for professional use in Theatrical, Film, and Video applications. QolorFLEX® LED tape is available in a variety of types such as single color, RGB, RGBA, and RGBW. The types are constantly evolving, so check our website regularly for new additions. It has an adhesive applied to the back side to allow peel-and-stick mounting. It is available in 5 meter (16.4 ft.) spools or cut-to-order lengths.

CTI can also manufacture custom LED configurations on our in-house surface mount line to suit your exact specifications.

LED SIZE-

Refers to the actual chip size of the LED.
In general, larger the chip size, the more light output is possible. Single color QolorFLEXstrip is available in 2 chips: 5050 (.50mmx.50mm) and 3258 (.35mmx.28mm). Multicolor QolorFLEX types (RGB, RGBA, RGBCW, RGBNW, RGBWW,
RGBI) all use the 5050 chip. Our Adjustable White (WWCW) uses the 3528 chip size.

OPERATING VOLTAGE-

QolorFLEX is available in both 12 and 24 Volt configurations. 24 Volt strip allows for longer continuous runs and requires half the amperage of 12 Volt strip to operate.

LED COLOR-

QolorFLEX is available in a variety of different colors and combinations of colors. Single color white stripes are available in cool (CW), natural (NW), and warm (WW) color temperatures. Adjustable white (WWCW) has a combination of alternating cool and warm white chips which can be controlled to achieve a specific color temperature according to preference. Multicolor strips consist of RGB tricolor LEDs plus a fourth color(amber, cool, white, natural white, warm white, indigo). LEDs which enables the mixed color output to be tuned and or balanced as needed.

QTY LED'S PER METER is the number of LED'S contained in a meter of strip. More LED's produce more light output.

LENGTH

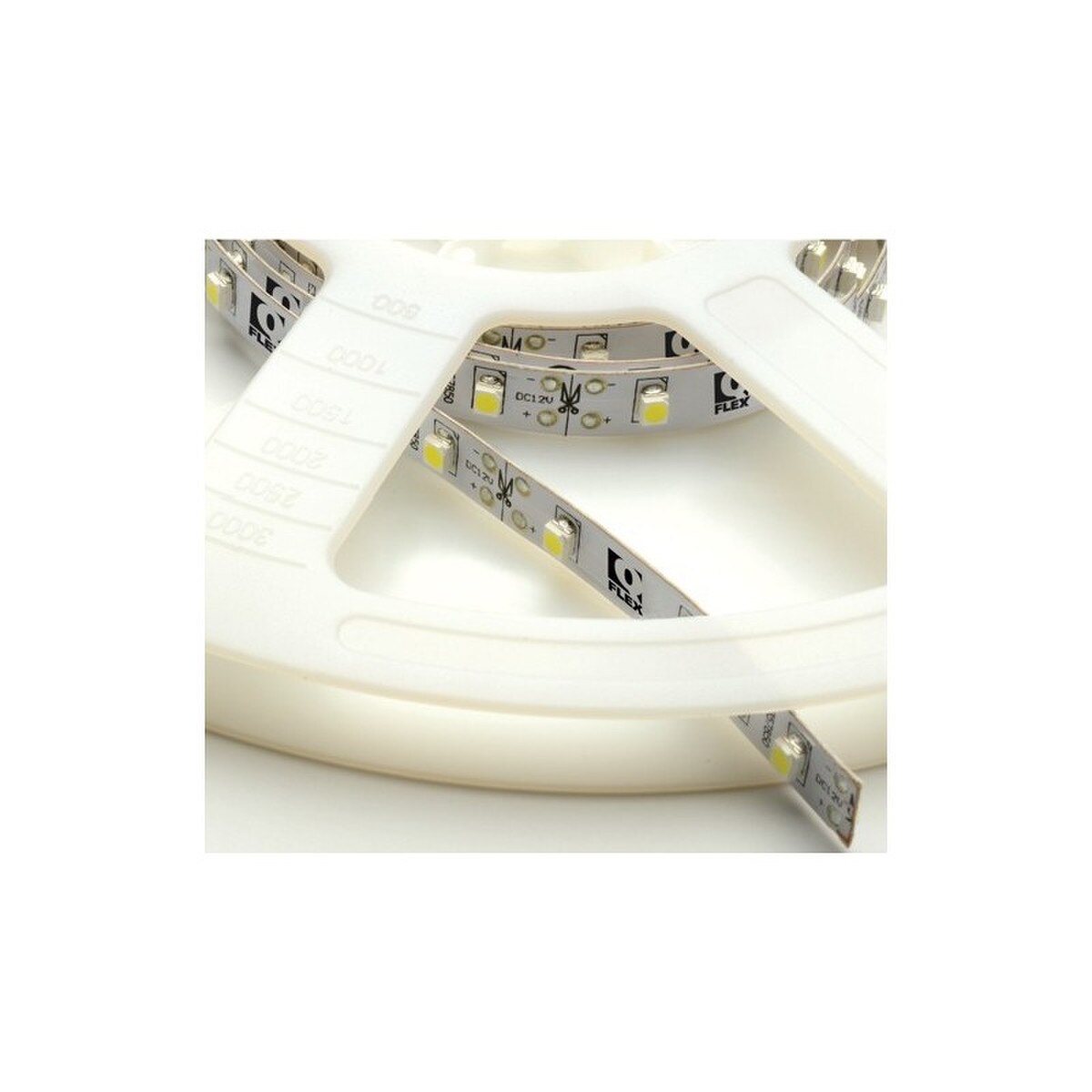

QolorFLEX is most commonly sold in Full reels which contain 5 meters (16.4ft) of product. Each end of the strip sold this way has a soldered pigtail of color coded ribbon cable for attaching to dimming / power devices. For custom lengths less then 5 meters, "CTL" should be substituted when ordering, and the desired pigtail configuration discussed with our sales department as is needed. For an 18" sample length without pigtails use "0" as the length designation. Please contact your nearest dealer to help with custom quotes.

IP RATING

Indicates the approved use environment. IP 20 is Approved for indoor use only, IP 67 Suitable for outdoor use.

TAPE COLOR

Currently, all QolorFLEX Tape is available with a white (1) background color as a standard product. If other
then white is required, contact our sales department for custom pricing and lead times.



2835-24-H3200-120-5-20-1 (1).pdf
