  • City Theatrical QolorFLEX® NuNeon, RGB, 24V, 5m, 9mm W X 14mm H

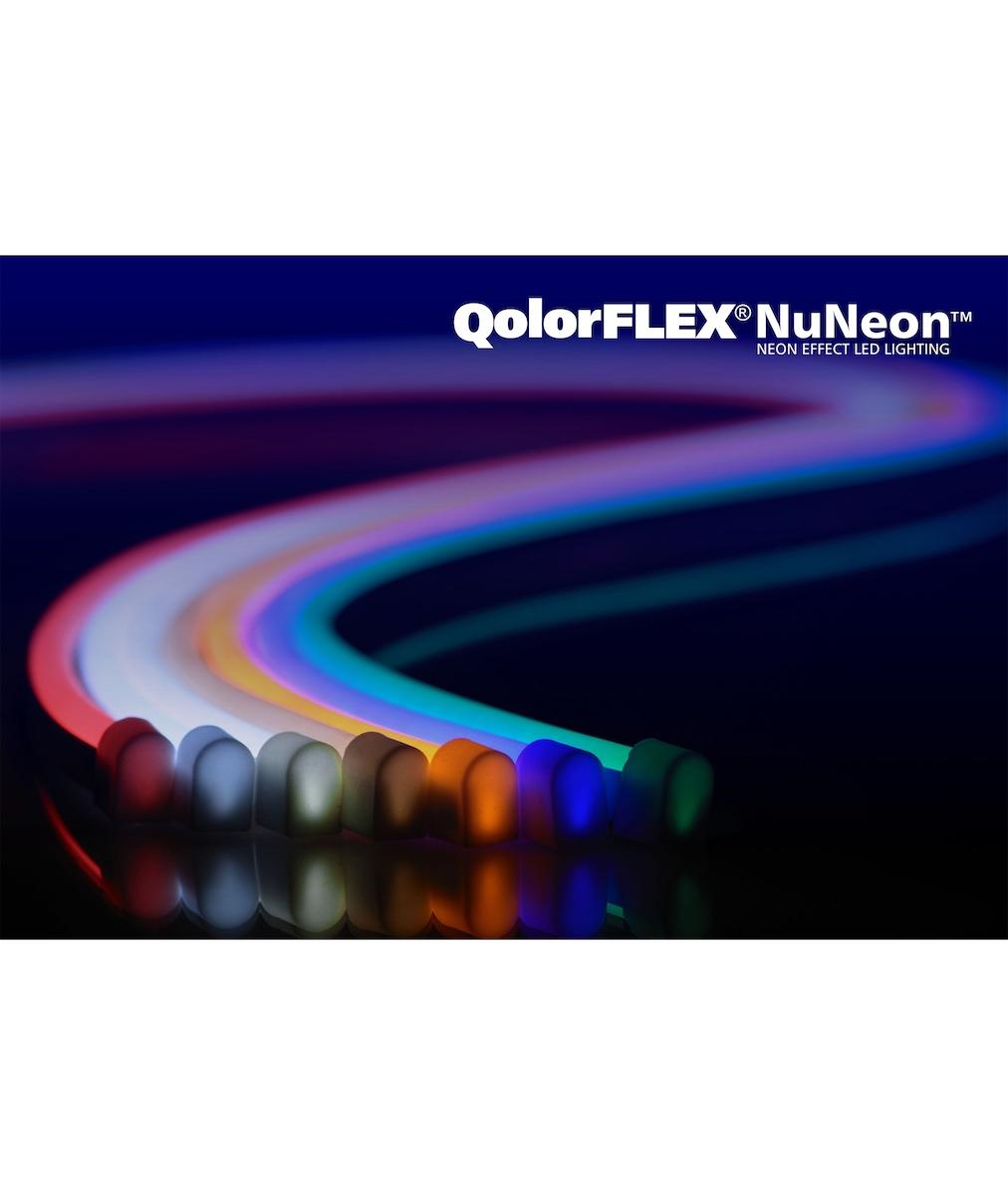

City Theatrical QolorFLEX® NuNeon, RGB, 24V, 5m, 9mm W X 14mm H

(0)No Reviews yet
$295.60
SKU: City Theatrical N914-RGB-5

Details

Physical

  • Length 5m (16.404 ft)
  • Height 14mm (0.551 in)
  • Width 9mm (0.354 in)
  • Cutting Increment 50mm (1.969 in)
  • LED Spacing 7.14mm (0.281 in)
  • Material Silicone Extrusion
  • Type White Finish
  • Connector Type 200mm long (7.874 in) flat cable on both ends, stripped 10mm and tinned
  • Minimum Bending Radius Flat plane: ½” Global axis: 6”

Output

  • Color(s) RGB
  • Wavelength 622/518/468 nm
  • Beam Angle 120°
  • Light Color Detail Red, Green, Blue
  • Lumens Per Meter 330 lm/m

Electrical

  • Operating Voltage 24VDC
  • Current 2.0A
  • Power Consumption 9.6w/m (2.93 w/ft)
  • Power Consumption/5m 48w/5m
  • Density 140 LEDs/m
  • LED Type 3528

Product Information

  • Use Environment Indoor/ Outdoor
  • Dimmable Fully Dimmable
  • Average Life 50,000 hours
  • Warranty Two years
  • IP Rating IP67
  • Compliance ETL, CE, RoHS

n914-a-10-cut-sheet (1).pdf
