Clear-Com 2 Ch. 4-Wire IP Communications Interface

(0)No Reviews yet
$2,605.00
SKU: Clear-Com LQ-4W2

Details

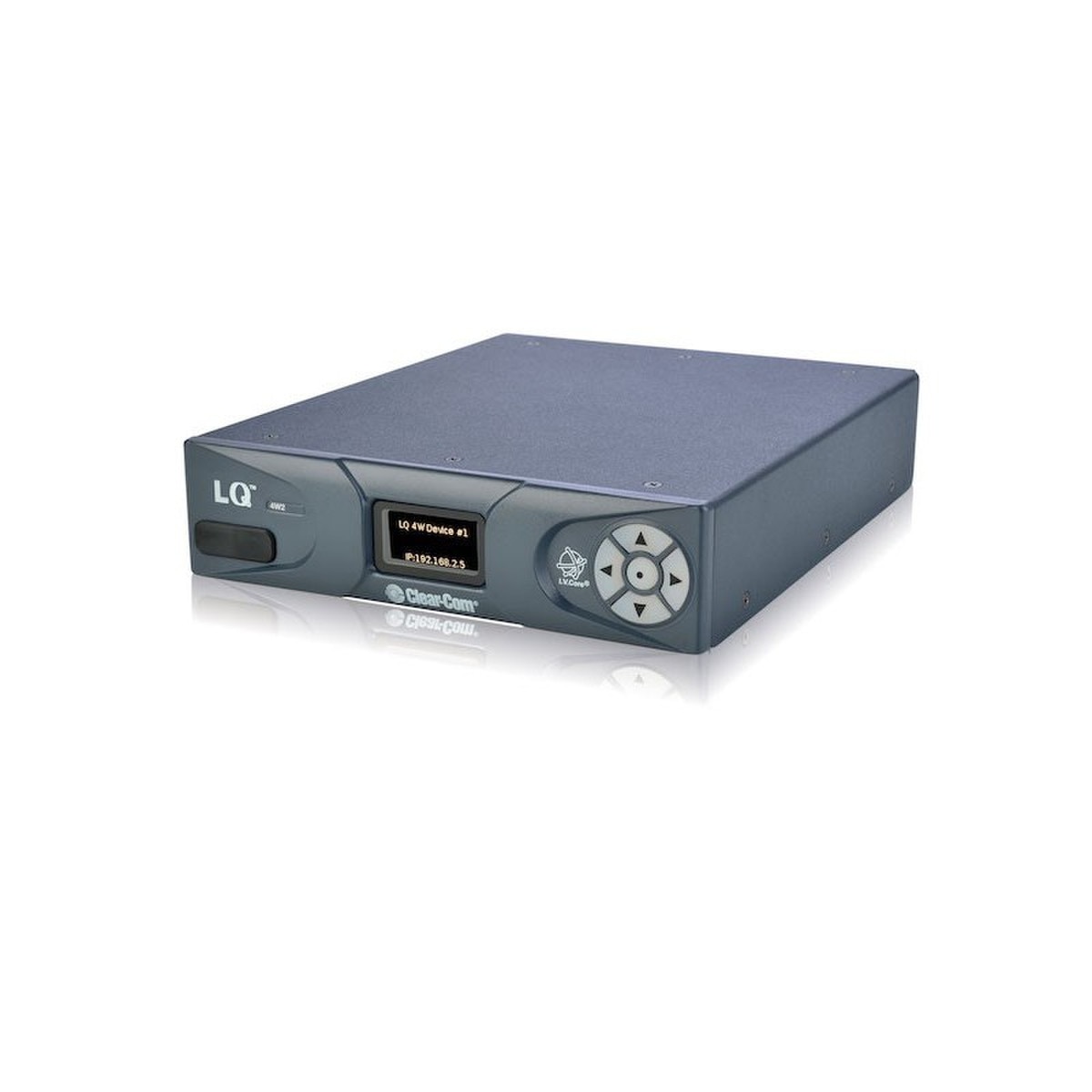

The LQ-4W2 is a compact box that enable connection of 4-wire audio devices over LAN, WAN or Internet IP infrastructures. The LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.

Features:

  • Connectivity
    • Transport audio and call signaling over LAN, WAN and Internet networks
    • Wide range of bitrate settings
  • Linking
    • Up to 6 units can link together (both 4-wire and partyline)
    • Multiple groups of six in any network
  • Power Options
    • Power-over-Ethernet (PoE)
    • External wall DC adapter
  • Audio
    • Low-latency OPUS CODEC
    • 12 KHz frequency response
    • Point-to-point and group audio routing
  • 2 Port 4-Wire Device
    • Professional etherCON connectors
  • Core Configurator Manager (CCM) Software
    • Browser-based configuration for PC, MAC and Tablet
    • Web server inside each device (no additional software needed)

Specifications:

  • Audio
    • Resolution: 12 bit
    • Sample Rate: 24KHz
    • Frequency Response: 100 – 12KHz
    • CODEC: OPUS
    • Input Gain: -12dB to +12dB
    • Output Gain: -12dB to +12dB
  • Network Setting
    • Bit Rates: 32, 48, 64, 128Kbps
    • Packet Size: 5, 10, 20, 40, 60ms
    • Jitter Buffers: 0 - 1000ms
  • Connectors
    • 2 x EtherCON (female): 2 x Network
    • 2 x EtherCON (female): 2 x Audio I/O
  • Partyline Output Current
    • Type: Clear-Com & RTS
    • Local DC Powered: 150mA
    • POE Powered: 70mA
  • Power Supply
    • Plug-in adapter with sleeve locking connector
    • (US, UK , Europe, AUS & China sockets included)
    • Input: 100-240V, 47-63Hz, 0.58A MAX
    • Output: DC 12V, 2A, 24W MAX
  • Environmental
    • Operating Temperature: +32°F - +104°F (0°C - +40°C)
    • Storage Temperature: -67°F - +158°F (-55°C - +70°C)
    • Humidity: 90%, non-condensing
  • Dimensions
    • 6.8" W x 1.79" H x 8.45" D
    • (173mm x 46mm x 215mm)
  • Weight
    • 1.83lbs (.83kg)


LQ-Series_Datasheet_96184.pdf
LQ-Series_Quick_Start_Guide_96184_File_1.pdf
LQ-Series_User_Guide_96184_File_2.pdf
